50W100W/200W Portable Handheld Metal/Stainless Steel/Aluminum/Brass/Copper Laser Rust Removal Cleaner Cleaning Machine
Fortune Laser Technology Co., Ltd.- After-sales Service:Online Support, Video Technical Support
- Power:50W, 100W
- Control Type:Handheld
- Warranty:1 Year
- Laser Power:50W 100W 200W Optional
- Laser Source:Jpt,Max,Raycus Optional
Base Info
- Model NO.:FL-C50S
- Fiber Cable Length:1.5m-3m, 2-5m
- Laser Wavelength:1060nm
- Pulse Energy:1mj, 1.5mj
- Pulse Frequency:1-3000kHz
- Cooling:Air Cooling
- Dimension:300*160*450mm, 500*300*650 mm
- Transport Package:Standard Wooden Case
- Trademark:FORTUNE LASER
- Origin:China
- HS Code:8456110090
Description

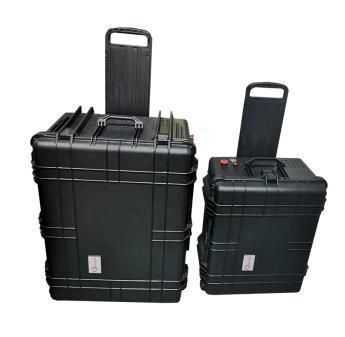

Suitcase type is same as a travel case, very easy to take along and move.

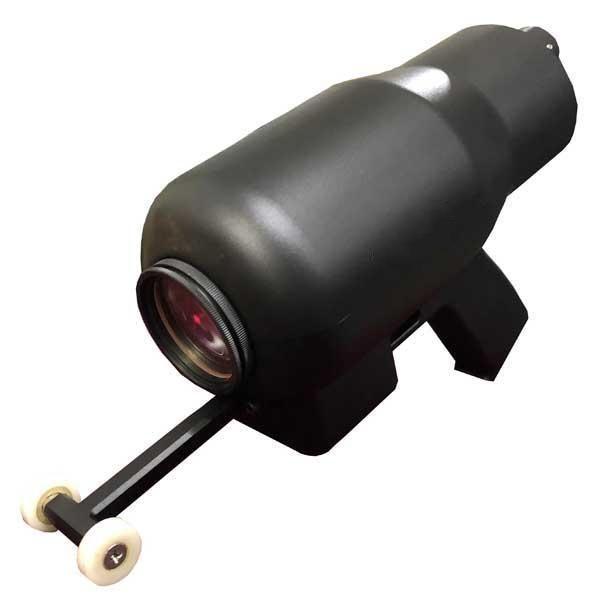

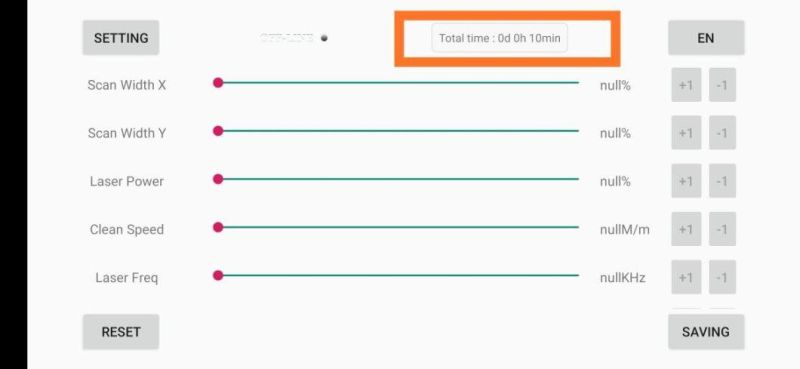

Phone APP control settings.Laser head, lightweight to carry, easy to operate, output different share laser beam, like wave, circle and square.
Machine Parameters
Model | RL-C200S | RL-C100S | RL-C50S |
Laser source | Fiber | Fiber | Fiber |
Laser Power | 200W | 100W | 50W |
Fiber cable length | 2-5M | 2-5M | 1.5-3M |
Laser Wavelength | 1064nm | 1064nm | 1064nm |
Pulse Energy | 1.5 mJ | 1.5 mJ | 1mJ |
Pulse frequency | 1-4000KHz | 1-4000KHz | 1-1000KHz |
Scanning speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
Cooling | Air cooling | Air cooling | Air cooling |
Dimension | 600*350*800mm | 500*300*650 mm | 300*160*450mm |
Net Weight | 60KG | 33KG | 18KG |
G.W. | 87KG | 37KG | 21KG |
Beamwidth | 10-170mm | 10-100mm | 10-70mm |
Optional | Manual/Auto | Manual | Manual |
Cleaning Head | Dual Axis | Dual / Single Axis | Single Axis |
Temperature | 5-40 ºC | 5-40 ºC | 5-40 ºC |
Voltage | Single Phase AC 220V,50/60HZ | Single Phase AC 220V, 50/60HZ | Single Phase AC 220V, 50/60HZ |
