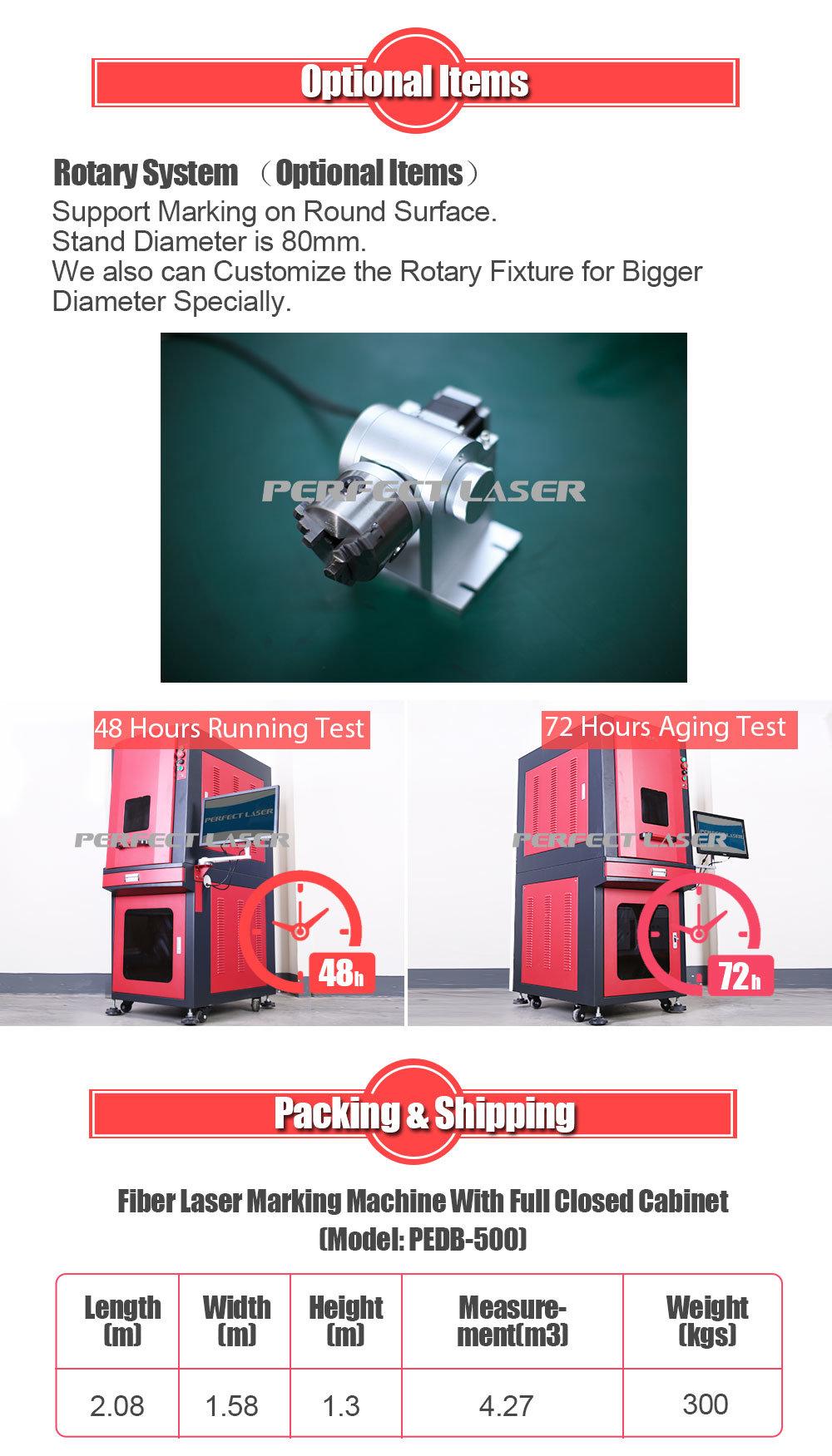

Fiber Laser Metal Etching Machine with Full Enclosed Cabinet
Perfect Laser (Wuhan) Co., Ltd.- Laser Visibility:Invisible
- Applicable Material:Metal and Most Non-Metal
- Cooling System:Air Cooling
- Technical Class:Pulse Laser
- Laser Wavelength:Fiber Laser
- Laser Classification:Solid Laser
Base Info
- Model NO.:PEDB-500
- Type:Optical Fiber Laser Marking Machine
- Marking Method:Scanning Marking
- Mode of Operation:Pulsed
- Polarization:Random
- Output Power Adjustment Range:10%-100%
- Nominal Average Output Power W:20W
- Central Emission Wavelength:1060-1070 Nm
- Emission Bandwidth (Fwhm):<10 Nm
- Long-Term Average Power Instability:<5%
- Pulse Width, (Fwhm):100 Ns
- Laser Switching on Time:180 μsec
- Max. Power Consumption:0.5 Kw
- Transport Package:Wood Crafcase
- Specification:75kg
- Trademark:Perfect Laser
- Origin:Hubei
- Production Capacity:1000 Units Per Month
Description
Q-switched operation
Output power adjustment range
10%-100%
Nominal average output power W
20W
Central emission wavelength
1060-1070 nm
Emission Bandwidth (FWHM)
<10 nm
Long-term average power instability
<5%
Pulse width, (FWHM)
100 ns
Laser switching ON time
180 μsec
Laser switching OFF time
180 μsec
Pulse Repetition Rate* kHz
20-80 kHz
Energy per pulse (PRR = 20 kHz)
0.95 mJ
Typical beam quality, M2
<1.8
Output fiber delivery length
3m
Operating voltage
220V
Max. Power consumption
600W
Before making a quotation, could you provide us more information:
1. What's your marking material? (stainless steel, aluminum, plastic, mechanical tool, ring...)
2. What's your marking area? (110*110mm, 175*175mm, 200*200mm, 220*220mm, 300*300mm)
3. What kind of marking effect do you want?
4. Are you reseller or end-user?
5. Do you use it on the production line?
6. Do you have any idea about other aspects? Such as shipment, payment, warranty, training etc.
Detailed information will be sent to you asap upon receipt of your inquiry!
Company Information:
Perfect Laser is a world famous manufacturer of industrial laser &cnc equipment. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipments.
Talented Team
Perfect Laser brings together the world's top professional talent and technology, has a highly qualified international personnel. Set from software development to hardware design, system testing, technical services are completed by professional and technical personnel.
Perfect Laser eatalished 2 R&D center in Changchun and Wuhan City, well-known institutions of higher learning and research institutions at home and abroad, work closely with national 63 patents, a number of the core technological achievements and technical indicators at the international advanced level.
Contact me:
Perfect Laser Co,.Ltd.
Contact: Emily /Sales Department
Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).
