Professional Exporter Ring Laser Engraving Machine for Metal
Perfect Laser (Wuhan) Co., Ltd.- After-sales Service：Lifetime After-Sales
- Warranty：3 Years
- Laser Visibility：Invisible
- Applicable Material：Metal and Most Non-Metal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
Base Info
- Model NO.：PEDB-400D
- Laser Wavelength：Fiber Laser
- Laser Classification：Solid Laser
- Type：Optical Fiber Laser Marking Machine
- Marking Method：Scanning Marking
- Ipg Series：Pulsed, High Energy Ytterbium Fiber Lasers
- Mode of Operation：Pulsed
- Polarization：Random
- Nominal Average Output Power：10W - 30W for Pedb-400A ,400b ,400c 10W - 50W for
- Central Emission Wavelength：1060-1070 Nm, Q-Switched Operation Output Power Ad
- Emission Bandwidth (Fwhm)：<10 Nm
- Pulse Width, (Fwhm)：100 Ns
- Laser Switching on Time：180 μsec
- Laser Switching off Time：180 μsec
- Pulse Repetition Rate* kHz：20-80 kHz
- Working Size：110*110mm
- Transport Package：Wood Crafcase
- Specification：75kg
- Trademark：Perfect Laser
- Origin：Hubei
- HS Code：8456110090
- Production Capacity：1000 Units Per Month
Description
Q-switched operationOutput power adjustment range 10%-100% Nominal average output power W 20W Central emission wavelength 1060-1070 nm Emission Bandwidth (FWHM) <10 nm Long-term average power instability <5% Pulse width, (FWHM) 100 ns Laser switching ON time 180 μsec Laser switching OFF time 180 μsec Pulse Repetition Rate* kHz 20-80 kHz Energy per pulse (PRR = 20 kHz) 0.95 mJ Typical beam quality, M2 <1.8 Output fiber delivery length 3m Operating voltage 220V Max. Power consumption 600W

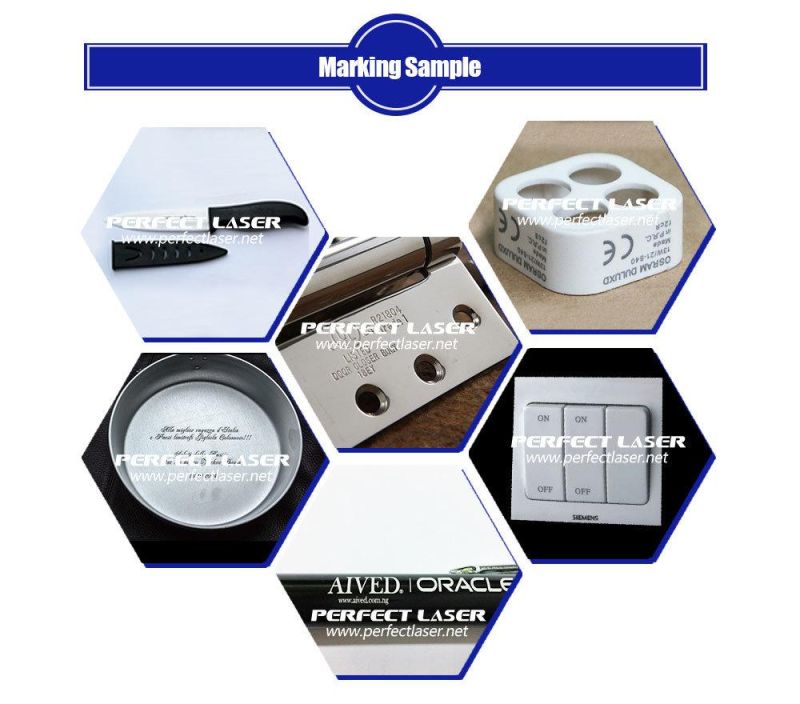

Samples:
1. What's your marking material?(stainless steel, aluminum, plastic, mechanical tool, ring...)
Before making quotation, could you provide us more information:
2. What's your marking area?(110*110mm, 175*175mm, 200*200mm, 220*220mm, 300*300mm)
3. What kind of marking effect do you want?
4. Are you reseller or end user?
5. Do you use on production line?
6. Do you have any idea about other aspects? Such as shipment, payment, warranty, training etc.
Detailed information will be sent to you asap upon receipt of your inquiry!
