High Speed Leather Plastic 20W Metal Fiber Laser Marking Machine

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility：Invisible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：MAN-20
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Model：20W,30W
  • Marking Area：110mmx110mm;
  • CNC or Not：Yes
  • Application：Metal and Nonmetal
  • Certification：Ce FDA
  • Warranty：3 Years
  • Marking Speed：7000mm,S
  • Positioning Way：Red Light
  • Cooling Mode：Air Cooling
  • Main Parts：Rotary Devices , Working Table
  • Transport Package：Wooden Box
  • Specification：860*360*760mm
  • Trademark：CNMANLASER
  • Origin：Shandong
  • HS Code：8456110090
  • Production Capacity：500 Set,Month

Description

Laser power20W/30W/50WMarking area110*110mm,175*175mm,200mm*200mm,300*300mm, other size can be customizedLaser wave length1064nmFrequency of pulse20KHz~100KHzMax marking depth≤0.2mm(according to power and material)Marking speed0-9000mm/sMinimum line width0.01mmMarking contentText,pattern,date,bar code,etcMinimum character0.2mmRepeated accuracy±0.001mmGraphic format supportedbmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.Power supplyAC220V±10% 50Hz,or AC110V±10% 60HzOperation systemMicrosoft Windows XP or Windows 7Operation temperature5ºC-40ºCSupply Voltage220V/50Hz/10ACooling methodAir coolingwarranty 3 years

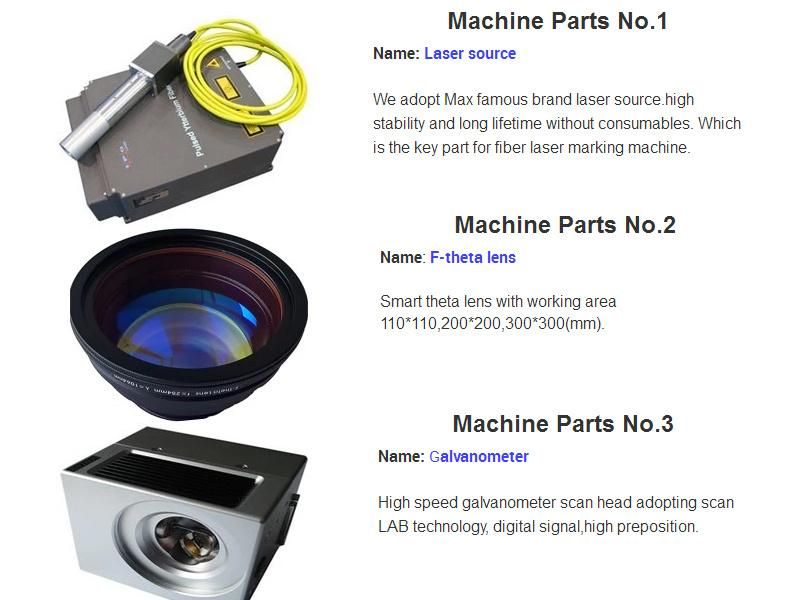

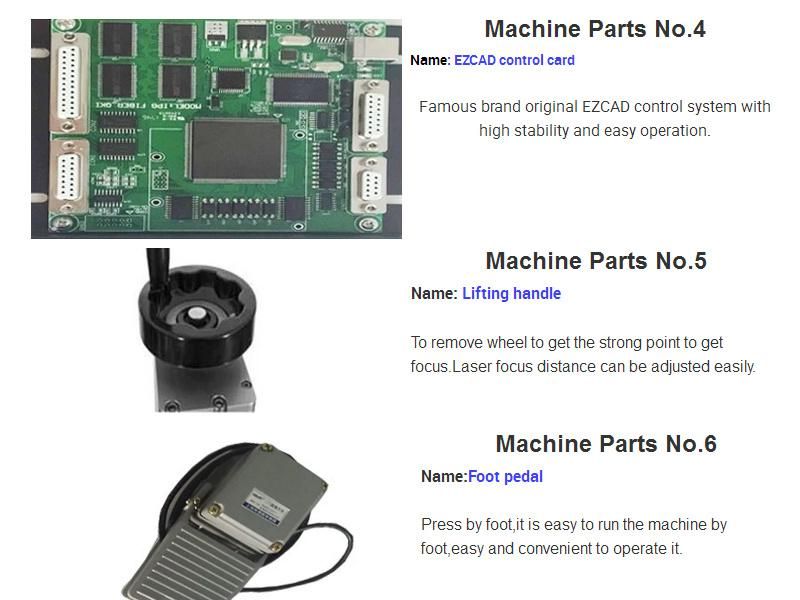

DETAILS   IMAGES :
High Speed Leather Plastic 20W Metal Fiber Laser Marking Machine
High Speed Leather Plastic 20W Metal Fiber Laser Marking Machine

FEATURE :

1. High electro-optical conversion rate,  save lots of energy consumption expense.

2. Long life, Fiber Laser Marking machine adopts laser diodes as pump source, its average working time can reach 100,000 hours

3. Excellent beam quality to achieve fine marking

4. High processing speed with High repetitive frequency

5. no consumable materials, Zero-maintenance

6. Various figure, character, LOGO, Barcode, bitmap, two-dimension code can be marking, and achieve Code hopping and Automatic sort generation

7. Support WIN XP Chinese operation system,  and support PLT, PCX, DXF, BMP etc, and directly use SHX TTF character library

8. Stable equipment performance, continuous 24 hours working

APPLICATION :

Applicable Industries:

Electronic Components: Resistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.

Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.

Instrument: Panel Board, Nameplates, Precision equipment, etc.

Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

Automobile Parts: Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.

Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

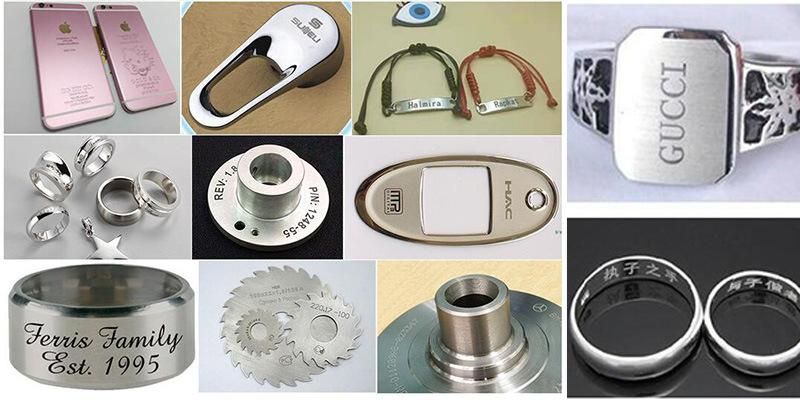

SAMPLE SHOW :

High Speed Leather Plastic 20W Metal Fiber Laser Marking Machine

PACKAGING &  SHIPPING :
 Packaging size 860*350*760mm Gross Weight 60kgDelivery time 5 days after receive your payment transport By air / by sea / DHL /Fex , or other ways you can choose . High Speed Leather Plastic 20W Metal Fiber Laser Marking Machine
SERVICES

---Pre-Sales Service

Free Pre-Sales Consulting / Free Sample Marking

Speedy Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.

Free Sample Making is available.

Free Sample Testing is available.

We offer progressing solution design to all the distributor and users.

---After-sales Services

1. 3 year guarantee for main machine (People damaged are charged).

2. Full technical support by e-mail, call and video

3. Lifelong maintenance and spare parts supply.

4. Free design of fixtures as customers required.

5. Free training installation and operation for the staffs.


HOW TO PROTECT  MY  ORDER ?

Buying tips:

Could you tell us the information below, so we can give you more customized solution:

1. What do you mark? metal or non-metal

Fiber laser is for marking metal part and CO2 laser is for marking non-metal part.

2. What is your marking area?

Usually our marking area is 70mm*70mm-300mm*300mm

3. Do you want mark on flat surface or curved surface?

Standard models can mark on flat surface, if you want mark on curved surface, you need a rotary fixture(USD200)

4. What is your marking depth?

All laser marking depth is less than 1mm, but if you keep marking and marking, it will be deeper.
