Aluminum Brass 50W Fiber Laser Marking Machine with Conveyor Belt

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility：Invisible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：MAN-50
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Model：20W,30W
  • Marking Area：110mmx110mm;
  • Power Consumption：500W
  • Marking Speed：≤7000mm,S
  • Marking Depth：0-0.5mm
  • Min. Line Width：0.03mm
  • Positioning Way：Red Light
  • Cooling Mode：Air Cooling
  • Marking Software：Ezcad Software
  • Application：Metal and Nonmetal
  • Transport Package：Wooden Box
  • Specification：860*360*760mm
  • Trademark：CNMANLASER
  • Origin：Shandong
  • HS Code：8456110090
  • Production Capacity：500 Set,Month

Description

Laser power20W/30W/50WMarking area110*110mm,175*175mm,200mm*200mm,300*300mm, other size can be customizedLaser wave length1064nmFrequency of pulse20KHz~100KHzMax marking depth≤0.2mm(according to power and material)Marking speed0-9000mm/sMinimum line width0.01mmMarking contentText,pattern,date,bar code,etcMinimum character0.2mmRepeated accuracy±0.001mmGraphic format supportedbmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.Power supplyAC220V±10% 50Hz,or AC110V±10% 60HzOperation systemMicrosoft Windows XP or Windows 7Operation temperature5ºC-40ºCSupply Voltage220V/50Hz/10ACooling methodAir coolingwarranty 3 years

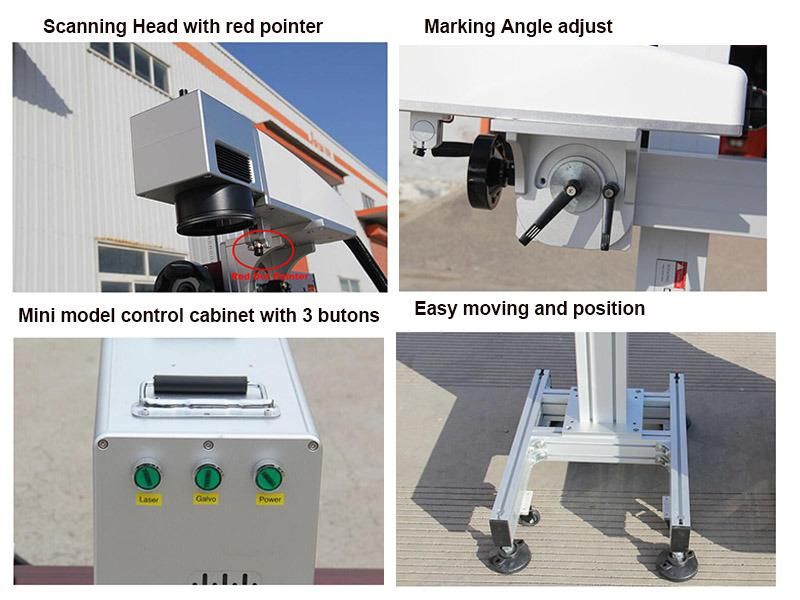

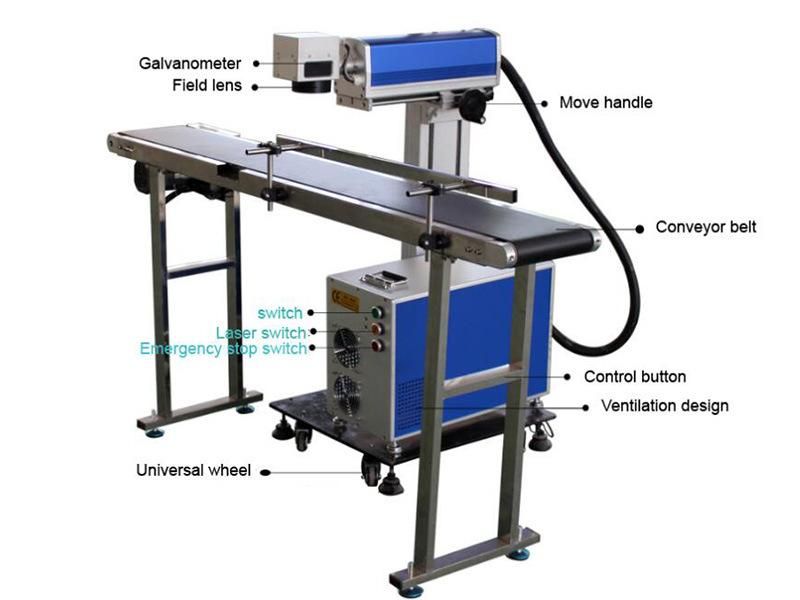

DETAILS   IMAGES :

Aluminum Brass 50W Fiber Laser Marking Machine with Conveyor Belt
Aluminum Brass 50W Fiber Laser Marking Machine with Conveyor Belt

FEATURE :

1. High electro-optical conversion rate,  save lots of energy consumption expense.

2. Long life, Fiber Laser Marking machine adopts laser diodes as pump source, its average working time can reach 100,000 hours

3. Excellent beam quality to achieve fine marking

4. High processing speed with High repetitive frequency

5. no consumable materials, Zero-maintenance

6. Various figure, character, LOGO, Barcode, bitmap, two-dimension code can be marking, and achieve Code hopping and Automatic sort generation

7. Support WIN XP Chinese operation system,  and support PLT, PCX, DXF, BMP etc, and directly use SHX TTF character library

8. Stable equipment performance, continuous 24 hours working

APPLICATION :

Applicable Industries:

Electronic ComponentsResistors,Capacitors,Chips,Printed Circuit Boards, Keyboard, etc.Mechanical PartsBearings, Gears, Standard Parts, Motor, etc.
 InstrumentPanel Board, Nameplates, Precision equipment, etc.Hardware ToolsKnives, Tools, Measuring Tools, Cutting Tools, etc.Automobile Parts:Pistons&Rings,Gears,Shafts,Bearings,Clutch,Lights.Daily Necessities:Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

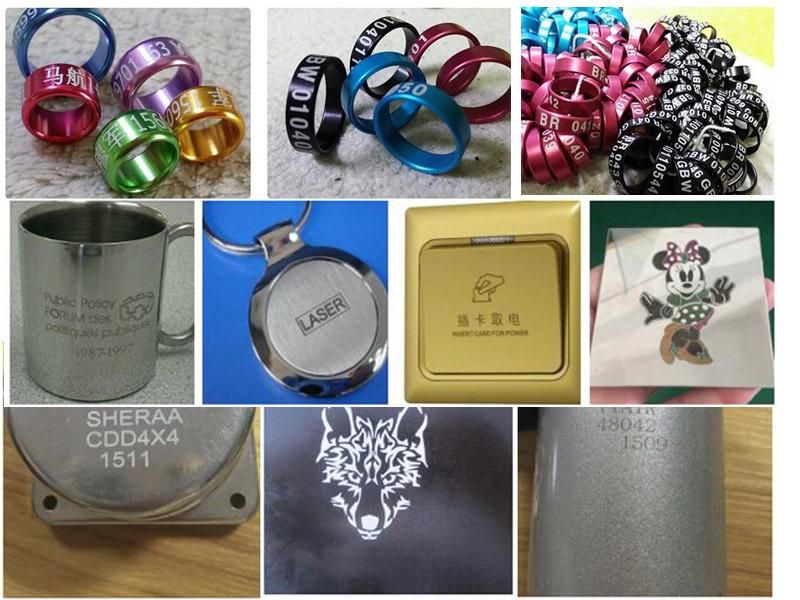

SAMPLE SHOW :

Aluminum Brass 50W Fiber Laser Marking Machine with Conveyor Belt

PACKAGING &  SHIPPING :
 Packaging size 860*350*760mm Gross Weight 60kgDelivery time 5 days after receive your payment transport By air / by sea / DHL /Fex , or other ways you can choose .
Aluminum Brass 50W Fiber Laser Marking Machine with Conveyor Belt

SERVICES

Warranty

1. 3 years free warranty for the whole set of machine

2. Lifelong maintenance service and Technical support, within lifelong maintenance, we will charge the cost price when change the components

3. If your item has been damaged in transit or become faulty when you receive the machine,

please email us with pictures or videos to show the problem.

4. 24 hours after sales service: our skilled engineer will help customer to solve the problem by SKYPE, QQ, whatsapp etc.


Quality Control

During the materials purchasing and production time, we have strictly and skilled inspection team for all the procedure.

Before shipments, all the finished machine must be inspected by our QC department and engineering department.


Payment Terms

30% T/T paid in advance after order confirmed, the balance of 70%  should be paid before shipment.

Irrevocable L/C at sight  will be acceptable.

other popular payment terms


HOW TO PROTECT  MY  ORDER ?

Buying tips:

Could you tell us the information below, so we can give you more customized solution:

1. What do you mark? metal or non-metal

Fiber laser is for marking metal part and CO2 laser is for marking non-metal part.

2. What is your marking area?

Usually our marking area is 70mm*70mm-300mm*300mm

3. Do you want mark on flat surface or curved surface?

Standard models can mark on flat surface, if you want mark on curved surface, you need a rotary fixture(USD200)

4. What is your marking depth?

All laser marking depth is less than 1mm, but if you keep marking and marking, it will be deeper.
