• Model NO.：MT-1390
• Laser Type：CO2 Glass Laser Tube,(RF Metal CO2 Laser Tube Opti
• Wavelength：10.6um
• Rotary Clamp Diameter：20-300mm
• Cutting Precision：0-36000mm,Min
• Cutting Depth：≤0.3mm
• Beam Quality：<1.2m2
• Laser Pulse Frequency：20-200kHz
• Gross Power：<1250W
• Min.Line Width：0.15-0.3mm
• Location Precision：0.015mm
• Power Source：AC110V,220V± 10%, 50,60Hz
• Transport Package：Standard Export Wooden Box
• Trademark：MACTRON
• Origin：Guangdong, China
• Production Capacity：200sets,Month

Basic Info.

Model NO. MT-1390 Laser Type CO2 Glass Laser Tube/(RF Metal CO2 Laser Tube Opti Wavelength 10.6um Rotary Clamp Diameter 20-300mm Cutting Precision 0-36000mm/Min Cutting Depth ≤0.3mm Beam Quality <1.2m2 Laser Pulse Frequency 20-200kHz Gross Power <1250W Min.Line Width 0.15-0.3mm Location Precision 0.015mm Power Source AC110V/220V± 10%, 50/60Hz Transport Package Standard Export Wooden Box Trademark MACTRON Origin Guangdong, China Production Capacity 200sets/Month

Product Description

Product Description

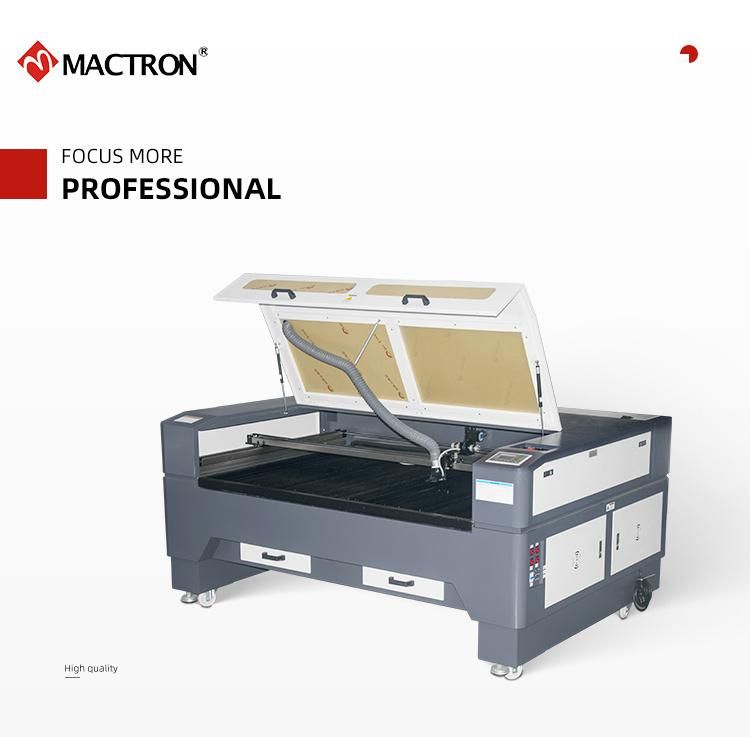

series models adopt DSP&laser power source, self-developed laser power supply as well as integrated frame-structure. The system's working performance is stable and reliable. It is equipped with latest software, Auto CAD, CoreIDRAW, CAD, and other graphical software, and it can directly output pictures.
This machine is based on standard laser cutting machine, equipped with smoke purification filter equipment, which can effectively absorb and filter the smoke, dust and harmful gases generated during laser processing. It has the advantages of uniform cutting, high efficiency, environmental protection and simple operation.



Parameters

Mode	MT1080D
Laser Type	CO2 Glass Laser Tube/(RF Metal CO2 Laser Tube Optional)
Peak Laser Power	70W/80W/100W
Wavelength	10.6um
Cutting Precision	0-36000mm/min
Cutting Depth	≤0.3mm
Cutting Speed	0-64000mm/min
Cooling Mode	Water Cooling and Protection System
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Operating temperature	10ºC-40ºC
Warranty	1 Year
Beam Quality	<1.2M2
Laser Pulse Frequency	20-200Khz
Humidity	5% to 85% (No Condensed )
Gross Power	<1250W
Min.Line Width	0.15-0.3mm
Location Precision	0.015mm
Power source	AC110V/220V± 10%, 50/60HZ
Processing Area	1000*800mm
Working Environment	Clean, Free of Dust
Safety Protection Class	Ip54
Laser Generator Safety Class	IV

Product Show






Product Samples



Production Process


Packaging & Shipping


Company Information
Dongguan Mactron Technology Co., Ltd (Mactron Technology Co., Limited) mainly manufactures and sells products like Fiber Laser Marking Machine, UV Laser Marking Machine , Co2 Laser Marking Machine, Laser Printer, Co2 laser cutting and Engraving Machine, Fiber Laser Cutting Machine, Laser Flat Bed, Customized Laser Equipment and a full laser spare parts. The laser equipment system is widely used in many fields, including textiles, leather, clothing, industrial fabrics, advertising, technology products, printing, packaging, electronics, pharmaceuticals, furniture, hardware tools, molds, and other industries.


Certifications


Our Service


FAQ
1. Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

2. Q: How can you guarantee that I have a good sale on this product?
A: We offer professional technology and after-sale service.

3. Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.

4. Q: How can I get the sample to check the quality?
A: If you want to check the quality, pls kindly send us the sample for testing.

5. Q: How long can I expect to get the sample?
A: We ensure that the samples could be done within 1-2 days once we receive the sample from your side.

6. Q: How can I pay my order?
A: We accept T/T, Western Union ,Money Gram paying methods.

7. Q.If we do not know how to use the machine,can you teach us?
A: Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy, we will have our professional engineer to your country,you only need pay for some fee,like tickets, hotel and meal.
