• Model NO.：MT-3015MN
• Wavelength：10.6um
• Cutting Speed：Max.30m,Min
• Location Precision：±1.015mm
• Repeated Positioning Accuracy：0.15-0.3mm
• Power Source：AC110,220V ± 10%,50,60Hz
• Working Temperature：0-40ºC
• Gross Power：<4kw
• Humidity：5% to 85% (No Condensed )
• Transport Package：Standard Export Wooden Box
• Trademark：MACTRON
• Origin：Guangdong, China
• Production Capacity：50sets,Month

Basic Info.

Model NO. MT-3015MN Wavelength 10.6um Cutting Speed Max.30m/Min Location Precision ±1.015mm Repeated Positioning Accuracy 0.15-0.3mm Power Source AC110/220V ± 10%/50/60Hz Working Temperature 0-40ºC Gross Power <4kw Humidity 5% to 85% (No Condensed ) Transport Package Standard Export Wooden Box Trademark MACTRON Origin Guangdong, China Production Capacity 50sets/Month

Product Description

Company Information
Dongguan Mactron Technology CO.,Ltd is a new & hi-tech enterprise ,located in international famous manufacturing city--Dongguan,integrated the laser,precision machinery,CNC and modern management,specializing in developing ,manufacturing and selling of industrial laser equipment and customized automation device.

Mactron's mainly product is including:
Laser Cutting Machine, Laser Engraving Machine, Laser Marking Machine, Mini Laser Engraver, CNC Laser Cutter, YAG Laser System, Diode Pump Laser Equipment, Co2 Laser Tube, Laser Focusing Lens, Laser Reflector Mirror, Laser Power Supply, Laser Cooler Unit, Laser Scanner Head, Laser Control System, Laser Cutting Head, Beam Expander, Red Pointer, Krypton Lamp and accessories etc.

Mactron Technology's business tenet is "Do Honest Bussiness ".
Mactron Technology's managerial spirit: "Solidarity, Exertion, Truthfulness, Innovation"


Certifications


Product Description
MT-MN series metal and nonmetal laser cutting machine is suitable for metal and non-metal sheet cutting, which is equipped with steel welded frame, stable, good rigidity, high dynamic response that ensures no deformation on long-term working condition.
Multifunctional laser cutting head suitable metal and nonmetal materials cutting. Fixed optical path compensation system ensures consistency of laser spot quality within the whole cutting area. Imported linear guide and screw transportation system with high rigidity, high transmission torque, and eliminating vibration, over fiber times higher in accuracy compared with the belt transmission system.
Self-developed new generation touch screen motion controller with touch-screen software design. The control system supports automatic focusing for metal cutting and nonmetal processing, which makes to cut various material thickness easily with good effect.




Applicable Material
Widely applied to large format material cutting, such as carbon steel, stainless steel, acrylics, MDF and etc.

Applicable Industry
Applicable Fields:advertisement making, thin metal processing, die-boards cutting etc.



Parameters

Laser Type	CO2 Glass Laser Tube/(RF Metal CO2 Laser Tube Optional)
Peak Laser Power	150W/200W/300W/400W/600W (Optional )
Wavelength	10.6um
Cutting Speed	Max.30M/Min
Focal Length	50.8,63.5,76.2,127mm
Cooling Mode	Water Cooling and Protection System
Location Precision	0.05mm
Controlling Formats Supported	DSP High Speed Controller
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Operating temperature	10ºC-40ºC
Warranty	1 Year
Beam Quality	<1.2M2
Humidity	5% to 85% (No Condensed )
Gross Power	<4000W
Min.Line Width	0.15-0.3mm
Power source	AC110V/220V± 10%, 50/60HZ
Processing Area	2500*1300mm(Optional)
Working Environment	Clean, Free of Dust
Safety Protection Class	Ip54
Laser Generator Safety Class	IV

Machine Advantages
1) Can cut lines and holes with different diameters from different directions on the pipe, and meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.
2) Can cut column Crossed Lines at the end of branch pipe, and meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.
3) Can cut inclined section at the end section of the pipe.
4) Can cut branch pipe intersected with the main circular pipe.
5) Can cut variable angle bevel surface.
6) Can cut square hole, waist-shaped holes and circular hole on the pipe.
7) Can truncate the pipe.
8) Can cut all kinds of graphics on the surface of the square pipe.

Product Sample Display



Other Product Recommendation


Production Process

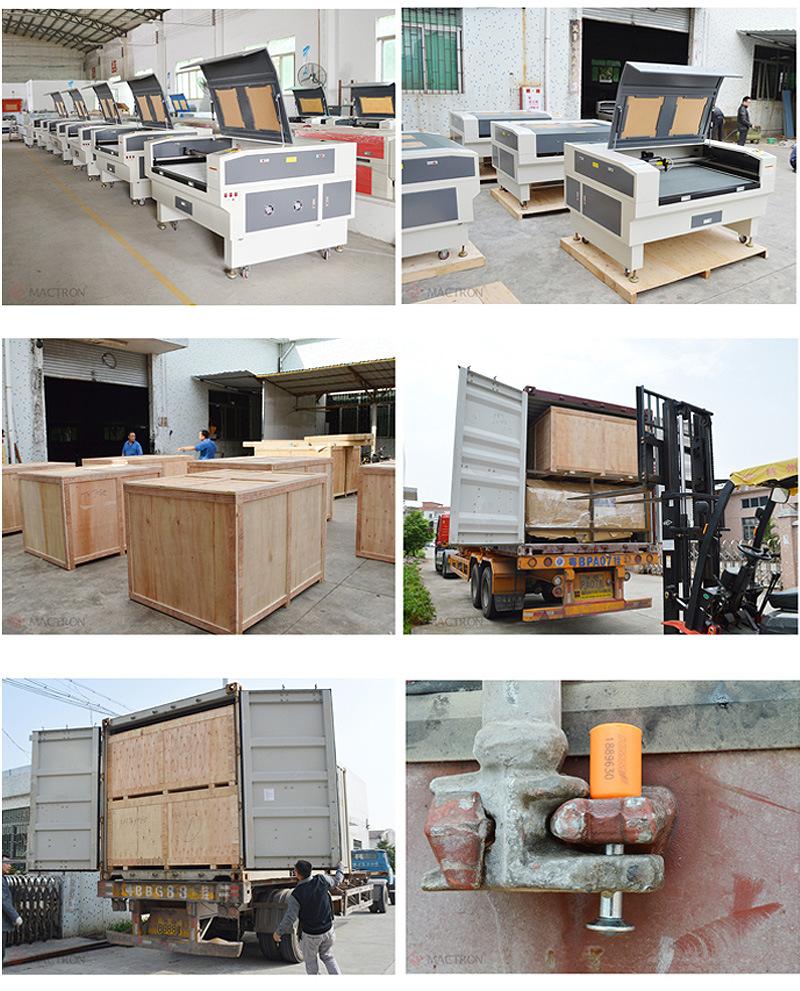

Packaging & Shipping



FAQ

1. Q: Are you a factory or a trading company?
A: We are factory manufacturing laser equipment and we provide perfect OEM and after-sale service.

2. Q: How can you guarantee that I have a good sale on this product?
A: We offer professional technology and after-sale service.

3. Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.

4. Q: How can I get the sample to check the quality?
A: If you want to check the quality, please send us the sample for testing.

5. Q: How long can I expect to get the sample?
A: We ensure that the samples could be done within 1-2 days once we receive the sample from your side.

6. Q: How can I pay my order?
A: We accept T/T, Western Union ,Money Gram paying methods.

7. Q.If we do not know how to use the machine,can you teach us?
A: Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy, we will have our professional engineer to your country,you only need pay for some fee,like tickets, hotel and meal.
