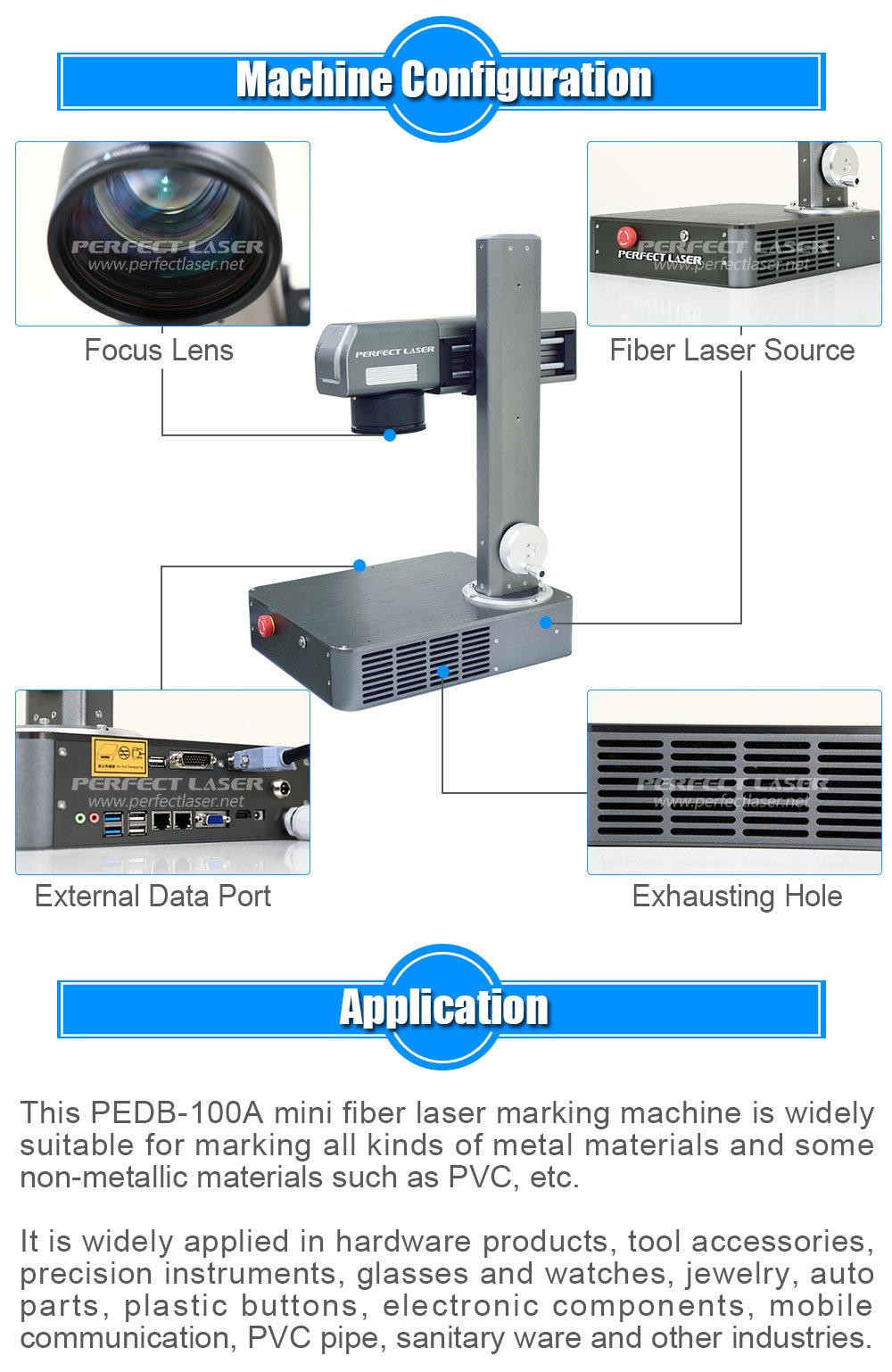

• Model NO.：PEDB-100A
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Control：CNC
• Current：AC

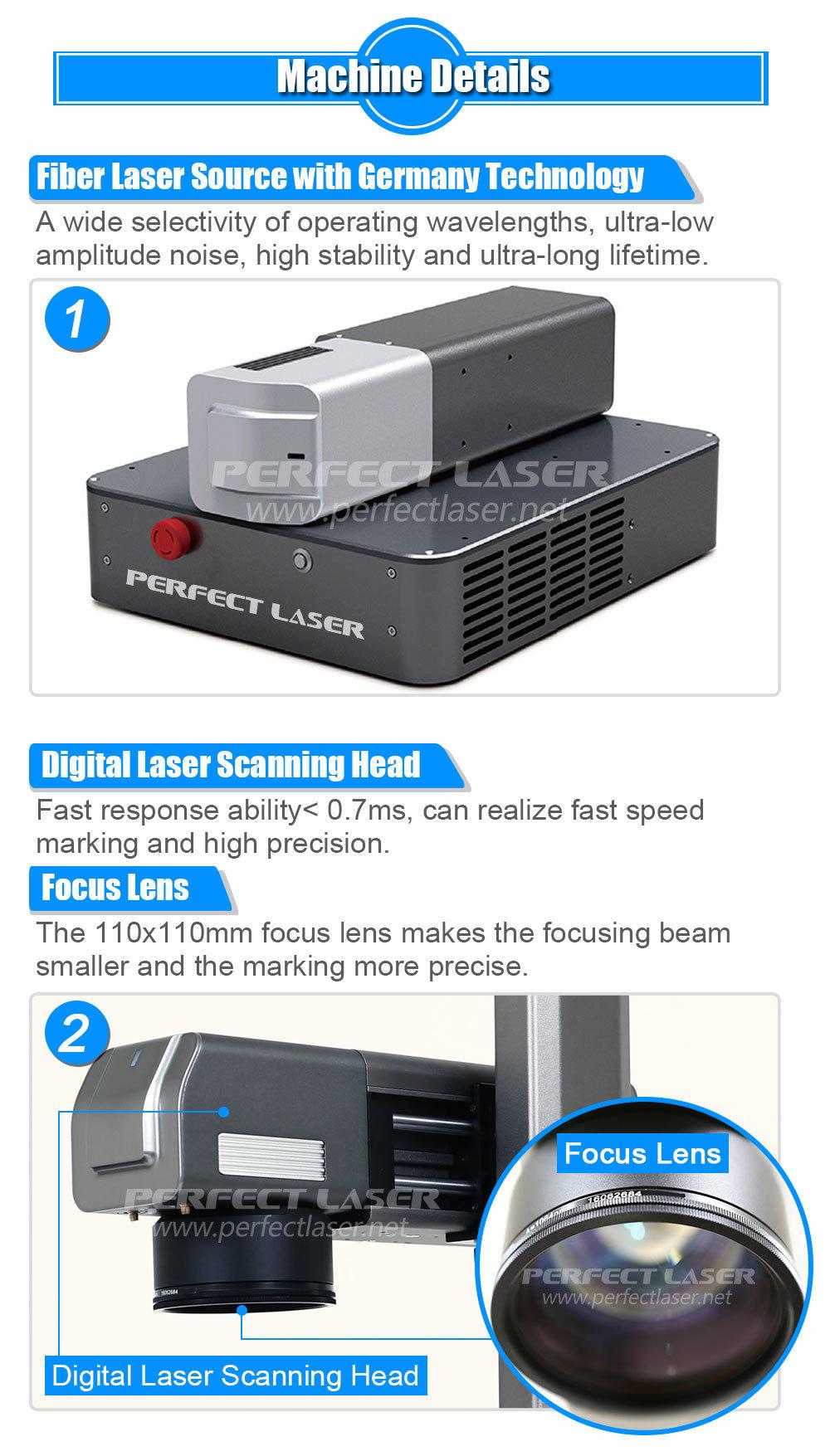

• Laser Type：Fiber Laser

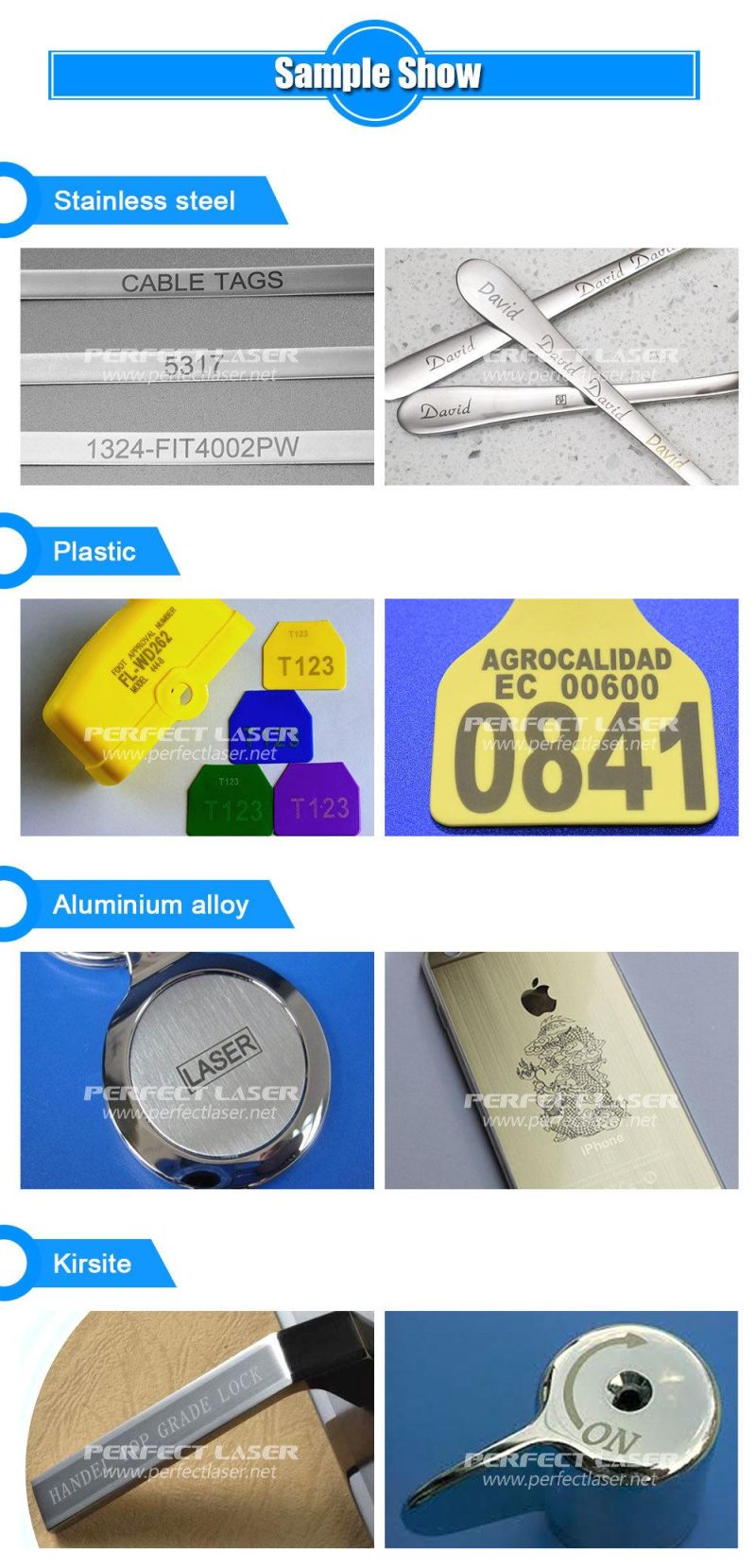

• Usage：Metal
• Engraving Machine Type：Fiber Laser Marking Machine
• Gross Weight：55kg
• Transport Package：Wooden Case with Exporting Standard
• Specification：ISO 9001 & CE&FDA
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456100090
• Production Capacity：1000 Sets, Month

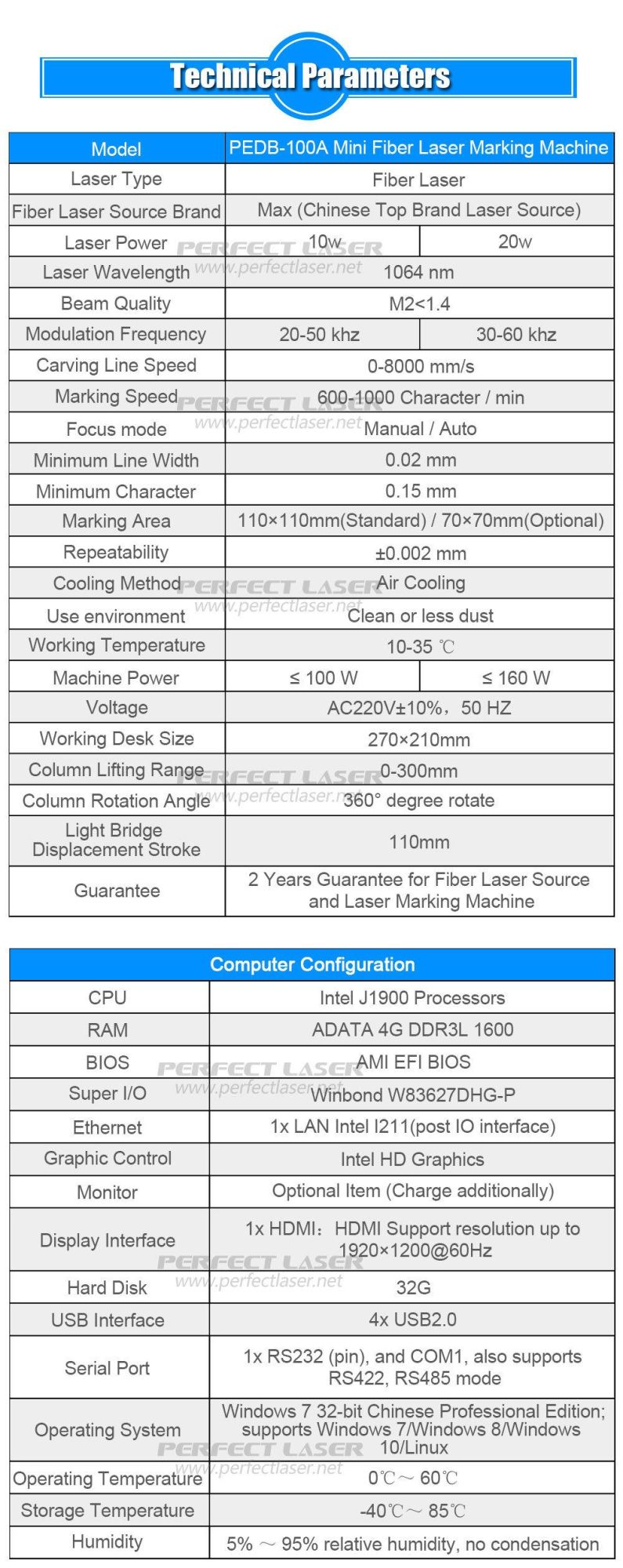

Machine TypeMINI Fiber Laser Marking MachineLaser SourcePEDB-100A  10W  PEDB-100A  20WIPG SeriesPulsed, High Energy Ytterbium Fiber LasersMode of operation                                       PulsedPolarization                         randomQ-switched operationOutput power adjustment range10%-100%Nominal average output power W10W20WCentral emission wavelength     1060-1070 nmEmission Bandwidth (FWHM)   < 10 nmLong-term average power instability< 5%Pulse width, (FWHM)                           100 nsLaser switching ON time                     180 μ secLaser switching OFF time             180 μ secPulse Repetition Rate* kHz                 20-80 kHzEnergy per pulse (PRR = 20 kHz) 0.95 mJTypical beam quality, M2                         < 1.8Output fiber delivery length               3mOperating voltage                                     220VMax. Power consumption     600W



















 --------------------------------------------------------------------------------------
