• Model NO.：PEDK-9060
• Laser Classification：CO2 Laser
• Engraving Method：Vector&Lattic Engraving
• Drive Type：AC Servo Drive
• Engraving Machine Type：Laser Engraving Machine
• Control：CNC
• Current：AC
• Laser Type：CO2
• Usage：Plastic
• Certification：GS, SGS, CE, RoHS
• Controling System：CNC Professional Controlling System
• Cooling Mode：Cw-3000 Water Chiller with Protection Function
• Auxiliary Devices：Exhaust Fan & Exhaust Pipe
• Transport Package：Sea-Worthy Packing or Air-Worthy Packing
• Specification：CE & ISO 9001: 2000&FDA
• Trademark：Perfect Laser
• Origin：China
• HS Code：84609090
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. PEDK-9060 Laser Classification CO2 Laser Engraving Method Vector&Lattic Engraving Drive Type AC Servo Drive Engraving Machine Type Laser Engraving Machine Control CNC Current AC Laser Type CO2 Usage Plastic Certification GS, SGS, CE, RoHS Controling System CNC Professional Controlling System Cooling Mode Cw-3000 Water Chiller with Protection Function Auxiliary Devices Exhaust Fan & Exhaust Pipe Transport Package Sea-Worthy Packing or Air-Worthy Packing Specification CE & ISO 9001: 2000&FDA Trademark Perfect Laser Origin China HS Code 84609090 Production Capacity 3000 Sets/Year

Product Description

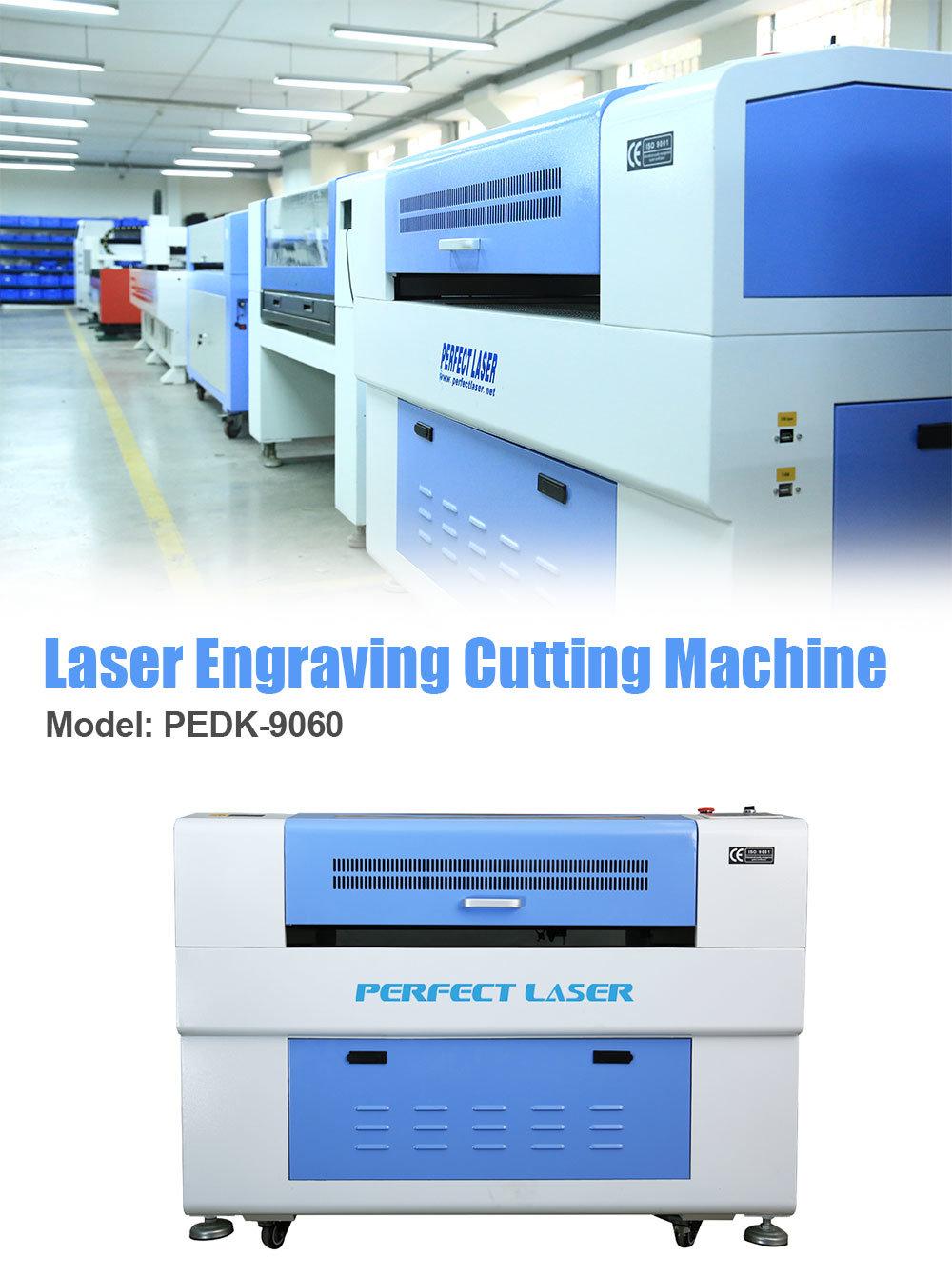

                         CO2 Laser Cutting and Engraving Machine for Acrylic




Laser cutting machine product features:

Laser cutting machine/laser engraving machine adopt imported proprietary sliding guide, and equips with auxiliary facilities, such as blower, exhaust fan, infrared, foot pedal and other auxiliary facilities. Also, laser cutting machine integrate advanced high-speed continuous curve motion control card, and adopt self-developed high-speed laser cutting controlling software.

Laser cutting machine applied industries:

Laser cutting machine has been widely used in the fields of glass, architectural models, rubber plates, bamboo products. For laser cutting and carving on glass products, acrylic art & crafts panel, lenses, wood &cutting carving, advertising materials, crystal characters, easel, packing boxes, models, toys and furniture, etc.

Laser cutting machine special features

1)Laser cutting machine has advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.

2) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.

3) Our laser cutting machine has imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.

4) Our laser cutting machine has special Front and back running-through design, the unique door for the limitless engraved materials through.

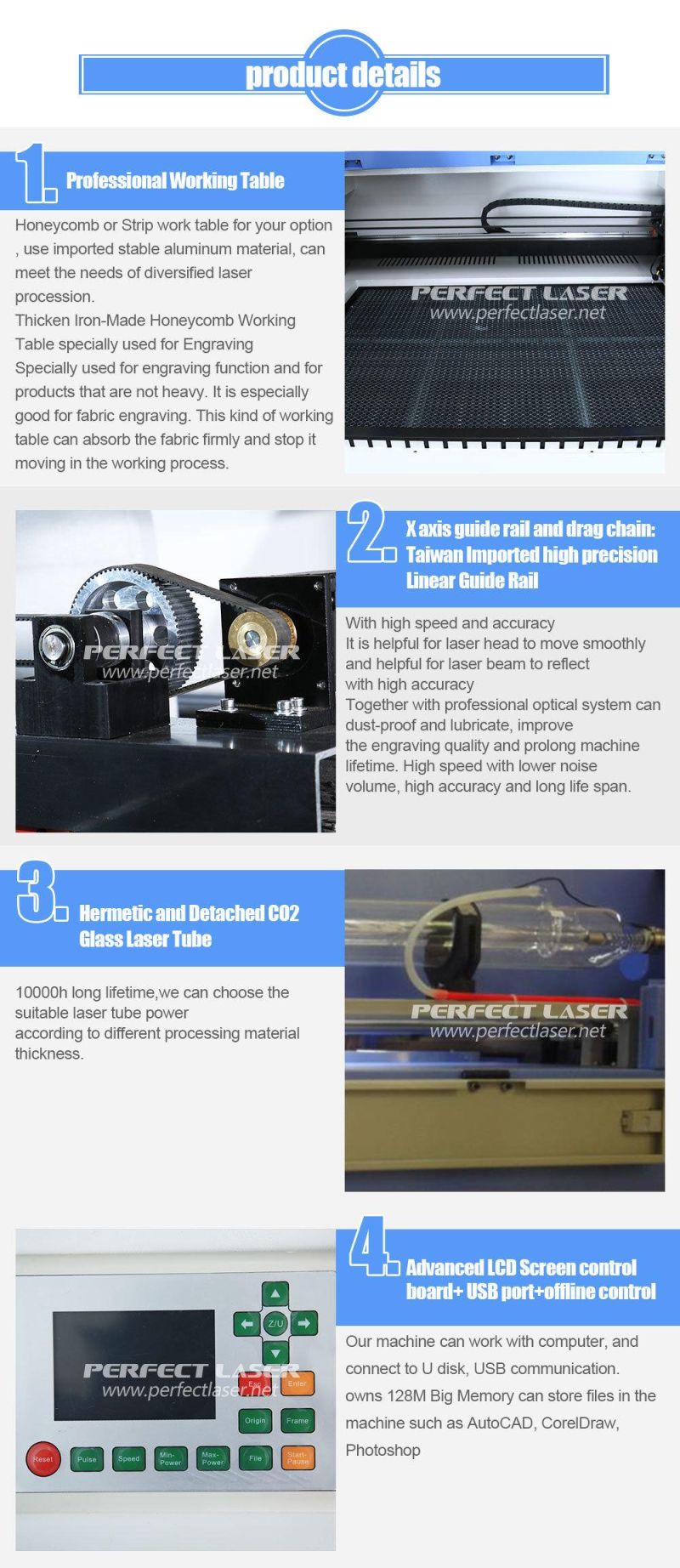

5) Our laser cutting machine has professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;

6) Water Cooling System with Alarm Protection function, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.

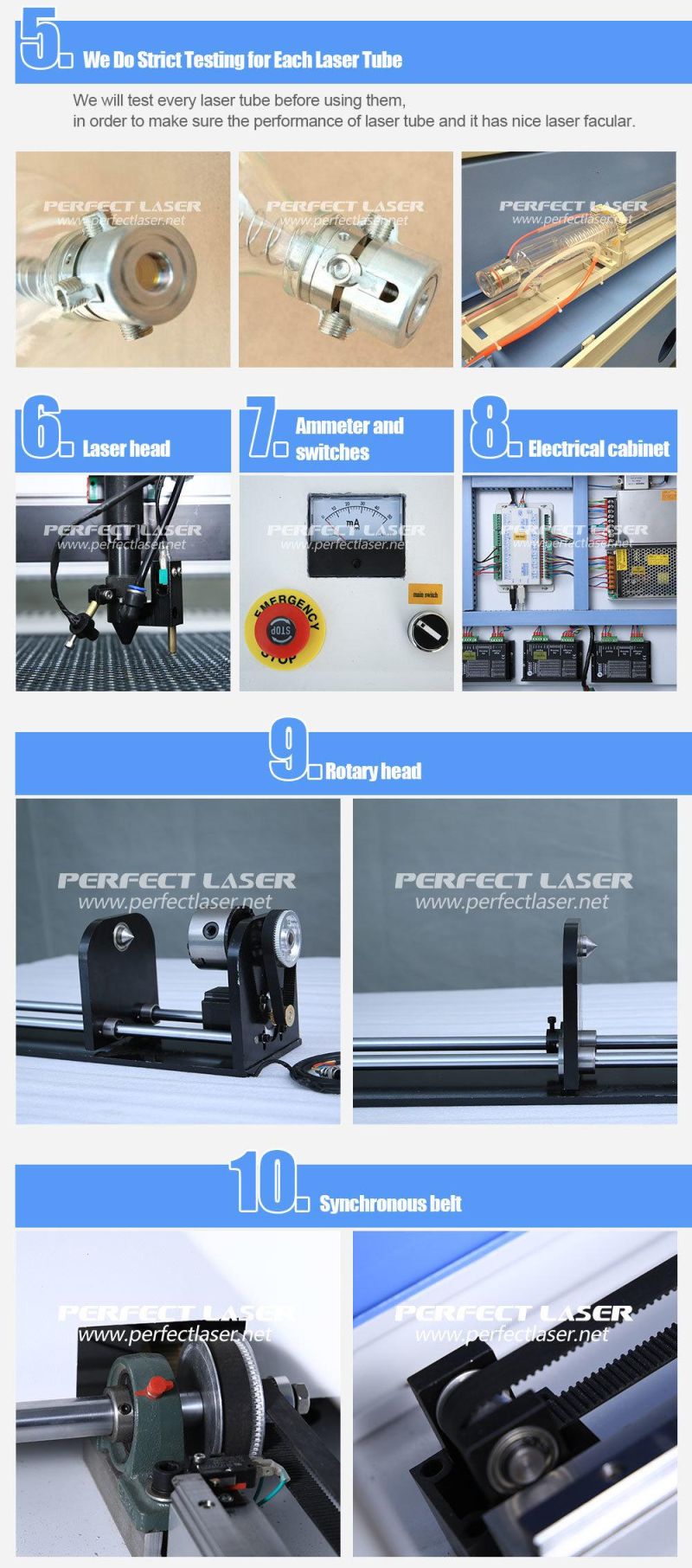

7) Our laser cutting machine equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.

8) Our laser cutting machine has high speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1× 1mm little English character perfect.

9) Red Light Pointer realizes the exact position without laser.

10) Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.

11) Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;

12) Optional 3D Rotary System, engrave circumrotate 360 degree, applicable in column or cone work piece surface.

13) Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.

14) Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.





Laser Type	Hermetic and detached CO2 laser tube
Laser Power	60W
Engraving Area	600×900mm
Engraving Speed	0-900mm/s
Cutting Speed	0-300mm/s
Repeating Location Accuracy	±0.0125mm
Working Voltage	220V ±10% 50HZ
Machine Power	900W
Controling System	CNC professional controlling system
Supporting Graphics Formats	BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,CDR,DWG,DXF
Cooling Mode	Water-cooling and protection system
Auxiliary Devices	Exhaust fan & exhaust pipe
Cutting Platform	Professional strip work table
Power Control Mode	Laser power and moving system cooperate
Control Software	Original PERFECT LASER software
Machine Size	1400*960*1150mm

Working Video, PDF detailed description and quotation will be sent to you upon  your inquiry!!! Contact me by >>>>>>>>>>>>>>>>>>>>>>>>>>




Perfect Laser Co.,Ltd. (China)
Contact: Bella/ Sales Manager


 Add: No.13 YangQiaohu Road, East Lake High-tech Development Zone, Optics Valley, Hubei, China
