• Model NO.：LBQX-300
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Consumable Items：No
• Working Life：100, 000 Hours
• Laser Power：50W,100W,200W,500W,1000W
• Appllication：Rust,Dirt,Oil,Paint Removal
• Transport Package：Wrapping Film & Export Standard Wooden Cases
• Specification：670mm× 1100mm× 1150mm
• Trademark：Label Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：300,Units

Basic Info.

Model NO. LBQX-300 Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Consumable Items No Working Life 100, 000 Hours Laser Power 50W/100W/200W/500W/1000W Appllication Rust/Dirt/Oil/Paint Removal Transport Package Wrapping Film & Export Standard Wooden Cases Specification 670mm× 1100mm× 1150mm Trademark Label Laser Origin China HS Code 8456110090 Production Capacity 300/Units

Product Description

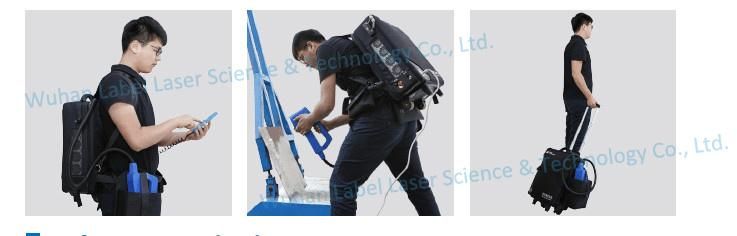

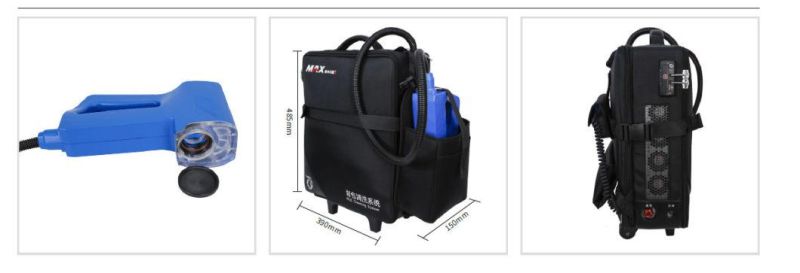

Hot Sale Backpack 100W Laser Cleaning Machine for Auto Parts Remove Rust Oil Painting (LBQX-300)

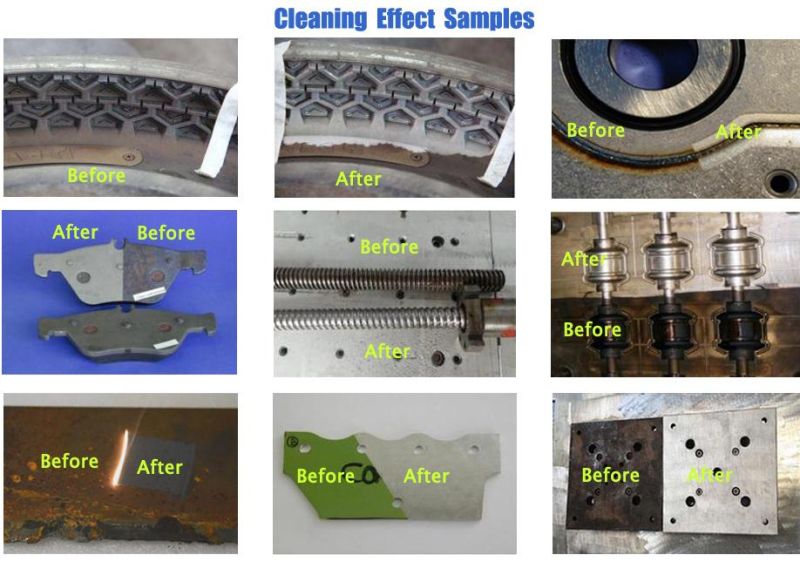

Laser cleaning equipment is high-tech product for a new generation of surface cleaning. Automatic running, easy installation, control and operation. When power on, just open the device, you can clean without adding chemical reagent, medium, dust, water. Just adjust focus manually. It can clean and remove resin, oil, stains, dirt, rust, coating, plating, paint, ect. on the surface. Flat and curved surface are cleaned thoroughly.






Product  features:

• Non-contact cleaning, no hurt to materials. You can set laser parameters (such as spot size, single pulse energy, pulse width, repetition rate, etc.) based on different dirty objects, to clean selectively, hence protects the object effectively
• Precise cleaning for accurate position and size alternative cleaning.
• No chemical cleanout fluid, no consumables, safe and environmentally friendly. The laser cleaning waste is basically a bottom powder, which is small in size, easy to store and handle, and environmentally friendly.
• The surface of the fragile material can be cleaned. Because of the non-contact of laser cleaning, it is convenient to carry out long-distance operation, which can be transmitted through optical fiber, which can clean the hidden parts of objects.
• Simple operation, power-on, handheld or automation cleaning with a robot.
• Cleaning efficiency is very high, saving time.
• The laser cleaning system is stable and requires little maintenance.

Applicable field and material

• Materials: metal and nonmetal
• Industries: Shipbuilding industry, Auto Part, Rubber Mold, High level  CNC machining,  tools, Tyre mold, Rail, Environmental Protection industry, Metal & Non-metal parts, etc.

Mechanical Parameter


Item	Parameter
Size	670mm×1100mm×1150mm
Weight	150KG
Fiber Length	5m(or 10m for custmized)
Weight of cleann head	2KG
Movable Mode	Hand Push
Scan width	10-80mm

Optical Parameter


Item	Parameter
Average output power	≥200 W
Non-stable Degree of Output Power	<3%
Power Adjustment(%)	10-100(gradualness)
Focus Facula Diameter	0.1
Central Wavelength	1064
Modulation Frequency	10K-50K Hz(gradualness)
Cooling Type	Water Cooling
Working Temperature	5ºC~40ºC

Advantage Comparison


Item	Laser Cleaning	Chemical Cleaning	Mechanical  Polish	Dry Ice (CO2) Cleaning	Ultrasonic cleaning
Cleaning Method	Laser and non-contact type	Chemical agent, Contact Cleaning	Mechanical/ abrasive paper, contact cleaning	Dry Ice (CO2), non-contact type	Cleaning agent, Contact type
Hurt for workpiece	No damage	With damage	With damage	No damage	No damage
Cleaning Efficiency	High	Low	Low	Medium	Medium
Consumable	Just with Electricity	Chemical cleaning agent	abrasive paper grinding wheel, oilstone	Dry Ice (CO2)	Special Cleaning Agent
Effective	Excellent with high cleanliness	Common, Non-uniform	Common, Non-uniform	Excellent , non-uniform	Excellent , small cleaning area
Accuracy	Precise Control, High Accuracy	Non-control,Lowe Accuracy	Non-control,Common Accuracy	Non-control, Low Accuracy	Can not clear in special place
Safety / Pollution	No Pollution	Environment Pollution	Environment Pollution	No Pollution	No Pollution
Handling by workers	Simple Operation, Handheld / Automation	Complex process,It is with high requirement for operator, must have preventive measure	With much labor cost and must have preventive measure	Simple Operation, Handheld / Automation	Simple Operation, consumables is must
Cost Comparison	High first Investment , No consumables , Low Maintenance Cost	Low first investment, Extremely High Consumables cost	High first Investment, high consumables cost & high labor cost	Medium first Investment, high consumables cost	Low first investment, Medium Consumables cost

Scanning Parameter


Item	Parameter
Working Temperature	0ºC~45ºC
Linearity	99.9%
Small step response time	≤ 0.3ms
Proportional Drift	< 40PPM/ºC
Zero drift	< 15μRad./ºC
Long time drift (8 hours of continuous working)	< 0.5mRad
Average Working Current	2.0A
Peak current	15A(max)
Maximum Scanning Angle	±15°
Storage Temperature	-10ºC-60ºC
Resolution	12μRad.
Repeated  Precision	8μRad.
Input Aperture	9.0mm
Beam Displacement	12.4mm
Motor Weight	45g
Frequency	≤ 1200H

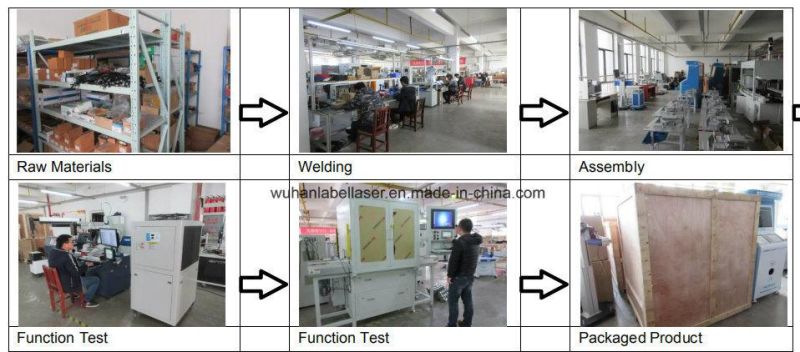

Work Flow:



About us Lable Laser :

    Wuhan Label Laser Science and Technology Co.,Ltd is a hi-tech corporation located in China Optics Valley in Wuhan City.
It has been specialized in researching and manufacturing industrial Laser marking equipments and supplying marking solutions for customers all over the world since established in 2000.
Why choose us Label Laser ??

• 20 years of researching and manufacturing experience
• Advanced technology, researching and development group
• More than 3000+ successful cases of marking solution accumulated in domestic and oversea markets
• 100% QC
• Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
• ISO,CE,SGS certified

Packing & Shipping:
      - Packing :
          Anti-collision foam + wrapping film+ Export standard wooden case.

      - Shipping:

• Main transportation method: by sea.
• Other Option: by air or railway transportation.

FAQ:

Q: What's laser cleaning marking ? And how laser cleaningg machine works?
A: Laser cleaning is typically a delicate process of creating a depth by removing the surface material, and acheieve the aim of rust removal. The laser cleaning systems at Label Laser are designed for non-contact processes. They offer better and more reliable solutions in terms of stability and deformity.

Q: How to operate the machine? Is training necessary?
A: Laser cleaning machine is Automatic running, easy to install, control and operate.
     Operation manual with pictures will be provided .
     Generally speaking, an operator, who is not familiar with laser cleaning machine can still operate it very well.

Q: In case machine exists the problem, how to do after sales service?
A: One-year warranty of the whole machine. Free to maintain if any problems during this period.
     Also we will assist you to solve problems in the future.

Q: Is it possible to add customized protection cover?
A: Yes, customized protection cover is acceptable.

Q: Any consumables for fiber laser cleaning machine?
A: No consumables. It's very economical and cost-effectient.

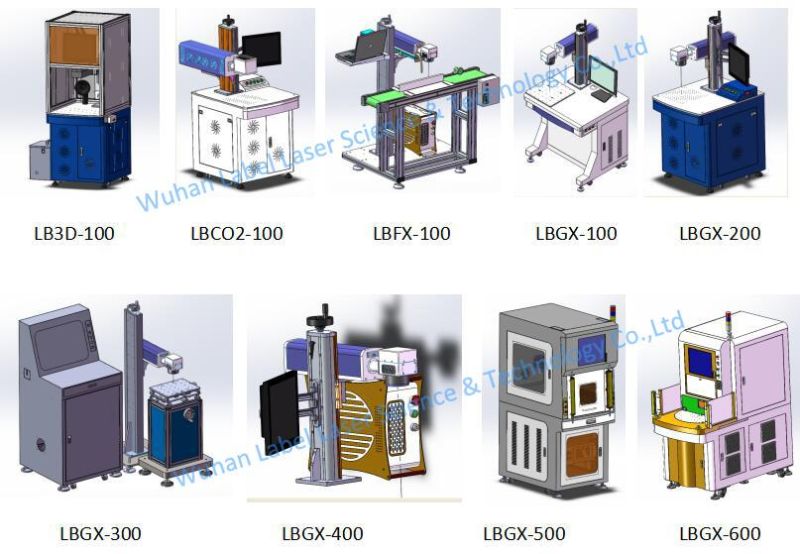

More product:
