Large Format 20W 30W 50W 100W Fiber Laser Marking Machine Laser Printer on Metal
Wuhan Label Laser Science & Technology Co., Ltd.- Laser Visibility：Invisible
- Applicable Material：Metal and Non Metal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：Fiber Laser
- Laser Classification：Solid Laser
Base Info
- Model NO.：LBGX-300-B
- Type：Optical Fiber Laser Marking Machine
- Marking Method：Scanning Marking
- Control Software：Ezcad
- Laser Source：Ipg, Raycus, Max
- Marking Area：110*110mm, 175*175mm, 255*255mm, 300*300mm
- Marking Speed：7000mm,S
- Transport Package：Wooden Case
- Specification：20W 30W 50W 70W 100W
- Trademark：Label Laser
- Origin：China
- HS Code：8456110090
- Production Capacity：500 Sets Per Month
Description
Technical parameters Laser Type Fiber laser Laser Power 20W 30W 50W 70W 100W Model LBGX-300-A, LBGX-300-B, LBGX-300-C, LBGX-300-D,
LBGX-300-E/F, LBGX-300-G I/II/III, LBGX-310-B, LBGX-320, Laser Wavelength 1064nm Laser Source IPG, Raycus, Max, JPT Marking Area 110*110mm, 150*150mm,175mm*175mm,
200mm*200mm, 300mm*300mm, 1000mm*1000mm Marking Depth ≤0.6mm(depand on power, processed material and procedure) Marking Speed 7000mm/s Repeated Precision ±0.003mm
Marking Type Figure, letter, charaters, automatic calender, count, serial no., ect.
Barcode: code39/code128/PDF417, ect.
QR code: DataMatrix, QR, ect.
Graphic: multi-language charaters, CAD, DXF, BMP, JPEG, PLT, ect. Fixed point, straight line, broken line, circle, ellipse, elliptical arc, Bezier curve, ect. can also custom as request. Marking State Static, uniform motion, encoder
Marking SettingArray direction: horizontal, vertical, curved, arc
define coordinates. The arc shape can be set to define the starting angle, the ending angle and the radius.
Linear transformation: rotatable character, can make the character X/Y mirror.
Fill: define the fill mode and density Minimum Character 0.3mm Life-span of Fiber Laser Module 100,000hours Beam Quality M2 <1.1 Focus Spot Diameter <0.01mm Operation System and Software Windows XP/2000 / Windows 7, 8, 10, JCZ EZCAD Communication Interface RS-232 serial port, TCP/IP network port, I/O port, ect. Cooling Mode Air cooling Environment Temperature 5ºC~35ºC Environment Humidity 30-85%( Condensation is not allowed) Power Input 220V ( ±10%)/ 50HZ( ±5%) single phase Power Requirement <=500W Communication Interface USB Machine Dimension 750*650*1440mm Optional Rotary Device, Moving Table, other customized Automation

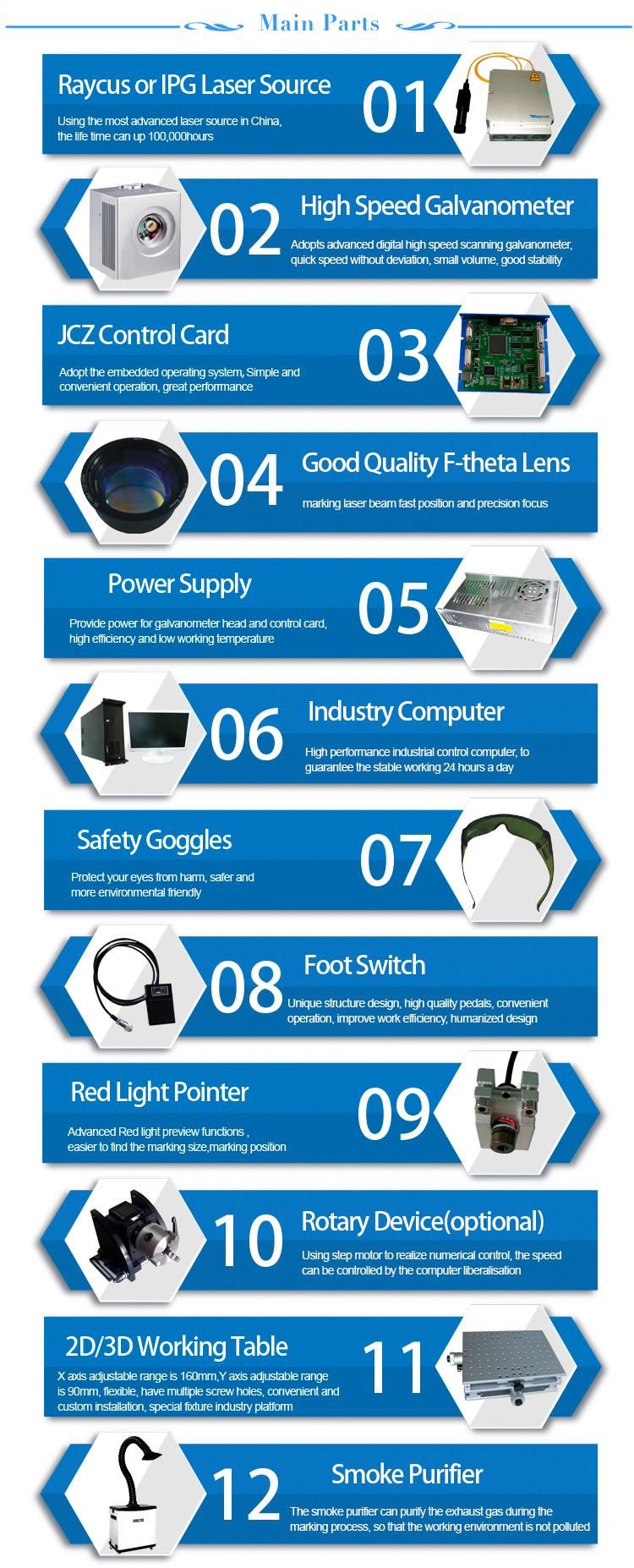

Product details:

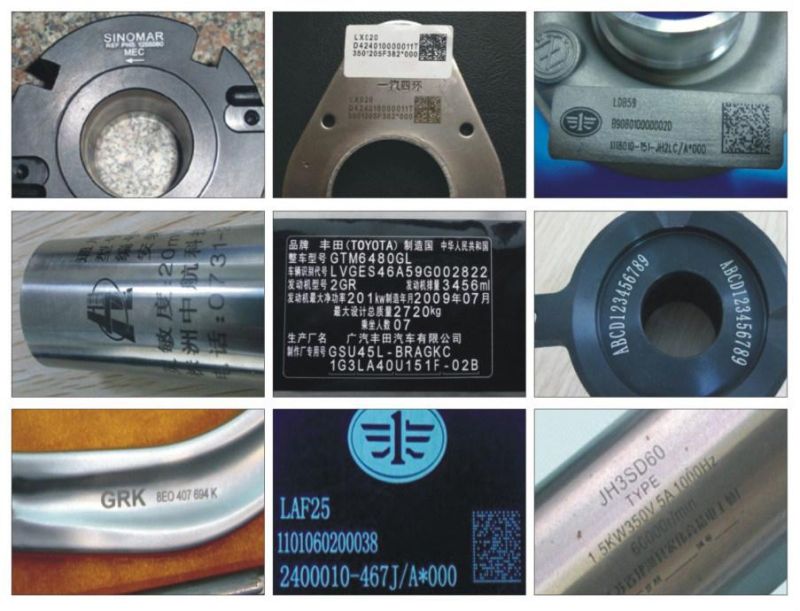

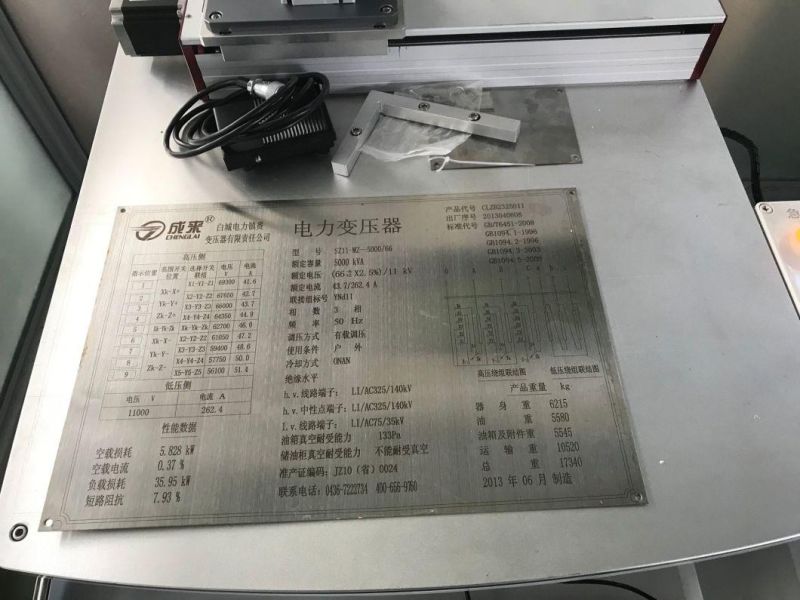

Marked Samples:

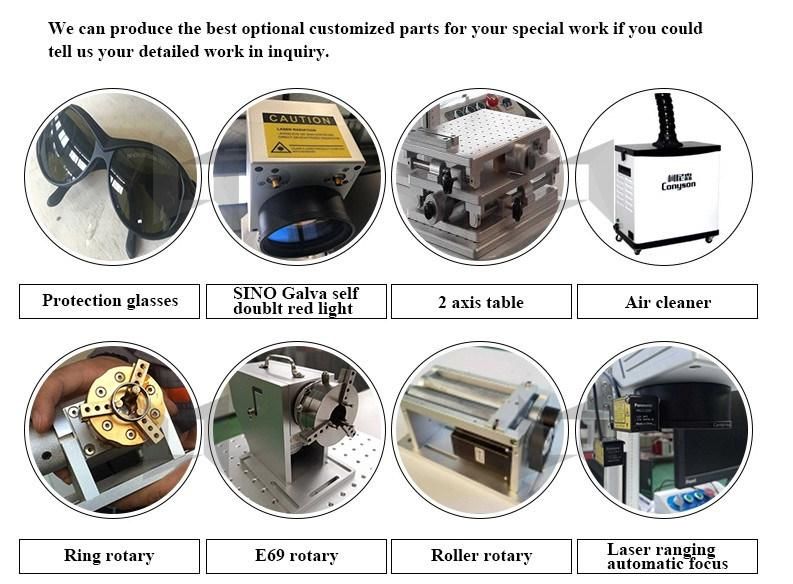

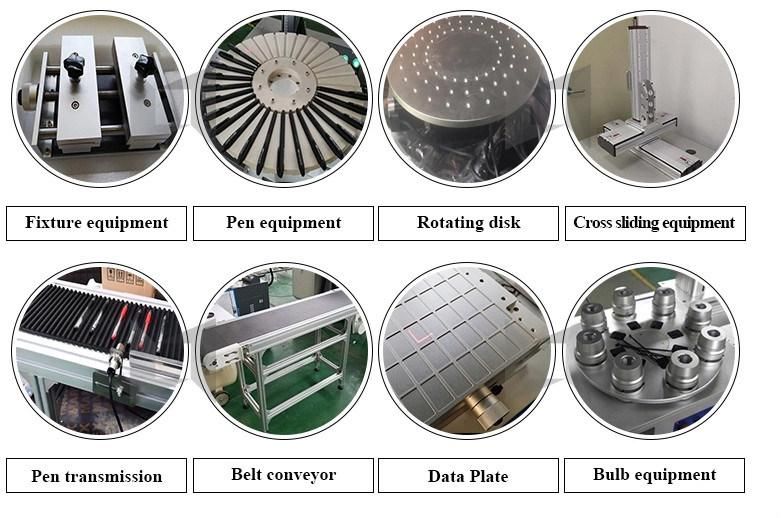

Optional Accessoires:
Applicable field and material:
Materials: metal and some of nonmetal
Industries: automobile parts, and accessories, hardware tools, precision machineries, electronic components, electrical appliances, apparatus and meters, instruments, mechanical parts, daily necessities, jewelry,medical devices, gifts, oil equipments, inspection equipments, ect.
Packing Detail:
Company Profile
Wuhan Label Laser Science & Technology Co.,Ltd. has been specialized in researching and manufacturing industrial laser marking equipments, fiber laser marking machine, laser welding machine, laser cleaning machine, processing equipments and supplying marking solutions for customers since 2000.
With over 18 years development,Label Laser has accumulated rich technical and design experience for industrial marking system, a large number of successful cases and well-known customers in industries of machinery, automotive, iron and steel, petroleum, petrochemical, aviation, electronic products, tools, instrument, apparatus, etc.
Why choose us
A. More than 18 years laser marking, welding, cleaning, processing, manufacturing, research and design rich experience.
B. Professional technical group for customized industrial laser marking system.
C. More than 3000+marking solution cases accumulated in domestic and oversea markets.
D. 100% strict QC for both raw materials and finished products.
E. Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
F. ISO,CE,SGS certified and complete aftersales service team.
Q1: What type of the machine suitable for us?
Please tell us what material will be marked/engraved and the depth of marking/engraving, we will advise you the suitable model machines. If you can provide material picture, it is better. It is best if you send sample to us, we will mark on it. Sample with marking pictures and videos will be sent to you for checking. Or we can send the sample to you for quality and marking effect checking.
Q2: If we do not know how to use the machine,can you teach us?
Yes, we will. Our user manuals are together with goods shipment. We can also
operation video to you for study.
If you come to our factory in China, our technicians will offer you free training until you can use machine freely.
Our professional engineer can come to your country for trainning, installation, adjusting, ect.
Q3: How about the delivery time?
For standard machine, lead time is 10-15 days.
Regarding customized machine, we need to check with technicians.
Q4: How about the warranty time?
Our fiber laser marking machine warranty time is 12 months. Please send back the broken parts to us, we will send the new and replaced one to you. We suggest you take one extra set of spare parts together with your order which will be more convinient for your production line continurous running.

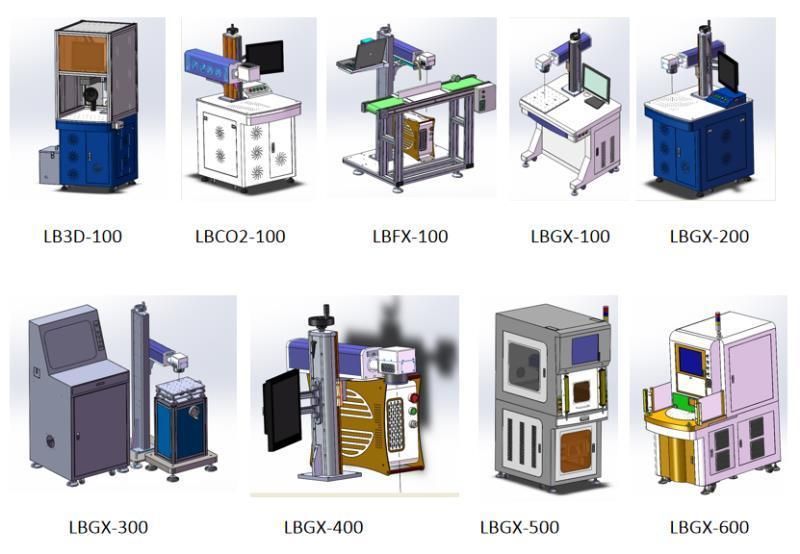

More products
