Small Portable 30W Metal Laser Etching Machine for Hardware

Perfect Laser (Wuhan) Co., Ltd.
  • After-sales Service：Online Service
  • Warranty：3 Years
  • Laser Visibility：Invisible
  • Applicable Material：Metal and Non Metal
  • Cooling System：Air Cooling
  • Technical Class：Continuous Wave Laser

Base Info

  • Model NO.：PEDB-400A
  • Laser Wavelength：1064um
  • Laser Classification：Max Raycus Jpt
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Fiber Laser Marking
  • Laser Power：20W 30W
  • Ipg Series：Pulsed, High Energy Ytterbium Fiber Lasers
  • Max. Power Consumption：600W
  • Scanning Speed：0-7000mm,S
  • Marking Speed：0-5000mm,S
  • Control：Automatic
  • Operating Voltage：220V
  • Condition：New
  • Working Area：110*110mm, 175*175mm
  • Gross Weight：60kg
  • Transport Package：Wooden Case
  • Specification：ISO9001 & CE
  • Trademark：Perfect Laser
  • Origin：China
  • HS Code：8456100090
  • Production Capacity：300 Units, Month

Description

Q-switched operationOutput power adjustment range10%-100%Nominal average output power W10W/20W/30W/50WCentral emission wavelength     1060-1070 nmEmission Bandwidth (FWHM)   < 10 nmLong-term average power instability< 5%Pulse width, (FWHM)                           100 nsLaser switching ON time                     180 μ secLaser switching OFF time             180 μ secPulse Repetition Rate* kHz                 20-80 kHzEnergy per pulse (PRR = 20 kHz) 0.95 mJTypical beam quality, M2                         < 1.8Output fiber delivery length               3mOperating voltage                                     220VMax. Power consumption     600W

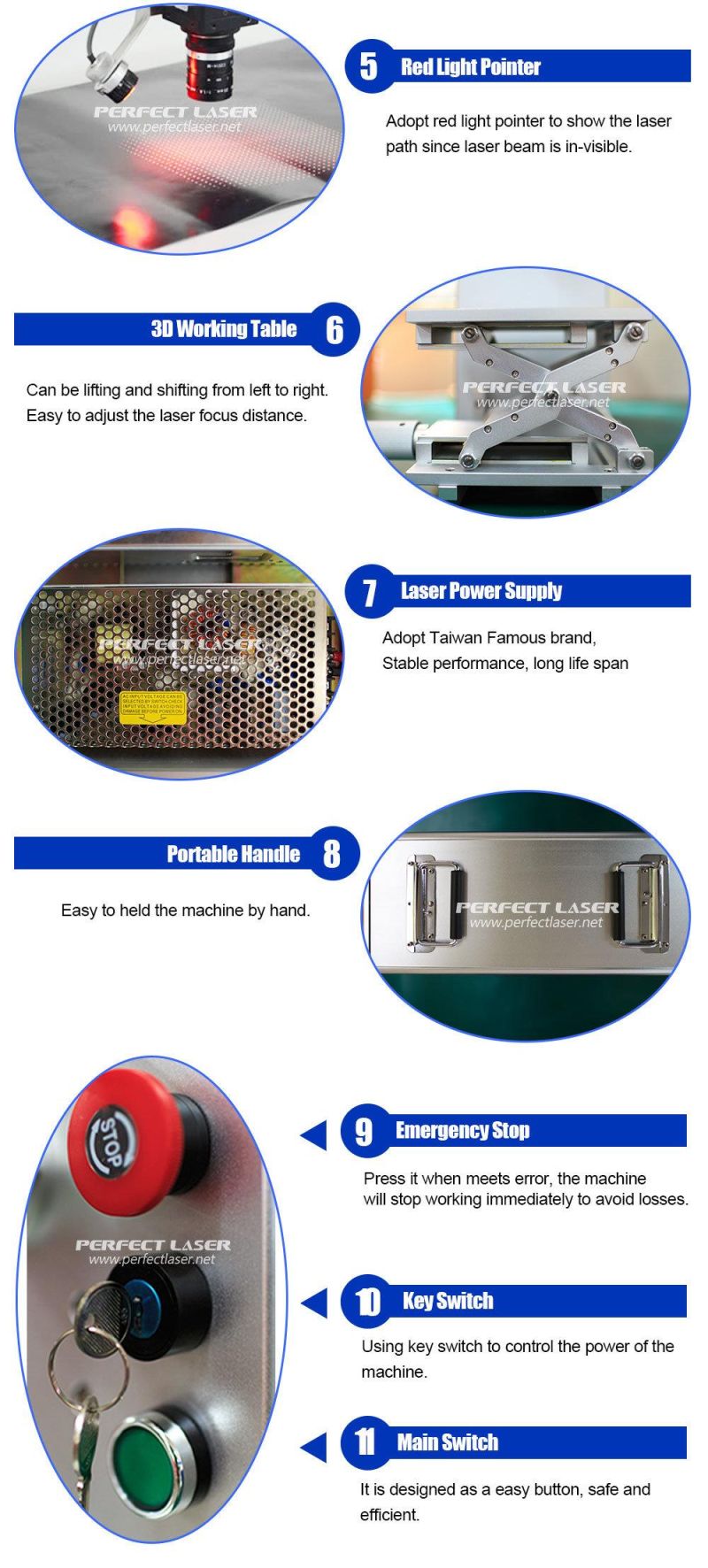

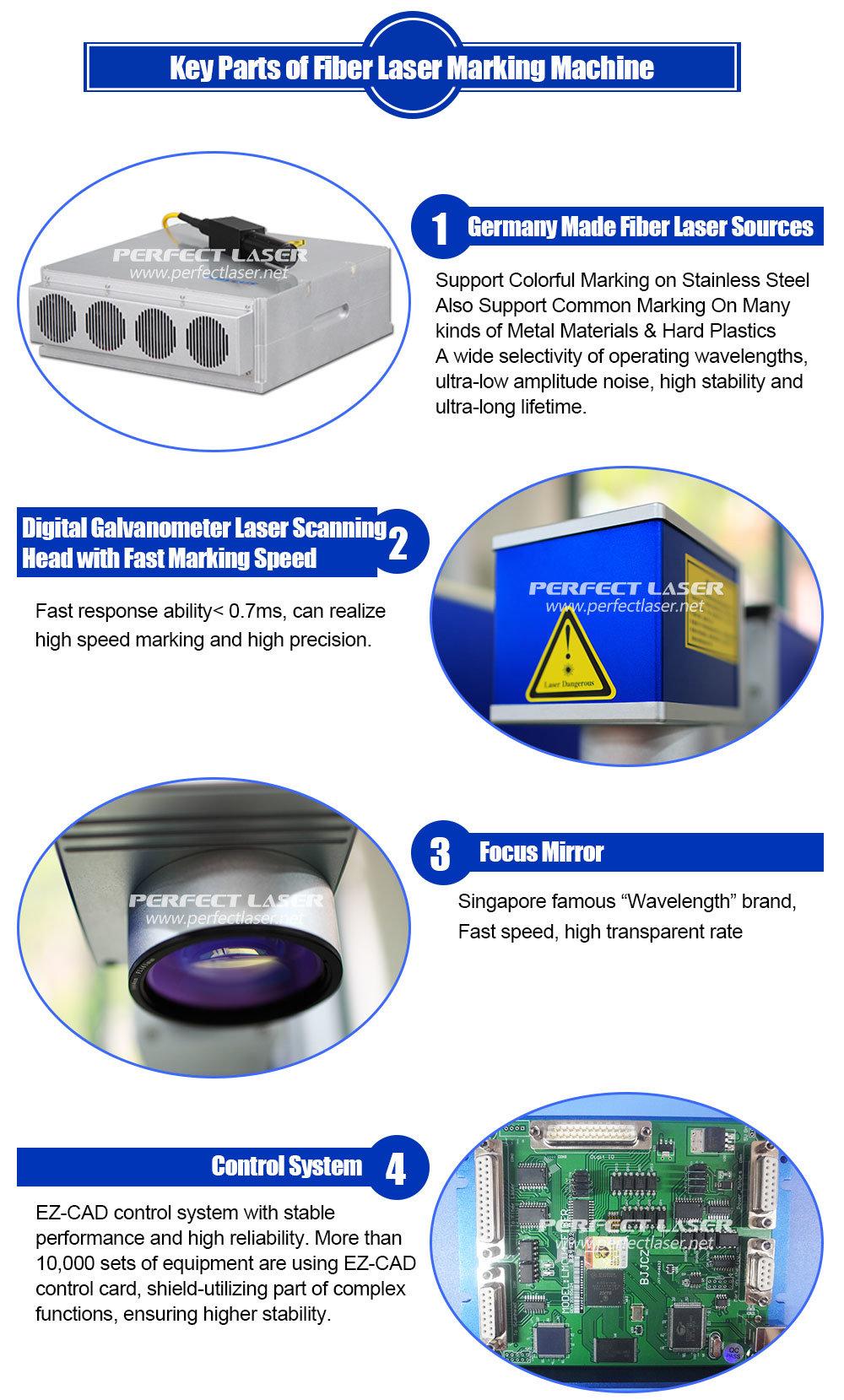

Machine Details of Laser Marking Machine:
Small Portable 30W Metal Laser Etching Machine for HardwareSmall Portable 30W Metal Laser Etching Machine for HardwareSmall Portable 30W Metal Laser Etching Machine for HardwareSmall Portable 30W Metal Laser Etching Machine for HardwareSmall Portable 30W Metal Laser Etching Machine for Hardware

Our Company:
We, Perfect Laser, as a 21 years history industrial manufacture in lase equipment field, 13 year Golden Supplier in Alibaba, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
Small Portable 30W Metal Laser Etching Machine for Hardware

Contact me:
Perfect Laser Co., Ltd. (China)
Contact: Crystal / Sales manager

  Small Portable 30W Metal Laser Etching Machine for Hardware
