• Model NO.：MAN-20
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：700*600*1500mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type CO2 Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 700*600*1500mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

High  prescion auto focus galvo scanner co2 laser marking machine



ADVANTAGE  :

1) Fast processing speed:Its processing speed is 2-3 times of traditional laser marking machine.

2) Good Stability and Free Maintenance: No need maintenance for laser device, also not need adjust or clean the lens.

3) Long Using Time: the average using time more than 100000 hours.

4) Large Marking/Engraving Range: the max rang can be made to 300X300mm.

5) Applicable to a variety of materials such as metal and nonmetal.

TECHNICAL  PARAMETER :


Item Name	Technical Parameters
Model	10w /20w /30w
Output Power	30w/20w/10w
Laser Source	CO2 LASER
Wavelength	1064nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110mmx 110mm/ 200mm x 200mm/300x300mm (optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220V / Single-Phase Circuit / 50 /60Hz /4A
Cooling	Air Cooling
Packing size	900*800*1150mm
Gross weight	100kg
Package	Standard export wooden case
Packaging List	Main Body Laser Machine Unit x 1 Operation manuel  x 1 Computer including controller software and operation video x 1 Wood Safety Package Box x 1

DETAILS   IMAGES :



OPTIONAL LASER PARTS OF THE LASER MACHINE  :

01. X-Y axis 2D work table

Can adjust direction by forth and back,right and left

02. Rotary Device ( Optional )

Name: Rotary standard diameter 80mm

Use step motor to realize numerical control, the speed can be controlled by the computer liberalization.



APPLICATION :

Applicable industries:

Mainly applied to the higher marking precision such as mobile phones buttons, plastic translucet keys,

electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary

ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils,stainless steel products and other

industries.

Applicable Materials:

Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin,ceramic, plastic, ABS,

PVC, PES, steel, titanium, copper and other materials.

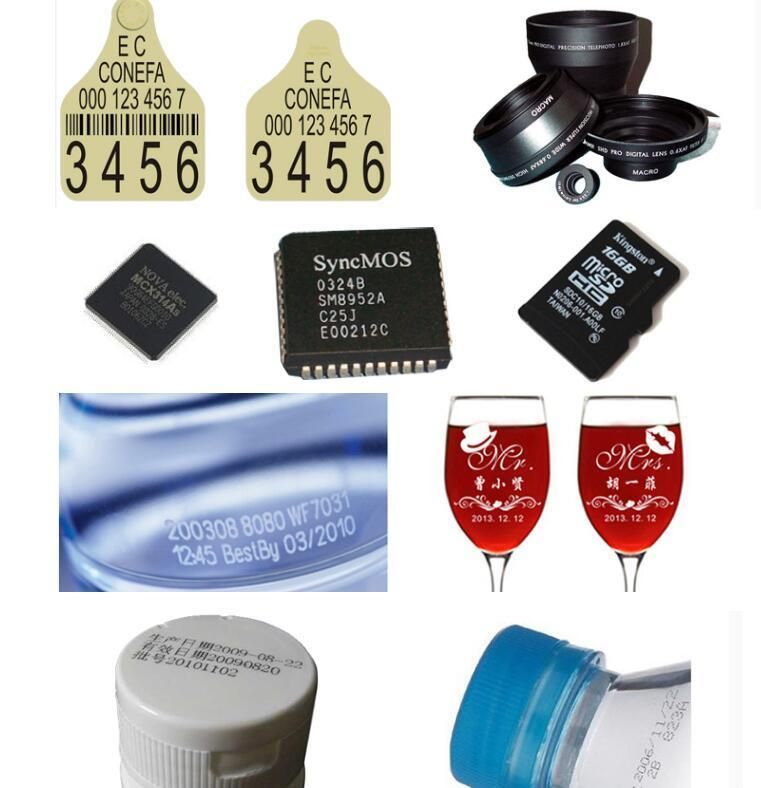

SAMPLE SHOW :



PACKAGING &  SHIPPING :



ABOUT  US

Precision makes the following commitments for products that you purchase from us:

After-sale service

 1.  24  hours Technical support by Email or Calling  .

 2.  English manual and CD video for machine using and maintaining.

 3.  3  years machine warranty, if any parts is borken in the warranty time, exclude man-made reason, then we can send you new parts for free.

Inner quality control system

In order to show you our best quality ,please allow me to introduce our quality control system as follows:

#.In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products

#.Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
