• Model NO.：MAN-20
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：700*600*1500mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type CO2 Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 700*600*1500mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

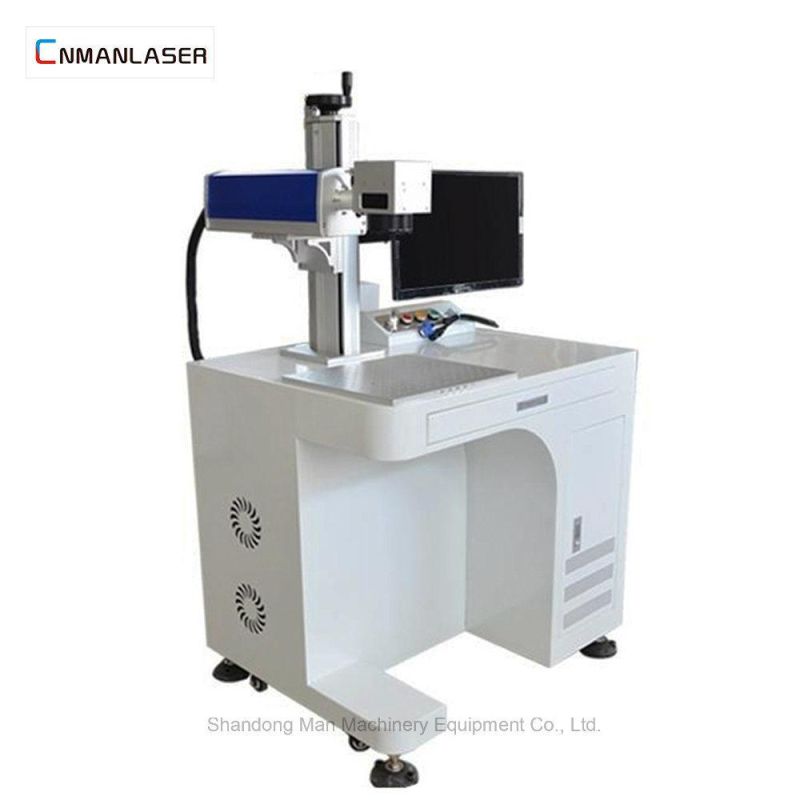

Professional factory nonmetal co2 laser marking machine for sale




RELATED PRODUCTS :

Model 1.  Desktop Fiber Laser Marking Machine

If your products smaller and can put on our work table, we advice you this model, this model is humanized design,

with foot switch, good for Mass Production.

 Model 2: Portable Fiber Laser Marking Machine

Only the work table can up and down to adjust the focus.

Suitable for smaller products and mark area smaller than 110*110mm.  Also with foot switch, good for quantity production:

Model 3 Online-Flying Marking Machine

This suitable for big quantity Flow line production, speed can adjust.


TECHNICAL  PARAMETER :


Item Name	Technical Parameters
Model	10w /20w /30w
Output Power	30w/20w/10w
Laser Source	CO2 LASER
Wavelength	1064nm
Beam Quality	<2
Repeat Frequency	10khz--- 100khz
Pulse Energy	2mJ
Beam Divergence	-0.3 to +0.3mrad
Laser Class	IV
Resolution	18μ
Repeatablility	50μ
Marking Scope	110mmx 110mm/ 200mm x 200mm/300x300mm (optional)
Linear Speed	800 character/ s
Marking Linear Speed	≤12,000mm/s
Marking Depth	Max. 1.0- 1.5mm (hard steel)
Min. Line Width	0.012mm
Min. Character Size	0.15mm
Repeat Accuracy	±0.003mm
Input Power	0.5kw
Electrical Source	220V / Single-Phase Circuit / 50 /60Hz /4A
Cooling	Air Cooling
Packing size	900*800*1150mm
Gross weight	100kg
Package	Standard export wooden case
Packaging List	Main Body Laser Machine Unit x 1 Operation manuel  x 1 Computer including controller software and operation video x 1 Wood Safety Package Box x 1

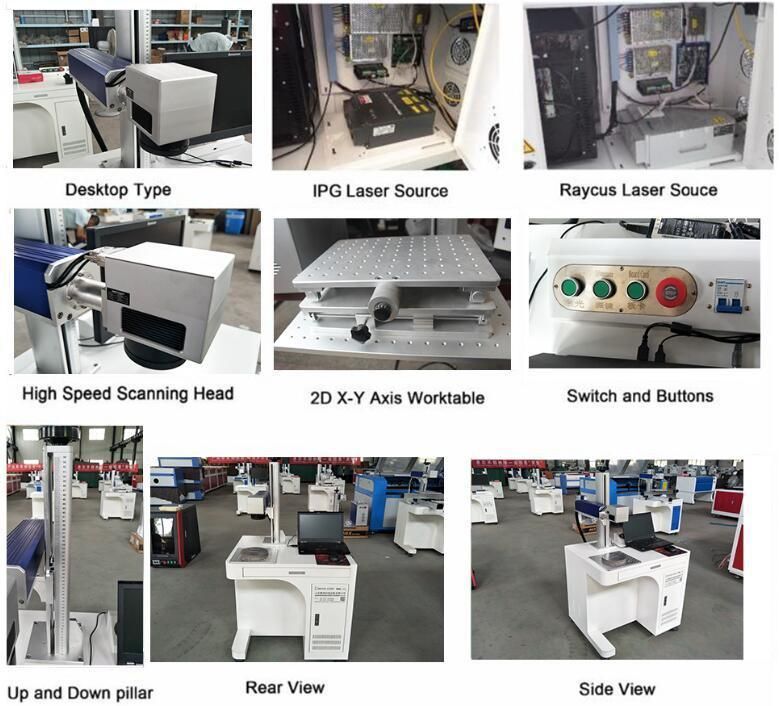

DETAILS   IMAGES :



1. Marking head

Famous marking head and marking lens

2. Laser source

American import laser, adjustable pulse width. Laser wavelength,10.6um/10.2um

3. .EZcad software

CO2 laser marking machine with EZcad software,can support Chinese, English, Russian and other languages, Easy operation.

4. High Speed field lens

Improve the ability of edge beam incident to the detector makes the probe on the surface of the photosensitive non-uniform illumination uniformity

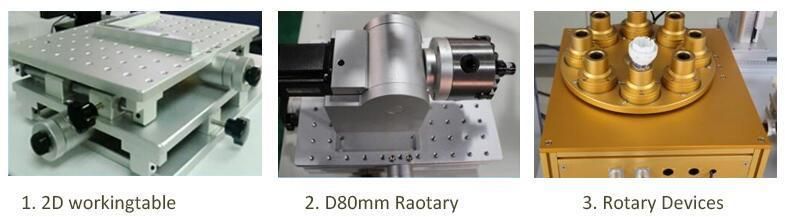

OPTIONAL LASER PARTS OF THE LASER MACHINE  :

01. X-Y axis 2D work table

Can adjust direction by forth and back,right and left

02. Rotary Device ( Optional )

Name: Rotary standard diameter 80mm

Use step motor to realize numerical control, the speed can be controlled by the computer liberalization.



APPLICATION :

Applicable industries:

Mainly applied to the higher marking precision such as mobile phones buttons, plastic translucet keys,

electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary

ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils,stainless steel products and other

industries.

Applicable Materials:

Metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin,ceramic, plastic, ABS,

PVC, PES, steel, titanium, copper and other materials.


SAMPLE SHOW :



PACKAGING &  SHIPPING :



ABOUT  US

Precision makes the following commitments for products that you purchase from us:

1. Precision guarantees that every set of  scanner are under rigorous testing before they are delivered to you, to ensure the excellent performance of

all products.

2. After purchasing our products, if you have any questions, please contact us by whatsapp or wechat /skype ect .

3. Before or after purchasing our precision scanner, if you have any technical issues, please send e-mail to our service mailbox,

we will give you professional reply in time.

4. If you are not satisfied with our products, we will provide free exchange service within 3 months.

5. We will provide free repair service for what you have purchased for 36 months.

6. Scanning mirrors and housing of laser marking machine are beyond of warranty and replacement.

7. We commit the maintenance service within 48 hours after receiving the products.

8. Damages caused by unauthorized tearing of the seal or replacing of the parts are beyond of warranty.

9. We would appreciate any of your suggestions for helping us to keep improving our service and products.
