Cable/Electric Wire Online Marking Machine Laser Marker
Wuhan Label Laser Science & Technology Co., Ltd.- Laser Visibility：Invisible
- Applicable Material：Nonmetal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：UV
- Laser Classification：Solid Laser
Base Info
- Model NO.：LBUV-400-A
- Type：UV Laser Marking System
- Marking Method：Scanning Marking
- Warranty：12 Months
- Consumable Items：Laser Tube
- Working Life：20,000hours
- Protection Cover：Customized
- Transport Package：Wrapping Film & Export Standard Wooden Cases
- Specification：680*950*1437mm h
- Trademark：Label Laser
- Origin：China
- HS Code：8456110090
- Production Capacity：500 Units,Month
Description
Technical parametersLaser Wavelength ND: YVO4/355nm Output Power 2W /3W/ 5W/ 8W or customized Model No. LBUV-400-A Beam Quality M2 < 1.2 Laser Frequency 20~200 KHz Marking Area 70mm*70mm, 110*110mm, 175mm*175mm
( or customized) Marking Depth 0.1-0.2mm
(depands on power, processed material and procedure) Marking Speed ≤ 9000mm/s Min. Line Width ≤ 0.01mm Repeated Precision ±0.003mm Total Power ≤ 1.5KW Minimum Character 0.1-0.2mm Cooling Mode Air or water cooling Temperature of Operation Environment 18~35ºC Humidity of Operation Environment 25ºC< 85% ; 30ºC< 70% Power Input AC 220V ( ±10%) / 50Hz Machine Dimension 680*950*1437mm Optional Other customized Automation

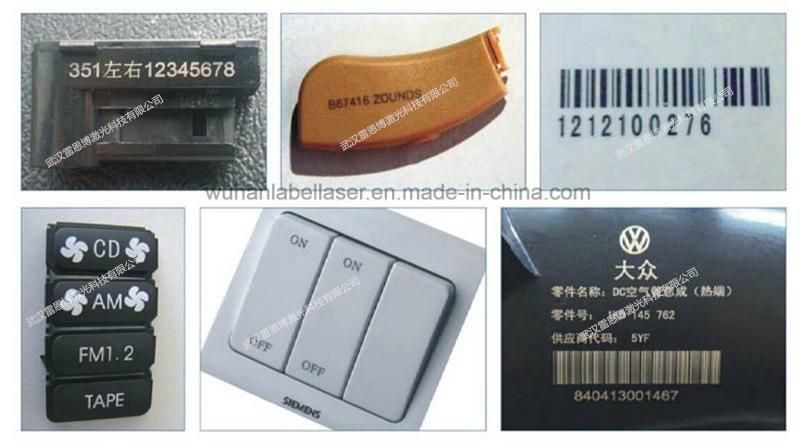

Marking Samples Show:
To help you determine if LABEL machinery is the right tool for your application or not, we provide the free sampling on your material with our in-house artwork facility. Call Jessica at +86-27-86700672 for further enquiry.
About us:
Wuhan Label Laser Science and Technology Co.,Ltd is a hi-tech corporation located in China Optics Valley in Wuhan City.
It has been specialized in researching and manufacturing industrial Laser marking equipments and supplying marking solutions for customers all over the world since established in 2000.
Why choose us Label Laser ??
Packing & Shipping:
- Packing :
Anti-collision foam + wrapping film+ Export standard wooden case.
- Shipping:
FAQ:
Q: What's laser marking ? And how laser marking machine works?
A: Laser marking is typically a delicate process of creating a depth by removing the surface material, especially with the purpose of modifying its reflectivity and contrast. The laser marking systems at Label Laser are designed for non-contact processes. They offer better and more reliable solutions in terms of stability and deformity.
Q: How to operate the machine? Is training necessary?
A: The machine is mainly controlled by software and not complicated. Operation manual with pictures will be provided .
Generally speaking, an operator, who is not familiar with fiber laser marking machine can still operate it very well.
Q: In case machine exists the problem, how to do after sales service?
A: One-year warranty of the whole machine. We will help to solve any problems in this period.
Q: Is it possible to add customized protection cover?
A: Yes, customized protection cover is acceptable.
Q: Any consumables for fiber laser marking machine?
A: No consumables. It's very economical and cost-effectient.
Contact Us:
Any questions,please feel free to contact Ms. Jessica online or throught below methods right now!
We will get back to you ASAP within 24 hours.
( or customized)
(depands on power, processed material and procedure)
Marking Samples Show:
To help you determine if LABEL machinery is the right tool for your application or not, we provide the free sampling on your material with our in-house artwork facility. Call Jessica at +86-27-86700672 for further enquiry.
About us:
Wuhan Label Laser Science and Technology Co.,Ltd is a hi-tech corporation located in China Optics Valley in Wuhan City.
It has been specialized in researching and manufacturing industrial Laser marking equipments and supplying marking solutions for customers all over the world since established in 2000.
Why choose us Label Laser ??
- 20 years of researching and manufacturing experience
- Advanced technology, researching and development group
- More than 3000+ successful cases of marking solution accumulated in domestic and oversea markets
- 100% QC
- Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
- ISO,CE,SGS certified
Packing & Shipping:
- Packing :
Anti-collision foam + wrapping film+ Export standard wooden case.
- Shipping:
- Main transportation method: by sea.
- Other Option: by air or railway transportation.
FAQ:
Q: What's laser marking ? And how laser marking machine works?
A: Laser marking is typically a delicate process of creating a depth by removing the surface material, especially with the purpose of modifying its reflectivity and contrast. The laser marking systems at Label Laser are designed for non-contact processes. They offer better and more reliable solutions in terms of stability and deformity.
Q: How to operate the machine? Is training necessary?
A: The machine is mainly controlled by software and not complicated. Operation manual with pictures will be provided .
Generally speaking, an operator, who is not familiar with fiber laser marking machine can still operate it very well.
Q: In case machine exists the problem, how to do after sales service?
A: One-year warranty of the whole machine. We will help to solve any problems in this period.
Q: Is it possible to add customized protection cover?
A: Yes, customized protection cover is acceptable.
Q: Any consumables for fiber laser marking machine?
A: No consumables. It's very economical and cost-effectient.
Contact Us:
Any questions,please feel free to contact Ms. Jessica online or throught below methods right now!
We will get back to you ASAP within 24 hours.
