All-in-One Mini Portable Fiber Laser Marking Machine 20W/30W

Wuhan Label Laser Science & Technology Co., Ltd.
  • Laser Visibility：Invisible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Solid Laser

Base Info

  • Model NO.：LBGX-320
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Warranty：12 Months
  • Consumable Items：No
  • Working Life：100,000hours
  • Protection Cover：Customized
  • Transport Package：Wrapping Film & Export Standard Wooden Cases
  • Specification：670mmx1100mmx1150mmh
  • Trademark：Label Laser
  • Origin：China
  • HS Code：8456110090
  • Production Capacity：500 Units,Month

Description

Technical parameters  Laser Wavelength1064nmOutput Power20w/30w/50wLaser SourceIPG/Raycus/MAXBeam Quality M2<1.5Laser Frequency1~100 KHzMarking Area70mm*70mm,110*110mm,145mm*145mm, 150*150mm
170mm*170mm, 200mm*200mm, or customizedMarking Depth0.01-0.25mm
(depends on power, processed material and procedure)Marking Speed≤ 7000mm/sMin. Line Width0.015mmRepeated Precision± 3 ‰ mmTotal Power≤ 2KWMin. Character0.3mmCooling ModeAir coolingTemperature of Operation Environment15ºC~35ºCHumidity of  Operation Environment25ºC < 85%; 30ºC < 70%Power Input220V± 22V / 50HzOptionalOther customized Automation

Product Features:
  • Good quality light beam, high reliability, stability.
  • Compact size, simple and easy to maintain.
  • High laser frequency, more suitable for marking some non-metallic materials with fast speed.
  • Low power consumption. no consumables, low cost.
  • The laser light path is sealed, so it is safe and convenient for maintenance.
  • Advanced hardware control technology and intelligent software. Easy to operate.
  • Environment-friendly marking, never fade.



Advantages:
  • Excellent laser beam quality and processability, make it possible to mark on the flat surface as well as circumference surface.
  • It is a multifunctional fiber laser marking system. Suitable for large workpieces that are difficult to handle, handheld laser head positioning marking
  • Industrial integrated electrical control box and highly compact laser head give the whole set of equipment extraordinary portability.
  • Compact design, portable size, an advanced software function, make it very flexible, convenient, and stable for users to mark on needed materials.
  • Low-energy, low operating cost, no consumables, maintenance-free.
  • Label Laser's professional marking software has a wide application operated under WINDOWS XP/2000/WIN 7.
  • Super high speed marking capability.
  • High stability, long service life, up to 100,000 hours.


Applicable field and material:
  • Materials: metal and most of nonmetal.

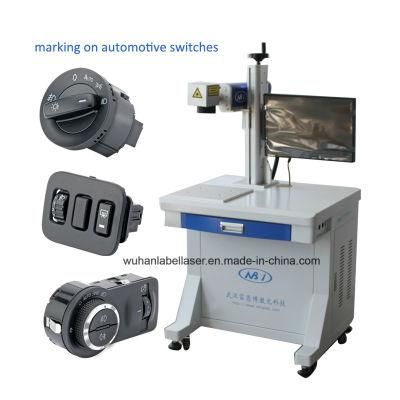

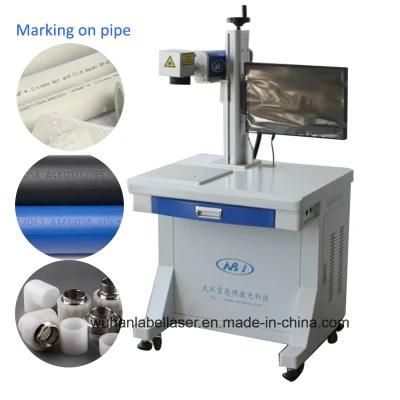

  • Industries: electronic components, electrical appliances, IC, hardware tools, automobile parts, and accessories, precision machineries, apparatus and meters, plastic, ect.

All-in-One Mini Portable Fiber Laser Marking Machine 20W/30W
All-in-One Mini Portable Fiber Laser Marking Machine 20W/30W


About us:
      Wuhan Label Laser Science and Technology Co., Ltd. is a hi-tech corporation located in China Optics Valley in Wuhan City.
It has been specialized in researching and manufacturing industrial Laser marking equipment and supplying marking solutions for customers all over the world since established in 2000.
Why choose us Label Laser ??
  • 20 years of researching and manufacturing experience
  • Advanced technology, research and development group
  • More than 3000+ successful cases of marking solution accumulated in domestic and oversea markets
  • 100% QC
  • Utility Model Patent Certificates, involved 3M Flexible label paper marking, Nameplate Auto marking, Engine cylinder block and head pass-type auto marking, Automobile forged wheel hubs pass-type auto marking, copyright of computer software, etc.
  • ISO,CE,SGS certified


All-in-One Mini Portable Fiber Laser Marking Machine 20W/30W
All-in-One Mini Portable Fiber Laser Marking Machine 20W/30W


Packing & Shipping:
      - Packing :
          Anti-collision foam + wrapping film+ Export standard wooden case.

      - Shipping:
  • Main transportation method: by sea.
  • Other Option: by air or railway transportation.

All-in-One Mini Portable Fiber Laser Marking Machine 20W/30W


 FAQ:

Q: What's laser marking? And how is laser marking machine works?
A: Laser marking is typically a delicate process of creating a depth by removing the surface material, especially with the purpose of modifying its reflectivity and contrast. The laser marking systems at Label Laser are designed for non-contact processes. They offer better and more reliable solutions in terms of stability and deformity.

Q: How to operate the machine? Is training necessary?
A: The machine is mainly controlled by software and not complicated. An operation manual with pictures will be provided.
Generally speaking, an operator, who is not familiar with the fiber laser marking machine can still operate it very well.

Q: In case a machine exists the problem, how to do after-sales service?
A: One-year warranty of the whole machine. We will help to solve any problems in this period.

Q: Is it possible to add customized protection cover?
A: Yes, customized protection cover is acceptable.

Q: Any consumables for fiber laser marking machine?
A: No consumables. It's very economical and cost-effectient.
