• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：860*360*760mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 860*360*760mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

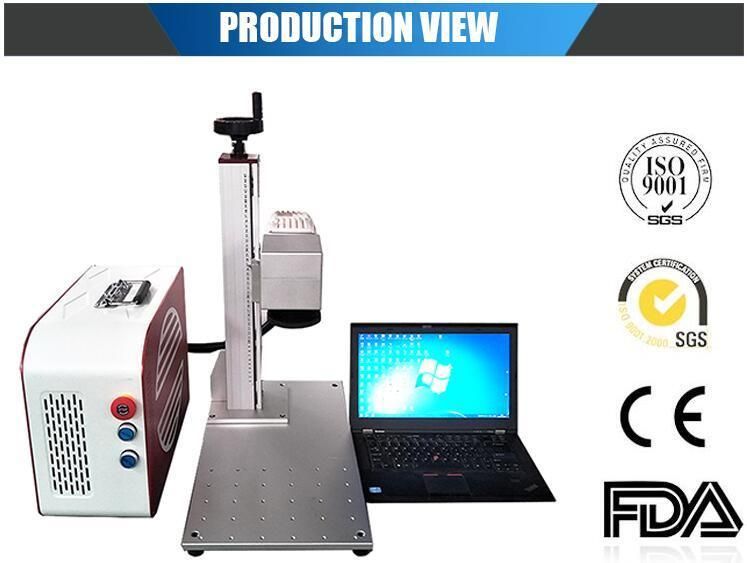

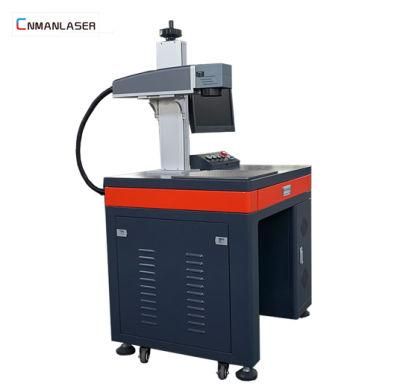

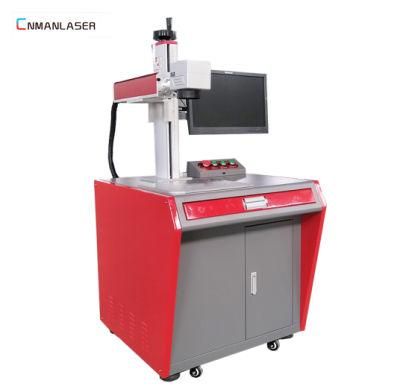

CNC Economical Table Fiber Laser Marker Marking Machine for Metal






Simple Introduction:

1.High speed: High quality laser scanning system makes the marking speed up to 7000mm/s.

2.Long lifetime: Adopt advanced fiber generator, the life time could up to 100,000 hours.

3.High Precision Re-position precision is 0.001mm.

4.Low consumption: It is environment-protecting and energy-saving, power consumption is reduced by 3-10 times compared with YAG laser.

Using cost is really cheap.

5.Maintenance-free: The machine is maintenance-free, there is almost no any parts need to change after long term use.

6. Easy operation: The machine is very easy to use, and even the fresh man can use it well.

                     TECHNICAL  PARAMETER :


Laser power	10W/20W/30W/50W
Marking area	110*110mm,200mm*200mm,300*300mm
Laser wave length	1064nm
Frequency of pulse	20KHz~100KHz
Max marking depth	≤0.2mm(according to power and material)
Marking speed	0-9000mm/s
Minimum line width	0.01mm
Marking content	Text,pattern,date,bar code,etc
Minimum character	0.2mm
Repeated accuracy	±0.001mm
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
Power supply	AC220V±10% 50Hz,or AC110V±10% 60Hz
Operation system	Microsoft Windows XP or Windows 7
Operation temperature	5ºC-40ºC
Supply Voltage	220V/50Hz/10A
Cooling method	Air cooling

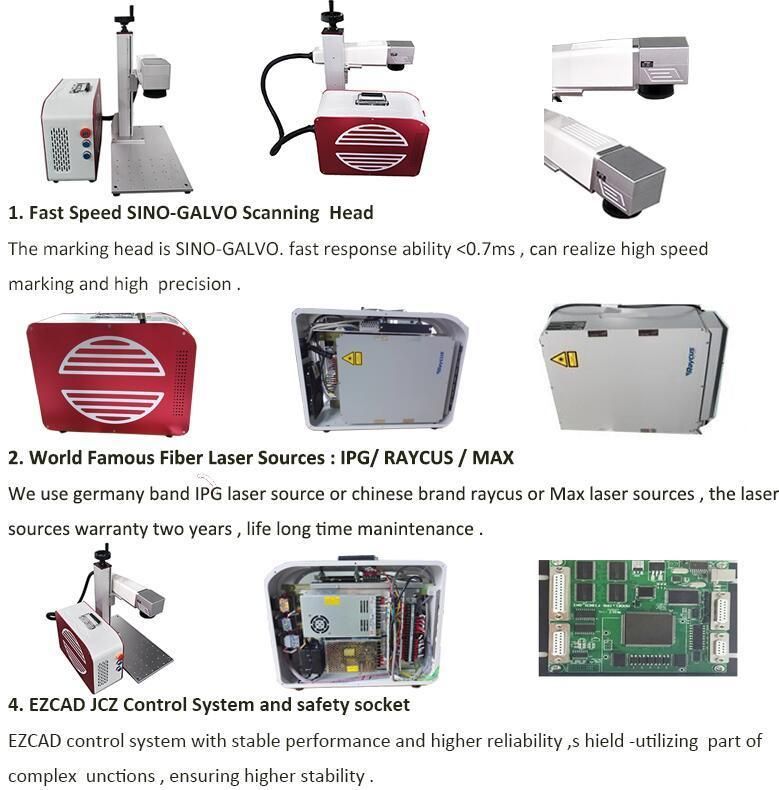

                          DETAILS   IMAGES :

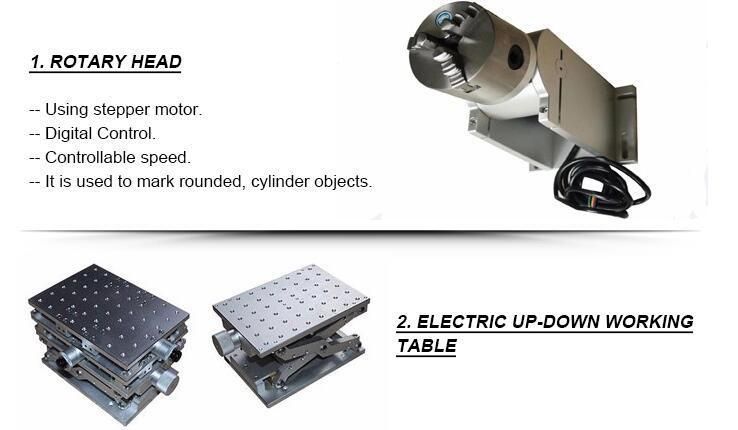

Laser parts with the machine :

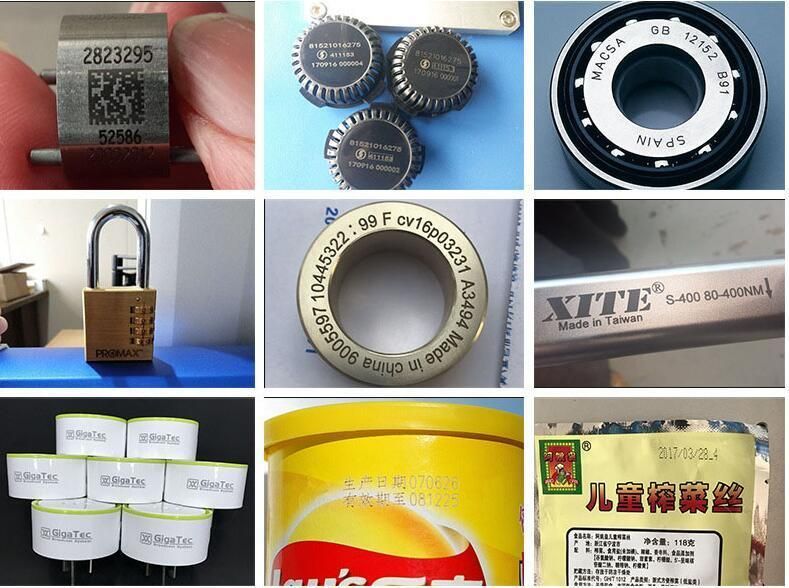

                        SAMPLE SHOW :

1.Applicable Industries

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances,

communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage

buckle, cooking utensils, stainless steel products and other industries.

2.Applicable Materials

Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, coating

materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.

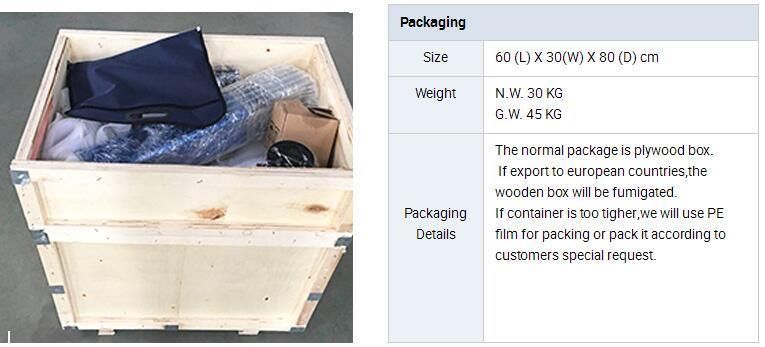

                PACKAGING &  SHIPPING :

Shipping:

Trade terms: FOB, CIF, EXW

Payment terms: T/T, Western Union, Escrow, MoneyGram

Payment condition: 30% deposit before production, 70% balance before delivery

Delivery time: 1-3 working days after deposit

Packaging: Crate box to protect the machine inside and delivery in safety.

Shipping: By sea, by air or express delivery



                   SERVICES  :

Q: How can you guarantee your sales' quality?

A:We guarantees that every set of machines are under rigorous testing before they are  delivered to you,

to ensure the excellent performance of all products.

Q: How can you contact us after  purchased our products?

A:  After purchased our products, if you have any questions, please contact us and then he will feed back to engineers.

Q:How about the payment?

A:We support T/T, PayPal , Cash, Escrow and Western Union.

Q:How about the aftermarket service?

A:
1. You will get a quick reply within 24 hours.

2. 3 years warranty except the consumable items.

3. Free test samples before buy a machine

4. Free training in Superwave laser's factory, or through trainning video, user's manual, email, telephone, etc.

5. Our enginner can do a door-to-door instruction training service.

6. You will get technical support through email, telephone, skype, etc when you need.
