• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：900*800*1150mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 900*800*1150mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

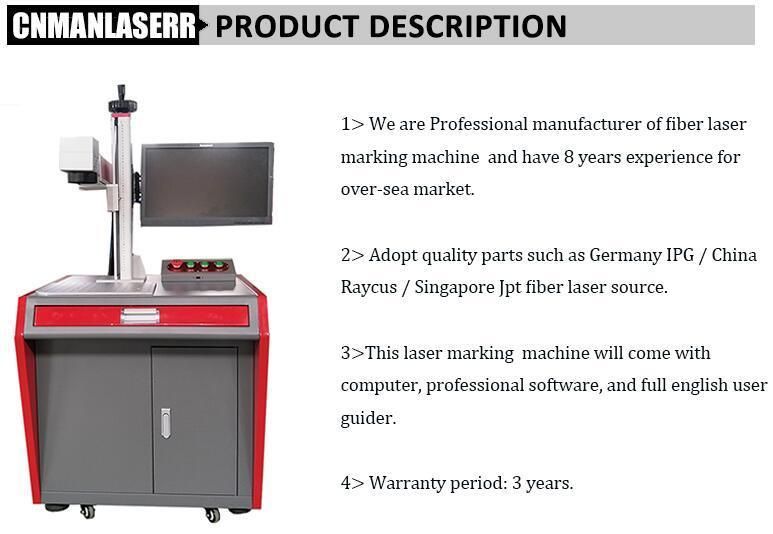

Product Description

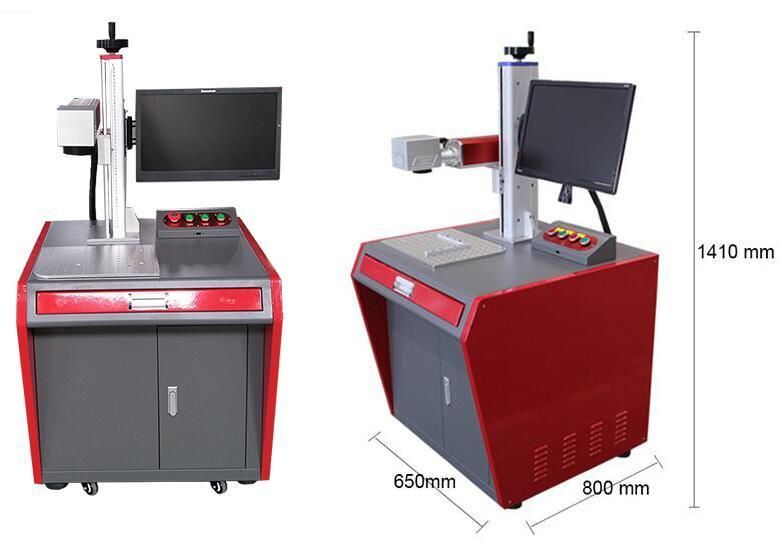

CNC Automatic Copper Jewelry Steel Desktop 20w Laser Marking Machine








 TECHNICAL  PARAMETER :


Laser Type	Fiber laser
Laser Power	20W 30W 50W 70W 100W
Laser Wavelength	1064nm
Marking Area	110*110mm 150mm*150mm  175mm*175mm 200*200mm 300*300mm
Marking Depth	≤1.2mm
Marking Speed	10000mm/s
Minimum Line Width	0.012mm
Minimum Character	0.15mm
Repeated Precision	±0.003mm
Life-span of Fiber Laser Module	100 000hours
Beam Quality	M2 <1.5
Focus Spot Diameter	<0.01mm
Output Power of Laser	10%~100% continuously to be adjusted
System Operation Environment	Windows XP / W7--32/64bits / W8--32/64bits
Cooling Mode	Air cooling--Built-in
Temperature of Operation  Environment	15ºC~35ºC
Power Input	220V / 50HZ / single phase or 110V / 60HZ / single phase
Power Requirement	<400W
Optional	Rotary Device, Moving Table, other customized Automation

Advantage :

01      Perfect marking effect, can mark precise design on tiny surface

02      Photoelectric conversion efficiency up to 30% , good beam quality , high efficiency

03      Fast marking speed and high efficiency, the increased processing in same time speeds up the investment return for customers

04      Small and compact size, less occupied area, easy transportation

05      Long Life( average life expectancy of one hundred thousand hours ), maintenance-free

06     no supplies. air-cooled (Air cooling system saves the cost to purchase a refrigerating engine and is much more

excellent than traditional fiber laser marking machine), low energy consumption, low running cost

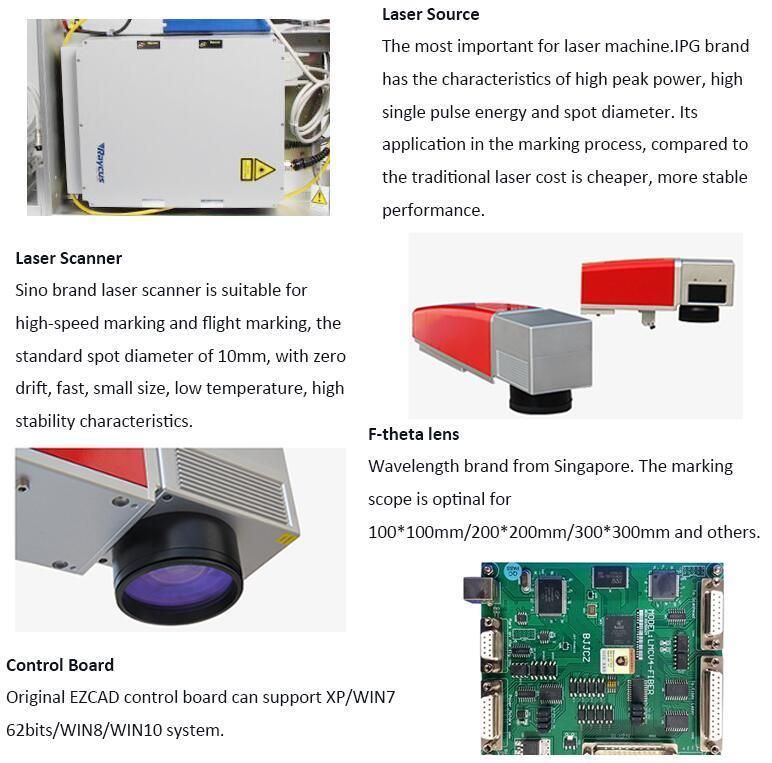

 DETAILS   IMAGES :

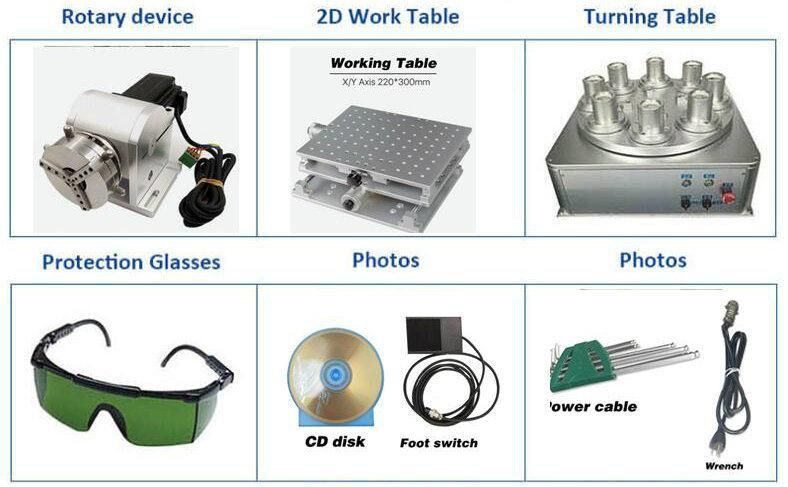

Optional Laser Parts :

Rotary device(optional )

Using step motor to realize numerical control,the speeed can be controlled  by the computer liberation.

X,Y adjustable table(optional)

X axis adjustable range 160mm,Y axis adjustable range 90mm,flexibility,mesa have multipe screw holes,convenient

and custom installation,special fixture industry platform

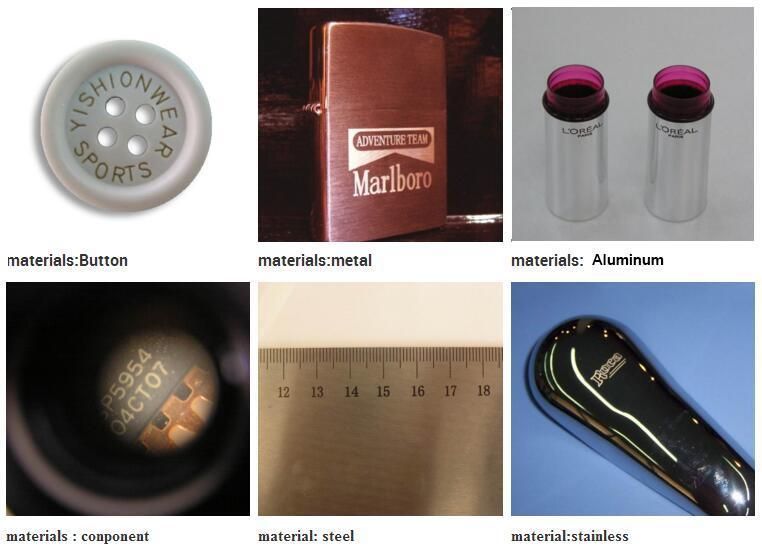

SAMPLE SHOW :

Electrical -- Engineering and Electrical part and component

Mobile -- ( Cover, battery, keyboard , I Phone Case )

Jewellery -- (Ring , pedeant , bracelet ) , eyeglass , clocks and craft

Building materials , PVC pipe

Car motor car spare part , Insturment and meters and cutting tool

Plastic -- plastic case , aviation and aerospace,

Military product -- hardware fitting and accessory , sanitary appliance

Food and beverage -- Medicine package and medical instrument , solar Pv industry



 PACKAGING &  SHIPPING :

Package and delivery

1. Standard plywood case, its compressive strength and bearing quality is better.

2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.

3. when importing, the plywood case is with fumigation-free, the procedure is simple.

4. Delivery Detail: within 7-15 days after received your payment .



 ABOUT  US :

Q:How was the machine guarantee?

A: We offer you 36 months guarantee

Q:If machine have problem with the guarantee, how to fix this problem?

A:We have the after-sale department, machine have the problem, we will fix it through from the internet.

We check with you by internet face to face, then if machine part have problem, we exchange the new parts of you , and help, to install it.

Q; How can i use the machine , if i am the new buyer?

A:We can teach you in the factory face to face , it only take you two hours to learn the using.

if you have no time, need to come back learn we have the English manual book and working vedio step by step,



Q: How do you control your quality?

A: Before we ship our machine to another country, we will test it well,let it go through every of the corner check the accuracy.

Machines can not be dispatched until finished machine pass all essential complicated test after running at least two days

without stopping to ensure quality.

Q: If the problematic machine can not be fixed well through Internet and phonetic?

A: In the first year, the seller will only charge the buyer the visa, traveling and accommodation fee in case the buyer

needs the seller's engineer to perform necessary repair and maintenance works for the laser machine and chiller in the buyer's factory.

*What do I need to know when I need a recommendation?

1. What materials you want to process with?( stainless steel, aluminum, wood, plastic...)

2. Effective marking size? (75*75mm, 110*110mm, 175*175mm, 300*300mm)

3. Do you need to mark on cylindrical or round surface?

4. Do u have size or weight of the product u need to marking on?

5. Do you buy for person use or selling?
