• Model NO.：MAN-20

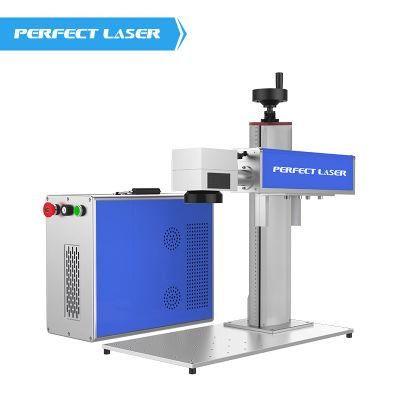

• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Speed：>7000mm,S
• Min.Line Width：0.11mm
• Min.Character Size：0.15mm
• Marking Area：110*110mm,175*175mm,300*300mm
• Wavelength：1064nm
• Marking Depth：≤0.2mm
• Laser Power：10W ,20W ,30W
• Warranty：3 Years
• Transport Package：Wooden Case
• Specification：710*510*710 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Speed >7000mm/S Min.Line Width 0.11mm Min.Character Size 0.15mm Marking Area 110*110mm/175*175mm/300*300mm Wavelength 1064nm Marking Depth ≤0.2mm Laser Power 10W /20W /30W Warranty 3 Years Transport Package Wooden Case Specification 710*510*710 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 5000 Sets/Year

Product Description

Product Features:

1. Best Marking Effect: The laser beam of fiber laser is fine and thin. It can provide the best marking effect among all the laser machine machines. Especially good in smallest character marking, such as mark on IC chip.
2. Deep Marking:  Laser Fiber Laser Marking Machine can make deep marking up to 1.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm.
3. Higher Accuracy: Fiber laser can reach unto 0.001mm precision, while diode only 0.01mm.
4.10 Years Long lifetime: We used the fiber laser module made by Germany IPG technology, the lifetime of the fiber laser device is 100, 000 hours, so the machine can be used for 8-10 years.
5. No consumables: Fiber laser machine can be used for 8-10 years without any consumables.
6. No need to adjust the laser path.
7. Free of Maintenance.
8. Use Integrated Air Cooling.
9. Low Power Consumption: Low cost, only 0.5kw/hour.



Technical Parameter :


Model name	MAN--F50W
Laser type	IPG / RAYCUS/ /CAS/MAX/ (optional)
Laser power	20W/30W 50W/(optional
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Machine color	blue grey ( red white,yellow black etc. for option)
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20-2KHz
Power consumed	<800W
Minimum line width	50μm
Minimum character	0.3mm
Laser Wavelength	1064nm
Galvanometer Size	110 * 110mm (optional)
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Ambient operating temperature	15 ° C - 35 ° C
Guarantee	3  year
Optional parts	Rotary device
Instructions	Video instructions&instructions book

Application industry:

It is widely used in packaging and marking of tobacco, food, beverage, medical cosmetics, garment accessories, craft gifts, electronic components and other industries.

Applied Materials:

The machine is widely used and can engrave most non-metallic materials such as paper, leather, wood, plastic, plexiglass, cloth, acrylic, bamboo, rubber, crystal, jade, ceramics, glass and artificial stone. In transistors, chip components, | C, ceramic capacitors, thermistors, etc.





1.Company Information

Shandong Man  Machinery Equipment Co., LTD. mainly engaged in cross-border business for 10 years. At present,

the company operates more than 10000 kinds of products with more than 200 employees.

2.Quality Certification

All the product are pass SGS  . And most of products have CE FDA certification.

 3.Shipping

Most of our product can be shipped within1- 2 business days after payment.

And It will take 7-23 working days to your hand.

Additonally, we are teamed up with Fedex, DHL, DPD,UPS international parcels to offer you fast shipment and the lowest price.

Please inform us if you need common international courier way

 4.Warranty

Directly manufacturer fully gurantee for 3 years .

5.Refund Policy

Returns accepted if product not as described, buyer pays return shipping fee;

or keep the product & agree refund with seller.

6.Pre-sale Service and After-sales Service

10 year-old export experience and professional sales Team.

Online service and technical support within 12 hours per day within warranty time.

Free new spare parts itself instead of broken parts if you receive the product firstly.
