Small Size Fiber Laser Marking Machine for Metal Stainless Steel

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility：Invisible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：MAN-20
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Model：20W,30W
  • Marking Area：110mmx110mm;
  • Repeat Frequency：10kHz- 100kHz
  • Voltage：220V,50Hz
  • Markingspeed：7000mm
  • Marking Depth：0-0.5mm
  • Positioning Way：Red Light
  • Cooling Mode：Air Cooling
  • Software：Ezcad Software
  • Certification：Ce FDA
  • Transport Package：Wooden Box
  • Specification：860*360*760mm
  • Trademark：CNMANLASER
  • Origin：Shandong
  • HS Code：8456110090
  • Production Capacity：500 Set,Month

Description

01Laser typeFiber laser02Laser wavelength1064nm03SoftwareEz CAD04Laser power10W | 20W | 30W | 50W05Life-span of Fiber Laser Module100 000hours06Marking depth

0.05~0.5 mm  (according materials)

07Marking speed1-7000mm/s08Mini. line width0.01mm09Mini. character0.1mm010Beam Qualityless than 1.4011Resolution4000 DPI012Auto. serialization Supported013Focus Spot Diameter<0.01mm014Power Requirement<400W015Input Power0.5kw016Cooling wayForced air cooling017Power supply

AC 220V/50Hz  ,110V/60Hz

018Marking area 70×70mm , 110×110mm , 160×160mm , 200x200mm ,300x300mm for optional019Mark contentDate coding letter, symbol, pattern, figure, image, bar code, 2D code  Support formatPLT,PCX, AL, DXF, BMP,JPG ,TIF,SHX Compatible softwareAutoCAD, CorelDraw, Photoshop

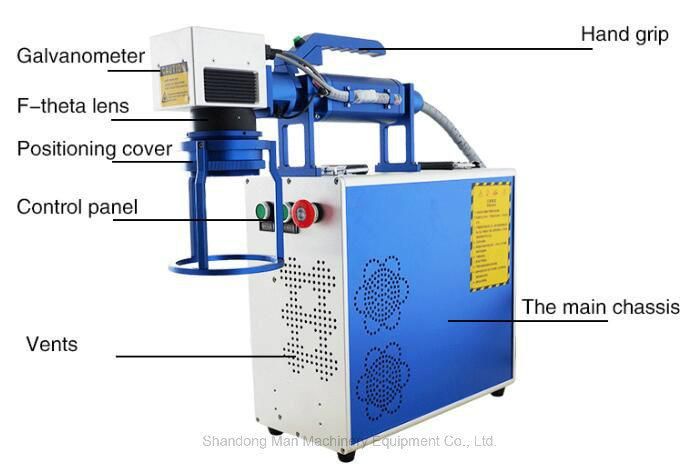

                          DETAILS   IMAGES :

Small Size Fiber Laser Marking Machine for Metal Stainless Steel
1. Fiber laser

   German IPG fiber laser or China fiber laser Optional (different price).

   NO maintenance laser source.

   fiber laser servicetime 100,000 hours.

2. High speed galvo scanner

    German or China made Optional (different price)

3. Easy Operate without route maintenance

4. Higher precision,faster speed.

5. Air cooling, small size,low power consumption.

6. Red light preview, how the marking position before lasering

7. Up and Down Lifter laser head (desktop model) and up and down worktable ( Portalble model).

 easy to marking engraving different workpiece .

8. Rotary attachment optional, can engrave and mark inside and outside ring jewellery

9. High temperature resistance, perfect for marking medical equipment etc that requires sterilization

10. The durable & fine marking quality, widely use in jewelry, mobile phones, and other high value items

Optional laser parts of the laser machine :

Small Size Fiber Laser Marking Machine for Metal Stainless Steel
                                   SAMPLE SHOW :

1. Function :

Fiber laser marking machine is used to engraving / marking / Coding / printing on many type of metal material and some non metallic material

with different design text , symbol , pattern , bar code , 2D code , serial number, and suitable for online engraving .

2. This marking machine can be used in:

1. metal:stainless steel,hardware,watch&clock,gold&silver jewelry,mould.

2. Non-metal:PVC,PCB circuit diagram,ABS casing,chip industry,plastic marking,ceramics

3. Surface treatment filed:oil and ink paint,anodic oxidation,electroplate,electroplate,surface marker,metal surface treatment.

4. Micro hole machining,metal wire cut,metal deep marking.

Small Size Fiber Laser Marking Machine for Metal Stainless Steel


                         PACKAGING &  SHIPPING :

Small Size Fiber Laser Marking Machine for Metal Stainless Steel


                                ABOUT  US  :

Pre-sales service

MAN LASER  will offer intentional customers free production process scheme,including technical consultation,sample cutting,equipment

selection,develop and customize or adjust accordingly to the special needs of customers.

After sale service

1.3 years warranty for the whole machine except for laser tube and lens.

2. 24 hours technical support by e-mail.

3.Calling or door-to door service. Engineers available to service machinery overseas.

4. Use friendly English software, user manual and detailed videos / CD.

Technical training

We will send our engineer to our customer's company for installation and technical training .all the terms should be discussed.

MAN LASER offers free technical training ,after installation and adjustment on user's site,training one /two operator and maintenance personnel

respectively.training includes the laser principle,construction equipment,process description,equipment maintenance ,laser safety,operating

procedures and simple troubleshooting.
