Hot Sale Laser Welding Machine with Qilin Welding Head Metal Laser Welder
Wuhan HJZ Laser Technology Co., Ltd.- After-sales Service：Life Time Technical Support
- Warranty：2 Year
- Application：Electronic Industry, Automotive Industry, Manufacturing Industry
- Technical Class：Pulse Laser
- Control：Automatic
- Power Density：Deep Fusion Welding
Base Info
- Model NO.：HJZ-1000-HWD
- Laser Classification：Optical Fiber Laser
- Type：Optical Fiber Transmission Laser Welding Machine
- Terms：Technical Parameters
- Power：100W
- Working Size：1000X600mm
- Table：up & Down
- Software：Rdcam
- Package：Standard Crate for Export
- Working Power：220V,50Hz,1.5kVA
- Engraving Speed：1200mm,S
- Process Material：Non-Metal Materials
- Marking Varieties：Characters, Graphs, Images, Trademarks
- Lifespan：Over 20, 000 Hours
- Water Chiller：Doluyo
- Watt：500W 1000W 1500W
- Laser Source：Raycus
- Transport Package：Standard Plywood Packing for Export
- Specification：1650X1250X1050MM
- Trademark：HJZ
- Origin：Wuhan, China
- Production Capacity：300sets,Month
Description
Handheld Fiber laser Welding MachineModel HJZ-1000-HWD Laser Power 1000W Laser Type Fiber laser Laser wavelength 1080nm Optical Quality less than 1.2 M² Power Range 10-100% Working Mode Continuous Output Stability less than 3% Positioning Red light Max Modulation Frequency 20KHz Certification CE Power supply 380-420V Weight Approximately 300kg Size 600x930x1050mm Warranty 2 Years Laser focus F=200MM
Advantages:
1. The laser welding machine adopts 1000 watt fiber laser, which has high photoelectric conversion efficiency and long life of 100, 000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times than that of YAG laser.
2. The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
3. High cooling rate, which can weld fine weld structure and good joint performance.
4. Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.

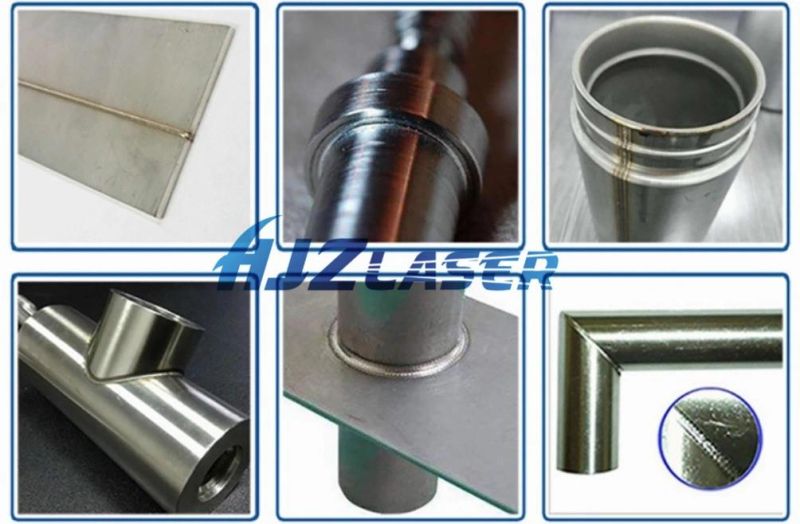

5. The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
6. No consumables, small size, flexible processing, low operating and maintenance costs.
7. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.
Application:
It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace, aviation, power battery and daily necessities industries.
Product advantages:
The laser welding machine adopts 150-3000 watt fiber laser source, which has high photoelectric conversion efficiency and long life of 100,000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times that of YAG laser.
OEM Service
1.Customized and OEM orders are welcome due to our aboundant experiences.
All the OEM service are free,customer only need to provide us with your logo
drawing,function requirements,colors etc.
Pre-sale service:
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make laser engraving/cutting solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test, etc.
After-sale service:
1) 1 year warranty for laser metal cutting machine;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support.
Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.
Guarantee:
We offer free Two-year warranty and durable maintenance&repair support for the purchased machines. Within the warranty time, we are responsible for the cost-free repair once the equipment fail or the machines break down(except human factor and force majeure causes) and we shall offer the replacement parts for free(except consumed parts). During the non-warranty time, we just charge the flat cost based on actual cost of repair.
FAQ
Q: Are you trading company or manufaurer ?
A: We are factory. And we have been in the laser field for 10 years.
Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but courier fee is on buyer side.
