• Model NO.：PEDB-500
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Ode of Operation：Pulsed
• Polarization：Random
• Energy Per Pulse (Prr = 20 kHz)：0.95 Mj
• Nominal Average Output Power W：20W
• Central Emission Wavelength：1060-1070 Nm
• Emission Bandwidth (Fwhm)：<10 Nm
• Pulse Repetition Rate* kHz：20-80 kHz
• Pulse Width, (Fwhm)：100 Ns
• Laser Switching on Time：180 μsec
• Laser Switching off Time：180 μsec
• Transport Package：Wood Crafcase
• Specification：75kg
• Trademark：Perfect Laser
• Origin：Hubei
• HS Code：8456110090
• Production Capacity：1000 Units Per Month

Basic Info.

Model NO. PEDB-500 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Ode of Operation Pulsed Polarization Random Energy Per Pulse (Prr = 20 kHz) 0.95 Mj Nominal Average Output Power W 20W Central Emission Wavelength 1060-1070 Nm Emission Bandwidth (Fwhm) <10 Nm Pulse Repetition Rate* kHz 20-80 kHz Pulse Width, (Fwhm) 100 Ns Laser Switching on Time 180 μsec Laser Switching off Time 180 μsec Transport Package Wood Crafcase Specification 75kg Trademark Perfect Laser Origin Hubei HS Code 8456110090 Production Capacity 1000 Units Per Month

Product Description

High Precision Fiber Laser CNC Laser Etching Marking Ceramic Machine
(Model:PEDB-500)
Contact: Emily


Description:
Fiber Laser CNC Laser Etching Marking Ceramic Machine can be carved both on metal materials and some non-metallic materials. The metal etching machines have a sealed structure. During work, fog will be kept in the enclosed laser cabinet without emission outside. Environmental, friendly and healthy, this design is special for the European market or other markets which have high demands for working environment. The effect of the metal etching machines is particularly outstanding.

Performance Features:

* Fiber Marker is adopted international advanced technology and the working material is fiber. The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit a high-quality laser beam.
* Compact: The high-tech product, which is combined with the laser device, computer, auto controller and precision machinery. It is a small design and the complete weight is 22kg.
* High Precision: Re-position precision is 0.002mm

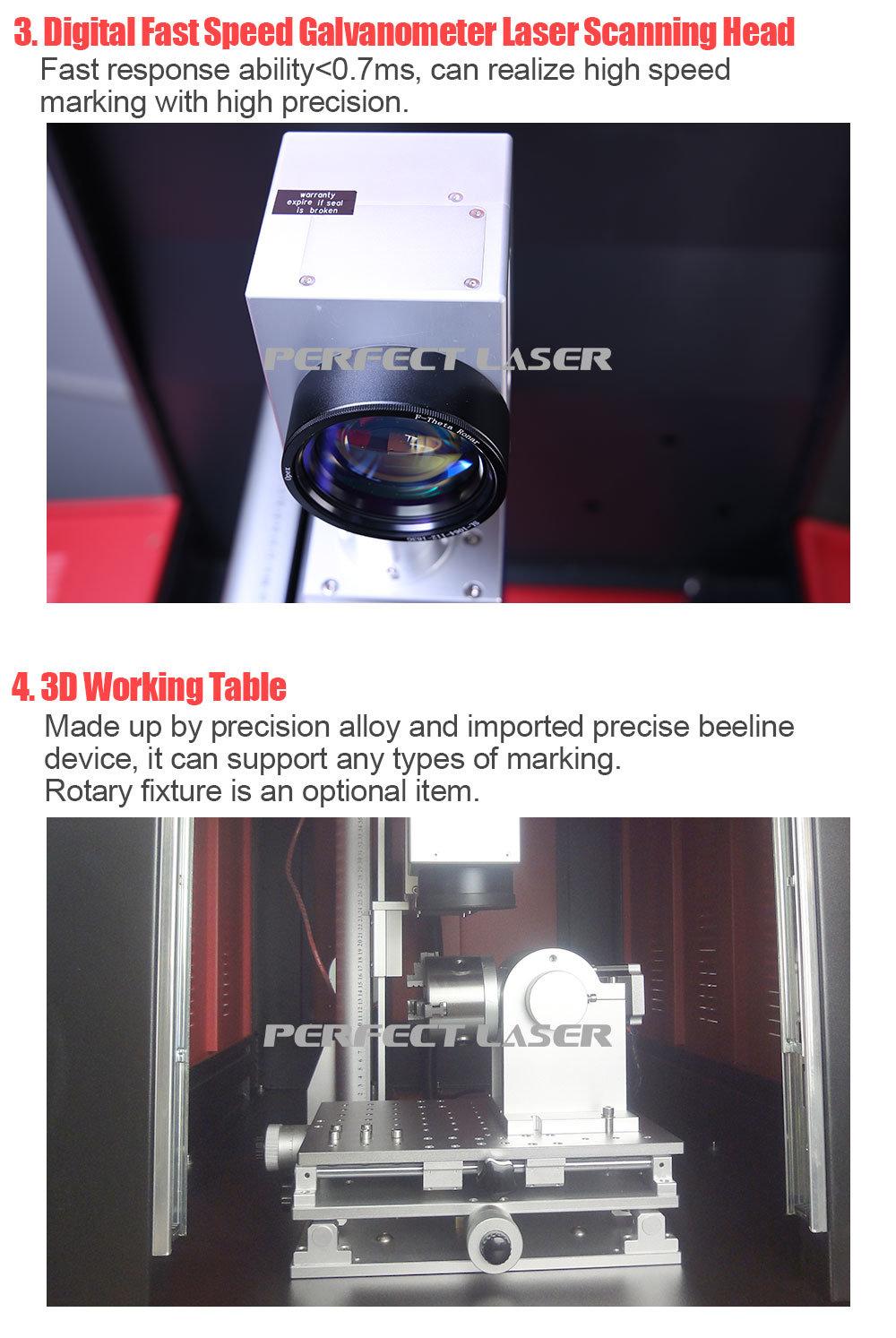

* High Speed: Imported scanning system makes the scanning speed is up to 7m/s
* Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in both of the specific marking software and graphic software such as AutoCAD, CorelDRAW, and Photoshop.
* High Reliability: MTBF>100,000 hours
* Energy Saving: The efficiency of optic-electrical converting is up to 30%
* Low Running Cost: No wearing part. Free maintaining.

Application scope and material:

* Electronic and communication products, IC products, electric lines, cable computer components, and electric appliances.
* Every kind of precision parts, hardware tools, instrument appliance, aviation, and spaceflight appliance.
* Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.
* Dishware, food, drinking, smoking, and alcohol, etc.

Company Information:
Perfect laser Co. Ltd. (China) was founded in 1995, located in the core area of "China Optic Valley" - Wuhan city. Occupied with 3000 m2 ground, including R&D building and production area. It has more than 180 employees, most of them are with a bachelor degree or even a doctorate degree. Executed by reliable quality and reasonable price, our products get favorable sales success and outstanding reputation not domestically in China but also popular in more than 180 countries such as the USA, Italy, Korea, Singapore, Poland, Turkey, Sweden, Saudi Arabia to worldwide.

Welcome to contact us for the perfect laser engraving cutting solution
