• Model NO.：PEDB-200
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：20W 30W 50W
• Central Wavelength：1064nm
• Working Size：110*110mm
• Polarization：Random
• Single Pulse Power：0.8-1.0mj
• Facular Diameter：7-9mm
• Frequency Adjusting Range Adjustable Ran：20-80kHz
• Pulse Breadth：80-140ns
• Pulse Adjusting Range：5-100%
• Marking Format：Graphics, Text, Bar Codes, Qr Code, Serial Number
• Transport Package：Wooden Case with Exporting Standard
• Specification：ISO 9001 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456100090
• Production Capacity：1000 Sets, Month

Basic Info.

Model NO. PEDB-200 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Power 20W 30W 50W Central Wavelength 1064nm Working Size 110*110mm Polarization Random Single Pulse Power 0.8-1.0mj Facular Diameter 7-9mm Frequency Adjusting Range Adjustable Ran 20-80kHz Pulse Breadth 80-140ns Pulse Adjusting Range 5-100% Marking Format Graphics, Text, Bar Codes, Qr Code, Serial Number Transport Package Wooden Case with Exporting Standard Specification ISO 9001 & CE Trademark Perfect Laser Origin China HS Code 8456100090 Production Capacity 1000 Sets/ Month

Product Description

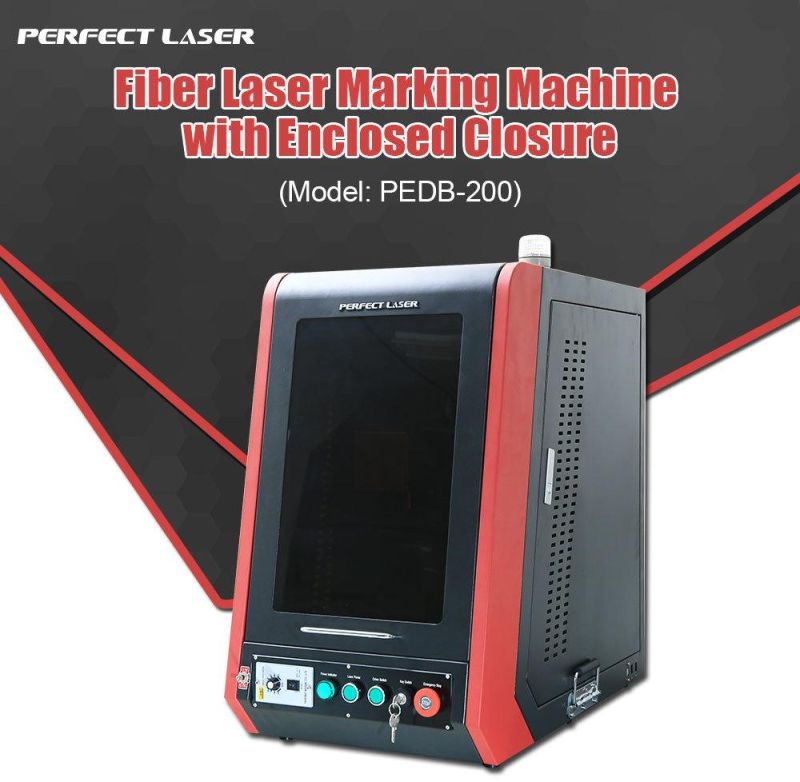

20W Enclosed Fiber Laser Marking Machine For Phone Case
 (Model:PEDB-200)
Contact:Crystal
Product Description of Laser Machine:

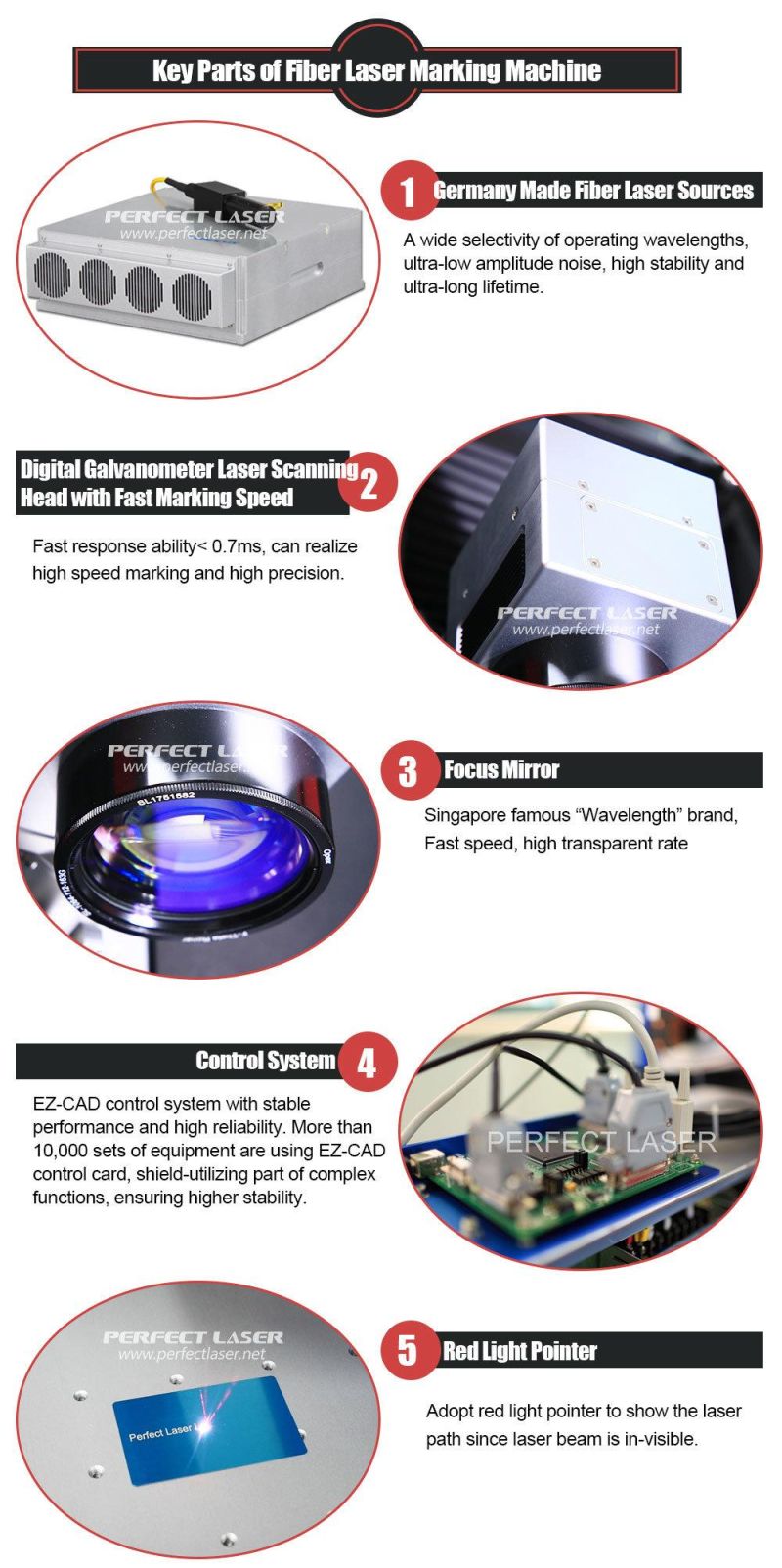

Perfect Laser has innovated out the first-class marking technology, it can work on sculptured surface without defocus. 3d laser marking machine adopts German IPG fiber laser technology, while maintaining the excellent beam quality, 3d laser marking machine using the front focus technology, dynamic focus, so that after the Introduction10w 20w fiber laser marking machines have a cover-sealed structure. During work, the enclosed fiber laser marking machine's flog will be kept in the box body without emission to outside. Environmental, friendly and healthy. It is special designed for European market, which has high demands for working environment.

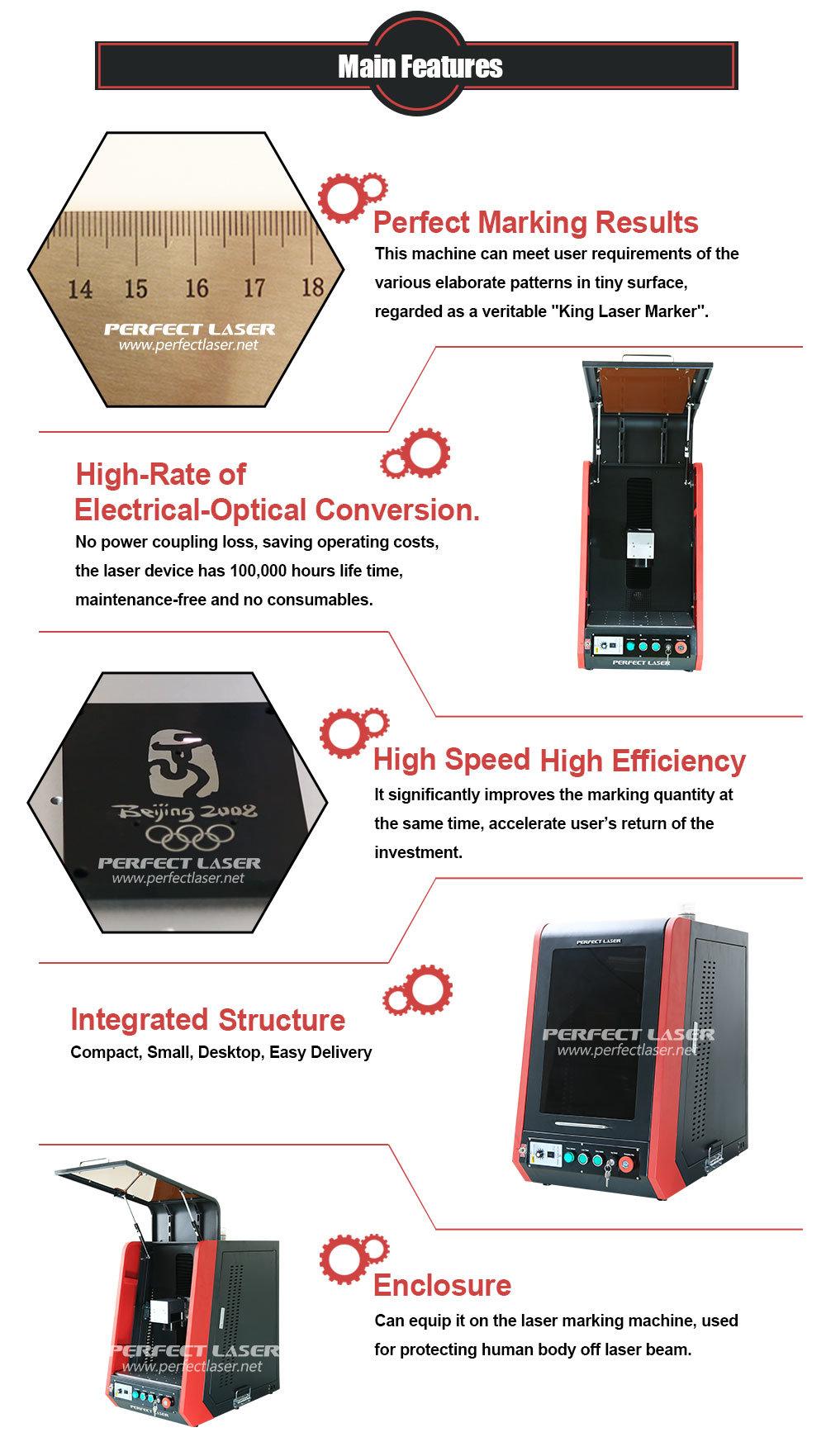

Product Features of Laser Machine:
1. Low operation cost, free maintenance for over 10 years
2. Marking speed: he enclosed 20w fiber laser marking machine uses a high-quality imported laser scanning equipment, speed up to 7000mm / s.
3. High Precision: 10w 20w fiber laser marking machines' repositioning accuracy of up to 0.002mm.
4. High-Rate of Electrical-Optical Conversion for the enclosed fiber laser marking machine: The efficiency of 10w 20w fiber laser marking machines optic-electrical converting is up to 70%.
5. High Reliability: MTBF(Mean Time Between Failures) >100,000 hours.
6. Integrated and Compact: Compact, Small, Desktop, Easy delivery
7. Easy Operating: English User Manual, VCD training video, software sending together with the 10w 20w fiber laser marking machines and 24 hours online service.
8. Air Cooling: 10w 20w fiber laser engraving machines adopts air cooling, which has excellent cooling effect than the other cooling method.


Application Fields of Laser Machine:
Application materials: Perfect Laser's Fiber Laser Marking Machine is widely for stainless steel marking, carbon steel marking, iron marking, aluminum marking, copper marking, brass marking, anodized and coated materials marking, etc., and non-metallic such as nylon marking, ABS/PVC/PC board marking, hard plastics marking, rubber marking, resin marking, ceramic marking etc. In the industries of electronic and communication products, IC products, electric lines, cable computer components and electric appliance,


Machine Technical of Laser Machine:

Item	PEDB-200
Laser power	20W / 30W / 50W / 100W
Central wavelength	1064±4nm
Polarization	Random
Single pulse power	0.8~1.0mJ
Beam quality	<1.7m2
Facular diameter	7~9mm
Power stability	<5%
Frequency adjusting range adjustable range	20~80kHz
Pulse breadth	80~140ns
Pulse adjusting range	5~100%
operating voltage	100~240VAC
Fiber Length	1.5m
Cooling mode	forced air
Operation temperature	0~35ºC
Operation humidity	10~95
Storage temperature	-10~60ºC
Marking Format	Graphics, Text, Bar Codes, QR Code, Serial Number,Serial number,etc.

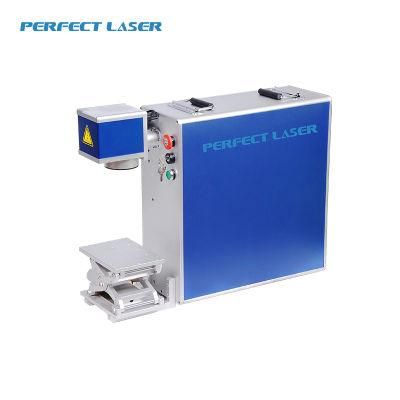

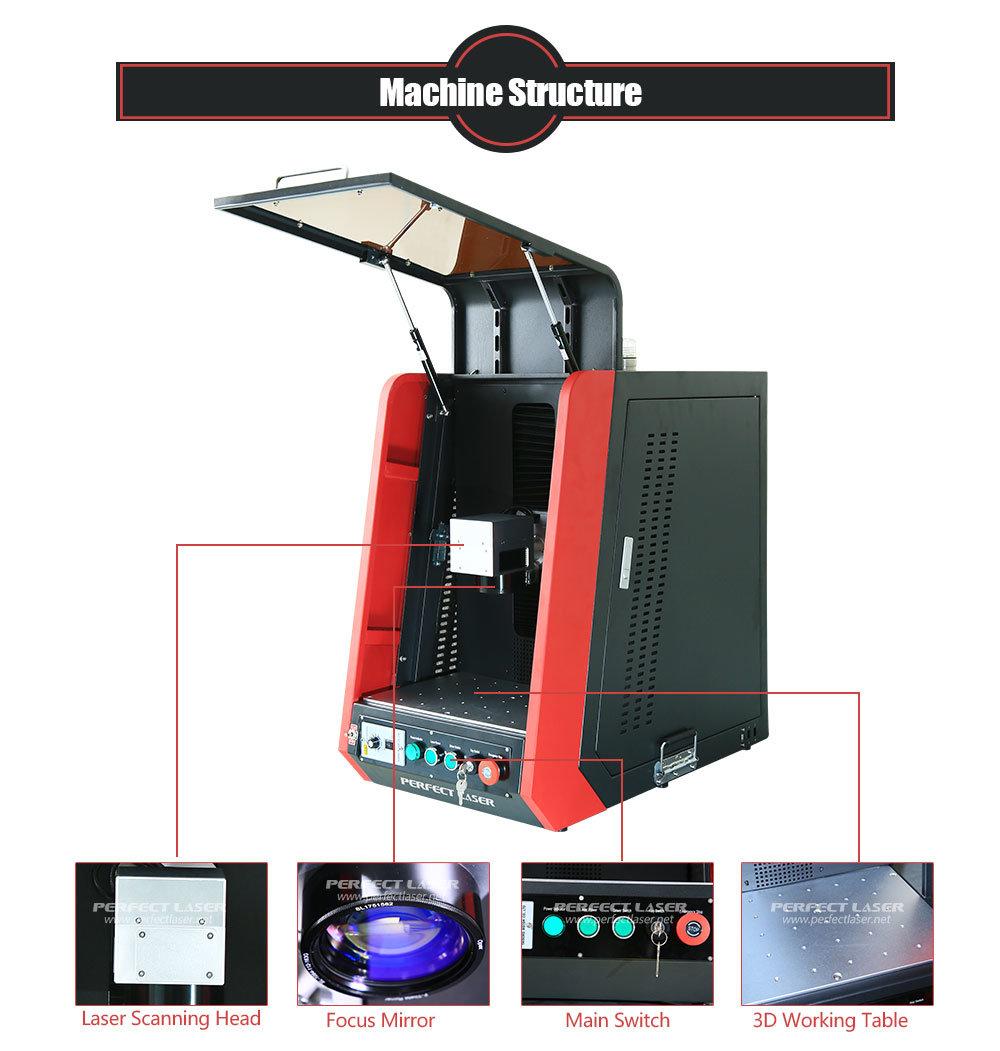

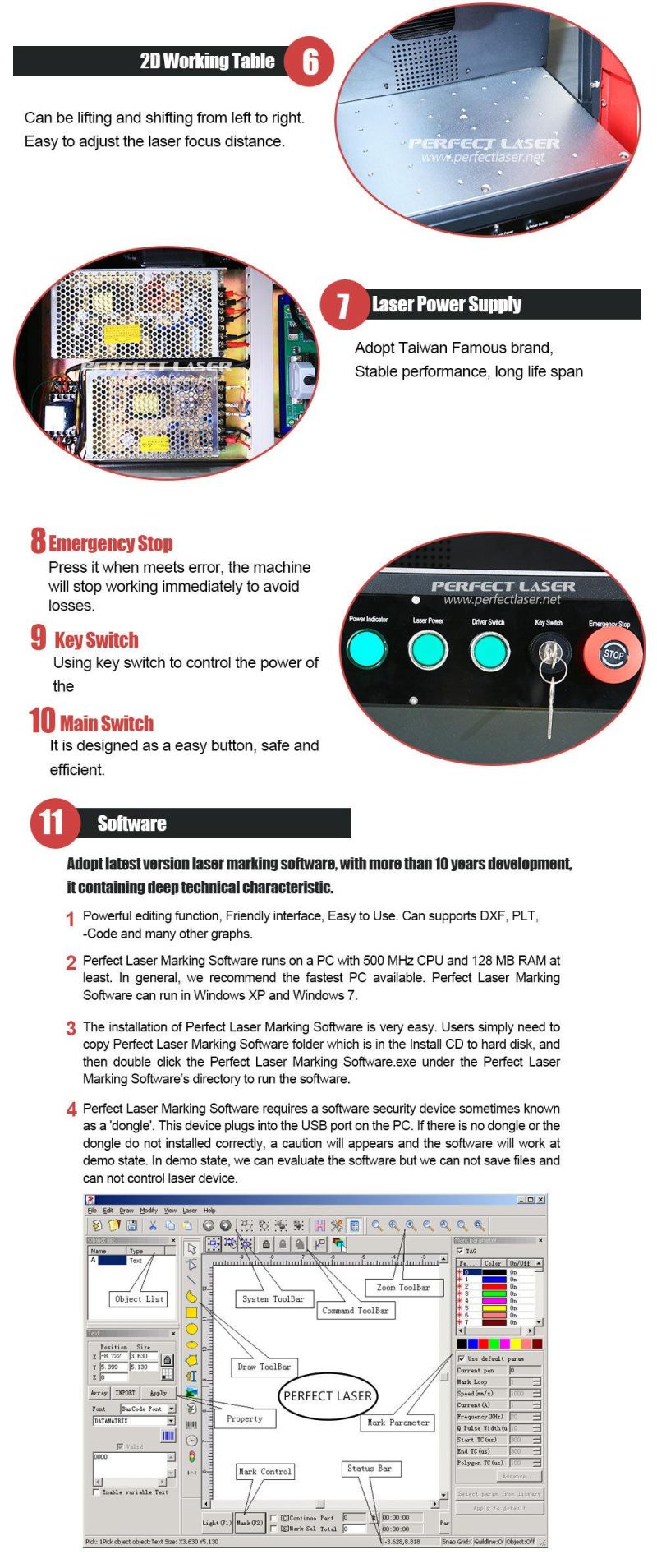

Machine Details of Laser Machine:
