• Model NO.：DPL-F30 M6
• Laser Classification：Semiconductor Laser
• Engraving Method：Vector Engraving
• Engraving Machine Type：Laser Engraving Machine
• Drive Type：AC Servo Drive
• Certification：SGS, Ce
• Laser Type：Fiber Laser
• Control：Automatic
• Current：AC
• Condition：New
• Usage：Metal,Gold,Silver,Stainless Steel,Steel
• Power：50W,20W,10W,30watt
• Marking Speed：7000mm,S
• Transport Package：Plywood Case or as Your Request
• Specification：SGS,CE
• Trademark：Dapeng Laser
• Origin：Shenzhen China
• HS Code：8414802000
• Production Capacity：50 Set,Day

Basic Info.

Model NO. DPL-F30 M6 Laser Classification Semiconductor Laser Engraving Method Vector Engraving Engraving Machine Type Laser Engraving Machine Drive Type AC Servo Drive Certification SGS, Ce Laser Type Fiber Laser Control Automatic Current AC Condition New Usage Metal/Gold/Silver/Stainless Steel/Steel Power 50W/20W/10W/30watt Marking Speed 7000mm/S Transport Package Plywood Case or as Your Request Specification SGS/CE Trademark Dapeng Laser Origin Shenzhen China HS Code 8414802000 Production Capacity 50 Set/Day

Product Description

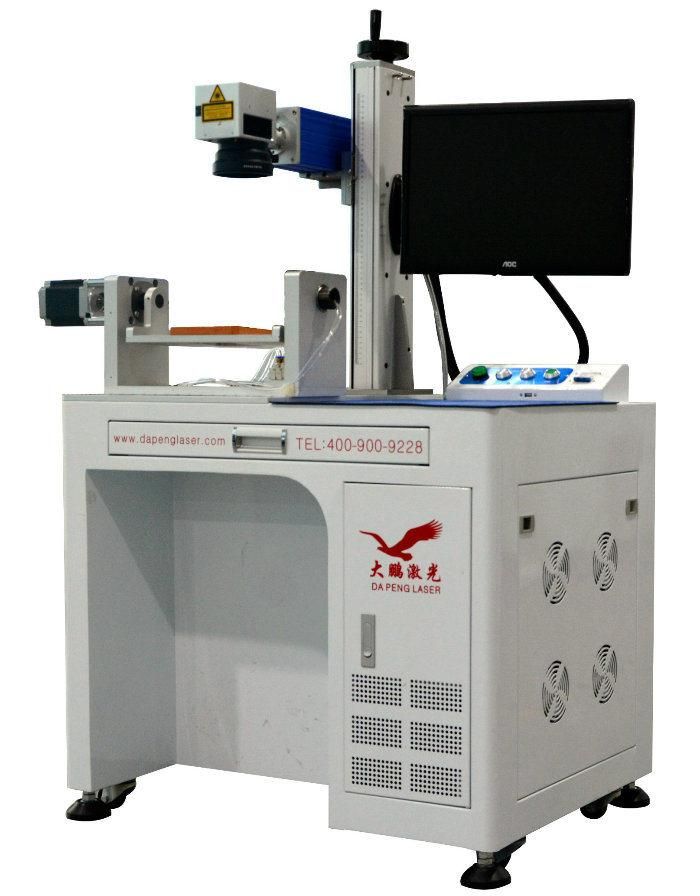

Shenzhen Good Quality Fiber Laser Marking Machine From Dapeng



Features:

Easy to Use Automation Features	Sharp, High Contrast, Impact Free	High Speed Galvo Steering
Compact & Fast Set-Up	100,000 Hrs Laser Lifetime	2 Year Warranty
Turnkey System	Permanant Marking	Air Cooled/No Chiller needed
Tunable Pulse Rate	No routine maintenance/No Consumable	Digital I/O for Easy Operation
Red Aiming Pointer/No more mistakes	Solid Aluminum Top Work Surface & Swing Arm Laptop Stand	Portable Tabletop Units to Automated Production Systems Available

Specifications:


Model	DPL-F20/30/50
Laser Power:	20W,30W,50W
Wavelenth:	1064nm
Standard Marking Area:	100mm*100mm
Optional Marking Area:	160mm*160mm,200mm*200mm,300mm*300mm
Marking Speed:	≤7000mm/s
Minimum Line Width	0.02mm
Minimum letter	English: 0.2 x 0.2mm
Marking Depth	0 ~0.5mm
Location precision	≤0.01mm
Resetting positioning accuracy	0.002
Beam Quality	M2:1.2~1.8
Electrical Requirements:	Ac220V±10%.50HZ.5Amp
Cooling mode	Air cooled
Scan Head	High Precision Digital Scan Head
Unit Power	<0.5kw
Operational Temp Range	10-40ºC
Operational Humidity Range	5%-75%, Non-condensing
Warranty:	2 years on laser source
Dimensions:	820*690*1550MM or 920*690*1550MM
Net Weight	180KG

Dapeng Laser's marking machine is manufactured from a modular aluminum structural framing system. The high-strength aluminum profiles provide the stability of an optical instrument with the rigidity and durability of a machine tool.

The DPL series Fiber Laser Marking Machine adopts superior quality fiber laser and high precison digital scan head to enable stable output and high quality laser mode. Fiber laser marking machine can meet the demand of mass production with fast marking speed,good marking effect and high efficiency.



Software:

True Type Fonts	Single Stroke Fonts	Elliptical Text
Sequential Serial Numbers	Customizable Auto Dating	Barcodes
QR Codes and Data Matrix	UID Wizard	Logos
Photo Quality Images - JPG, TIF, GIF	Corel Draw, Adobe Illustrator	Raster Graphics
Vector Graphics	CAD Files

Applications:

We offer Fiber Laser Marking Machine with following applications:
l Laser marking of metal & non-metal material and products: Stainless steel, gold, silver, copper, aluminium alloy, hardware, tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper and others
l Hall marking on Gold
l Automotive & Engineering Industries
l Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other  instruments
l Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making

We also provides laser sources and spare parts to the laser machine manufacturers in China and surrounding countries.

Materials:

Stainless Steel	Steel	Aluminum, Carbide
Nickel	Titanium	Cast Iron
Chrome	Painted Metal Alloys	Multi-Coated Metals
Plastics/Rubber	Backlit Buttons	Polycarbonate
PVC	Composites	Many more materials

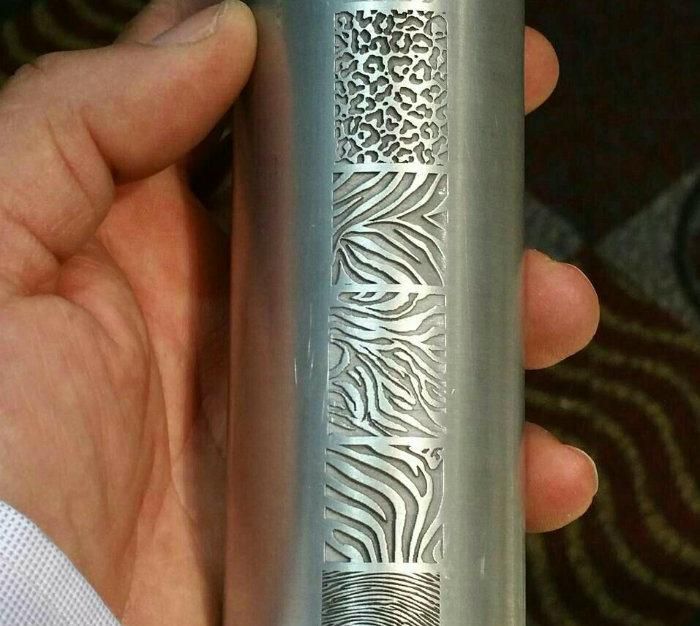

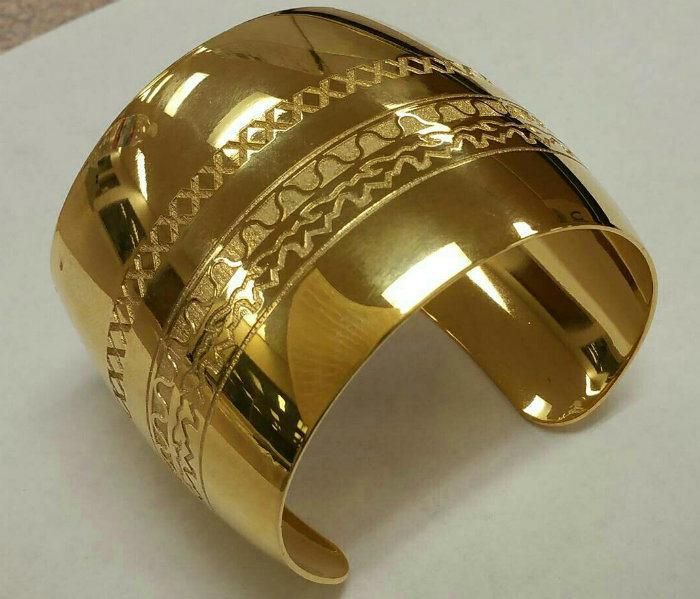

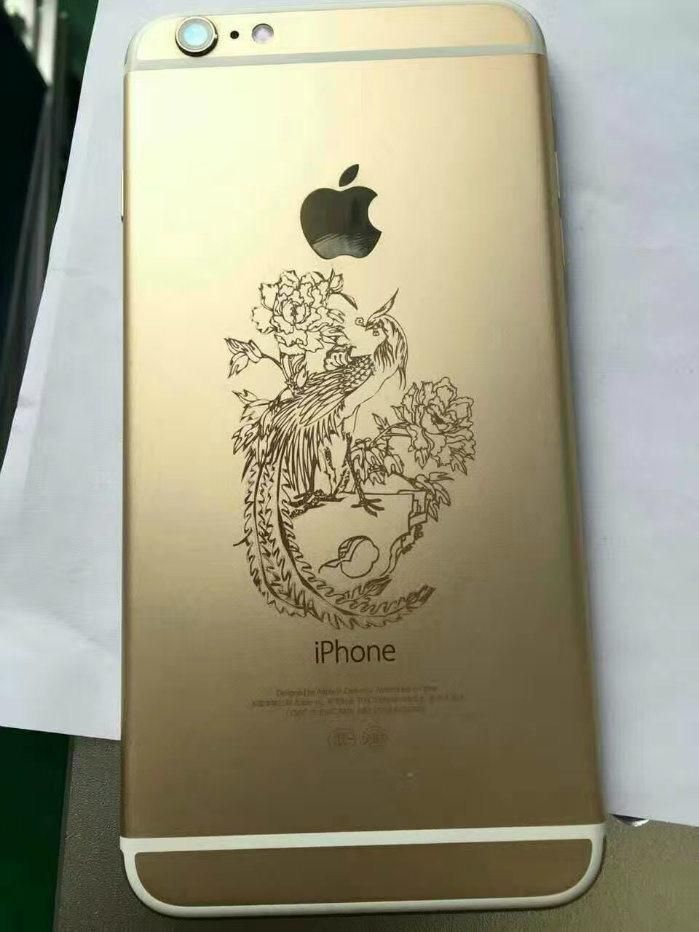

Marking sample but not for limited










Shenzhen Dapeng Laser Technology Co. Ltd.




Shenzhen Dapeng Laser Technology Co., Ltd. was established in 2008, is a research and development, manufacturing, sales and service in one of the laser equipment high-tech enterprises, is committed to laser technology research and development, laser equipment design research and development, production,
technical support, services and consulting,Strong research and development capabilities, standardization and scale of the production plant, we can guarantee the quality of products and delivery time; also can be customized according to customer requirements of the design and production, better adapt to market development,

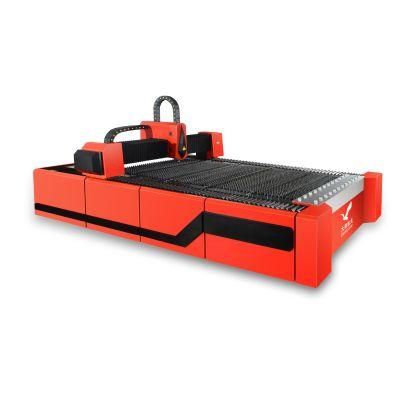

The company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc. Products Used in electronics, IC chips, electrical appliances, lighting, jewelery, hardware tools, sanitary ware, instrumentation, automobile and motorcycle accessories, mobile communication parts, mold, precision machinery, medical equipment, IT digital, metal shell, military aviation components , Clothing leather, craft gifts, advertising decoration, model, cookware tableware, kitchenware and other industries


       Dapeng laser product quality is stable and reliable, with professional R & D team, the pursuit of excellent quality at the same time, Dapeng laser also provides customers with timely, comfortable pre-sale, sale, after-sales service and excellent cost-effective products.
Dapeng laser through the implementation of "to help customers succeed, create value model, to create industrial laser equipment industry services high-end brand" business philosophy, won the majority of users trust and praise. Customers located throughout the country and overseas, 2016 sales of laser equipment more than 5,000 sets .



          The company established a sound production and sales and after-sales service system, in Shenzhen, Wenzhou, Kunshan, Xiamen has a production base. In Dongguan, a large laser cutting machine production base.
And in major domestic industrial cities and regions with offices, the offices have equipment display, process proofing, sales and after-sales service, resident technical service personnel, to provide customers with timely, comfortable pre-sale, sale, after-sales support And services.



Dapeng people know that quality and service is the fundamental survival of the company, innovation is the basis for long-term development of the company to help customers create value, and strive to build the laser equipment industry well-known brands, look around the world, win-win cooperation and create a better future
