20W 30W 50W 70W 100W Fiber Laser Marking Machine for Automotives Parts Bearings Awards Trophies
Wuhan HJZ Laser Technology Co., Ltd.- Laser Visibility：Visible
- Applicable Material：Metal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：Fiber Laser
- Laser Classification：Fiber Laser
Base Info
- Model NO.：HJZ-DB04
- Type：Optical Fiber Laser Marking Machine
- Marking Method：Scanning Marking
- Laser Output Power：20W, 30W, 50W
- Engraving Speed：9000mm,S
- Operating Voltage：110-240V
- Graphic Format Supported：Ai, BMP, Dst, Dwg, Dxf, Dxp
- Marking Area：110*110mm, 175*175mm, 220*220mm, 300*300mm
- Certification：Ce.FDA
- Condition：New
- Application Material：0.1-2mm
- Process Material：Metal and Some Non-Metal
- Delivery Time：1-3days
- Laser Source：Raycus
- Lifespan：Over 20, 000hours
- Warranty：3 Years
- Control Software：Ezcad Software
- Name：30W Metal Engraving Machine
- Transport Package：Standard Plywood Packing for Export
- Specification：1650X1250X1050MM
- Trademark：HZJ
- Origin：Wuhan, China
- HS Code：84561000
- Production Capacity：600sets,Month
Description
Laser Source Raycus , IPG , Max IPG SeriesPulsed, High Energy Ytterbium Fiber LasersMode of operationPulsedPolarizationrandomNominal average output power10W - 30W
10W - 50W Central emission wavelength1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%Pulse Repetition Rate* kHz20-80 kHzEnergy per pulse (PRR = 20 kHz)0.95 mJTypical beam quality, M2<1.8Output fiber delivery length3mOperating voltage220VMax. Power consumption600WNet Dimensions70*20*50cm58*22*50cm 80*38*72cm 143*62*101cmNet Weight44 kgs53 kgs 130 kgsGross Weight60 kgs70 kgs 200 kgsLaser systemScanning Speed0-7000mm/sMarking Speed0-5000mm/sMarking size110mm×110mm (F-theta 160)Spot size≤ 40 micron (F-theta 160)Cooling unitAir cooledPilot laser650nm diode laser, visible red light for marking guideContinuous working time≥16hHumidity45~85% (no condensation)Operating temperature0~40ºCControl unitsLaser Mark (English Version)

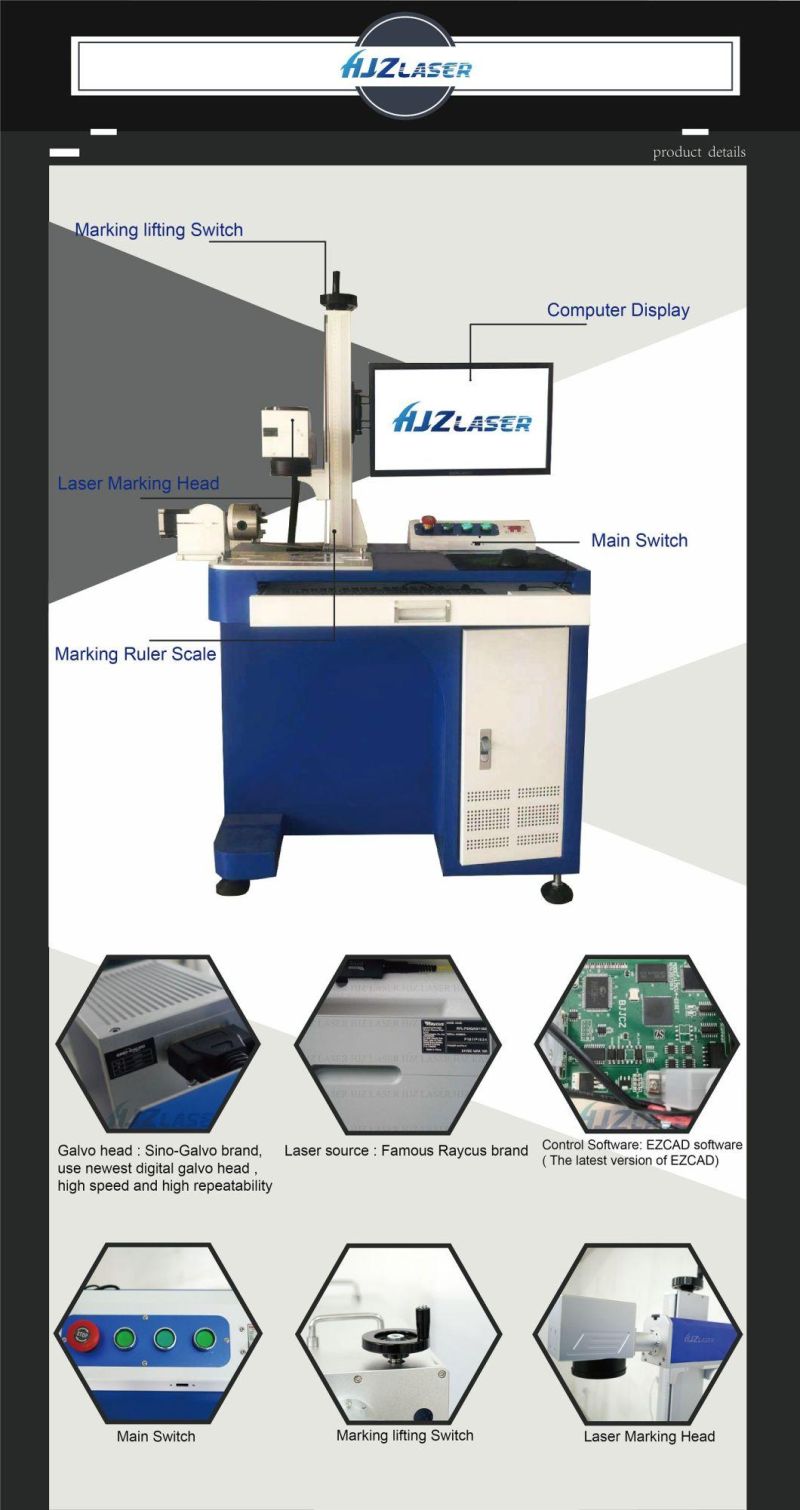

Product descriptions :
FAQ
Q: Are you trading company or manufaurer ?
A: We are factory. And we have been in the laser field for 10 years.
Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the courier cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. Contact us :
