Small Enclosed Marking Laser Machine Fiber Laser Metal Engraving Machine for Metal Nonmetal Industry
Jinan Laser Max Machinery Tech Co., Ltd.- After-sales Service:Online Support
- Warranty:3 Years
- Laser Visibility:Invisible
- Applicable Material:Metal
- Cooling System:Air Cooling
- Technical Class:Pulse Laser
Base Info
- Model NO.:LM20
- Laser Wavelength:Fiber Laser
- Laser Classification:Semiconductor Laser
- Type:Optical Fiber Laser Marking Machine
- Marking Method:Scanning Marking
- Product Name:Small Enclosed Marking Laser Machine Fiber Laser
- Keyword:Enclosed Marking Laser
- Transport Package:Plywood Box
- Specification:680mm*400mm*830mm
- Trademark:LaserMax
- Origin:China
- HS Code:845611
- Production Capacity:1000sets,Year
Description
Basic Info.
Model NO. LM20 Laser Wavelength Fiber Laser Laser Classification Semiconductor Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Product Name Small Enclosed Marking Laser Machine Fiber Laser Keyword Enclosed Marking Laser Transport Package Plywood Box Specification 680mm*400mm*830mm Trademark LaserMax Origin China HS Code 845611 Production Capacity 1000sets/YearProduct Description
small enclosed marking laser machine fiber laser metal engraving machineWorking principle
The laser beam from the laser (through the beam expander mirror) enters the marking head, and after the reflection of the scanning oscillator 1 and scanning oscillator 2 reaches the f-Theta flat field lens, through which the lens is focused to form a high energy spot (15-20μ) with a small area. The scanning oscillator is driven by a highly sensitive detector-type motor, and the computer control system controls these two motors to deflect at a certain angle, while controlling the laser beam off and on, finally marking the required symbols and patterns on the workpiece.
Style | Cabinet |
Power | 20W/30W/50W |

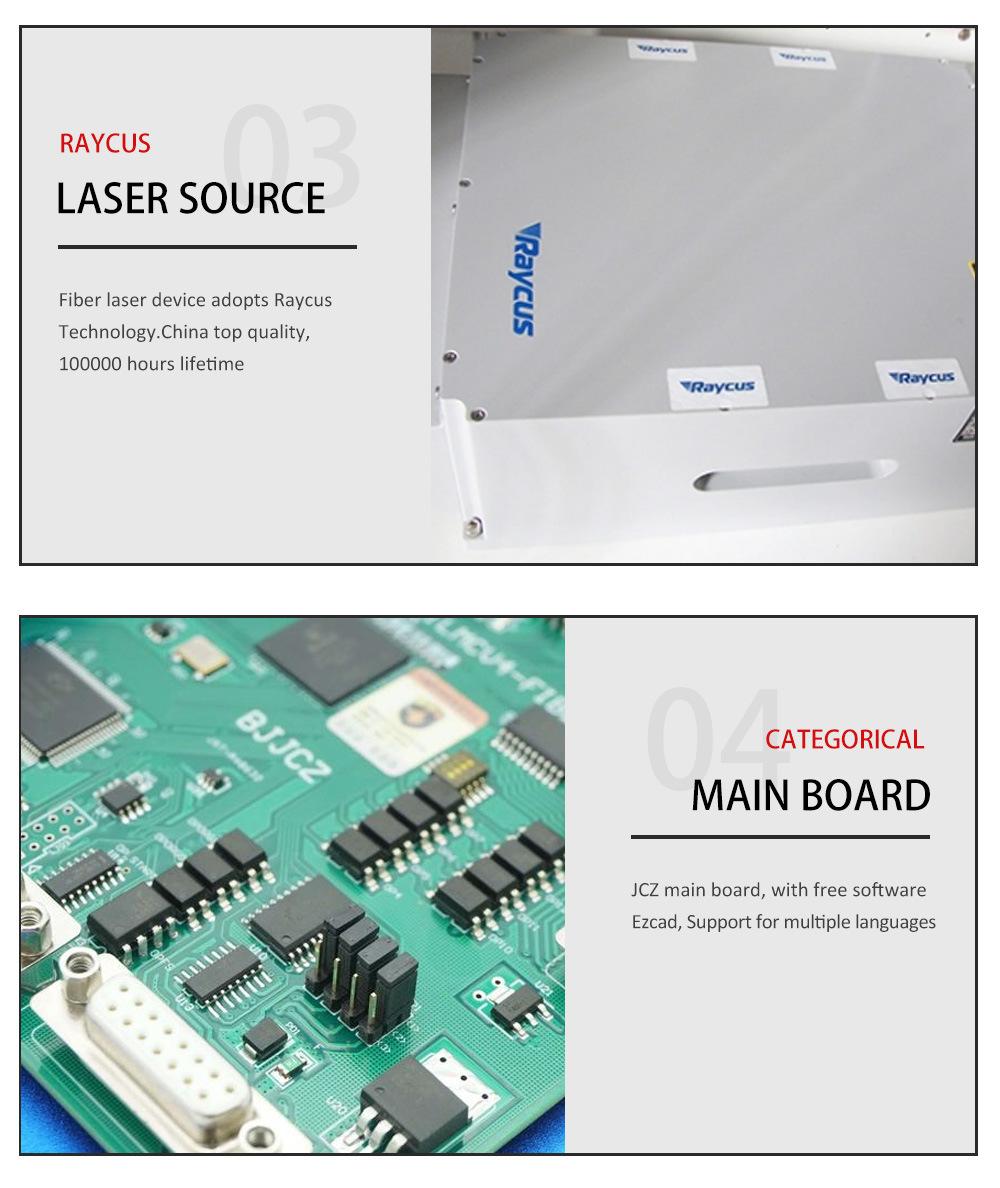

Laser Brand | Raycus (Maxphotonics/lianpin) |

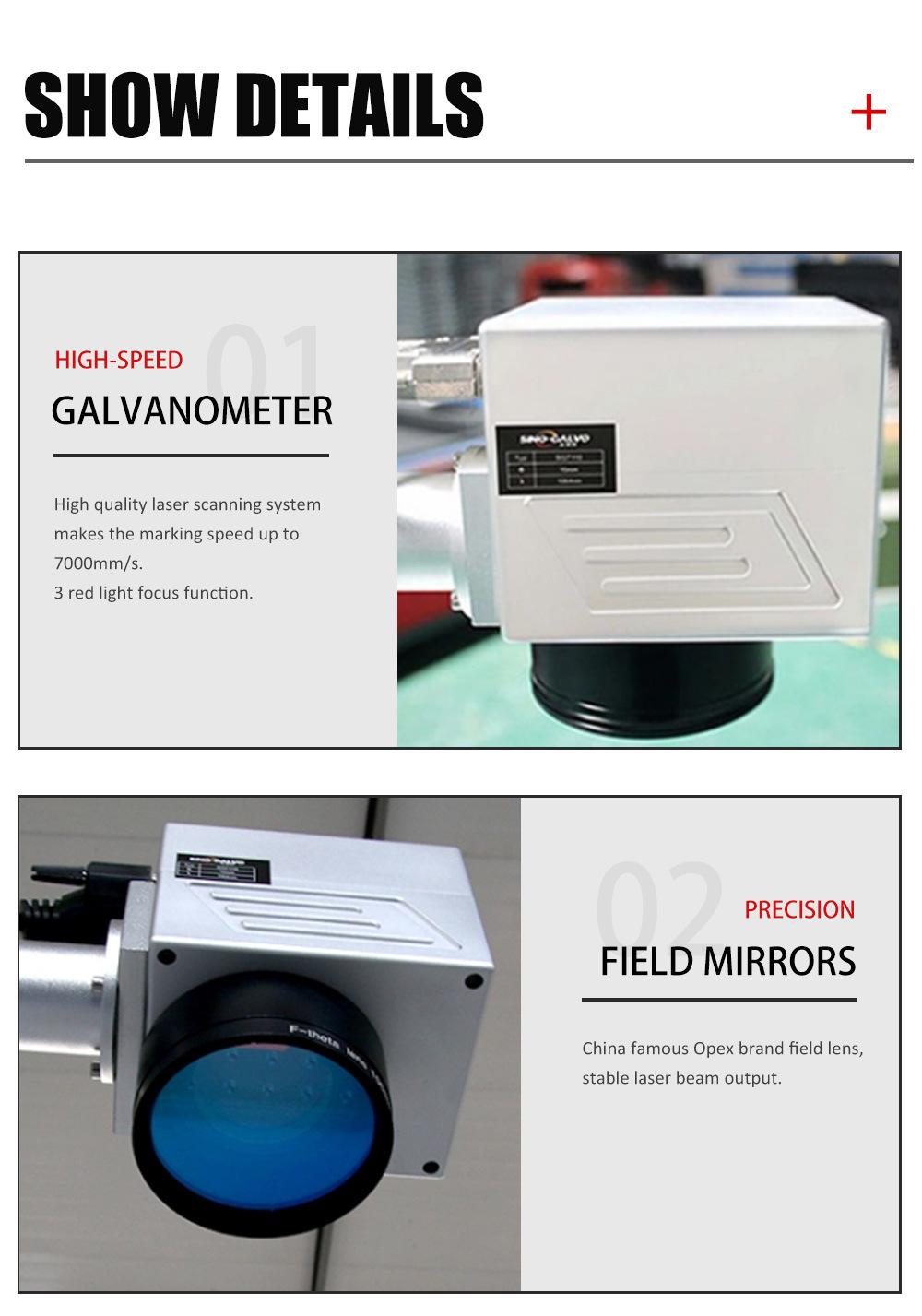

Galvanometer | Sino |
Main board | Beijing JCZ |
Software | EZCAD 2.14.10 |
Marking Area | 110mm*110mm |
Optional Marking Area | 110mm*110mm / 150mm*150mm /200mm*200mm |
Marking Depth | ≤0.5mm |
Marking Speed | ≤7000mm/s |
Minimum Line Width | 0.012mm |
Life-span of Fiber Laser Module | 100, 000hours |
Beam Quality | M2 <1.5 |
Output Power of Laser | 10%~100% continuously to be adjusted |
System Operation Environment | Windows 7/8/10 |
Cooling Mode | Air cooling--Built-in |
Temperature of Operation Environment | 15ºC~35ºC |
Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
Power Requirement | <600W |
Communication Interface | USB |
Package Dimension | 100*79*106cm |
Net Weight/gross weight | 80KG/125KG |
Optional (Not free of charge) | Rotary Device, Moving Table, other customized Automation |
