Fiber Laser Engraver Stainless Steel Carbon Steel Marking Engraving
Jinan Laser Max Machinery Tech Co., Ltd.- After-sales Service：Online Support
- Warranty：3 Years
- Laser Visibility：Invisible
- Applicable Material：Metal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
Base Info
- Model NO.：LM30
- Laser Wavelength：Fiber Laser
- Laser Classification：Semiconductor Laser
- Type：Optical Fiber Laser Marking Machine
- Marking Method：Scanning Marking
- Transport Package：Standard Export Wooden Case
- Specification：100mm*79mm*106mm
- Trademark：LaserMax
- Origin：China
- HS Code：845611
- Production Capacity：1000sets,Year
Description

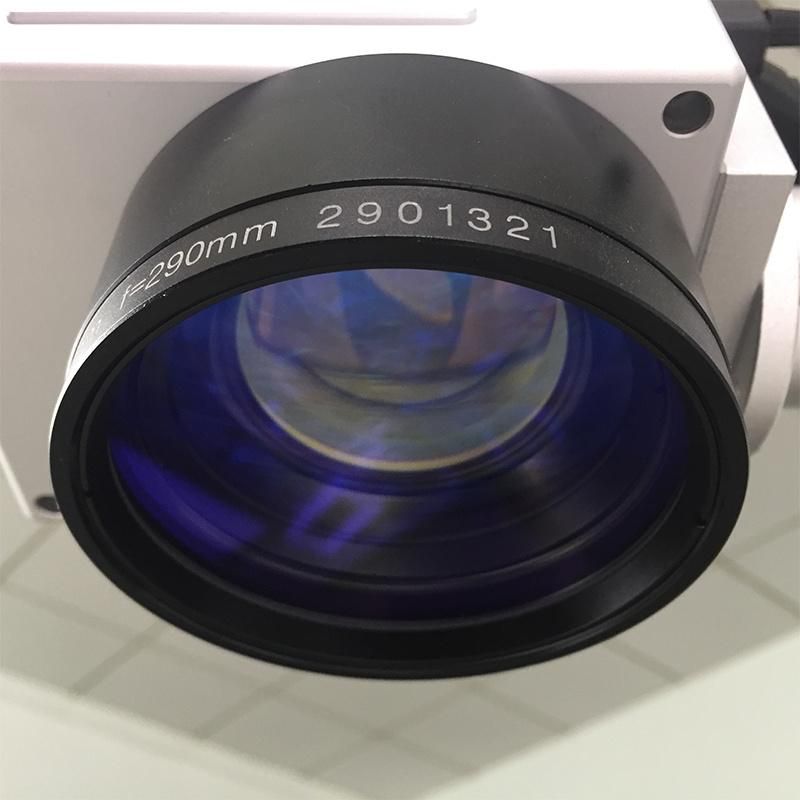

Working principleThe laser beam from the laser (through the beam expander mirror) enters the marking head, and after the reflection of the scanning oscillator 1 and scanning oscillator 2 reaches the f-Theta flat field lens, through which the lens is focused to form a high energy spot (15-20μ) with a small area. The scanning oscillator is driven by a highly sensitive detector-type motor, and the computer control system controls these two motors to deflect at a certain angle, while controlling the laser beam off and on, finally marking the required symbols and patterns on the workpiece.
Product features
1.It can process a variety of metal and non-metal materials. Especially for high hardness, high melting point and brittle materials, the marking is more advantageous.
2.Non-contact processing, no damage to the product, no tool wear, and good marking quality.
3.The laser beam is fine, the processing material consumption is small, and the processing heat affected zone is small.
4.High processing efficiency, computer control, and easy automation.
