• Model NO.：LK-Y
• Warranty：1 Year
• Certificate：Ce.ISO9001,FDA
• Sigting Positon System：HD-CCD Monitor System
• Laser Power：200W 300W 400W
• Transport Package：Wooden Case
• Specification：1300*1100*1500mm
• Trademark：LK
• Origin：China
• HS Code：8515809010
• Production Capacity：500sets , Month

Basic Info.

Model NO. LK-Y Warranty 1 Year Certificate Ce.ISO9001,FDA Sigting Positon System HD-CCD Monitor System Laser Power 200W 300W 400W Transport Package Wooden Case Specification 1300*1100*1500mm Trademark LK Origin China HS Code 8515809010 Production Capacity 500sets / Month

Product Description

Eyeglasses frame 200w 400w rotary platform laser soldering/ welding machine /equipment
Feature
Base on technology of auotomatic laser welding machine ,which incrase Z axis ,its specialized for welding eyeglasses frame ,the z axis will fixed the eyeglasses  frame and let it welding automatic by CNC control system ,high speed welding ,automatic control ,precision working ,mass product will help you save more time .
Faster and better than traditional welding machine
Nice welding performance ,hihg precision ,saves cost
Economical and affordable
Good welding effect ,welding firmly
Small heat afected area m weid applicability

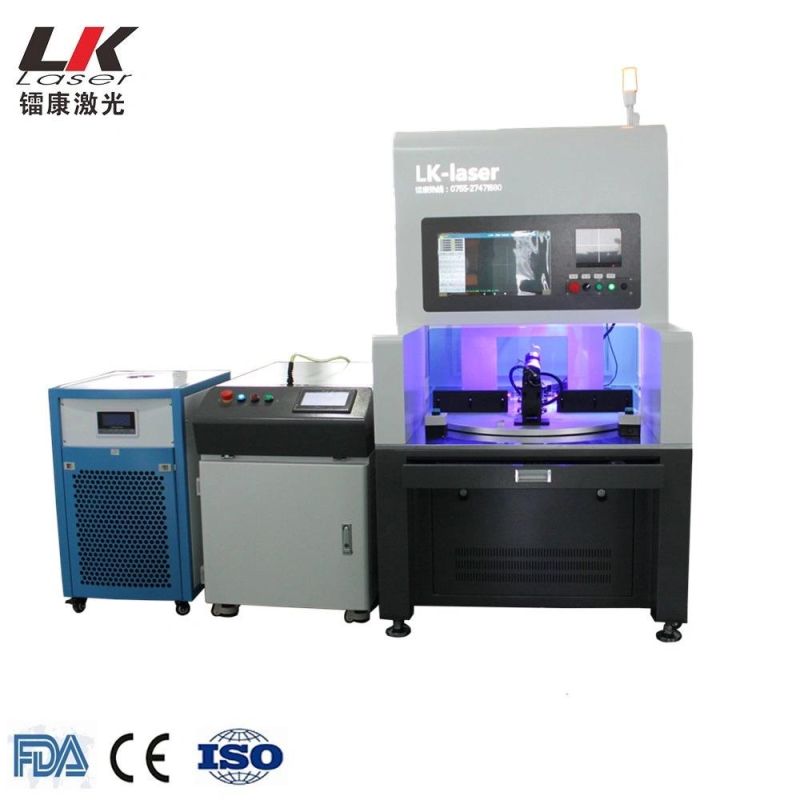

Rotary table eyeglasses laser welding machine

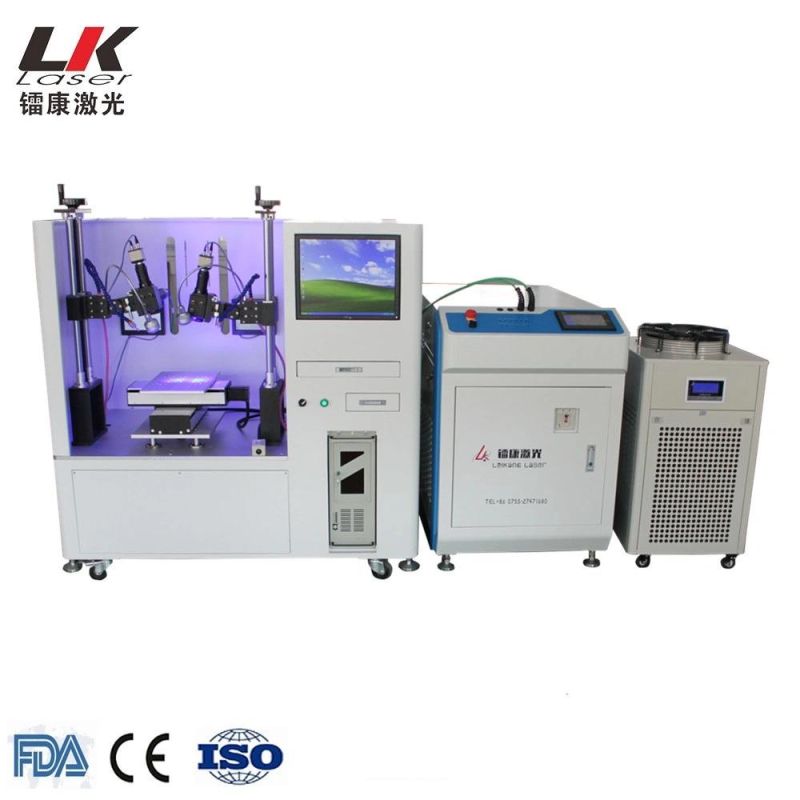

Double hand laser welding machine for eyeglasses frame


Technical Parameters

Model	LK-Y200	LK-Y300
Max.Laser Power	200W	300W
Laser type	YAG	YAG
Laser Wavelength	1064um	1064um
Pulse width	0.1-4ms	0.1-4ms
Pulse Energy	80J	120J
Pulse Frequency	0-50HZ	0-50HZ
Laser Welding Area	200*200mm	200*200mm
Adjusting Range of Light spot	1.8mm	1.8mm
Max. Bearing Of Standard Work Bench	25kg	25KG
Repeating Precision of Work Bench	-0.001	-0.001
Sighting Positioning system	Microscope ,HD-CCD monitor system	Microscope ,HD-CCD monitor system
Cooling System	Water cooling	Water cooling
Max. Output Power	200W	300W
Power Supply	AC220VAC/380VAC+-15%/50HZ/25A	AC220VAC/380VAC+-15%/50HZ/25A
Dimensions	1300*1100*1500mm	1300*1100*1500mm

This machine suit for welding of various types of metal eyeglasses frames. stable and durable laser power and automatic positioning make this machine  production efficiency is dozens time higher than that of ordinary welding machine.

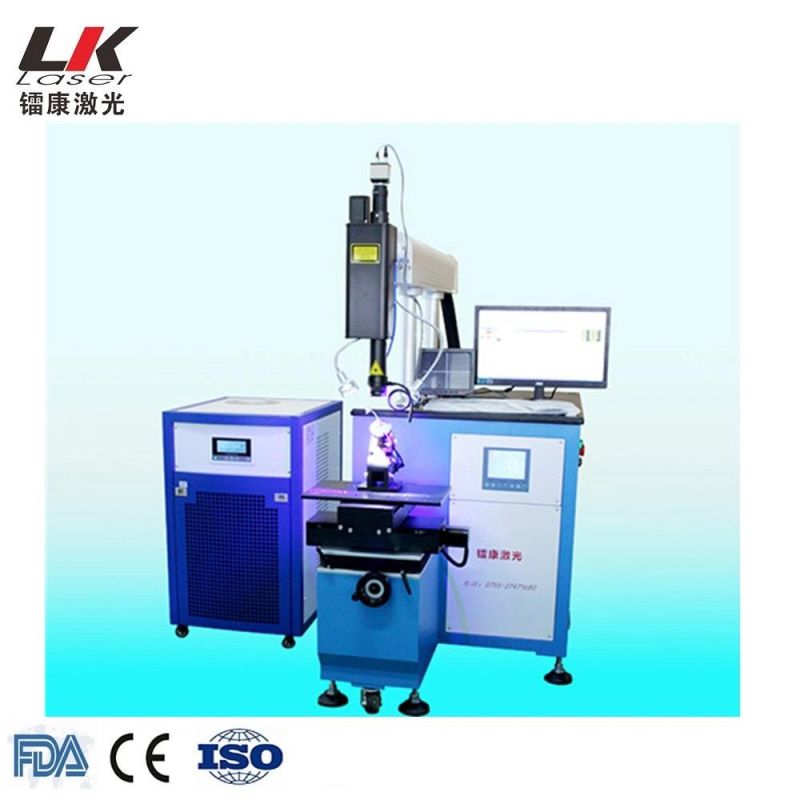

 eyeglasses frame welding machine



Application & Material

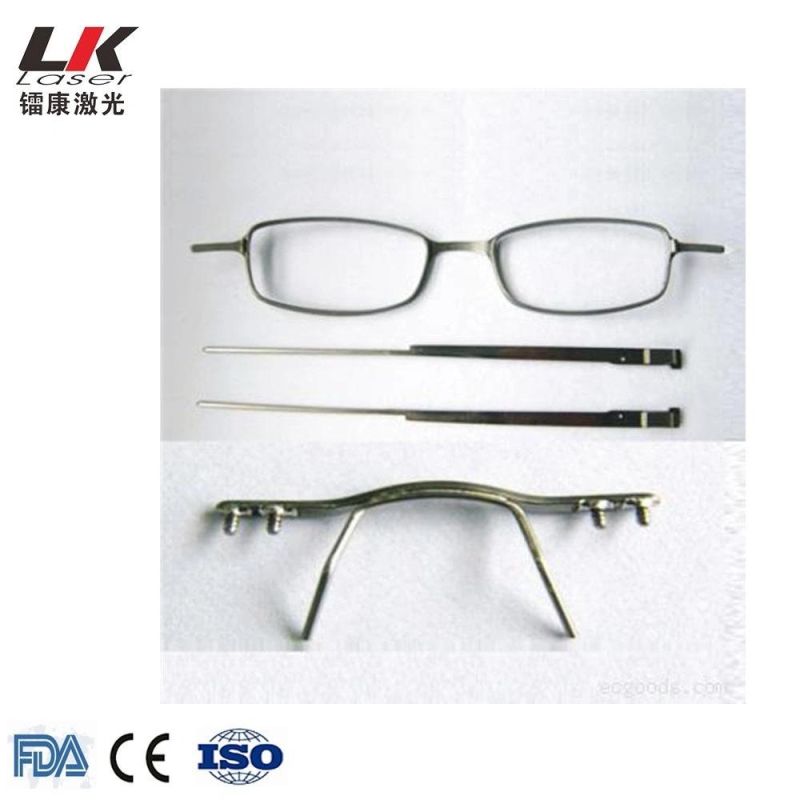

It is mainly suitable for irregular welding of metal eyeglasses frames, water cups, stainless steel bowls, sensors, diodes, aluminum alloys, mobile phone batteries, door handles, electrical accessories and other metals.Glasses industry:Stainless steel, Titanium alloy materials glasses of snap, and Frame position precision welding.



Packing &Shipping

1.Standard plywood case, its compressive strength and bearing quality is better.
2.the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 3-5 days after received your payment

Our Service

1.One year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery
