High Quality Automatic Optical Fiber Laser Welding Machine
Shenzhen Lei Kang Machinery Equipment Co., Ltd.- Application：Electronic Industry, Powder Metallurgy, Manufacturing Industry
- Technical Class：Pulse Laser
- Control：Automatic
- Power Density：Deep Fusion Welding
- Laser Classification：Optical Fiber Laser
- Type：Optical Fiber Transmission Laser Welding Machine
Base Info
- Model NO.：LK-WF
- Transport Package：Wooden Case
- Specification：650*1220*1160mm
- Trademark：LK
- Origin：China
- HS Code：8515809010
- Production Capacity：500sets , Month
Description
Basic Info.
Model NO. LK-WF Transport Package Wooden Case Specification 650*1220*1160mm Trademark LK Origin China HS Code 8515809010 Production Capacity 500sets / MonthProduct Description

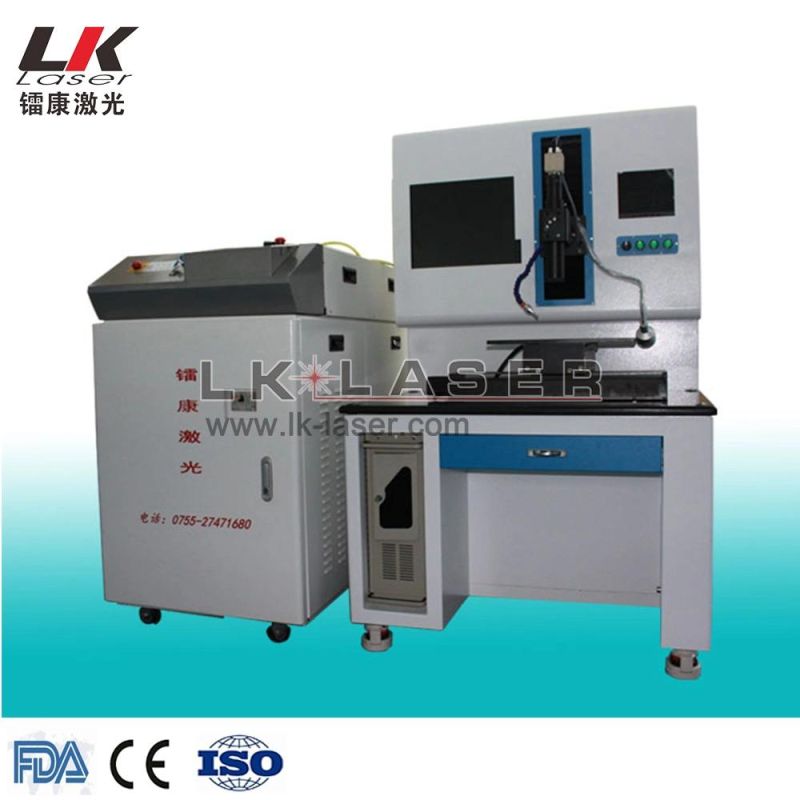

High quality automatic optical fiber laser welding machine
Feature
Greater flexibility the system can install 1-4 fiber optical laser head
High-energy laser beam with power energy feedback
Flexible welding for difficult welding parts
Stable laser welding system with long working hours
Application & Material
This machine is fit for optical fiber communication ,battery, jewellery ,watch , mold , astronautics and aviation
It is widely used in IT, Electronics ,Automobile industry, Hardware industry, Tools ,Instrument measuring appliances ,etc.
Technical Parameters
| Model | LK-WF200 | LK-WF300 |
| Max.Laser Power | 200W | 300W |
| Laser type | Optical fiber | Optical fiber |
| Laser Wavelength | 1064um | 1064um |
| Pulse-Width(ms) | 0.1-45ms | 0.1-45ms |
| Pulse Energy | 80J | 120J |
| Pulse Frequency | 100HZ | 100HZ |
| Laser Welding Area | 200*200mm | 200*200mm |
| Size of Welding Depth | 0.1-1.0mm | 0.1-1.0mm |
| Adjustment Range Of Light Spot | 1.8mm | 1.8mm |
| Max.Bearing Of Standard Work Bench | 25KG | 25KG |
| Sighting Positioning System | Red Light ,CCD monitor system | Red Light ,CCD monitor system |
| Cooling System | Water cooling | Water cooling |
| Max. Output Power | 200W | 300W |
| Inter Power Of Standard | 5KW | 5KW |
| Power Supply | AC220VAC/380VAC+-15%/50HZ/25A | AC220VAC/380VAC+-15%/50HZ/25A |
| Dimensions | 1300*1100*1300mm | 1300*1100*1300mm |
Packing &Shipping
1.Standard plywood case, its compressive strength and bearing quality is better.
2.the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 3-5 days after received your payment
Our Service
1.One year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery
