• Model NO.：J-1390
• Applicable Material：Nonmetal
• Type：Flat-Plate
• Laser Classification：Solid Laser
• Engraving Method：Vector Engraving
• Transport Package：Exported Standard Packing with 5cm Foam by Wooden
• Specification：L1720*W1310*H1050mm
• Trademark：Refine
• Origin：China
• HS Code：8479
• Production Capacity：2000 Set,Sets Per Month

Basic Info.

Model NO. J-1390 Applicable Material Nonmetal Type Flat-Plate Laser Classification Solid Laser Engraving Method Vector Engraving Transport Package Exported Standard Packing with 5cm Foam by Wooden Specification L1720*W1310*H1050mm Trademark Refine Origin China HS Code 8479 Production Capacity 2000 Set/Sets Per Month

Product Description

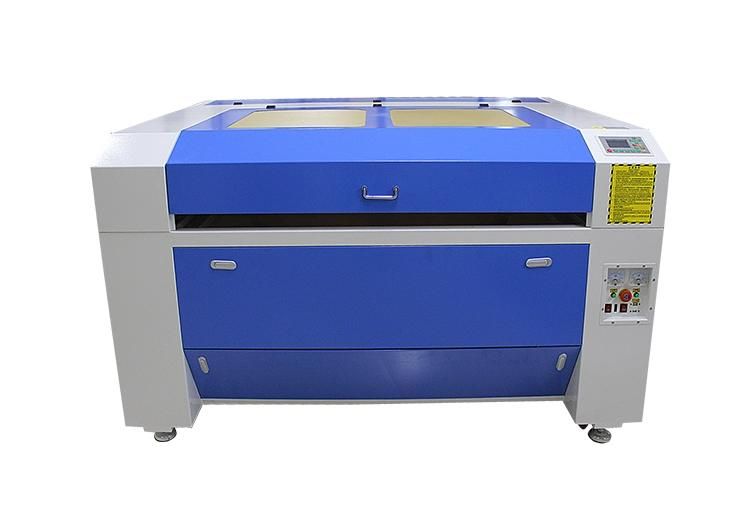

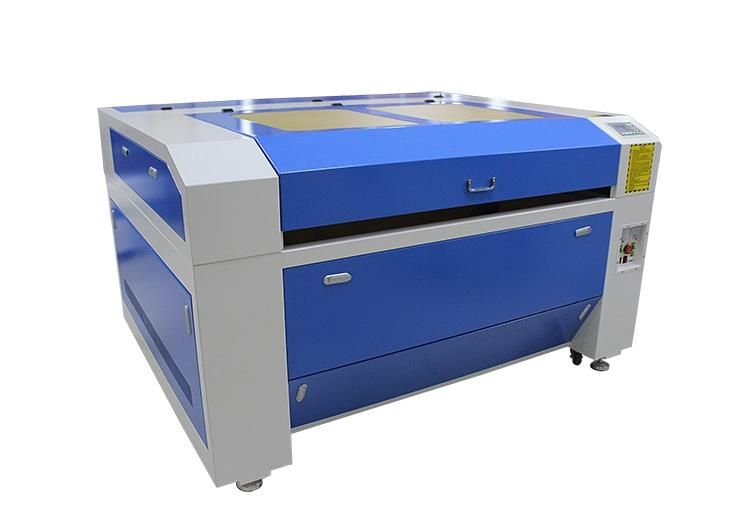

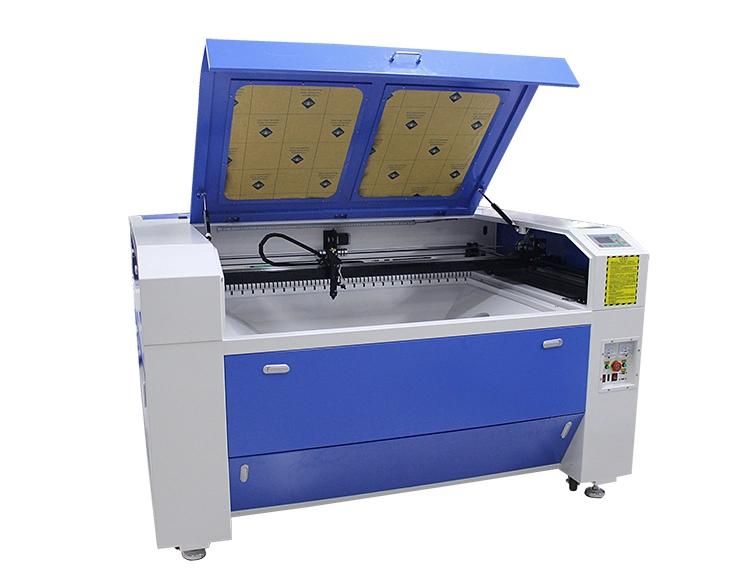

Most discount wood acrylic fabric co2 laser engraving cutting machine 1390 100w plastic vans shoes Cut plastic, bamboo, wood



what can do use this machine?
The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics, glass, etc. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on. This machine is equipped with DSP Control System for RDdraw directly, also supports CoreDraw and Auto CAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different colour in the software and also can making holes.


The laser machine could engrave :

Acrylic ,crystal ,cloth,stone,bamboo,paper,plastic,rubber stamp,double color ,glass ,rubber ,plywood,leather,fabric,


The laser machine could cut:

Acrylic,fabric,bamboo,paper ,plastic,rubber stamp,double ,color plate,cloth ,plywood ,leather,wood .




Model	J-1390
Machine Name	80W 100W 130W co2 glass laser tube co2 1390 laser cutting machine with good quality laser cutter machine 1390
Parameter	Laser type
Laser type	Hermetic Co2 glass tube
Driving system	Stepper motor
Laser power	60W/80W/100W/130W/150W/180W(Optional )
Total  power	≤2000W
Working area	1300*900mm
Max moving speed	0-3000mm/min
Worktable Location precision	±0.1mm
Mini shaping character	Chinese character,2*2mm ,English Letter 1*1mm
Resolution ratio	≤1000DPI
Control configuration	Qiancheng controlling ,Ruida controlling (Optional )
Data transfer interface	USB (Offline )
System environment	Windows 2000/Windows XP /Win 7
Cooling Way	Water cooling and protection system
Compatible software	Coredraw, Auto CAD
Cutting thickness	0-20mm(depends on different materials)
Color separation	Separation of cutting up to 256 colors
Operating temperature	0-45ºC
Operating humidity	5-95%
Machine dimension	L1720*W1310*H1050mm
Net weight	300KG
Gross weight	450KG

FAQ:

1.Q:Why should you choose us?
A:If you choose us, you will get best quality, best service, best price, best warranty.

2.Q:I'm not familiar with the machine.
A:You just need to tell us materials, working size and thickness. I will recommend you the right machine.

3.How to operate the machine
A:We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

4.Q:How can I get the sample to check you quality ?
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.

5.Q:Do the machine can be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.

6.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.



If you want to know whether the machine can work on your material, please let us know the following information:

1. What materials do you want to engrave or cut?

2. What's the max. size of the materials? (Length*Width*Thickness)

3. We can recommend one for you, or we can customize according to your requirements.
