• Model NO.：HJZ-UVDB-04
• Laser Wavelength：UV Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Output Power：3W 5W
• Engraving Speed：9000mm,S
• Operating Voltage：110-240V
• Graphic Format Supported：Ai, BMP, Dst, Dwg, Dxf, Dxp
• Marking Area：110*110mm, 175*175mm, 220*220mm, 300*300mm
• Certification：CE.FDA
• Working Temperature Range：10-30
• Dynamic Range：25mm(for 3D Model)
• Process Material：Metal and Some Non-Metal
• Delivery Time：1-3days
• Output Power：3W 5W 8W Customization
• Operating System：Win7 Win8 Win10
• Control Software：Ezcad Software
• Minimum Line Width：0.01mm
• Transport Package：Standard Plywood Packing for Export
• Specification：710X510X710MM
• Trademark：HJZ Laser
• Origin：Wuhan, China
• HS Code：8456110090
• Production Capacity：600sets,Month

Basic Info.

Model NO. HJZ-UVDB-04 Laser Wavelength UV Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Output Power 3W 5W Engraving Speed 9000mm/S Operating Voltage 110-240V Graphic Format Supported Ai, BMP, Dst, Dwg, Dxf, Dxp Marking Area 110*110mm, 175*175mm, 220*220mm, 300*300mm Certification CE.FDA Working Temperature Range 10-30 Dynamic Range 25mm(for 3D Model) Process Material Metal and Some Non-Metal Delivery Time 1-3days Output Power 3W 5W 8W Customization Operating System Win7 Win8 Win10 Control Software Ezcad Software Minimum Line Width 0.01mm Transport Package Standard Plywood Packing for Export Specification 710X510X710MM Trademark HJZ Laser Origin Wuhan, China HS Code 8456110090 Production Capacity 600sets/Month

Product Description

 3W 5W 10W UV  Jpt 20W 30W 50W Mopa Color Fiber Metal Laser Marking Cutting Engraving Machine with Rot Laser Marking Machine for Glass Crystal Metal Plastic
Contact :Susie Xu


Equipment Description<<<<<<

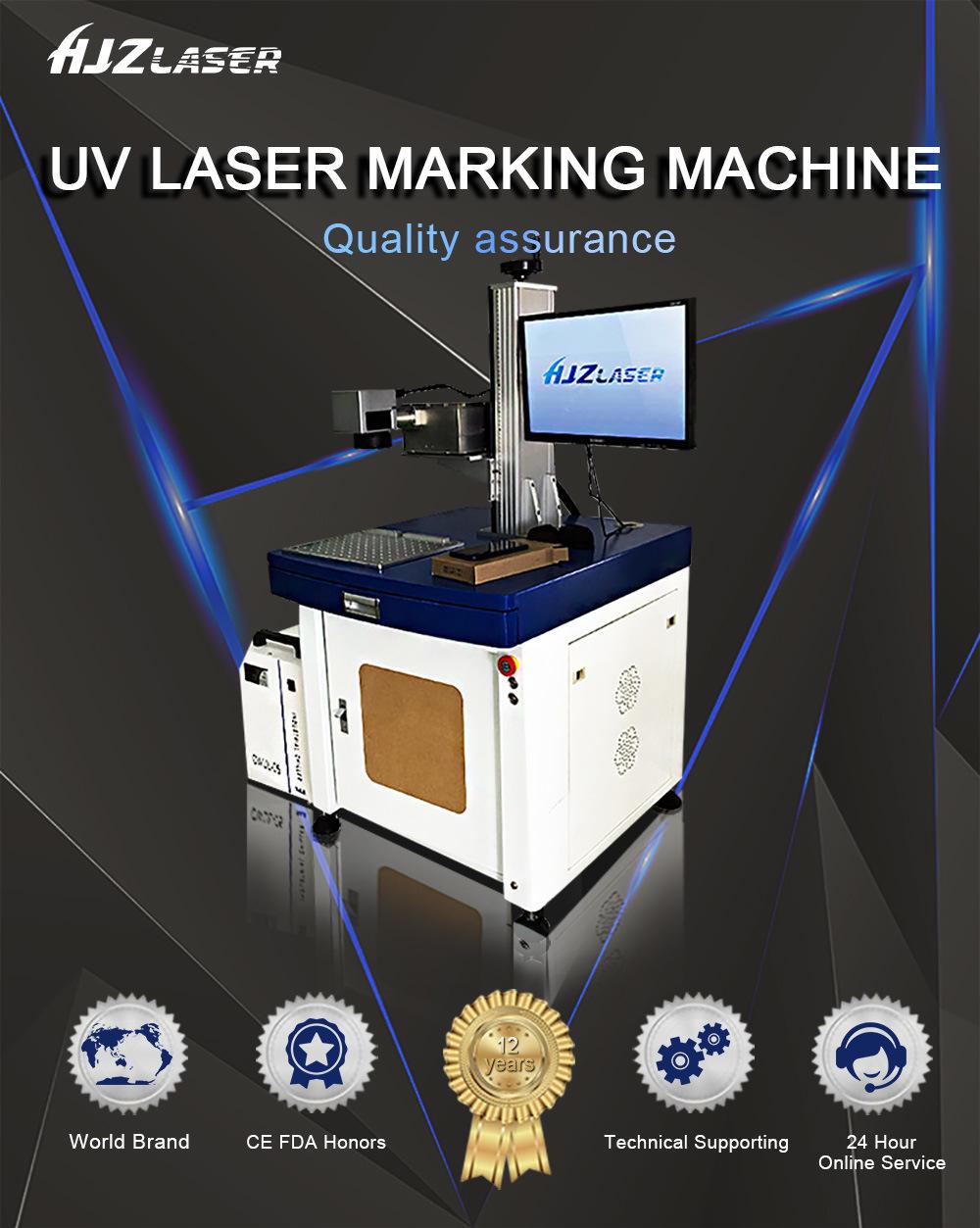

HJZ UV Laser Marking Machine 3W 5W 8W adopts three order intracavity frequency doubling (THG) technology. Compared to infrared laser, 355nm ultraviolet laser has extremely small laser facula, which reduces the mechanical deformation to a significant extent and diminishes the influence of heat-process to a very limited area.
Therefore it can be mainly applied for hyperfine marking and engraving, especially suitable for marking on packing materials ,medicines, Mobile phones ,keyboard ,  chargers etc.

Machine Features<<<<<<

• Stable water-cooling,high precision temperature control.

• Applied for hyperfine marking and engraving.

• High quality permanent marking.

• Environment friendly and safe Machinery.

• Electro-optical conversion efficiency, long service life.


Product application :

UV laser marking machine main used for all kinds of glass,Charger shells,TET ,LCD , plasma screens, textiles,thin ceramic,Silicon, IC Crystal, Sapphire,polymers,drug, cosmetic,polymer materials such as wire, bottles(boxes) surface marking , and micro- holes.

Product Name	UV Laser Engraving Machine
Model	MAN-UV3
Output Power	3W
Frequency	20-150KHZ
Beam Quality	<1.2
Depth of Engraving(based on material)	<0.3mm
Gross Power	600W
Operating Voltage	220V  50/60HZ 5A
Laser Wavelength	355nm
Engraving Range	100×100mm
Repetition Precision	±0.003mm
Engraving Speed	≤8000mm/s
Minimum Line Width	0.01mm
Character Size	0.5-110mm
Cooling System	Air Cooling
Cable Length	3m  (5m optional)
Working Temperature Range	10-30ºC
Working Humidity	20%-80%








Pre-sale service:
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make laser engraving/cutting solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test, etc.

After-sale service:
1) 1 year warranty for laser metal marking machine;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support.

Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.

FAQ
Q: Are you trading company or manufaurer ?
A: We are factory. And we have been in the laser field for 10 years.

Q: How long is your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
