UV Laser Marking Machine for Phone Charges
Wuhan Label Laser Science & Technology Co., Ltd.- Laser Visibility：Invisible
- Applicable Material：Nonmetal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：UV
- Laser Classification：Solid Laser
Base Info
- Model NO.：LBUV-400-A
- Type：UV Laser Marking System
- Marking Method：Scanning Marking
- Warranty：12 Months
- Consumable Items：Laser Tube
- Working Life：20, 000hours
- Protection Cover：Customized
- Transport Package：Wrapping Film & Export Standard Wooden Cases
- Specification：549*320*668mm h
- Trademark：Label Laser
- Origin：China
- HS Code：8456110090
- Production Capacity：500 Units,Month
Description
Technical parametersLaser Wavelength ND: YVO4/355nm Output Power 3W/ 5W Model No. LBUV-300 Beam Quality M2 < 1.2 Pulse Repetition Frequency 1-150 KHz Marking Area 110*110mm, 175mm*175mm Marking Depth 0.1-0.2mm
(depends on power, processed material and procedure) Marking Speed ≤ 9000mm/s Min. Line Width ≤ 0.01mm Repeated Precision ±0.003mm Total Power ≤ 1.5KW Minimum Character 0.1-0.2mm Cooling Mode Air cooling Temperature of Operation Environment 18~25ºC Humidity of Operation Environment 25ºC< 85% ; 30ºC< 70% Power Input AC 220V ( ±10%) / 50Hz Machine Dimension 549*320*668mm Optional Other customized Automation

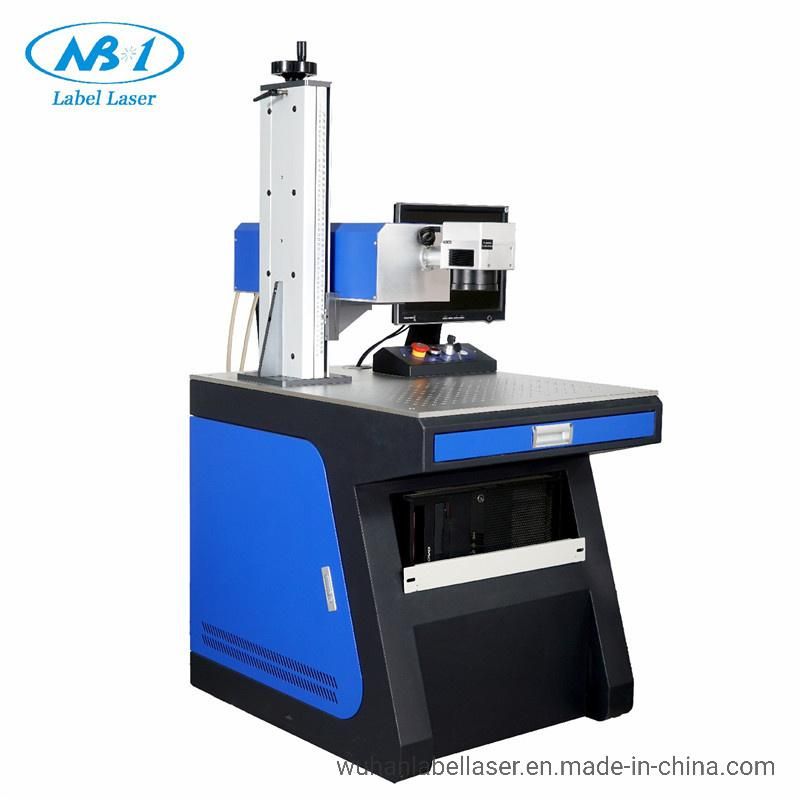

Product Show:
Product Features:
Application:
Free Sampling:
To help you determine if LABEL machinery is the right tool for your application or not, we provide the free sampling on your material with our in-house artwork facility.
About us:
Wuhan Label Laser Science and Technology Co., Ltd is a hi-tech corporation located in China Optics Valley in Wuhan City.
It has been specialized in researching and manufacturing industrial Laser marking equipments and supplying marking solutions for customers all over the world since established in 2000.
Why choose us Label Laser ??
Packing & Shipping:
- Packing :
Anti-collision foam + wrapping film+ Export standard wooden case.
- Shipping:
FAQ:
Q: What's laser marking ? And how laser marking machine works?
A: Laser marking is typically a delicate process of creating a depth by removing the surface material, especially with the purpose of modifying its reflectivity and contrast. The laser marking systems at Label Laser are designed for non-contact processes. They offer better and more reliable solutions in terms of stability and deformity.
Q: How to operate the machine? Is training necessary?
A: The machine is mainly controlled by software and not complicated. Operation manual with pictures will be provided .
Generally speaking, an operator, who is not familiar with fiber laser marking machine can still operate it very well.
Q: In case machine exists the problem, how to do after sales service?
A: One-year warranty of the whole machine. We will help to solve any problems in this period.
Q: Is it possible to add customized protection cover?
A: Yes, customized protection cover is acceptable.
Q: Any consumables for fiber laser marking machine?
A: No consumables. It's very economical and cost-effectient.
More Types:
Contact Us:
Any questions,please feel free to contact Ms. Jessica online or throught below methods right now!
We will get back to you ASAP within 24 hours.
(depends on power, processed material and procedure)

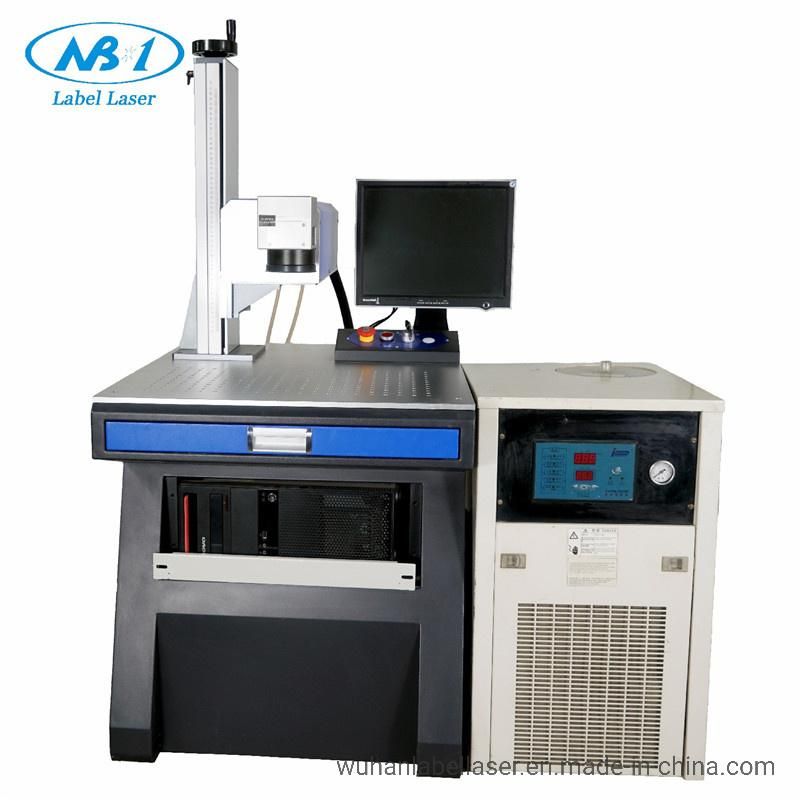

Product Show:
Product Features:
- Can mark on character of 0.1mm height and get through 10um micropore.
- Excellent marking and coloring effect, especially on the high polymer material and plastic which is hard to be marked by infrared laser.
- No residue, no carbonization, no deformation when working. Finished marking surface is smooth.
- Equipped with a closed safety cover, environmental friendly, reach export standard

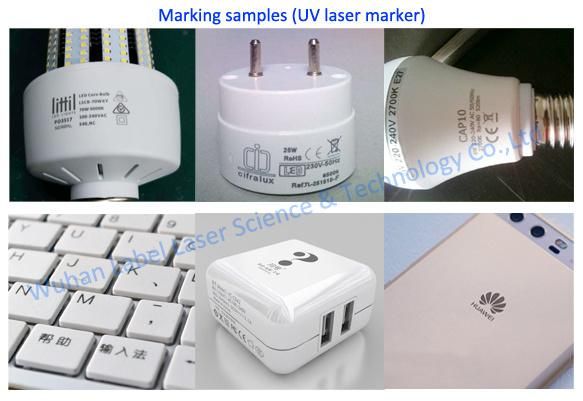

Application:
- Electronic products logo marking
- Mobile accessories and computer fittings marking
- Food industry, PVC pipe, Pharmaceutical packaging materials(HDPE/PO/PP, etc)marking
- Flexible PCB marking
- Remove coating from the surface of metal and nonmetal
- Process or scribe the micropore or blind hole of silicon wafer; fire-proof material marking
- Other Plastic materials.
Free Sampling:
To help you determine if LABEL machinery is the right tool for your application or not, we provide the free sampling on your material with our in-house artwork facility.
About us:
Wuhan Label Laser Science and Technology Co., Ltd is a hi-tech corporation located in China Optics Valley in Wuhan City.
It has been specialized in researching and manufacturing industrial Laser marking equipments and supplying marking solutions for customers all over the world since established in 2000.
Why choose us Label Laser ??
- 20 years of researching and manufacturing experience
- Advanced technology, researching and development group
- More than 3000+ successful cases of marking solution accumulated in domestic and oversea markets
- 100% QC
- Utility Model Patent Certificates, involved 3M Flexible label paper marking, Nameplate Auto marking , Engine cylinder block and head pass-type auto marking, Automobile forged wheel hubs pass-type auto marking, copyright of computer software, etc.
- ISO,CE,SGS certified
Packing & Shipping:
- Packing :
Anti-collision foam + wrapping film+ Export standard wooden case.
- Shipping:
- Main transportation method: by sea.
- Other Option: by air or railway transportation.
FAQ:
Q: What's laser marking ? And how laser marking machine works?
A: Laser marking is typically a delicate process of creating a depth by removing the surface material, especially with the purpose of modifying its reflectivity and contrast. The laser marking systems at Label Laser are designed for non-contact processes. They offer better and more reliable solutions in terms of stability and deformity.
Q: How to operate the machine? Is training necessary?
A: The machine is mainly controlled by software and not complicated. Operation manual with pictures will be provided .
Generally speaking, an operator, who is not familiar with fiber laser marking machine can still operate it very well.
Q: In case machine exists the problem, how to do after sales service?
A: One-year warranty of the whole machine. We will help to solve any problems in this period.
Q: Is it possible to add customized protection cover?
A: Yes, customized protection cover is acceptable.
Q: Any consumables for fiber laser marking machine?
A: No consumables. It's very economical and cost-effectient.

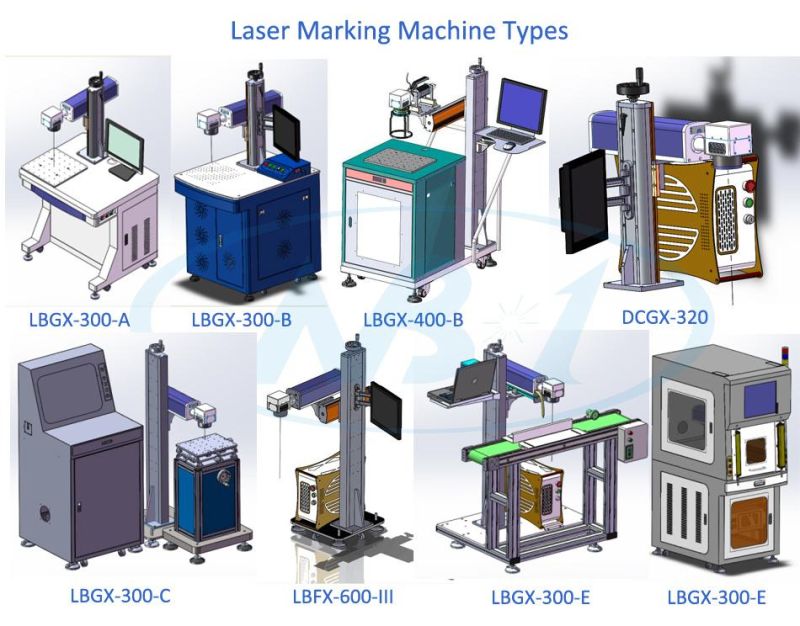

More Types:
