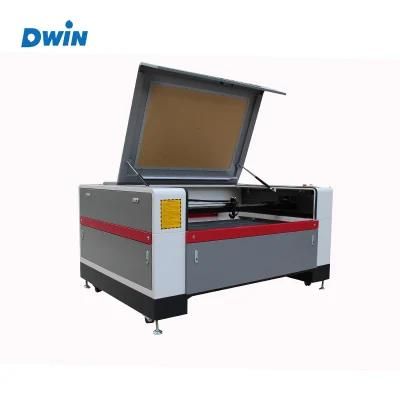

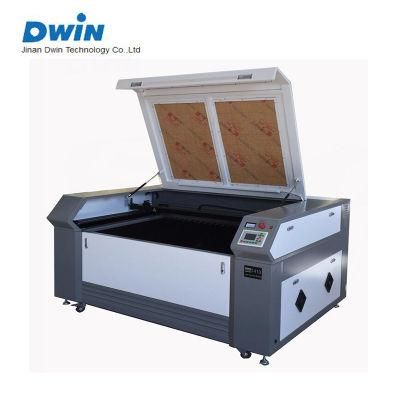

• Model NO.：DW-L1390
• Laser Technology：Laser Flame Cutting
• Laser Power：60W,80W,100W,130W,150W for Your Reference
• Machine Application：Non Metal, Such as Wood, Acrylic, MDF, Leather etc
• Machine Warranty：18 Months
• Cutting Thickness：0-30mm
• Graphic Format Supported：Ai, BMP, Dst, Dwg, Dxf

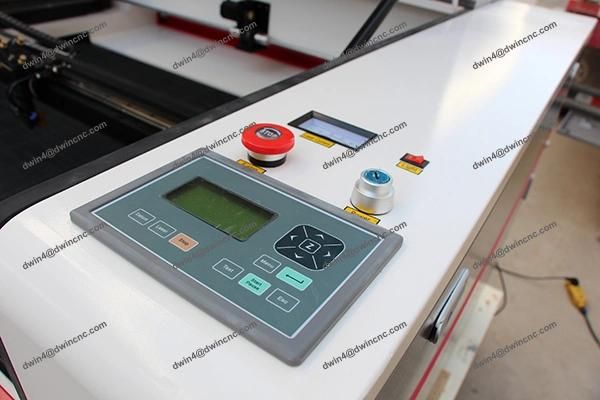

• Control Configuration：Redcam

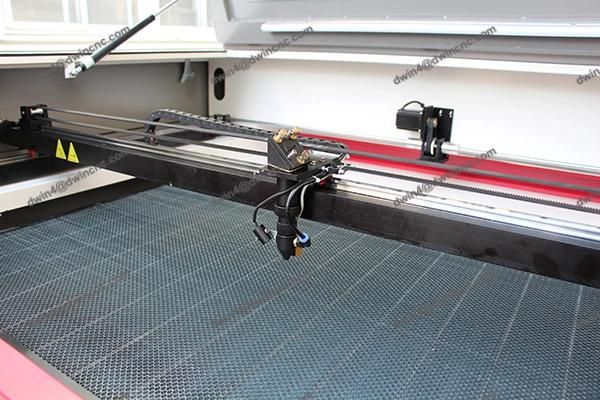

• Guide Rail：Taiwin Hiwin Square Rail
• Table：Honey Nest or Blade Table
• Cutting Area：1600*1000mm,1400*1000mm or Customized
• Resetting Positioning Accuracy：0.01mm
• Transport Package：Plywood Box, Free of Fumigation
• Specification：Machine size can be customized
• Trademark：Dwin
• Origin：China
• HS Code：8456100090
• Production Capacity：50sets Per Month

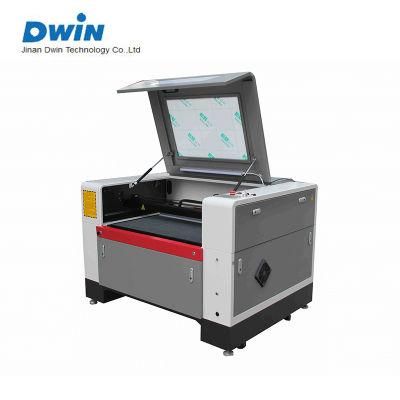

1ModelDW960 laser engraving machine used2Working area90cm*60cm / 35in*24in (L*W)3Laser power40W/60W/80W4Laser typeCO2 sealed laser tube,water-cooled5Engraving speed0-60000mm/min6Cutting speed0-10000mm/min7Power supply220V±10% /50HZ , 110V±10%//60HZ8Min. shaping characterLetter 1.0 x 1.0mm9Graphic format supportedBMP, PLT, DST, DXF, AI,CDR10Software supportedCorelDraw, PhotoShop, AutoCAD11Laser Output Control1-100% software setting12Highest Scanning Precision2500DPI13Resolution ratio< 0.01mm14Location precision<0.01mm15Working temperature5°C-40°C16Operating humidity5%-95%(without condensed water)17Equipment Dimension1420mm*1100mm*1070mm/57in*43in*42in (L*W*H)18Net Weight300kg19Optional partsUp-down worktable, Red light pointer, Auto focus, Rotary device



Applicable materials:
Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc

Applicable industry:
billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc


Guarantee & After sales service:
1. 24 months quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time
2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.
3. Free training course at our plant
4. We will provide the machine consuming parts with factory price when you need replacement.
5. 24 hours online service each day, free technical support.
