• Model NO.：DW-L1390
• Laser Technology：Laser Flame Cutting
• Laser Power：60W,80W,100W,130W,150W for Your Reference
• Machine Application：Non Metal, Such as Wood, Acrylic, MDF, Leather etc

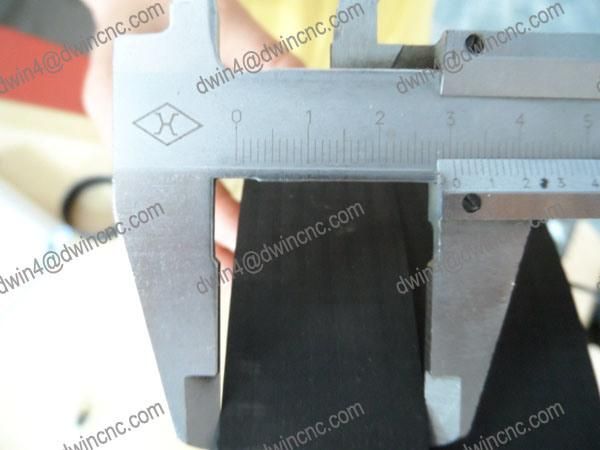

• Cutting Thickness：0-30mm
• Graphic Format Supported：Ai, BMP, Dst, Dwg, Dxf

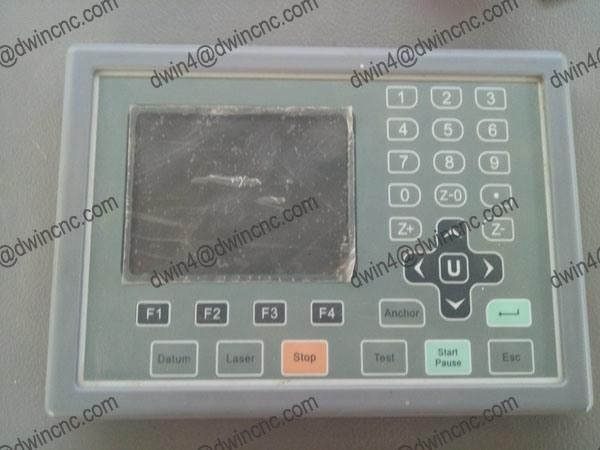

• Control Configuration：Redcam
• Laser Output Control：1-100% Software Setting
• Highest Scanner：2500dpi
• Working Temperature：5ºC- 40ºC,5%-95%
• Optional Parts：up-Down Worktable, Red Light
• Machine Warranty：2 Years
• Transport Package：Plywood Box, Free of Fumigation
• Specification：Machine size can be customized
• Trademark：Dwin
• Origin：China
• HS Code：8456100090
• Production Capacity：50sets Per Month

1ModelDW960 laser engraving machine used2Working area90cm*60cm / 35in*24in (L*W)3Laser power40W/60W/80W4Laser typeCO2 sealed laser tube,water-cooled5Engraving speed0-60000mm/min6Cutting speed0-10000mm/min7Power supply220V±10% /50HZ , 110V±10%//60HZ8Min. shaping characterLetter 1.0 x 1.0mm9Graphic format supportedBMP, PLT, DST, DXF, AI,CDR10Software supportedCorelDraw, PhotoShop, AutoCAD11Laser Output Control1-100% software setting12Highest Scanning Precision2500DPI13Resolution ratio< 0.01mm14Location precision<0.01mm15Working temperature5°C-40°C16Operating humidity5%-95%(without condensed water)17Equipment Dimension1420mm*1100mm*1070mm/57in*43in*42in (L*W*H)18Net Weight300kg19Optional partsUp-down worktable, Red light pointer, Auto focus, Rotary device



Applicable materials:
Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc

Applicable industry:
billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
