Small Size Laser Marking Printing Machine for Plastic Bag Bottles

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility：Invisible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：MAN-20
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Model：20W,30W
  • Marking Area：110mmx110mm;
  • Repeat Frequency：10kHz- 100kHz
  • Voltage：220V,50Hz
  • Markingspeed：7000mm
  • Marking Depth：0-0.5mm
  • Positioning Way：Red Light
  • Cooling Mode：Air Cooling
  • Software：Ezcad Software
  • Certification：Ce FDA
  • Transport Package：Wooden Box
  • Specification：860*360*760mm
  • Trademark：CNMANLASER
  • Origin：Shandong
  • HS Code：8456110090
  • Production Capacity：500 Set,Month

Description

1

What materials you want to process with?( stainless steel, aluminum, wood, plastic...)

2

Effective marking size? (75*75mm, 110*110mm, 175*175mm, 300*300mm)

3

Do you need to mark on cylindrical or round surface?

4

Do you have size or weight of the product you need to mark on?

5

Do you buy for personal use or selling?

 TECHNICAL  PARAMETER :
ModelMAN-10W/ MAN-20W/ MAN-30W
Laser power   10W 20W 30W 50W
Laser wavelength 1064nm
Power adjustment range10-100%
Repetition frequency20-100KHz
Output beam quality  <1.5M²
Marking Linear deep ≤1.2mm
Min. Highlight spot0.005mm
Min. character size high0.15mm
Repetition accuracy  ±0.001mm
Max. Linear marking speed  12000mm/s
Standard marking area100mm×100mm
Marking area option150mm×150mm 200mm×200mm
Power consumed     ≤160W
Electrical demand 220V±10%/50Hz/4A
Cooling ModeAir-cooled
Control interfaceUSB
Laser module life>10000 hours
Resonance mirror high speed
Ambient operating temperature     15 ° C - 35 ° C
Operating voltage  110/220V ± 10% /,50/60HZ
Weight60KG
Dimensions600H * 200W * 700L (mm )
Packing   plywood wooden packaging
  DETAILS   IMAGES :Small Size Laser Marking Printing Machine for Plastic Bag Bottles
Small Size Laser Marking Printing Machine for Plastic Bag Bottles

Main Advantage   of the laser machine :

1) Integrated design, small size (there is one cabinet and portable optional);

2) Fewer supplies , machine , low power consumption and power consumption;

3)Internal air cooling systems, reducing energy consumption, 100,000-hour maintenance-free;

4) High electro-optical conversion efficiency, maintenance-free, high stability, easy operation;

5)USB interface output control, can receive a variety of file formats (such as PLT,BMP,JPG);

6)Enable barcodes, text graphics, regular and irregular serial number and other marking;

7)To play black ,deep engraving and rotary marking;

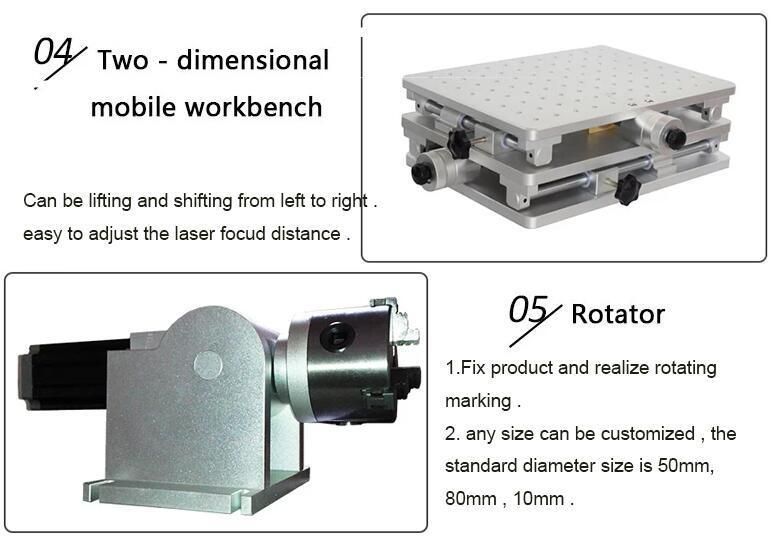

Optional  laser Parts :

Small Size Laser Marking Printing Machine for Plastic Bag Bottles

SAMPLE SHOW :

Marking content

 Jewelry making machine can mark logo, character, serial number, bar code, data matrix on both metals and some non-metals.

Applicable Materials

Metals and alloys (carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc, etc.), rare metal and alloy steel (gold, silver, titanium, etc.)

and some non-metal (plastic, PMMA, etc.), special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum a

nd magnesium alloy).

Applicable Industries

Electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molding, gaskets

and seals, bearing,  auto parts, hardware, tools, building materials, PVC tubes.

Small Size Laser Marking Printing Machine for Plastic Bag Bottles
  PACKAGING &  SHIPPING :

1. We can ship. air or land to your city, it is according to your location, and machine packing size.

And freight charge you need to pay for it.

We also support FOB if you have your own shipment agent.

2. Our machine producing time is 7-15 working days.

3. Delivery time, from Qingdao port to yout near port, different port the time is different.

Small Size Laser Marking Printing Machine for Plastic Bag Bottles
 FAQ   :
Q1. How to get the most suitable machine and best price

Please tell us the material you want to king on ? How to working on it ? Engraving ? Cutting ? Marking Or other ?

What's the MAX size of these material ?( length ? Width ? Thickness ?)

Q2. How to use the machine? And How about your after-sales service?

Sure, the machine installation,operation and training instruction CD video are delivered along with the machine.. you can learn how to use it well.

And on line 24 hours technical people teach you directly via call, computer remote control, skype video etc.

So, don't worry even you are a beginner on the machine.

Q3 Guarantee and Quality Control :

3 years guarantee

The whole production procedure will be under regular inspection and strict quality control.

The complete machine will be tested to make sure they can work very well before being out of factory.

Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.

Q4. How we pay you?

Before you place order, you'd better confirm machine details with us, then you can pay by TT,Western union, Paybal, Alipay etc.

Q5:How about the documents after shipment?

After shipment, we'll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L,

and other certificates as required by clients.

Q6:How long is the delivery time?

For standard machines, it would be 3-7 days;

For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
