• Model NO.：18
• Laser Technology：Laser Control Fault Cutting
• Electrical Requirements：380V,50Hz.60AMP
• Type for Cutting Machine：Laser Cutting Machine
• Outline Size(mm)：4270mm*2420mm*1750mm (L*W*H)
• Automation：Automatic
• Condition：New
• Servo：Japan
• Cooling Mode：Water Cooled
• Certification：CS, SGS, ISO 9001:2008
• Type：High-Power Laser Cutting Machine
• Transmission Way：Y-Axis Imported Gear Rack Double Driver
• Transport Package：Wooden Box
• Specification：SGS,CE
• Trademark：Dapeng
• Origin：China Shenzhen
• HS Code：84561000
• Production Capacity：1set,Day

ModelDPLC3015-2000IDPLC3015-1000IMedium of laserSemiconductor pump continuous ytterbium doped fiberLaser wavelength 1070nmLaser output power2000W1000WCutting area(mm)(L×W)      3000mm×1500mmMax cutting speed(m/min) 30 m/min24 m/minMin line width< 0.1mm< 0.125mmCutting depth 0.2mm---16mm       0.2mm---10mmDriving WayImported servo motorTranmission WayY-axis imported gear rack double driver,X-axis imported gear rackOperational Temp Range10 ~ 40ºCElectrical Requirements380V/50Hz.60AmpCooling ModeWater cooledContinuous working time24 hoursWarranty:2 years on laser source WeightAbout 4500kg                Outline size(mm)       4270mm×2420mm×1750mm  (L×W×H)
APPLICABLE MATERIALS:
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

APPLICABLE INDUSTRY:
It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.

-------------------------------------------------------------------------------------------------------------
SUPPORT and WARRANTY

MANUALS AND INSTRUCTIONAL VIDEOS
An Operation Manual and instructional video that contains clear explanations of the Installation process and the usage of the software, the control panel and other features.

WARRANTY AND PROFESSIONAL SUPPORT
To make sure your machine never stops running, in the unlikely event that your equipment needs technical service, we have an extensive inventory of spares parts as well as technical support at any of our fully stocked facilities in China and the others oversea(India), DA PENG LASER, also offers a comprehensive warranty policy for manufacture deffects.

Shipping and training
INSTALLATION, TRAINING, STOCK AND DELIVERY
Up to 8 hours of training (2 days of 4 hours) in the Installation, Maintenance & Operation of the Laser Machine, as well as the included software is available Free of charge at our premises. Unlimited technical support is offered via telephone, e-mail and other means. Optional On-Site Installation and Training by our Tech Support Engineer is available for an additional charge at the customer's request. We have 1 fully stock facilities and other plants in the China and can deliver anywhere in the world.

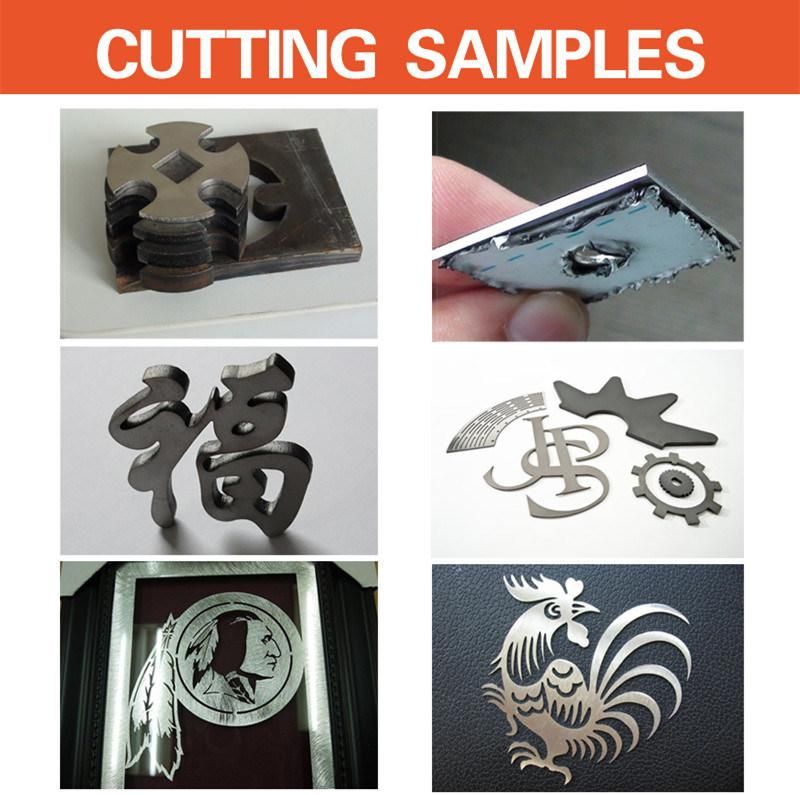

sample marking

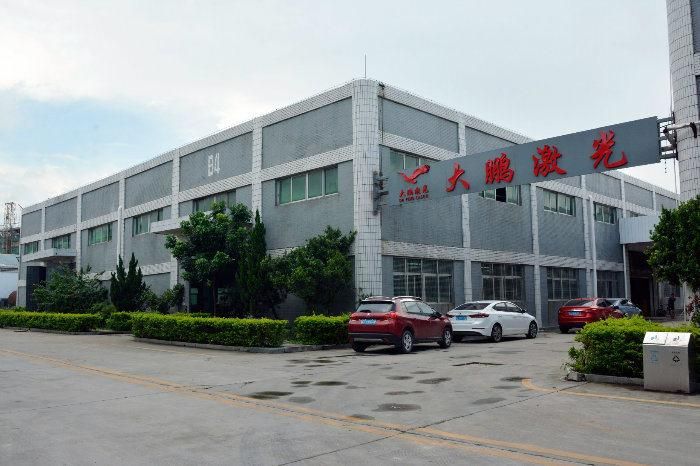

Company profile


Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and

servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides

equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military,

semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets.

With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard

and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker

systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last

10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil,

Colombia, and South Africa, among others.

Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will

have a chance to give you a great laser solution with Dapeng Laser products.

Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost

effectiveness, and technical support.

China. Last year 2016 we sold more than 5000sets of laser systems, about 80% are sold in domestic market, and others

we sold to America, Spain, Poland, India, Egypt and many other countries.







Our core advantages:

1. Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
2. Sold 4500 units of laser machines in China market in 2017, with reasonable price.
3. Fiber Laser cutting machine, (700W, 1000W, 1500W+ laser cutter), usually sell 30 units/month in China.

We are looking for distributor. Price is more competitive.
