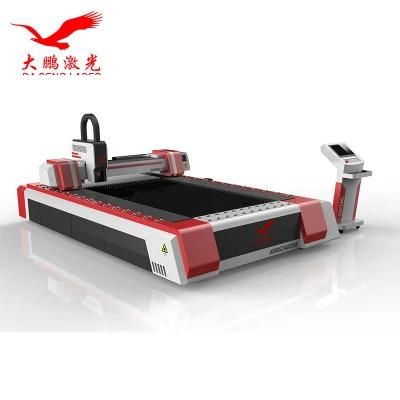

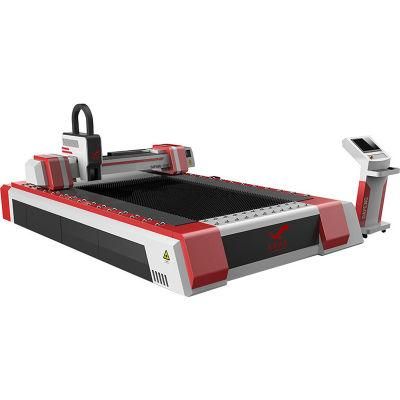

Shenzhen Dapeng Worldwide Hot Sale Fiber Laser Cutting Machine

Shenzhen Dapeng Laser Technology Co., Ltd.
  • Application：Petroleum Machinery Manufacturing, Agriculture Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Applicable Material：Metal
  • Structure Type：Desktop
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：582
  • Laser Technology：Laser Control Fault Cutting
  • Type for Cutting Machine：Laser Cutting Machine
  • Laser Wavelength：1070nm
  • Condition：New
  • Automation：Automatic
  • Certification：CS, SGS, ISO 9001:2008
  • Type：High-Power Laser Cutting Machine
  • Cutting Depth：0.2mm---8mm
  • Continuous Working Time：24 Hours
  • Outline Size(mm)：4270mm×2420mm×1750mm
  • Max Cutting Speed(M/Min)：24 M,Min
  • Transport Package：Wooden Box
  • Specification：SGS,CE
  • Trademark：Dapeng
  • Origin：China Shenzhen
  • HS Code：84561000
  • Production Capacity：5set,Day

Description

ModelDPLC3015-500IDPLC3015-1000IMedium of laserSemiconductor pump continuous ytterbium doped fiberLaser wavelength 1070nmLaser output power500W1000WCutting area(mm)(L×W)      3000mm×1500mmMax cutting speed(m/min) 18 m/min24 m/minMin line width< 0.1mm< 0.125mmCutting depth 0.2mm---5mm       0.2mm---8mmDriving WayImported servo motorTranmission WayY-axis imported gear rack double driver,X-axis imported gear rackOperational Temp Range10 ~ 40ºCElectrical Requirements380V/50Hz.60AmpCooling ModeWater cooledContinuous working time24 hoursWarranty:2 years on laser source WeightAbout 3000kg                Outline size(mm)       4270mm×2420mm×1750mm  (L×W×H)
APPLICABLE MATERIALS:

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.
Shenzhen Dapeng Worldwide Hot Sale Fiber Laser Cutting MachineShenzhen Dapeng Worldwide Hot Sale Fiber Laser Cutting Machine
APPLICABLE INDUSTRY:

It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.
