• Model NO.：LS-CO-20D
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Power：130W
• Operating Humidity：5%-95%
• Engraving Speed：0-64m,M
• Working Area：1300mmx900mm
• Cooling Mode：Water-Cooling and Protection System
• Transport Package：Wooden Case
• Specification：2000mmX1600mmX1270mm
• Trademark：Lospeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：50 Sets , Month

Basic Info.

Model NO. LS-CO-20D Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Laser Power 130W Operating Humidity 5%-95% Engraving Speed 0-64m/M Working Area 1300mmx900mm Cooling Mode Water-Cooling and Protection System Transport Package Wooden Case Specification 2000mmX1600mmX1270mm Trademark Lospeed or Customized Origin China HS Code 8456100090 Production Capacity 50 Sets / Month

Product Description

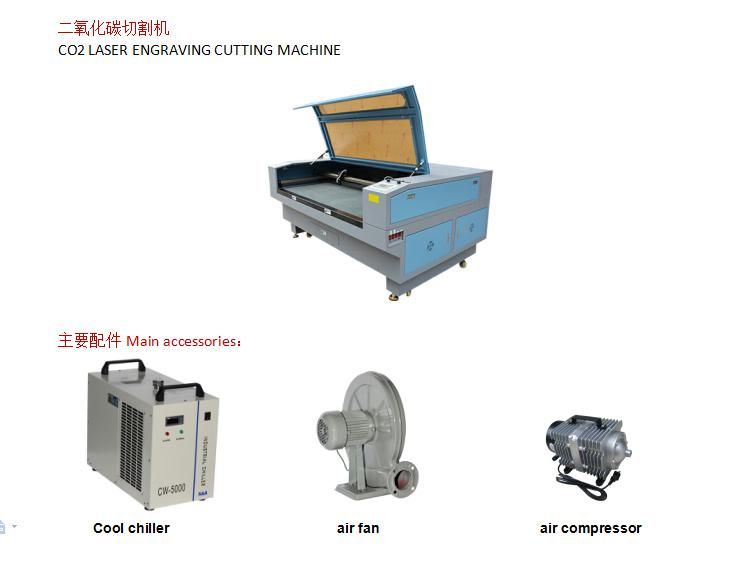

CO2 Laser Engraving Cutting Machine for Non-Metal/Acrylic/Wood/MDF



>>>>>Equipment Description<<<<<

Engraving and cutting of paper, fabric, plastic, nonwoven cloth in garment and toy industries, also inclusive of precise cutting to non-metal materials, like acrylic and MDF board in handbag, glove, mold, advertisements, decoration, electrical appliance and plastic industries.


>>>>>>>Application<<<<<<<

CO2 laser engraving and cutting machine series adopts international advanced DSP control technology, they have the high speed, high cutting accuracy and high stability, the quality and price ratio is very high. The main system can be commanded by U-disk without PC connection. It has the functions of imitative cutting, color separating cutting, non-stop cutting once off power, etc.

>>>>>>Machine Details Show<<<<<<





>>>>>>Technical Parameters<<<<<<


Laser Type	CO2 Glass Tube Laser
Laser Power	40W/60W/80W/100W/130W/150W
Engraving Area	640/960/1080/1280/1390/1610/1810/1325/1625/1825
Engraving Speed	0-64m/m
Cutting Speed	0-36m/m
Repeat Accuracy	±0.05mm
Moving System	CNC control system
Cooling Mode	Water-cooling and protection system
Overall Power Consumption	≤1250w
Working Voltage	220±10% 50Hz(60Hz)
Operating Temperature	0~45ºC
Operating Humidity	5%-95%
Controlling Software	Ruida Control Card
Graphic Supported Format	CAD, MP,JPG,PNG,TIF,PCX,TAG,IOO,GIF,PLT

Q1: What's the warranty?
A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our
FAE will teach you how to remove the broken parts by video.
Warranty excluding man-made damage.
We are real warranty based series number on the machine, not false or empty promises, any too long time warrantyis unreliable, ourt warrannty is effective and enforceable.

Q2: What's the package?
A2: We have 3 layers package. For the outside, we adopt wood craft case.
In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer,
the machine is covered by thickening plastic Bag for waterproof.

Q3: How to install and run the machine?
A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer.
You will get a CD of orginal marking software and online video about basic operation.
You also will get a software operation manual and you can be a laser marking master after reading and practics.
You can send your questions to our online after-serive 24 hours.

>>>>>>Company Information<<<<<<

Lospeed laser company is a professional Laser Marking Machine Manufacturer , The company focuses on the development and innovation of a complete set of laser processing and application solutions for customers. The core products are "Fiber laser marking machine, UV laser marking machine and CO2 laser marking machine" as the core products. The company has formed three major products series and targeted solutions for different segments, different sizes and different applications for advertising, industrial manufacture and so on. It is a more influential equipment manufacturer in the laser application industry.

The growth of Lospeed laser company is the process of serving customers and growing up with customers. With gratitude, we do everything in our heart and meet every challenge with confidence.


>>>>>>>>>Contact Us<<<<<<<<<

Lospeed Laser is a real manufacturer of fiber laser marking machine,contact us for further information if you are interested,thanks a lot.
