Handheld Type Fiber 20W 30W Laser Marking Machine
Wuhan Label Laser Science & Technology Co., Ltd.- Laser Visibility：Invisible
- Applicable Material：Metal and Non Metal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
- Laser Wavelength：Fiber Laser
- Laser Classification：Solid Laser
Base Info
- Model NO.：LBJC-700
- Type：Optical Fiber Laser Marking Machine
- Marking Method：Scanning Marking
- Laser Power：20W 30W 50W 70W 100W
- Laser Source：Ipg, Raycus, or Customized
- Marking Depth：≤0.6mm(Depand on Power, Material, Ect.)
- Marking Speed：7000mm,S
- Repeated Precision：0.003mm
- Transport Package：Plywood Case
- Specification：70*70mm,110*110mm,150*150mm, 175*175mm, 255*255mm
- Trademark：Label Laser
- Origin：China
- HS Code：8456100090
- Production Capacity：300 Sets Per Month
Description
Technical parameters Laser Type Fiber laser Laser Power 20W 30W 50W(or customized) Model LBJC-700 Laser Wavelength 1064nm Laser Source IPG, Raycus, or others based on customers' requirements Pulse Energy 1.0mj Pulse Width 20W, 30W 130ns
50W 120ns Long-term power fluctuations <3% Repeated Frequency 20-100KHz Facula Diameter 6-8mm Fiber Length 2.0m Marking Area 70mm*70mm,110*110mm,145mm*145mm, 150*150mm,
175mm*175mm, 255mm*255mm, 300mm*300mm or customized Marking Depth ≤0.6mm(depand on power, processed material and procedure) Marking Speed 7000mm/s Marking Type Static marking, rotary axis marking, flying marking Life span of Fiber Laser Module 100,000hours Operation System and Software Windows XP/2000 / Windows 7 LABELMARKE Communication Interface RS232/RS485 serial port, TCP/IP network port, I/O port Cooling Mode Air cooling Temperature of Operation Environment 15ºC~35ºC Power Input 220V ( ±10%)/ 50HZ( ±5%) single phase Communication Interface USB Fiber Laser Head Size 645*116*139mm Control Cabinet Size 470*385*181mm Optional other customized Automation
Focus Length, Working Distance and Marking Area

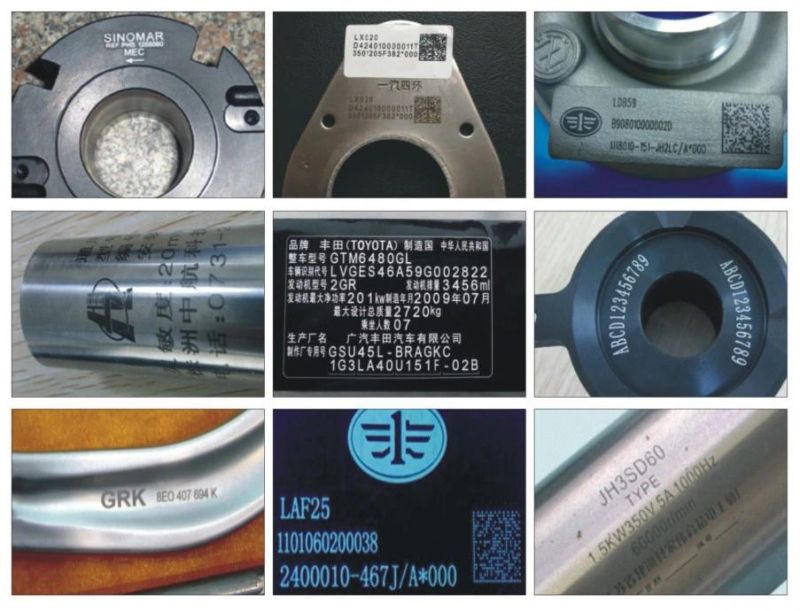

Marked Samples:
Applicable field and material:
Materials: metal and some of nonmetal
Industries: automobile parts, and accessories, hardware tools, precision machineries, electronic components, electrical appliances, apparatus and meters, instruments, mechanical parts, daily necessities, jewelry,medical devices, gifts, oil equipments, inspection equipments, ect.
Packing detail
Company Profile
Wuhan Label Laser Science & Technology Co.,Ltd. has been specialized in researching and manufacturing industrial laser marking equipments, laser processing equipments and supplying marking solutions for customers since 2000.
Why choose us
A. More than 18 years laser marking, processing, manufacturing, research and design rich experience.
B. Professional technical group for customized industrial laser marking system.
C. More than 3000+marking solution cases accumulated in domestic and oversea markets.
D. 100% strict QC for both raw materials and finished products.
E. Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
F. ISO,CE,SGS certified and complete aftersales service team.
Q1: What type of the machine suitable for us?
Please tell us what material will be marked/engraved and the depth of marking/engraving, we will advise you the suitable model machines. If you can provide material picture, it is better. It is best if you send sample to us, we will mark on it. Sample with marking pictures and videos will be sent to you for checking. Or we can send the sample to you for quality and marking effect checking.
Q2: If we do not know how to use the machine,can you teach us?
Yes, we will. Our user manuals are together with goods shipment. We can also send operation video to you for study.
If you come to our factory in China, our technicians will offer you free training until you can use machine freely.
Our professional engineer can come to your country for trainning, installation, adjusting, ect.
Q3: How about the delivery time?
For standard machine, lead time is 10-15 days.
Regarding customized machine, we need to check with technicians.
Q4: How about the warranty time?
Our fiber laser machine warranty time is 12 months. Please send back the broken parts to us, we will send the new and replaced one to you. We suggest you take one extra set of spare parts together with your order which will be more convinient for your production line continurous running.
Our Clients:
Contact us
50W 120ns
175mm*175mm, 255mm*255mm, 300mm*300mm or customized
Focus Length, Working Distance and Marking Area
| T-theta scan lens Model No. | Focus Length | Working Distance | Marking Area |
| f=100 | 100mm | 107mm | 70*70mm |
| f=160 | 160mm | 183mm | 110*110mm |
| f=210 | 210mm | 236mm | 145mm*145mm |
| f=254 | 254mm | 288mm | 175*175mm |
| F=430 | 430mm | 477mm | 300*300mm |
Marked Samples:
Applicable field and material:
Materials: metal and some of nonmetal
Industries: automobile parts, and accessories, hardware tools, precision machineries, electronic components, electrical appliances, apparatus and meters, instruments, mechanical parts, daily necessities, jewelry,medical devices, gifts, oil equipments, inspection equipments, ect.
Packing detail
Company Profile
Wuhan Label Laser Science & Technology Co.,Ltd. has been specialized in researching and manufacturing industrial laser marking equipments, laser processing equipments and supplying marking solutions for customers since 2000.
Why choose us
A. More than 18 years laser marking, processing, manufacturing, research and design rich experience.
B. Professional technical group for customized industrial laser marking system.
C. More than 3000+marking solution cases accumulated in domestic and oversea markets.
D. 100% strict QC for both raw materials and finished products.
E. Utility Model Patent Certificates,involved 3M Flexible label paper marking,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
F. ISO,CE,SGS certified and complete aftersales service team.
FAQ
Q1: What type of the machine suitable for us?
Please tell us what material will be marked/engraved and the depth of marking/engraving, we will advise you the suitable model machines. If you can provide material picture, it is better. It is best if you send sample to us, we will mark on it. Sample with marking pictures and videos will be sent to you for checking. Or we can send the sample to you for quality and marking effect checking.
Q2: If we do not know how to use the machine,can you teach us?
Yes, we will. Our user manuals are together with goods shipment. We can also send operation video to you for study.
If you come to our factory in China, our technicians will offer you free training until you can use machine freely.
Our professional engineer can come to your country for trainning, installation, adjusting, ect.
Q3: How about the delivery time?
For standard machine, lead time is 10-15 days.
Regarding customized machine, we need to check with technicians.
Q4: How about the warranty time?
Our fiber laser machine warranty time is 12 months. Please send back the broken parts to us, we will send the new and replaced one to you. We suggest you take one extra set of spare parts together with your order which will be more convinient for your production line continurous running.
Our Clients:
Contact us
