• Model NO.：J6040
• Laser Classification：Solid Laser
• Engraving Method：Vector Engraving
• Transport Package：Wooden Case
• Specification：102*74*64cm
• Trademark：Refine
• Origin：China
• HS Code：8479
• Production Capacity：1000 Set,Sets Per Month

Basic Info.

Model NO. J6040 Laser Classification Solid Laser Engraving Method Vector Engraving Transport Package Wooden Case Specification 102*74*64cm Trademark Refine Origin China HS Code 8479 Production Capacity 1000 Set/Sets Per Month

Product Description

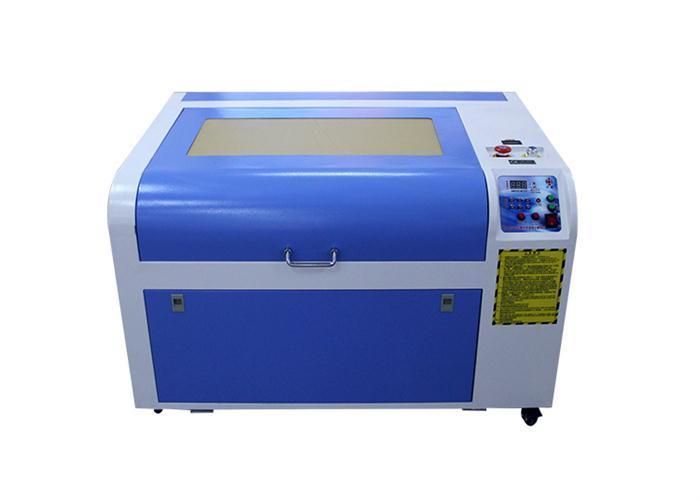

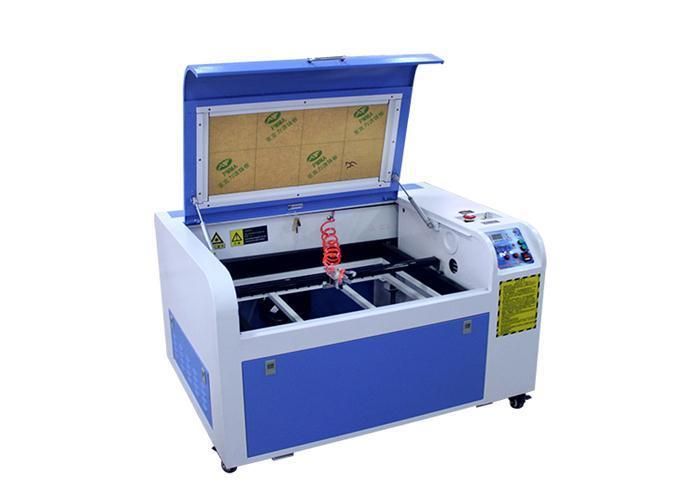

60*40 cm 50W 60W 80W CO2 laser engraver cutter machine with Ruida DSP


Applicable Industry:

Packing and engraving industry:  Paper engraving and cutting, rubber plate engraving and cutting, etc
Art and craft industry:  Crystal engraving, glass engraving, acrylic engraving and cutting, etc
Advertising industry:  Acrylic engraving and cutting, color plate engraving, sign carving, etc
Clothes industry:  leather cutting, fabric cutting, etc
Stone industry:  marble engraving, photo and text design on granite, etc
Photo building industry:  carving photos on acrylic, photo paper, etc
Model industry:  ABS cutting, model airplane cutting, wood engraving and cutting, etc



Laser cutting and engraving machine for professional use
Cut and engrave non-metallic materials with a maximum depth of 7mm
Works with materials in acrylic, leather, rubber for stamp, eva, mdf, glass, jeans, bamboo, porcelain etc.
Supports CAD and CorelDraw files
It features an aluminum cutting table that reduces damage to the material due to laser reflection
Cutting table with waste tank
Safety alarm in case of overheating
Large memory capacity making it possible to work offline


Specifications :
Cutting area: 600x400mm
Laser Power: 40W/60W
Power Supply: 40W/60W
Laser System: Laserwork (RuiDa)

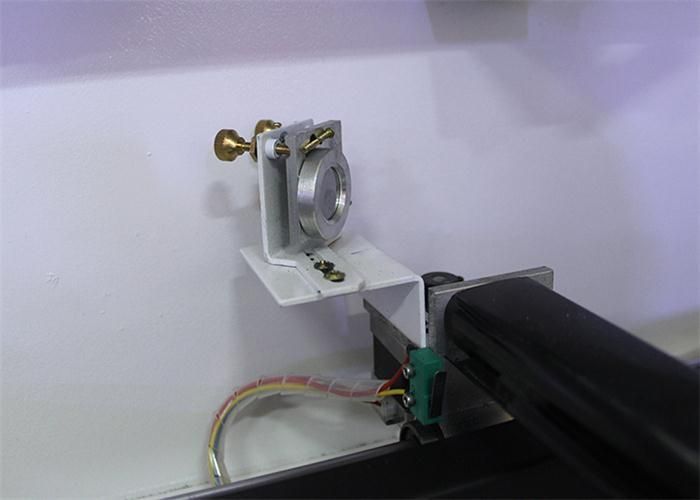

Reflective lens F25: Internal
Focus F20 Lens: Internal
Cooler: Professional Cooling Cw3000
Maximum processing speed: 30000mm / min.
Maximum scanning accuracy: 2500dpi
Memory capacity: 128mb
Position accuracy: 0.01mm
Supported image formats: HPGL / BMP / DXF / NC / DWG / PLT
Cutting thickness: 7 mm
Machine size: 102*74*64cm
Gross/Net weight: 110/80kg


Included:
Motorized up-down platform included (if no need, deduct USD30)
Manual up-down platform  +$18
rotary device:Simple: +USD25;
Professional type: +USD150
Red light positioning
Blowing flame retardant

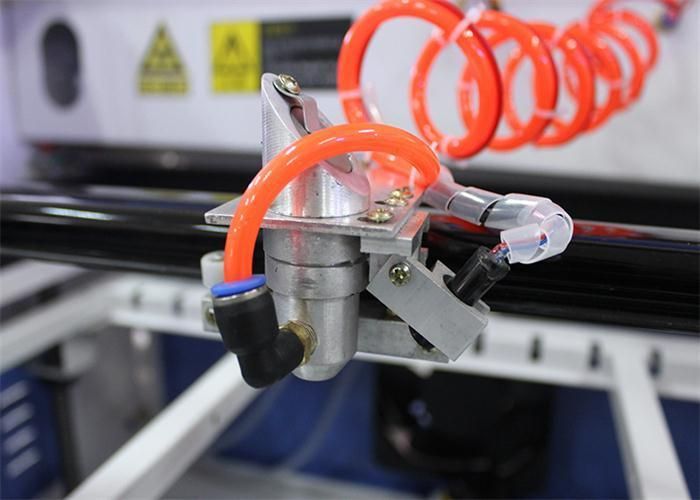

Industrial laser head



Model	J6040
Laser type	Hermetic C02 glass tube
Laser power	40w/50w/60w/80w/100w
Support software	Ruida software support CAD output
Working area	600*400 ,400*300
Working speed	0-800mm/s
cutting depth	0-15mm(according to material)
Location precision	0.01mm
Power supply	AC220V/110V  50/60HZ
Min carving character	words 2*2mm/Number 1*1mm
Work enviroment	5-40ºC   5-95%
Cooling way	Water cooling

FAQ:

1.Q:Why should you choose us?
A:If you choose us, you will get best quality, best service, best price, best warranty.

2.Q:I'm not familiar with the machine.
A:You just need to tell us materials, working size and thickness. I will recommend you the right machine.

3.How to operate the machine
A:We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

4.Q:How can I get the sample to check you quality ?
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.

5.Q:Do the machine can be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.

6.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.
