• Model NO.：J-1390
• Applicable Material：Nonmetal
• Type：Flat-Plate
• Laser Classification：Solid Laser
• Engraving Method：Vector Engraving
• Transport Package：Exported Standard Packing with 5cm Foam by Wooden
• Specification：206cmx134cmx112cm
• Trademark：Refine
• Origin：China
• HS Code：8479
• Production Capacity：2000 Set,Sets Per Month

Basic Info.

Model NO. J-1390 Applicable Material Nonmetal Type Flat-Plate Laser Classification Solid Laser Engraving Method Vector Engraving Transport Package Exported Standard Packing with 5cm Foam by Wooden Specification 206cmx134cmx112cm Trademark Refine Origin China HS Code 8479 Production Capacity 2000 Set/Sets Per Month

Product Description

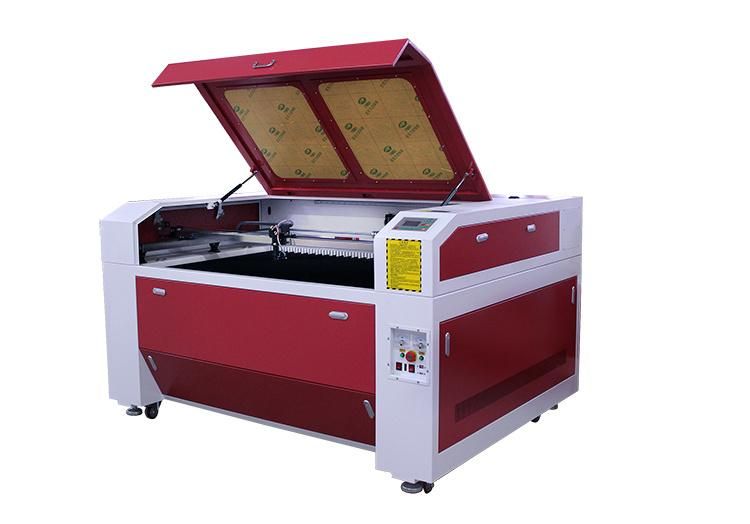

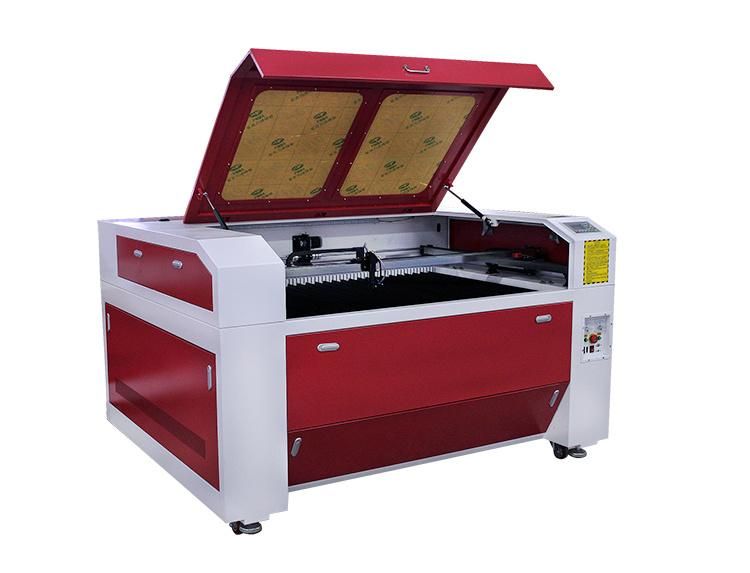

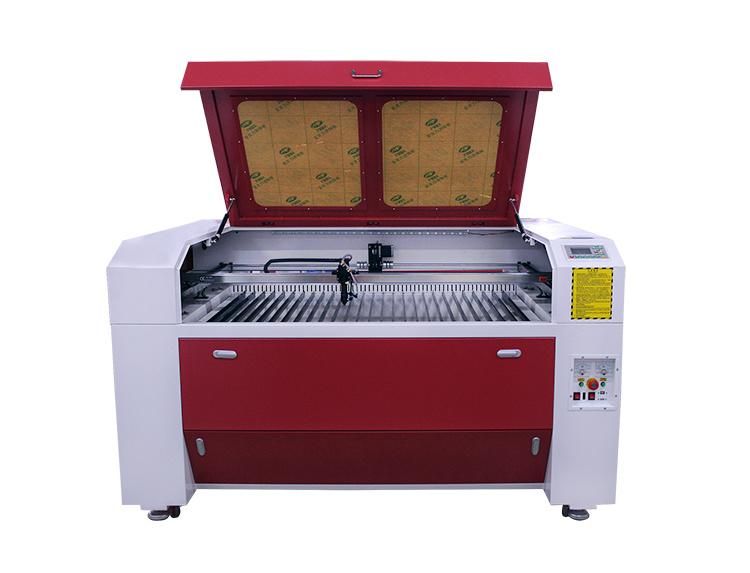

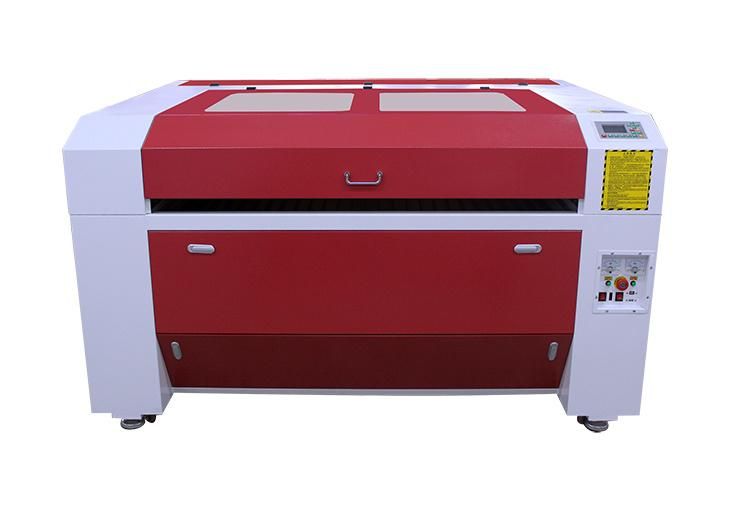

Ruida Software high precision Laser Engraving Machine Price 1390 100 watt




Main Features

1) High precision , easy to operate ,wide applicable range.
2) It has functions of scanning ,engraving, cutting and punching.
3) The graphics and letters are clear and durable.

Advantages of Laser REFINE brand
1.Offering the specification for the machine, one year warranty.
2.English software, user manual and operation video
3.24 hours technical support by email, calling, if you have any problems, we will within 12 hours to solve it.
4.During the warranty period, if any part is broken, we will provide for free.
5.Packing: Plywood case export standard package
6.Shipment time: Within 7 working days after receive the payment. in the meanwhile, we will report the production process in time.



Laser cutting and engraving machine for professional use.
Cut and engrave non-metallic materials with a maximum depth of 15mm
Works with materials in acrylic, leather, rubber for stamp, eva, mdf, glass, jeans, bamboo, porcelain etc.
Supports CAD and CorelDraw files.
It features an aluminum cutting table that reduces damage to the material due to laser reflection.

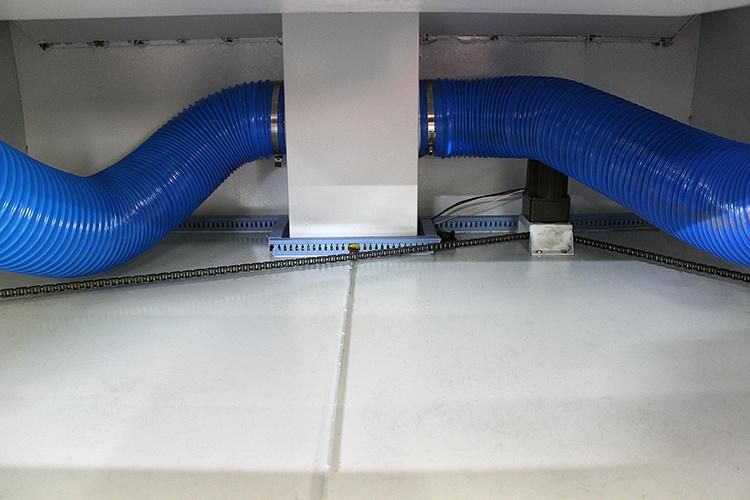

Cutting table with waste tank.
Safety alarm in case of overheating.
Large memory capacity making it possible to work offline Motorized up-down platform.






Model	J-1390
Laser type	Hermetic  co2  glass  tube
Laser  power	60W/80W/100W/130W/150W
Driving system	digital   subdivision  stepper  motor
Power  supply	AC220V±10% 50HZ/AC110±10%60HZ
Total  power	≤2000W
Working  area	600*900mm
Max  moving  speed /Max  cutting  speed	0-1000mm/sec
cutting  thickness	0-18mm(depends  on diffrent  materials)
the  Worktable	Up  and  down  woktable  /fixed  worktable(optional)
Location  precision	±0.1mm
Mini  shaping  character	Chinese  character:2*2mm,English  letter 1*1mm
Resolution  ration	≤4500DPI

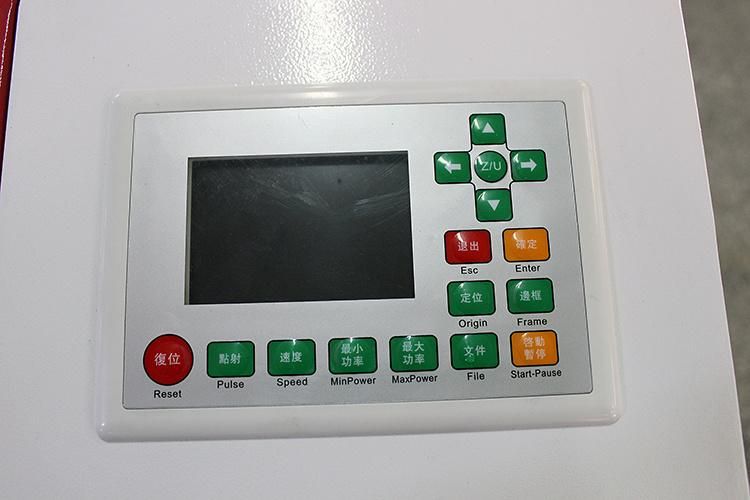

Control  configuration	Qiancheng  Controlling  System
Data  transfer  interface	USB  (offline)
System  environment	Windows2000/Windows  XP/Win7
Graphic  format  supported	(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT)
Compatible   software	Coreldraw/AutoCAD
Cutting  thickness	0-20mm(depends  on  diffrent  materials)
Color   separation	Separation  of  cutting  up to  256  colors
Operating   temperature	0-45°C
Operating  humidity	5-95%(free  of  condensed  water)
Water  supply  cut-off  protection	Yes
Machine  dimension	L188mm*W130mm*H112mm(L206mm*W149mm*H128mm)
Net  weight	500KG/520KG

FAQ:

1.Q:Why should you choose us?
A:If you choose us, you will get best quality, best service, best price, best warranty.

2.Q:I'm not familiar with the machine.
A:You just need to tell us materials, working size and thickness. I will recommend you the right machine.

3.How to operate the machine
A:We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

4.Q:How can I get the sample to check you quality ?
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.

5.Q:Do the machine can be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.

6.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.



AFTER SALE SERVICE
1.Technical support online service provided.
2.Technical files service provided.
3.On-site trainning service provided.
4.Spare parts replacement and repair service provided


Shipment:
1) TNT/DHL/UPS for samples, Door-to-Door shipping service.
2)  For batch machines, shipment is effected by Seaway ( FCL or LCL).
3) We are able to arrange shipping. It's also acceptable if buyers nominate their own shipping agent.
4) Delivery Time:3 -7 days for samples;10-20 days for batch goods.


Payment:
1) We accept T/T, Western Union, L/C(depending on order amount).
2) Sight L/C is acceptable if order amount exceeds usd20,000.00.


Company introduction:
Hefei Gere-tech International Co. Ltd. Is a firm with 10+ years of history. We devote ourselves in R&D on signage  and Sublimation industries. Our Refine brand cutting plotters and heat press are very popular in North America, Europe, Latin America, Asia and Africa.
We always provide quality products, reasonable prices as well as best possible after-service! We offer quality guarantee. Our service time  is  7days x 15 hours/day.
We have superior and steady sales + service staff, which is our biggest advantage among most Chinese competitors!
We promise! We guarantee!

"Gere-tech"  is your correct and long-term business partner!
