Laser Power for Thick Metal Sheet 3015 Fiber Laser Cutting Machine Sheet Metal/Laser Cutter

SENCO INDUSTRIAL MACHINE & TOOLS (CHINA) CO., LTD.
  • Application：Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
  • Cooling System：Water Cooling
  • Technical Class：Continuous Wave Laser
  • Applicable Material：Metal
  • Structure Type：Gantry Type
  • Laser Classification：Free Electron Laser

Base Info

  • Model NO.：3015
  • Laser Technology：Laser Control Fault Cutting
  • Suppliy Ability：10 Sets,Month
  • Transport Package：Wooden Packing
  • Specification：3000x1500
  • Trademark：SENCO
  • Origin：China
  • HS Code：8456110090
  • Production Capacity：500 Sets,Year

Description

Technical indicatorsTechnical ParametersLaser wavelength1080mmMaximum laser power1000W/1500W/2000W/3000W/6000WPulse frequency1~500Hz continuously adjustable Aiming and positioning Red light indication Effective processing area 3000mm*1500mm X/Y axis repeat positioning accuracy ±0.05mmMaximum cutting thickness Stainless steel ≤ 5mm / carbon steel ≤ 10mm Support for graphic formats DXF, etc. (support Autou CAD software, Coreldraw software) Power consumption of the whole machine ≤8KW Power Requirements Three-phase four-wire AC 380V, 50Hz, 60A Mainframe dimensions (L×W×H) 8000mm×2350mm×2000mm Machine weight 4000KG

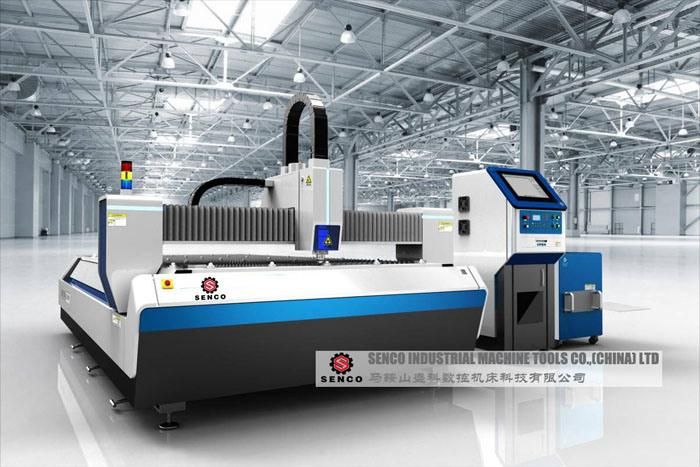

Laser Power for Thick Metal Sheet 3015 Fiber Laser Cutting Machine Sheet Metal/Laser Cutter

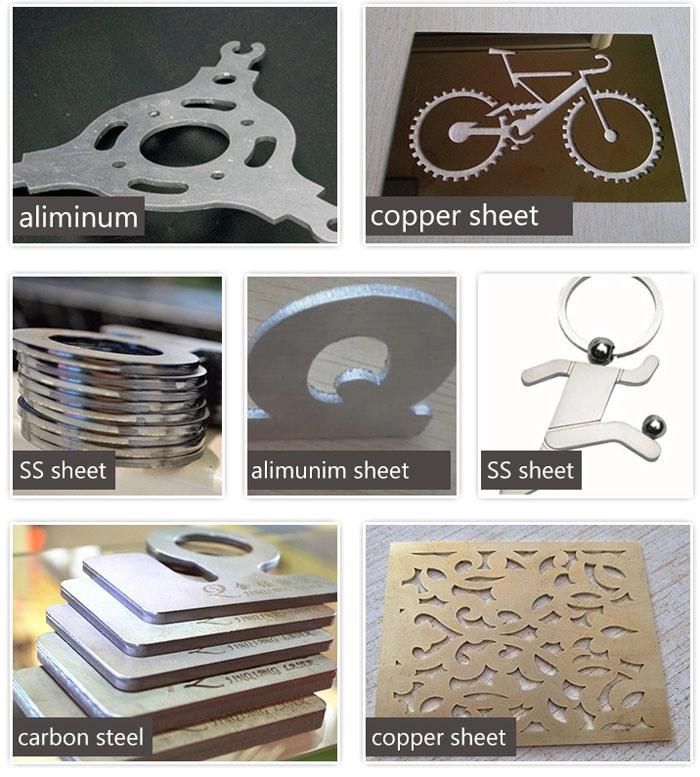

Cutting Samples

Laser Power for Thick Metal Sheet 3015 Fiber Laser Cutting Machine Sheet Metal/Laser Cutter
