• Model NO.：LW-1500
• Laser Classification：Semiconductor Laser
• Type：Optical Fiber Transmission Laser Welding Machine
• Transport Package：Wooden Case
• Specification：260Kgs
• Trademark：CCILASER
• Origin：China
• HS Code：8515809090
• Production Capacity：100 Sets Per Month

Series No.Technical ItemTechnical Parameters1Power Rate500W/ 1000W/ 1500W/2000W2Wavelength1064nm3Fiber Length8-10m (Standard) /15m (Max. Length)4Working TypeContinuous/ Modulation5Welding Speed0-120mm/s6Air Cooling ChillerInustrial Chiller7Working Temperature15-35 Centi Degree8Working HumidityLess than 70% No Condensation9Welding Thickness0.5-5mm10Welding GapLess than 0.5mm11Power SupplyAC220VMaterialAirThickness (mm)500w1000w1500w2000wAluminiumN21.0 √√√1.2 √√√1.5  √√2.0   √2.5   √Stainless SteelAr0.5√√√√0.8 √√√1.0 √√√1.2 √√√1.5 √√√2.0  √√2.5   √3.0   √Carbon SteelCO20.5√√√√0.8 √√√1.0 √√√1.2 √√√1.5 √√√2.0  √√2.5   √3.0   √Galvanized SheetAr0.5√√√√0.8 √√√1.0 √√√1.2 √√√1.5  √√2.0   √2.5   √
5. Main Structure &Main Components

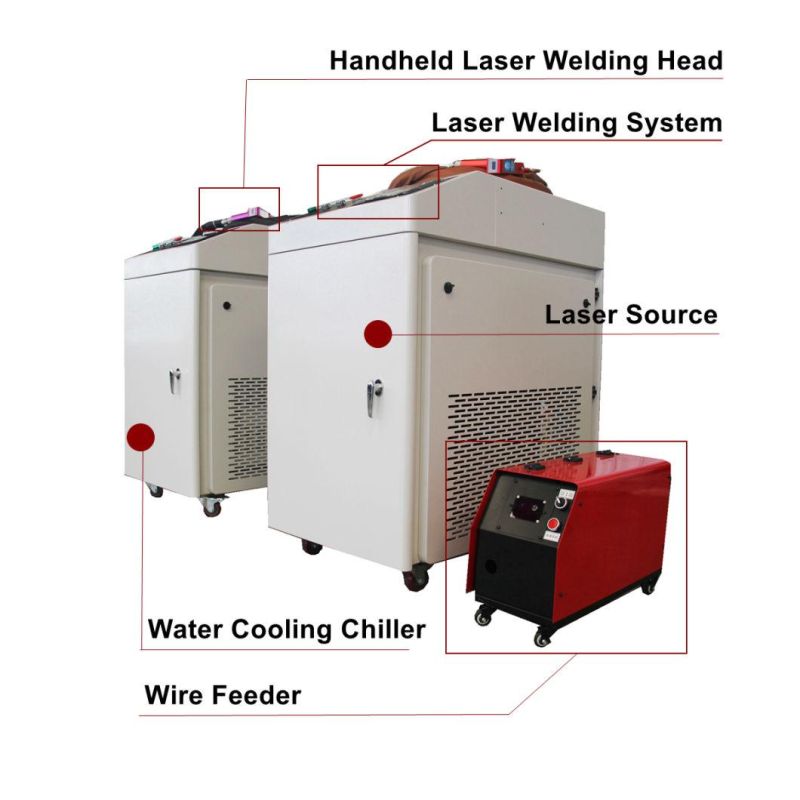

5.1 Main Structure


5.2 Main Components

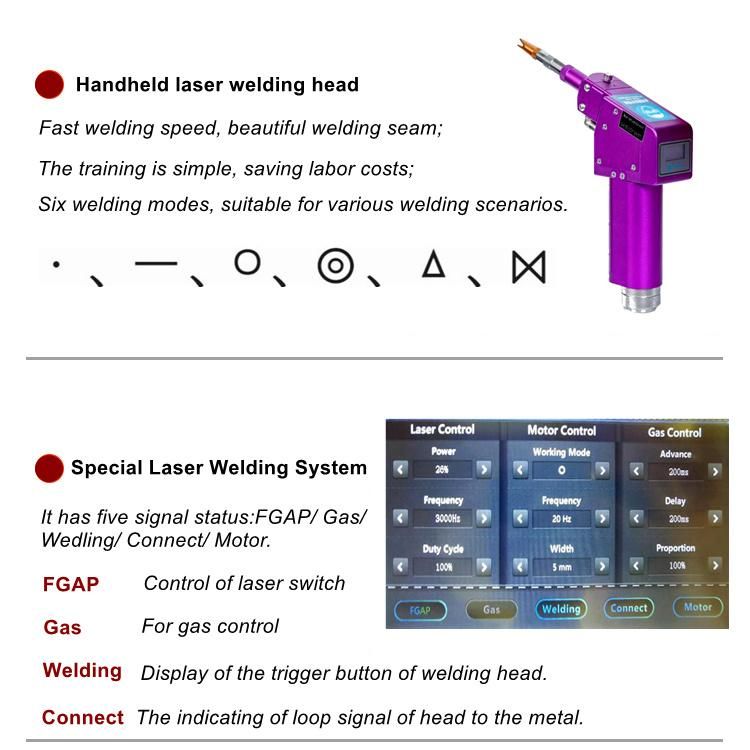

5.2.1 Handheld laser welding head and welding system

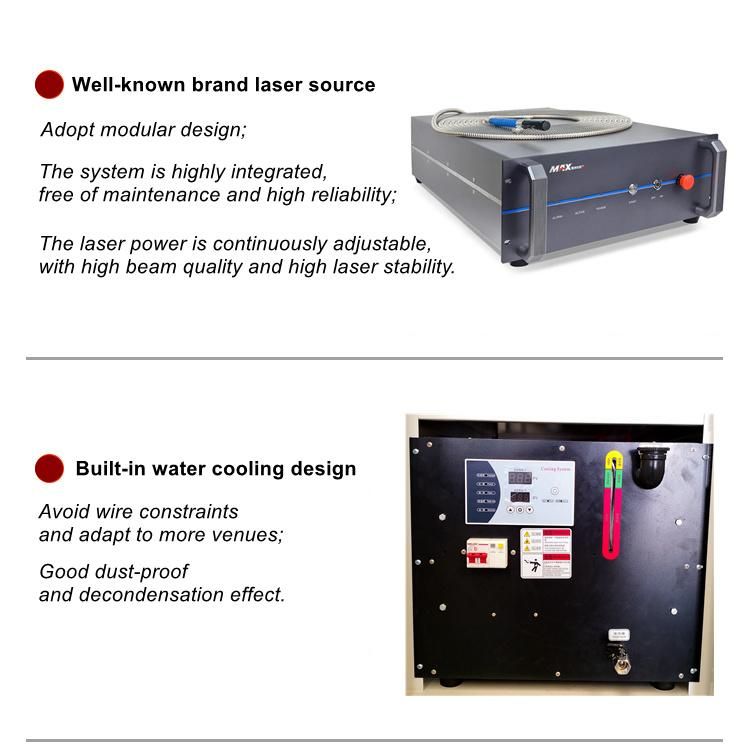

5.2.2 Well-know brand laser source: MAX/ JPT/ RAYCUS
& Built-in Water Cooling Design


6. Application:

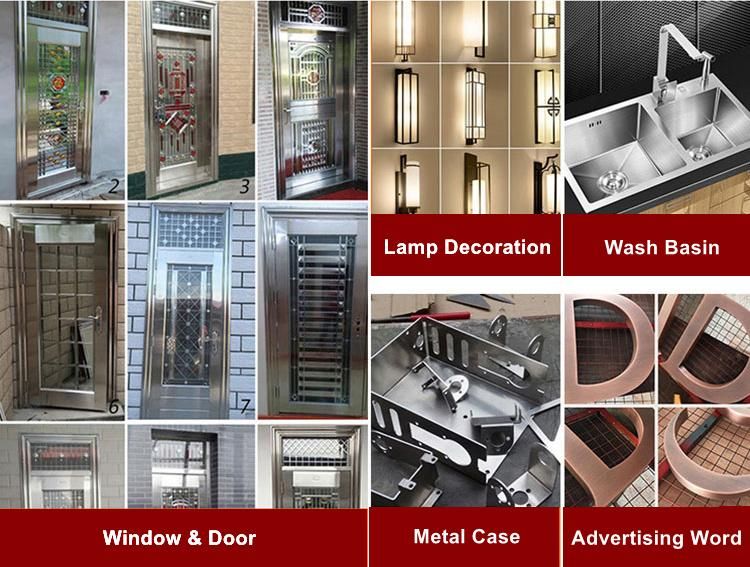

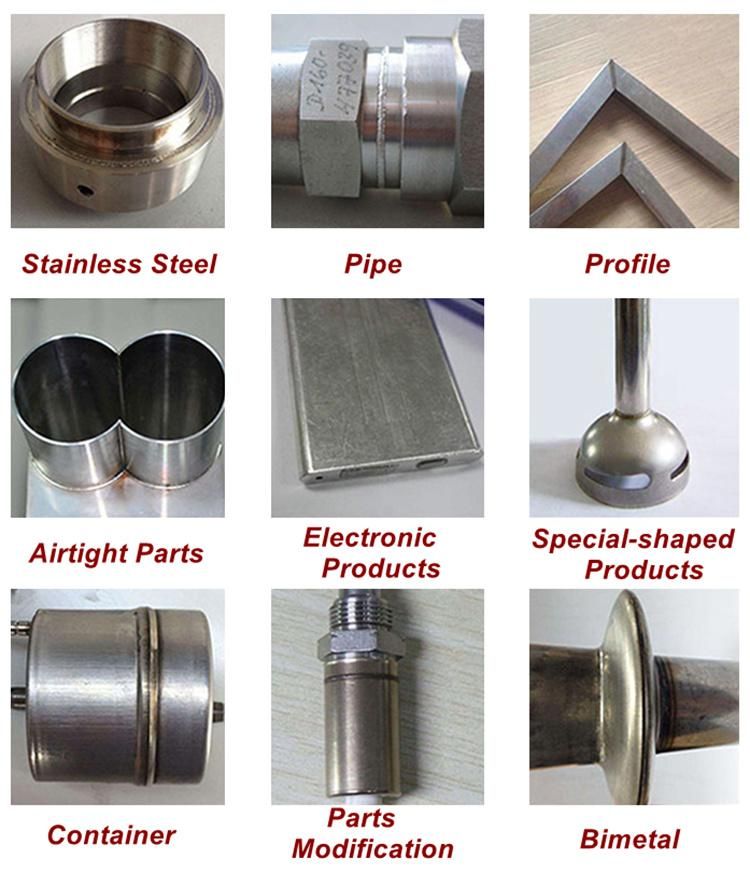

Fiber laser welding machines are widely used in mobile communications, electronic parts, glasses, watches, jewelry, hardware products, precision equipment, auto parts, craft gifts and other industries. It can also be used for welding of many different materials, and can also meet the welding of different industries. demand


7. Case:
7.1 Manufacturing Industry.
Laser welding technology is widely used in auto industry.
7.2 Digital 3C industry
Laser welding has been widely used in the digital 3C industry, especially in the mobile phone microelectronics industry.
7.3 Medical industry
The welding seam of the laser welding machine for medical equipment is smooth and beautiful, and will not cause deformation of the welded product.


8. Welding Effects:

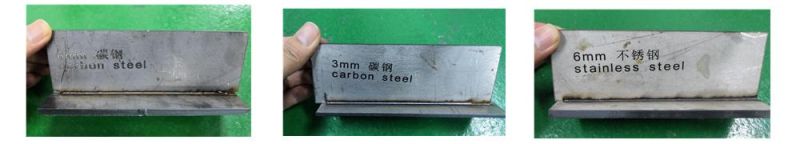

8.1 Laser Welding Machine for Carbon Steel/ Stainless Steel

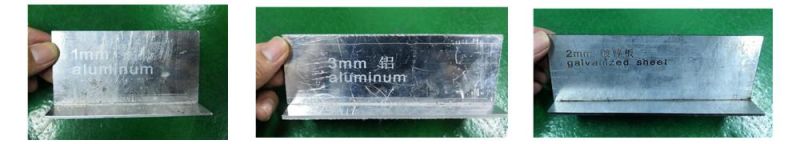

8.2 Laser Welding Machine for Aluminium/ Galvanized Sheet

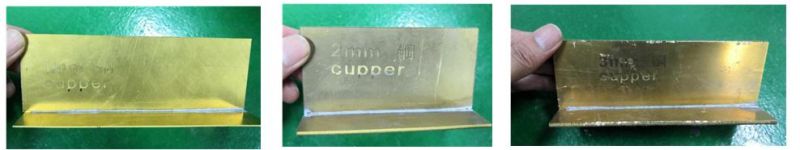

8.3 Laser Welding Machine for Copper 9. Company Introduction

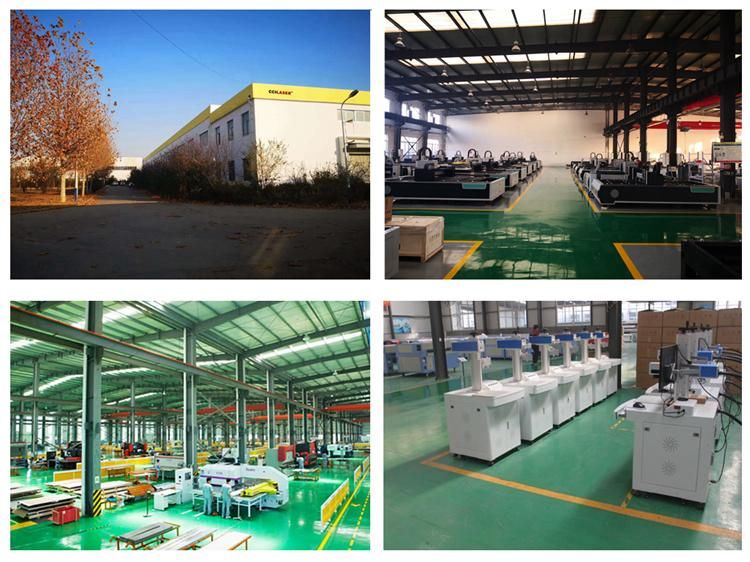

CCILASER is headquartered in Jinan City, China. It is a world-renowned laser equipment company and a high tech enterprises integrating R&D, production and sales.

We are adhering to the tenet of "Quality first, customer first" and continues to grow. Main products include fiber laser cutting machine, plasma cutting machine, laser marking machine, laser engraving machine, laser welding machine and laser cleaning machine and etc.

Our company has passed ISO and CE international quality management system certificates, and has obtained FDA certification for the US market. We have our independent export rights.Machines are exported to more than 50 countries and regions.

Wish cooperating with you to create a better future!
