• Model NO.：PEDB-200
• Type：Metal Cutting Machine
• Marking Method：Scanning Marking
• Storage Temperature：-10~60ºC
• Operation Humiditymachine：10~95
• Cooling Mode：Forced Air
• Fiber Length：1.5m
• Operating Voltage：100~240VAC
• Pulse Adjusting Range：5~100%
• Transport Package：Exporting Standard Package
• Specification：ISO,CE certificate
• Trademark：Perfect Laser
• Origin：China
• HS Code：84561000
• Production Capacity：5, 000 sets,year

Basic Info.

Model NO. PEDB-200 Type Metal Cutting Machine Marking Method Scanning Marking Storage Temperature -10~60ºC Operation Humiditymachine 10~95 Cooling Mode Forced Air Fiber Length 1.5m Operating Voltage 100~240VAC Pulse Adjusting Range 5~100% Transport Package Exporting Standard Package Specification ISO/CE certificate Trademark Perfect Laser Origin China HS Code 84561000 Production Capacity 5, 000 sets/year

Product Description

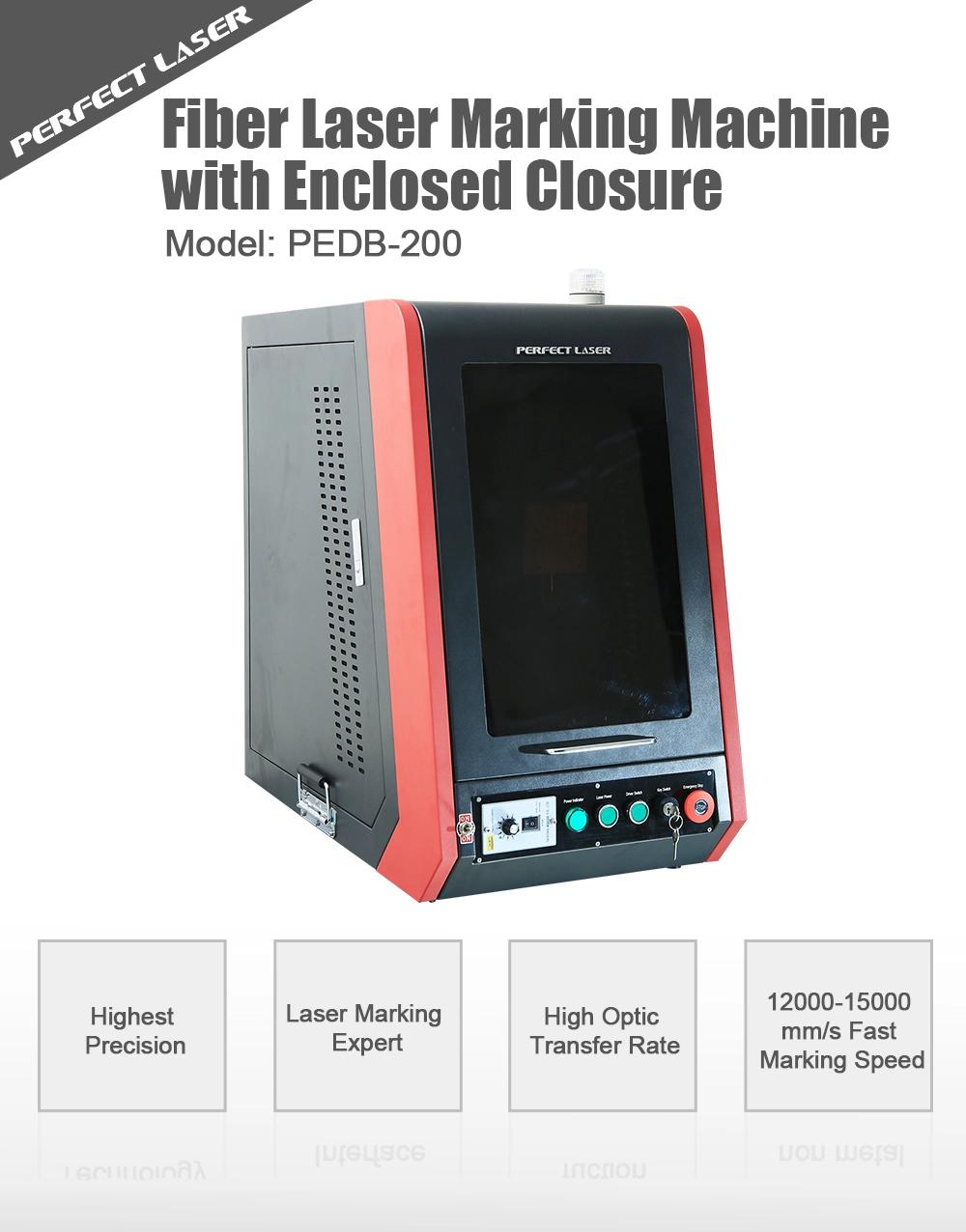

20W 30W 50W Air-Cooling Mobile Laser Marking Machine for Metal

Brief Introduction of Mobile Laser Marking Machine
The full-closed type 20w fiber laser marking machine adopts the portable design and is easy to move and work in different place. It has no consumables, so the depreciation cost of the product is greatly reduced. It has the advantages of high efficiency, long service life and maintenance free, which the traditional laser doesn't have. It is suitable to mark on hardware tools, kitchen knives, plastic products, integrated circuit, bottles, glasses frame, cleaner taps and so on.
Technical Parameters of Mobile Laser Marking Machine

Average output power	20W (CW or pulse)
Wavelength	1064nm
Power Modulation Range	10-100%
Pulse Repetition Frequency	20-100KHz
Output Beam Quality	<1.5M²
Marking Depth	≤1.2mm
Min. Focusing Spot	0.005mm
Min. Character Height	0.15mm
Max. Marking Speed	12000mm/s
Format Supported	Graphics, text, bar code, two-dimensional code, date, frequency, batch number, serial number, file link.
Operating System	It can work with win7,win8 and XP. It support PLT, PCX, DXF, BMP and so on. It can use directly SHX and TTF font.
Re-precision	±0.001mm
Overall Power	≤160W
Power Supply	220V±10%/50Hz/4A
Cooling	Air Cooling
Control Interface	USB
Laser Module Life	>100000h
Galvanometer	High performance scanning galvanometer
Working Environment	No dust and no source of vibration

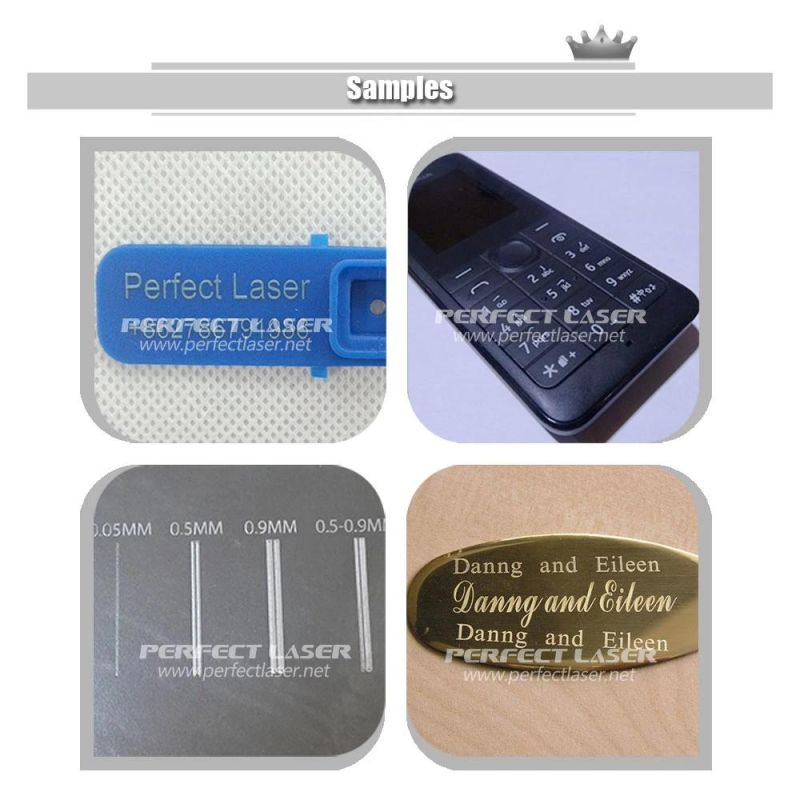

 Product Application of Mobile Laser Marking Machine
1. Replace ink and paint: labels of cellphone battery, panels, cellphone keys, small accessories, etc..
2. Ceramic and EP materials: electronic components package, IC, etc..
3. Plastic products: numerical order and LOGO of electrical enclosures and electronic products.
4. Metal surface: stainless steel, copper, aluminum, oxidation, phosphatization and electrocladding. It's commonly used in hardware, daily necessities, electrical enclosures, cell phone cases, etc..


Product Advantages of Mobile Laser Marking Machine
1. High definition: Resolution is up to 1 micron and is at least 10 times higher than traditional machines.
2. Less power consumption: It's 1 / 25 ~1 / 10 of traditional laser markers.
3. High speed: 3~5 times faster than traditional laser markers.
4. High stability: higher than any other similar ones.
5. Long service life: 10 times longer than traditional ones.
Our companyWe, Perfect Laser, As a 21 years history industrial equipment manufacture in laser field, 10 year Golden Supplier in Alibaba, with CE/ISO/FDA, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.

Service

1> All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us. and all of our machine with a12 months quality guarantee period.
2> We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
3> We will offer plenty of online supports,  by email, video, telephone and fax.
4> Our engineer can make a door-to-door instruction training service.
