D8*145mm Yellow Laser Rod ND: Ce: YAG Laser Crystal Rod for Cutting/Welding
Changchun Yutai Optics Co., Ltd.- Customized：Non-Customized
- Standard Component：Standard Component
- Type：Laser Crystals
- Structure：Double Flat
- Clear Aperture：>=90%
- S/D：20,10
Base Info
- Model NO.：yt1051
- Coating：Ar@1064
- Transport Package：Carton
- Specification：1-500mm
- Origin：Changchun
- HS Code：9001909090
- Production Capacity：50000,Year
Description
Nd:Ce:YAG is an excellentlaser material used for no-water cooling, low repetition air cooling and miniature laser systems.. the (Nd,Ce): YAG laser rod we produce has the characteristics of high efficiency( laser efficiency than Nd: YAG high about 30-50%), low threshold, anti-violet radiation and high repetition frequency for lasers operation. It has achieved the international advanced level .it is the most ideal laser material for the high repetition air cooling lasers. It suitable for different modes of operation (cw, pulsed , Q-switched, mode locked, doubling of frequency ) and high-average power lasers.
Laser PropertiesLaser Transition 4F3/2 --> 4I11/2 Laser Wavelength 1.064μm Photon Energy 1.86×10-19J @ 1.064μm Emission Linewidth 4.5A @1.064μm Emission Cross Section 2.7~8.8×10-19cm-2 Fluorescence Lifetime 230μs Index of Refraction 1.8197@ 1064nm
Factory information

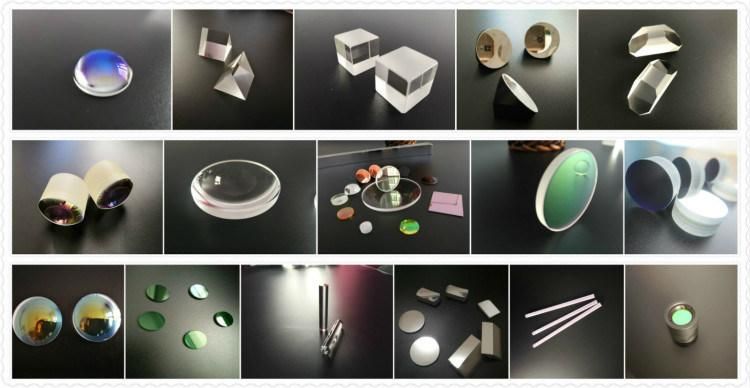

Yutai Optics, we specialize in the design and volume manufacturing of high performance optical components such as lens,prisms, windows,filters,mirrors and more for use in optical instruments and laser systems, as well as for telecommunications,medical, environment monitoring industry,material is widely ranged from optical glass to IR and UV glass.
As a Fast-growing supplier in Optics, Yutai Optics offers excellent service and good quality items,our products have been appreciated by many European and American customers,of course we build a long-term cooperation.YuTai Optics has quickly established itself as a leader in optical components from its advanced technology and quality control.
Yutai Optics has a professinal sales team with excellent service, we tracking from inquiry to delivery of items.We try our best to meet each customers'request.

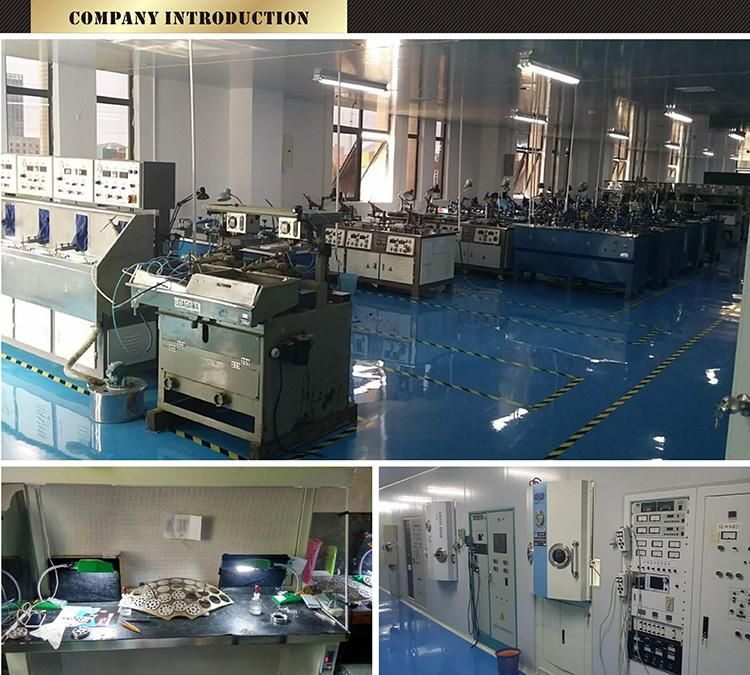

Production Team
Yutai Optics has many experienced engineers and advanced machines, they are the important guarantee for the higher quality products.Our advanced production machines list:
Ring polishing machine, Single axis machine, Two axis machine, Four axis machine,Centering edging machine,Mechanical milling machine,Spectrograph, Grinding machine,nanotech.250upl,talysurfi120.
Inspection Team
Advanced testing equipment and methods are important guarantee for the production of high-precision products.Our testing machine is ZYGO, Stereo interferometer,Horizontal interferometer.We provide testing report for each batch for your items.
Process for most optics
Material-cutting-rounding-milling-grinding-polishing-edging-cleaning-coating-gluing-edging-blacking-accembly-packing-shipping
Packaging & Shipping
1 Package Detail: A. Standard carbon and envelop with plastic foam.
B. Safety green carton.
C. Customized.
2 Delivery Detail: Within 30 days.(Also depand on the quantity)
Laser Properties
Factory information
Yutai Optics, we specialize in the design and volume manufacturing of high performance optical components such as lens,prisms, windows,filters,mirrors and more for use in optical instruments and laser systems, as well as for telecommunications,medical, environment monitoring industry,material is widely ranged from optical glass to IR and UV glass.
As a Fast-growing supplier in Optics, Yutai Optics offers excellent service and good quality items,our products have been appreciated by many European and American customers,of course we build a long-term cooperation.YuTai Optics has quickly established itself as a leader in optical components from its advanced technology and quality control.
Our Advantage
Sales TeamYutai Optics has a professinal sales team with excellent service, we tracking from inquiry to delivery of items.We try our best to meet each customers'request.
Production Team
Yutai Optics has many experienced engineers and advanced machines, they are the important guarantee for the higher quality products.Our advanced production machines list:
Ring polishing machine, Single axis machine, Two axis machine, Four axis machine,Centering edging machine,Mechanical milling machine,Spectrograph, Grinding machine,nanotech.250upl,talysurfi120.
Inspection Team
Advanced testing equipment and methods are important guarantee for the production of high-precision products.Our testing machine is ZYGO, Stereo interferometer,Horizontal interferometer.We provide testing report for each batch for your items.
Process for most optics
Material-cutting-rounding-milling-grinding-polishing-edging-cleaning-coating-gluing-edging-blacking-accembly-packing-shipping
Packaging & Shipping
1 Package Detail: A. Standard carbon and envelop with plastic foam.
B. Safety green carton.
C. Customized.
2 Delivery Detail: Within 30 days.(Also depand on the quantity)
Payment:
