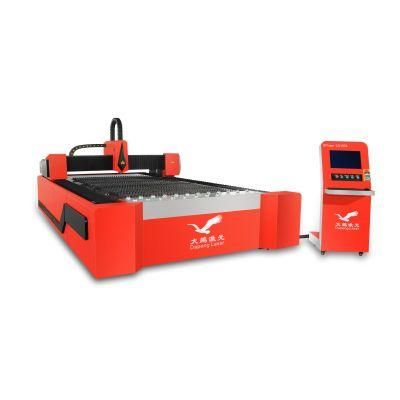

CNC Fiber Laser Cutting Machine/ Metal Laser Cutting Machine
Shenzhen Dapeng Laser Technology Co., Ltd.- Application：Aerospace Industry, Automotive Industry, Woodwork Industry, Advertising Industry, Machinery & Hardware
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Metal
- Structure Type：Gantry Type
- Laser Classification：Gaseous Laser
Base Info
- Model NO.：983
- Laser Technology：Laser Control Fault Cutting
- Electrical Requirements：380V,50Hz.60AMP
- Type for Cutting Machine：Laser Cutting Machine
- Outline Size(mm)：4270mm*2420mm*1750mm (L*W*H)
- Automation：Automatic
- Condition：New
- Servo：Japan
- Cooling Mode：Water Cooled
- Certification：CS, SGS, ISO 9001:2008
- Type：High-Power Laser Cutting Machine
- Transmission Way：Y-Axis Imported Gear Rack Double Driver
- Transport Package：Wooden Box
- Specification：SGS,CE
- Trademark：Dapeng
- Origin：China Shenzhen
- HS Code：84561000
- Production Capacity：1set,Day
Description
Carbon Steel2 6 1 O2 1 4 3 0.6~0.8 O2 1 8 1.5 0.25~0.4 O2 1 10 1.2 0.15~0.2 O2 1 16 0.8 0.15~0.2 O2 1 20 0.6 0.1~0.2 O2 1
Technical parameter:
Pre-sale service:
1. Free sample making:
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Sample shipping back cost should be paid by purchaser.
2. Progressing Solution Design:
According to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
After-sale service:
1.
One years warranty for machine, One years for domestic source (One year for IPG source)
2. Technical support
Lifelong technical support online or by email and 18 hours online service to help you use our machine well.
3. Oversea service
Offer oversea service for training,installing, operating if necessary (Buyer need offer food & accommodation, round tickets and engineer charges USD200/day)
4. Training service
Offer training at our factory for free (you could visit us and learn)
Note:
We will supply the machine with training video and user's manual in English for installing, operation, maintenance to ensure customer could use our machine well.

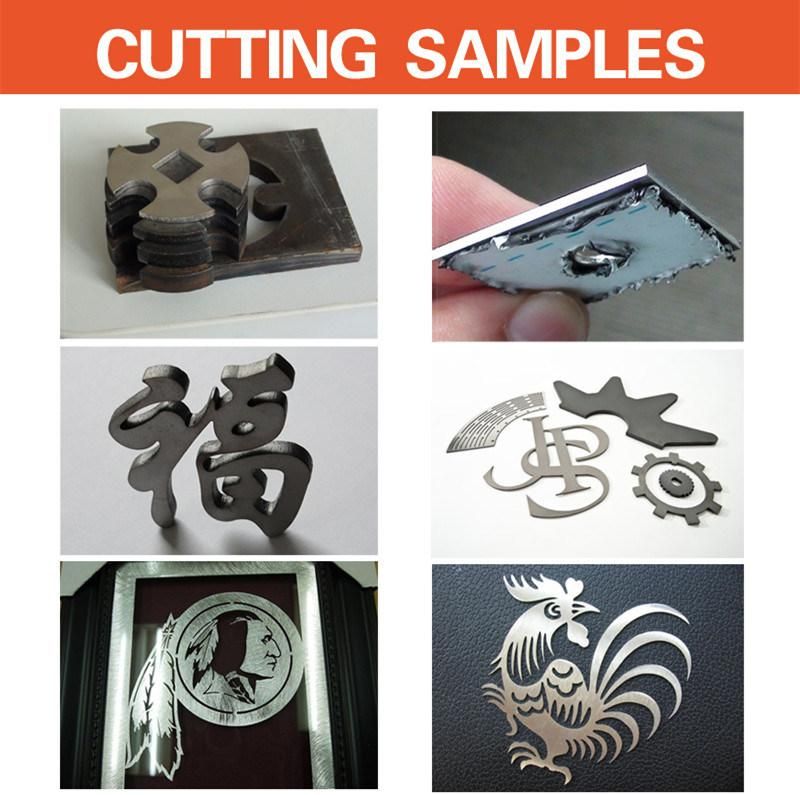

sample marking
Company

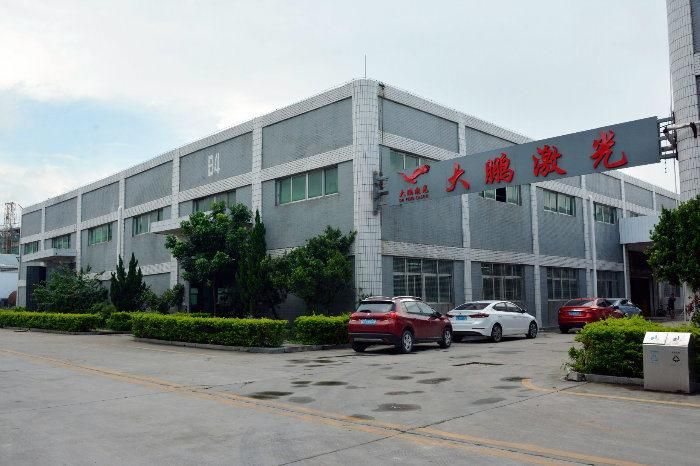

Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and
servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides
equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military,
semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets.
With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard
and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker
systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last
10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil,
Colombia, and South Africa, among others.
Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will
have a chance to give you a great laser solution with Dapeng Laser products.
Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost
effectiveness, and technical support.
China. Last year 2016 we sold more than 5000sets of laser systems, about 80% are sold in domestic market, and others
we sold to America, Spain, Poland, India, Egypt and many other countries.
Technical parameter:
| Model | DP-L 1000watt Fiber laser cutting machine |
| Laser Power | 500W/7500W laser power as Raycus, Maxphotonics such brand. But 500--1000W's first option is IPG. |
| Working Area | 1300*2500mm (1500*3000mm optional) |
| Laser Wave Length | 1064nm |
| Working Table | Sawtooth |
| Maximum Idle Running Speed | 3000mm/s |
| Position Accuracy | ±0.001mm/m |
| Position Speed | 20m/min |
| Minimum Line Width | ± 0.02mm |
| Cutting Thickness | ≤6mm |
| Control System | Cypcut |
| Position Type | red dot |
| Power Consumption | ≤12KW |
| Working Voltage | 380V/50Hz |
| Auxiliary Gas | oxygen,nitrogen,air |
| Working life of fiber module | More than 100000 hours |
| Fiber laser cutting head | Germany Precitec |
| Focus lens | Lasermech made in USA |
| Driver system | Imported servo motor |
| Liner guider system | PMI made in Taiwan , (Option THK made in Japan) |
| Transmit system | Dual Rack & Pinion type |
| Rack system | Herion made in Germany |
| Chain system | Igus made in Germany |
| Warranty time | Whole machine for 1 years (domestic fiber module 1 years, imported IPG 1 years ) |
| Delivery time | 30 days |
| Gross weight | 4500kg |
