• Model NO.：PEQD-025
• Type：Flat Marking & Rotary Marking
• Laser Classification：Solid Laser
• Engraving Method：DOT Pin Marking
• Power：Small Power
• Drive Type：AC Servo Drive
• Control：Automatic
• Current：AC
• Usage：Metal
• Certification：GS, SGS, CE, RoHS, ISO 9001
• Marking Depth：0.01-2mm
• Working Area：150mm*100mm
• Marking Speed：<=50mm,S
• Transport Package：Airworth Or Seaworth Packing
• Specification：ISO9000 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8548900090
• Production Capacity：5000 pcs , month

Basic Info.

Model NO. PEQD-025 Type Flat Marking & Rotary Marking Laser Classification Solid Laser Engraving Method DOT Pin Marking Power Small Power Drive Type AC Servo Drive Control Automatic Current AC Usage Metal Certification GS, SGS, CE, RoHS, ISO 9001 Marking Depth 0.01-2mm Working Area 150mm*100mm Marking Speed <=50mm/S Transport Package Airworth Or Seaworth Packing Specification ISO9000 & CE Trademark Perfect Laser Origin China HS Code 8548900090 Production Capacity 5000 pcs / month

Product Description

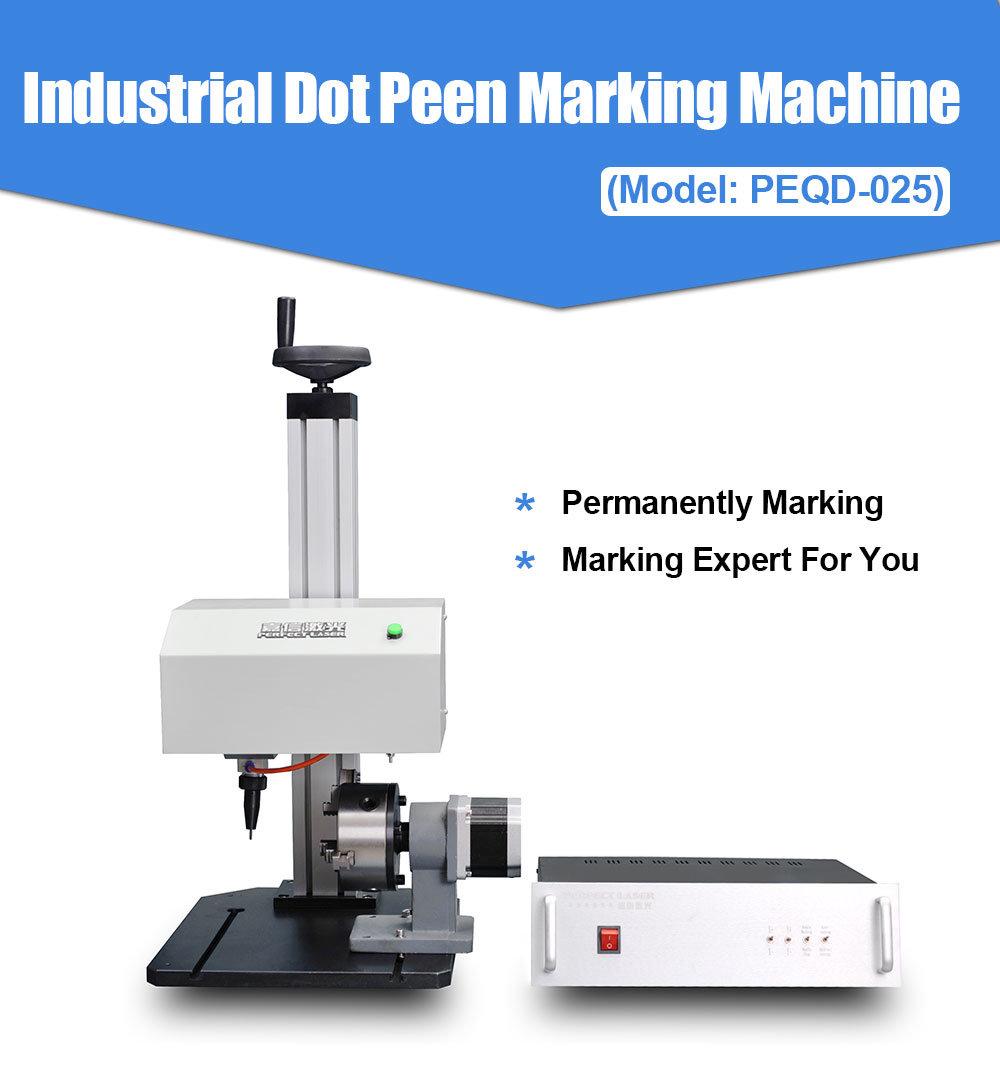

Rotary Pneumatic Marking Machine for Stainless Steel Copper Brass Aluminum
(Model: PEQD-025)
Contact: Emily

Description:
PERFECT PEQD-series pneumatic dot peen marking machines (also call pin marking machine / stylus marker) are high technology products from PERFECT LASER COMPANY, which integrate computer, automatic control and precise machinery. It is a industrial marking equipment which can make logo (characters, letters, VIN code, serial numbers, date and graph) on work piece (metal / no-metal materials) permanently.


Applicable Material:
It is adequate for both flat surface marking and circumference marking on a variety of metallic / non-metallic cylindrical, conical, spherical circumference of the work piece.
Application scope:
It is applicable for the fields of automobile, motorcycle, mechanism, petroleum, aeronautical and space, electric apparatus and suitable for markings on steel, metal, nonmetal and plastic materials.
It is adequate for marking characters, letters, serials numbers and VIN codes on bodywork of motorcycles, connecting rods, engines, steel pipe, cylinder and cylinder various stepper motors and mechanical parts, machine tools, metal pipes, pump bodies, valves, fastening pieces and various hard plastic products.


Product Features:
1. It enables flat surface marking as well as circumference marking of the work piece by adding a rotary controlling system on the basis of model PEQD-100.
2. Applying the most widely used up-down lifting structure to realize multi-functions.
3. Controlled by computer, with the easy-to-operate WINDOWS system, PERFECT Laser's professional marking software has a wide application and can operate under WINDOWS 98/2000/XP.
4. Powerful edit function. It can mark any logo (character, letter and graph, data code, series number, VIN code, engine numbers) automatically.
5. It can support logos and graphs designed in DXF format from AutoCAD, CorelDraw.
6. It can support multi-kinds font: MG Font, SHX Font in Auto CAD, CHR in Borland, TTF in Windows.
7. Marking contents could be saved automatically and not be destroyed during power-off of the machine.
8. It can be used online to share the database and data transmission with other equipment, such as match with electronic scales, bar code machines, leak detectors and other equipment. Both planar and three-dimensional rotating are available.

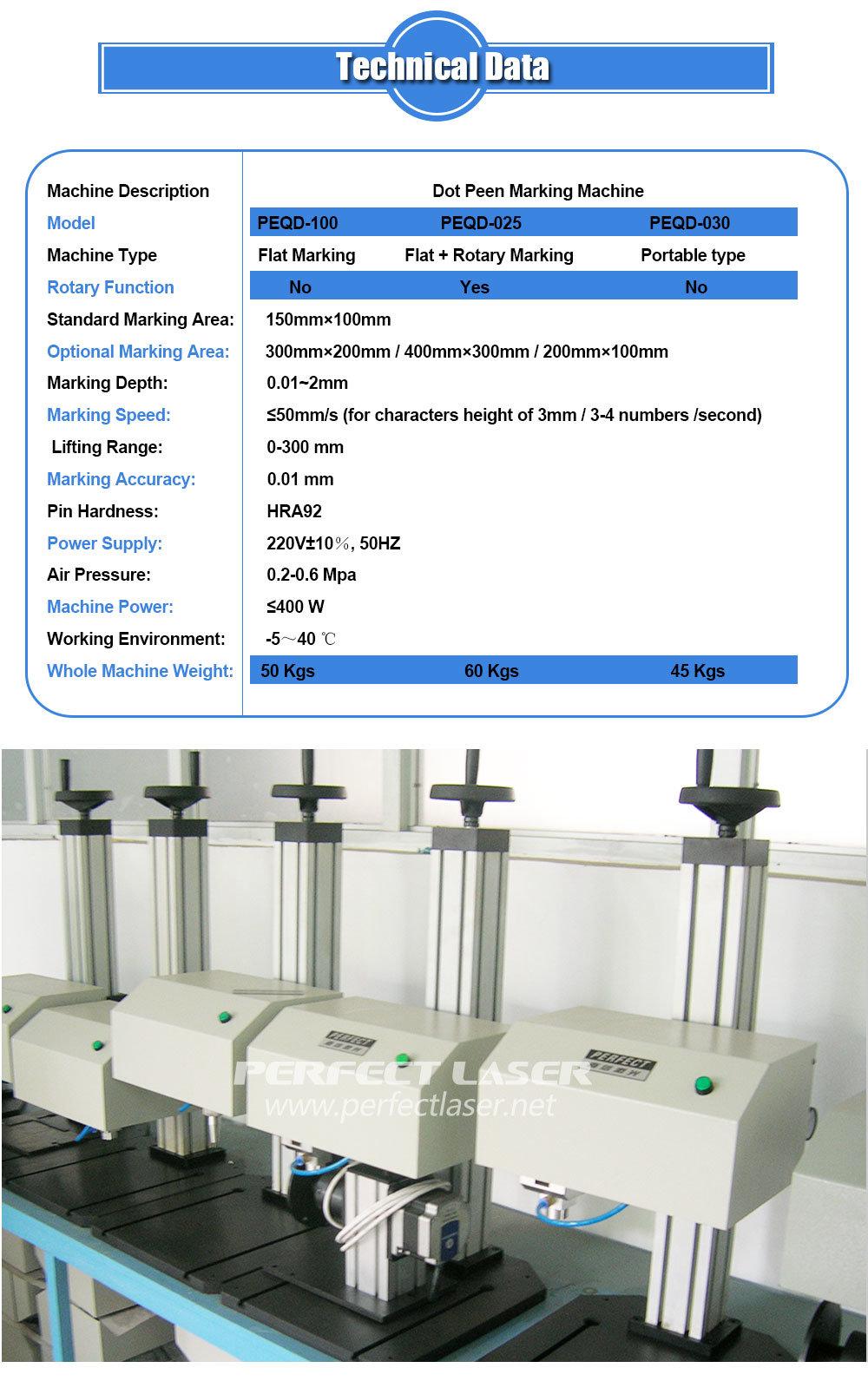

Technical Data:

Standard Marking Scope:	150mm×100mm / 200mm×100mm
Optional Marking Scope:	300mm×200mm / 400mm×300mm
Marking Depth:	0.01~2mm
Marking Speed:	≤50mm/s (for characters height of 3mm / 3-4 numbers /second)
Lifting Range:	0-300 mm
Marking Accuracy:	0.01 mm
Pin Hardness:	HRC 73
Power Supply:	220V±10%, 50HZ
Air Pressure:	0.2-0.6 Mpa
Machine Power:	≤400 W
Working Environment:	-5~40 ºC
Whole Machine Weight:	66 Kgs
