• Model NO.：PE-100J
• Scanning Speed：10000mm,S
• Output Working Method：Pulse , Continuous
• Special Service：OEM and ODM Are Available
• Output Fiber Cable Length：5 Meters
• Cooling Method：Air Cooling
• Voltage：220V
• Whether Anti-High Reflection：Yes
• Whole Machine Weight：28kgs
• Transport Package：Wooden Case for DOT Peen Marking Machine
• Specification：ISO 9001 & CE
• Trademark：Perfect Laser DOT Peen Marking Machine
• Origin：China
• HS Code：8479819000
• Production Capacity：500 Units, Month

Basic Info.

Model NO. PE-100J Scanning Speed 10000mm/S Output Working Method Pulse / Continuous Special Service OEM and ODM Are Available Output Fiber Cable Length 5 Meters Cooling Method Air Cooling Voltage 220V Whether Anti-High Reflection Yes Whole Machine Weight 28kgs Transport Package Wooden Case for DOT Peen Marking Machine Specification ISO 9001 & CE Trademark Perfect Laser DOT Peen Marking Machine Origin China HS Code 8479819000 Production Capacity 500 Units/ Month

Product Description

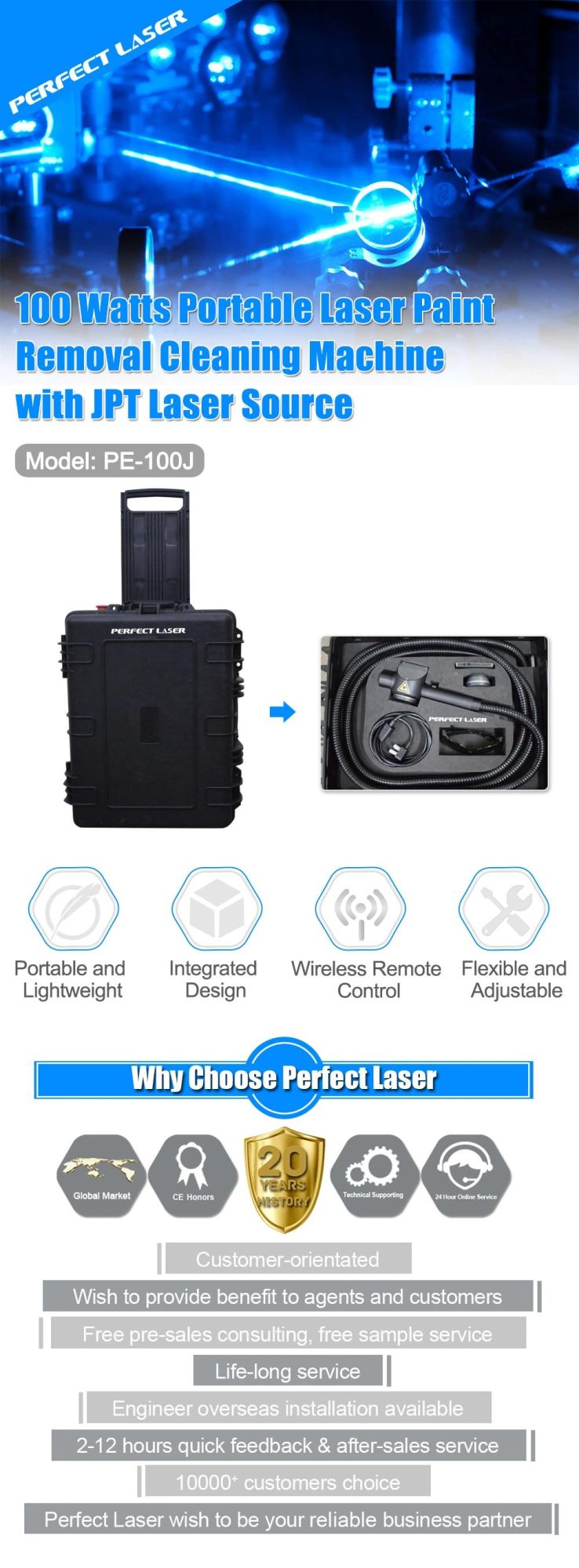

Portable 100 Watts JPT Laser Paint Rust Removal Cleaning Machine
(Model: PE-100J)

 Contact:Crystal


Product Description of Rust Removal Machine Price:

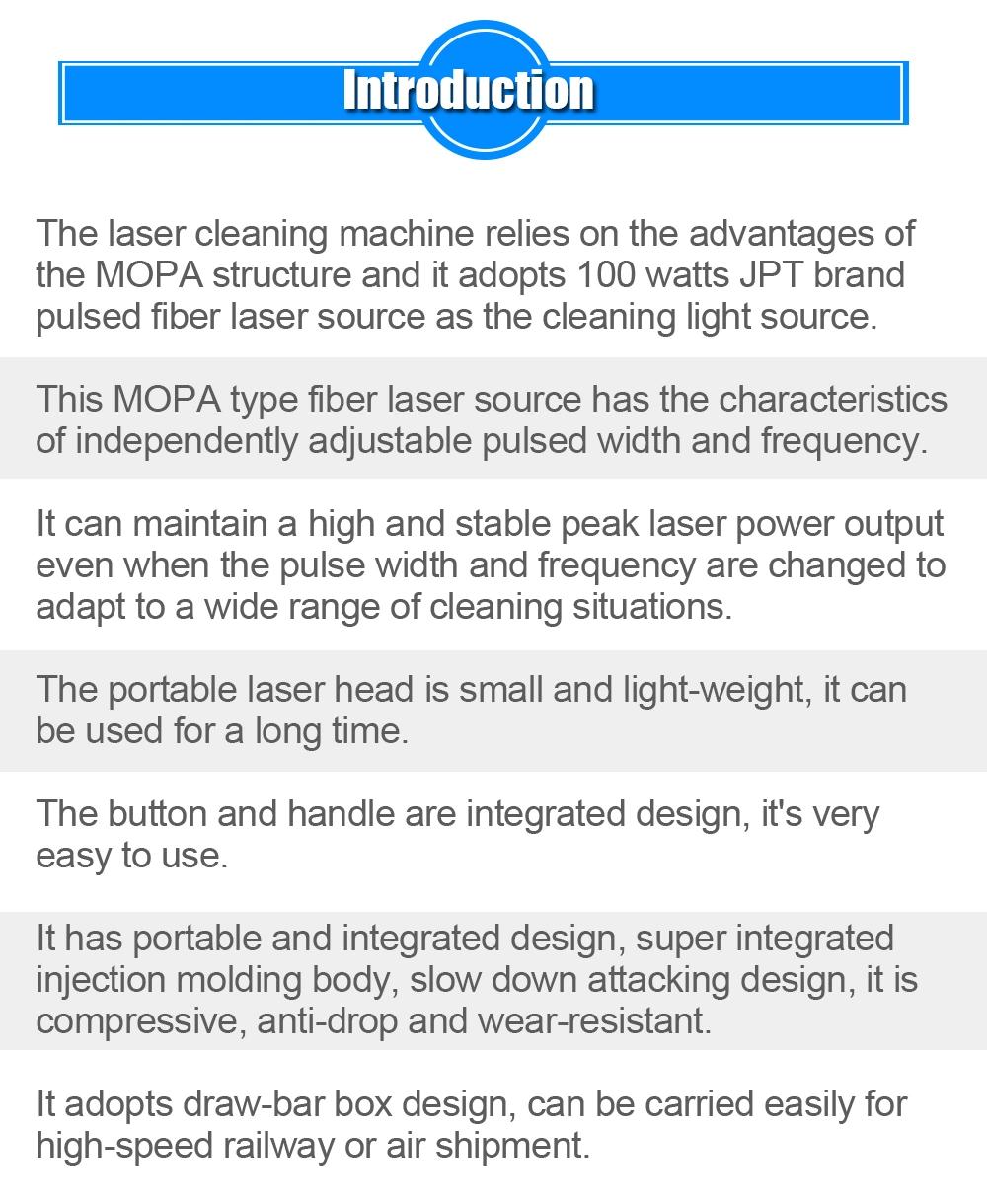

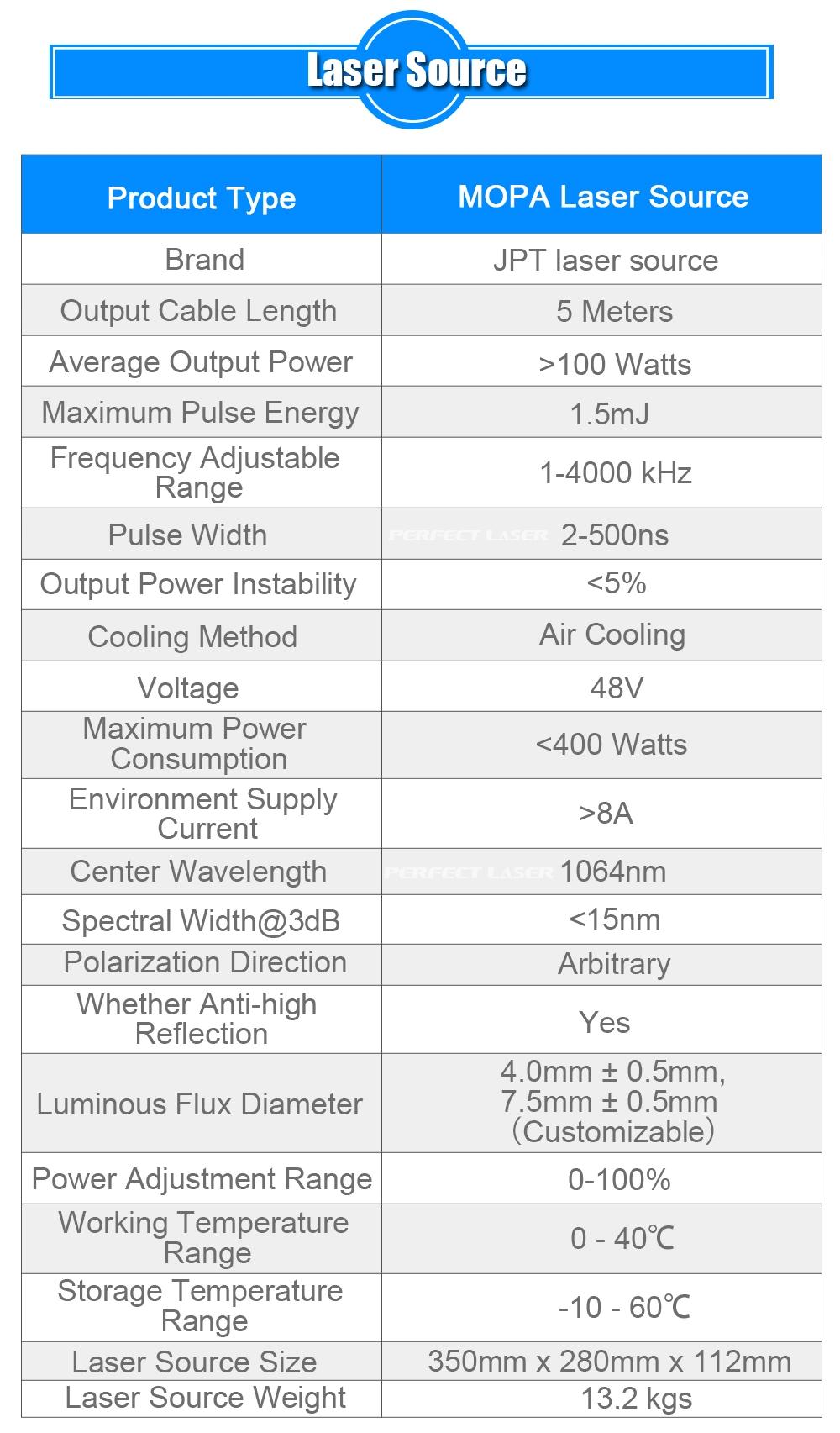

The Rust Removal Machine Price relies on the advantages of the MOPA structure and it adopts 100 watts JPT brand pulsed fiber laser source as the cleaning light source.This MOPA type fiber laser source has the characteristics of independently adjustable pulsed width and frequency.It can maintain a high and stable peak laser power output even when the pulse width and frequency are changed to adapt to a wide range of cleaning situations.
The portable laser head is small and light, and the machine can be used for a long time. The button and handle are integrated design, which is simple and easy to use.This Rust Removal Machine Price with portable and integrated design, super integrated injection molding body, slow down attacking design, it is compressive, anti-drop and wear-resistant.The Rust Removal Machine Price adopts draw-bar box design, can be carried easily for high-speed railway or air shipment.

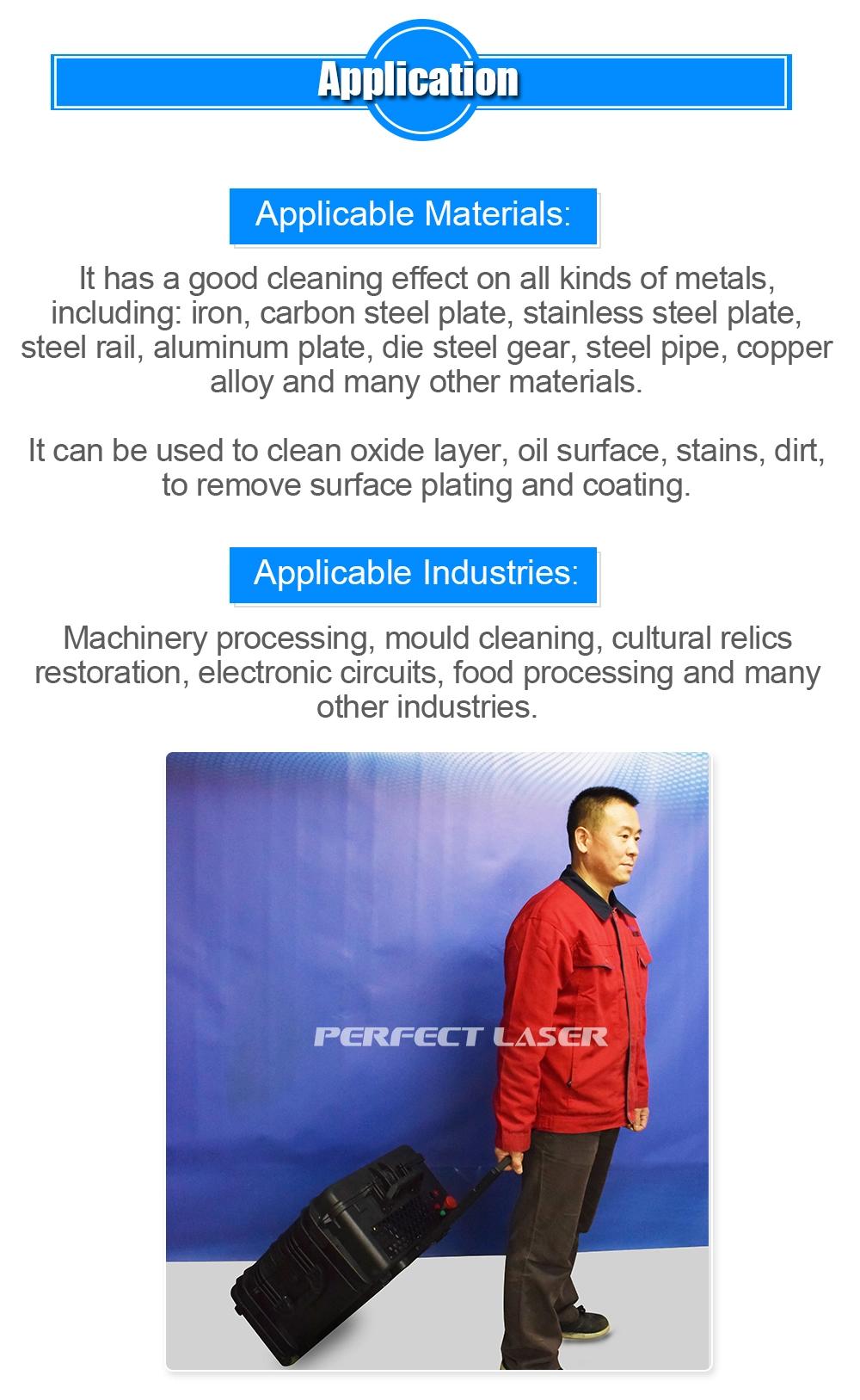

Application of Rust Removal Machine Price:
Applicable Materials:
This laser paint removal machine has a good cleaning effect on all kinds of metals, including: iron, carbon steel plate, stainless steel plate, steel rail, aluminum plate, die steel gear, steel pipe, copper alloy and many other materials.

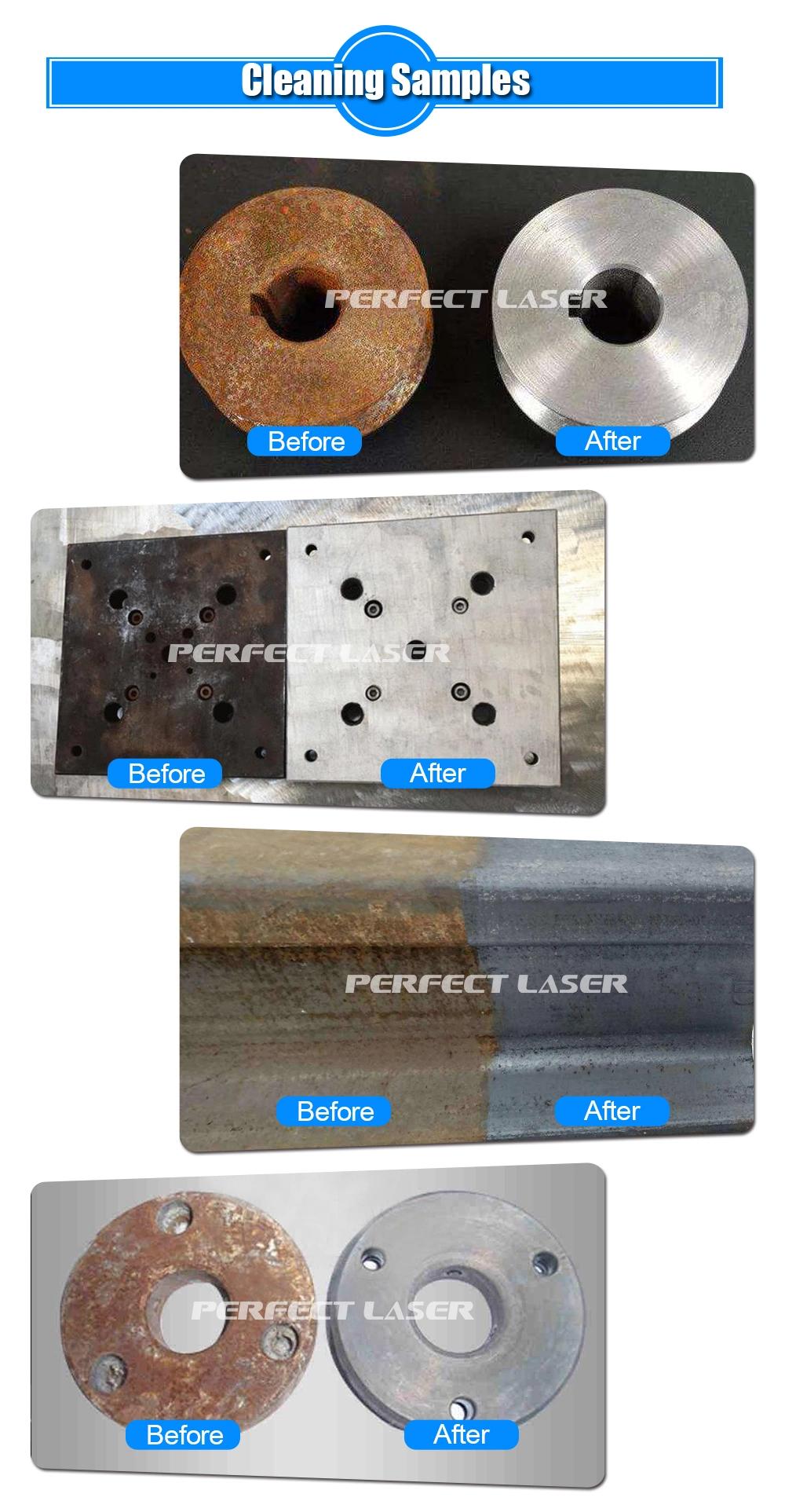

It can be used to clean oxide layer, oil surface, stains, and dirt, to remove surface plating and coating.

Applicable Industries:
Machinery processing, mould cleaning, cultural relics restoration, electronic circuits, food processing and other industries.



Main Features of Rust Removal Machine Price:

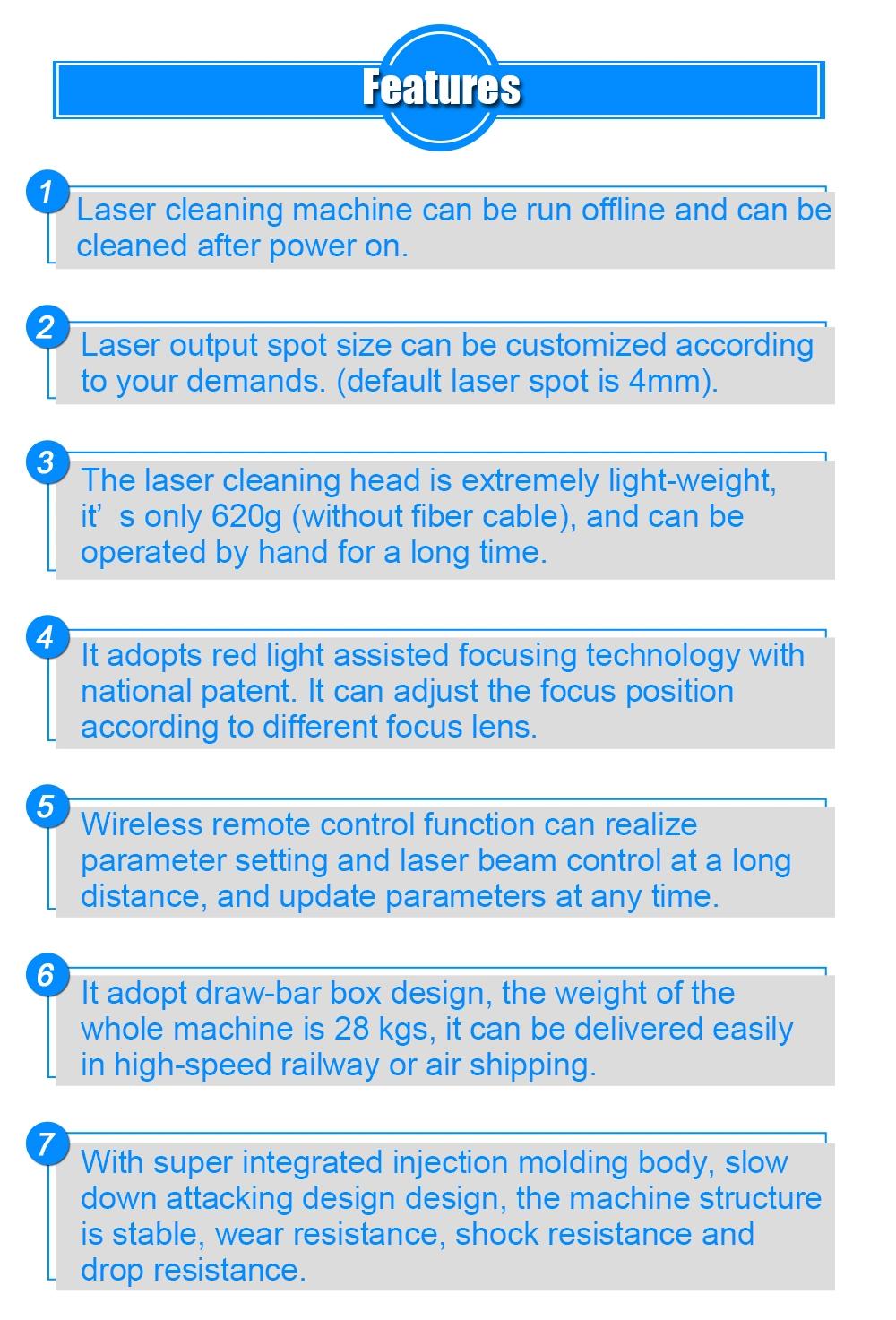

1. The laser metal cleaner can be run offline and can be cleaned after power on.
2. Laser output spot size can be customized according to your demands. (default laser spot is 4mm).
3. The laser cleaning head is extremely lightweight, it's only 620g (without fiber cable), and can be operated by hand for a long time.
4. The laser metal cleaner adopts red light assisted focusing technology with national patent. It can adjust the focus position according to different focus lens.
5. Wireless remote control function can realize parameter setting and laser beam control at a long distance, and update parameters at any time.
6. It adopt draw-bar box design, the weight of the whole machine is 28 kgs, it can be delivered easily in high-speed railway or air shipping.
7. With super integrated injection molding body, slow down attacking design design, the machine structure is stable, wear resistance, shock resistance and drop resistance.

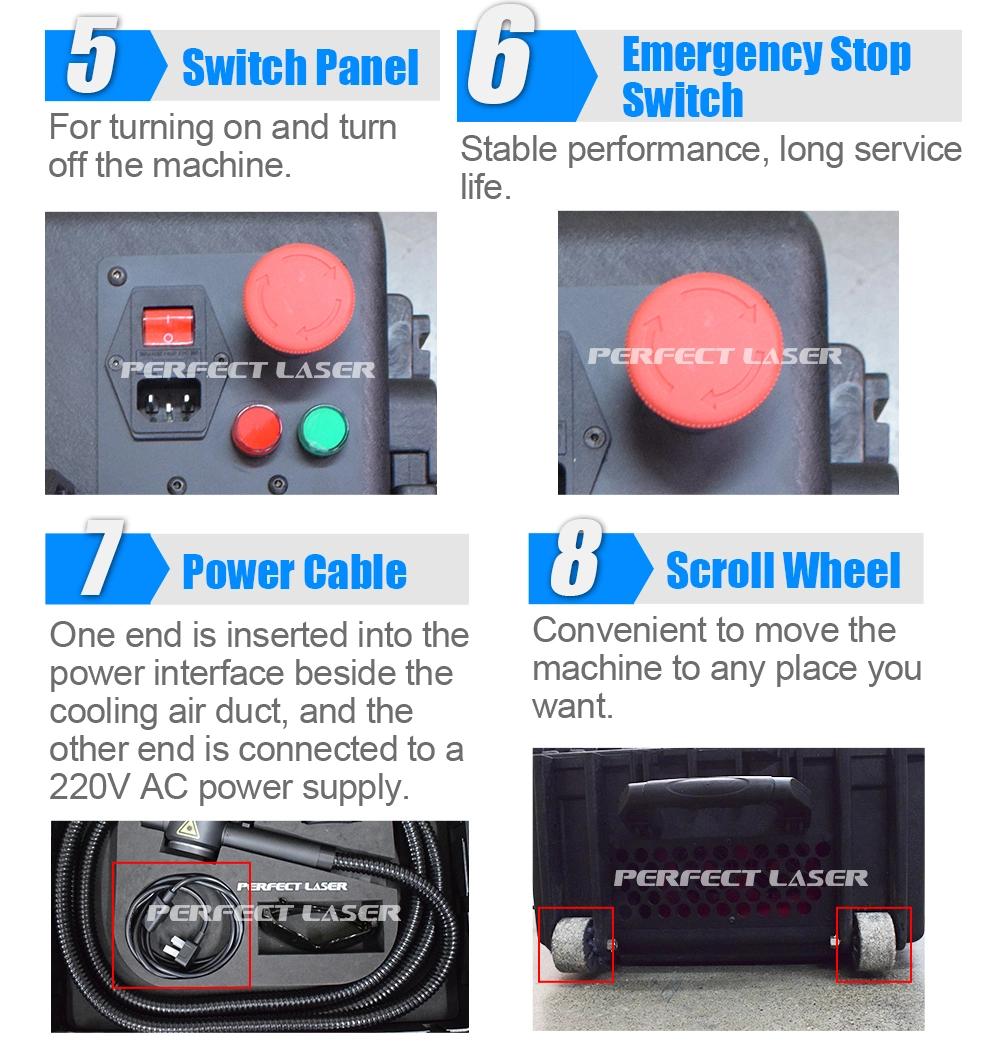

Machine Details of Rust Removal Machine Price:

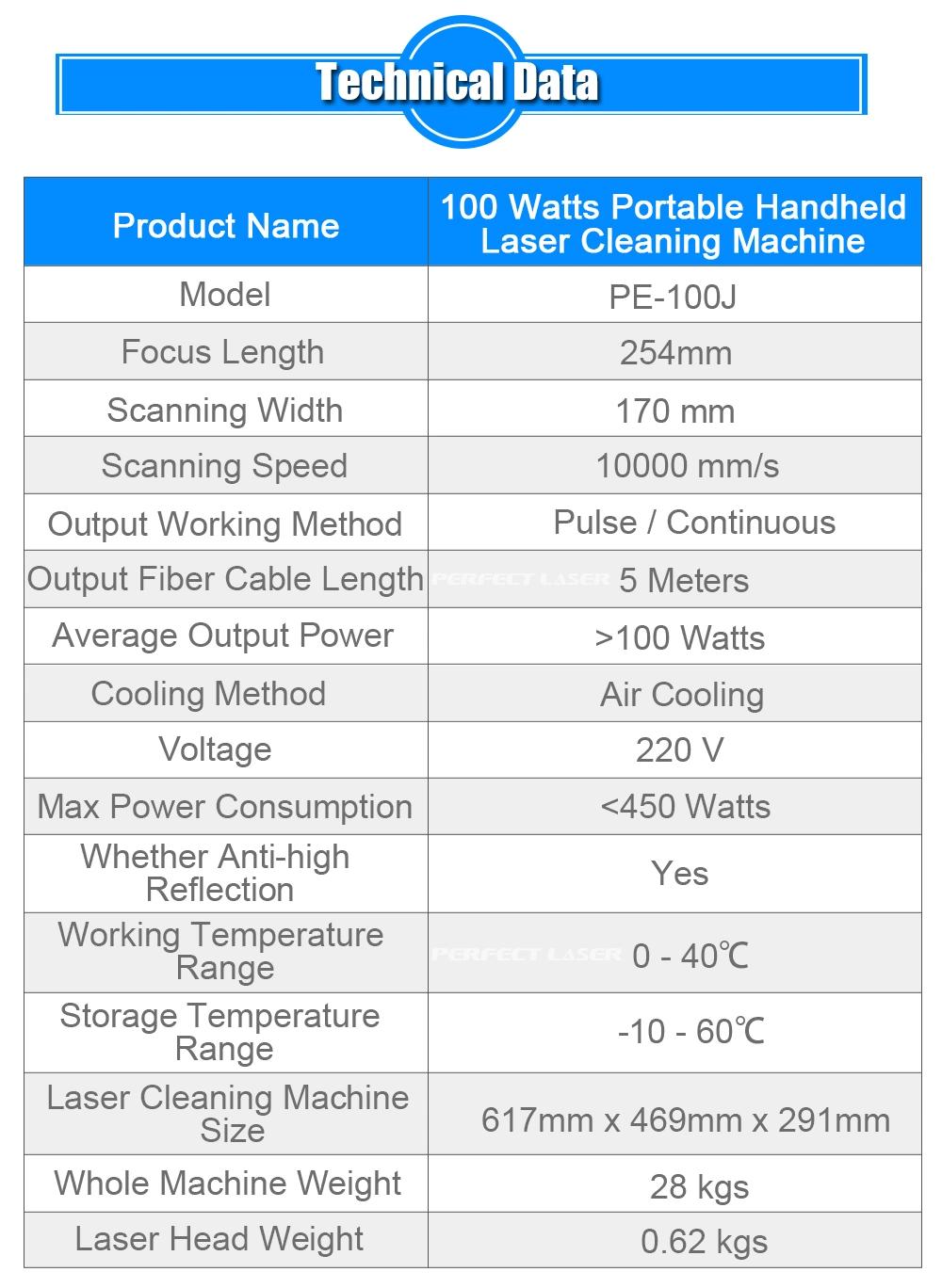

Parameter of Rust Removal Machine Price:

Product Name	100 Watts Portable Handheld Laser Paint Removal Machine
Model	PE-100J
Focus Length	254mm
Scanning Width	170 mm
Scanning Speed	10000 mm/s
Output Working Method	Pulse / Continuous
Output Fiber Cable Length	5 Meters
Average Output Power	>100 Watts
Cooling Method	Air Cooling
Voltage	220 V
Max Power Consumption	<450 Watts
Whether Anti-high Reflection	Yes
Working Temperature Range	0 - 40ºC
Storage Temperature Range	-10 - 60ºC
Laser Cleaning Machine Size	617mm x 469mm x 291mm
Whole Machine Weight	28 kgs
Laser Head Weight	0.62 kgs

After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.



How to protect my order?
Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment

if your order is not shipped on time, or if the pre-shipment product quality (optional) does

not match the terms agreed on your contract. Your payment is protected up to 100% of an

amount - agreed between you and the supplier - called the Trade Assurance Order Amount.

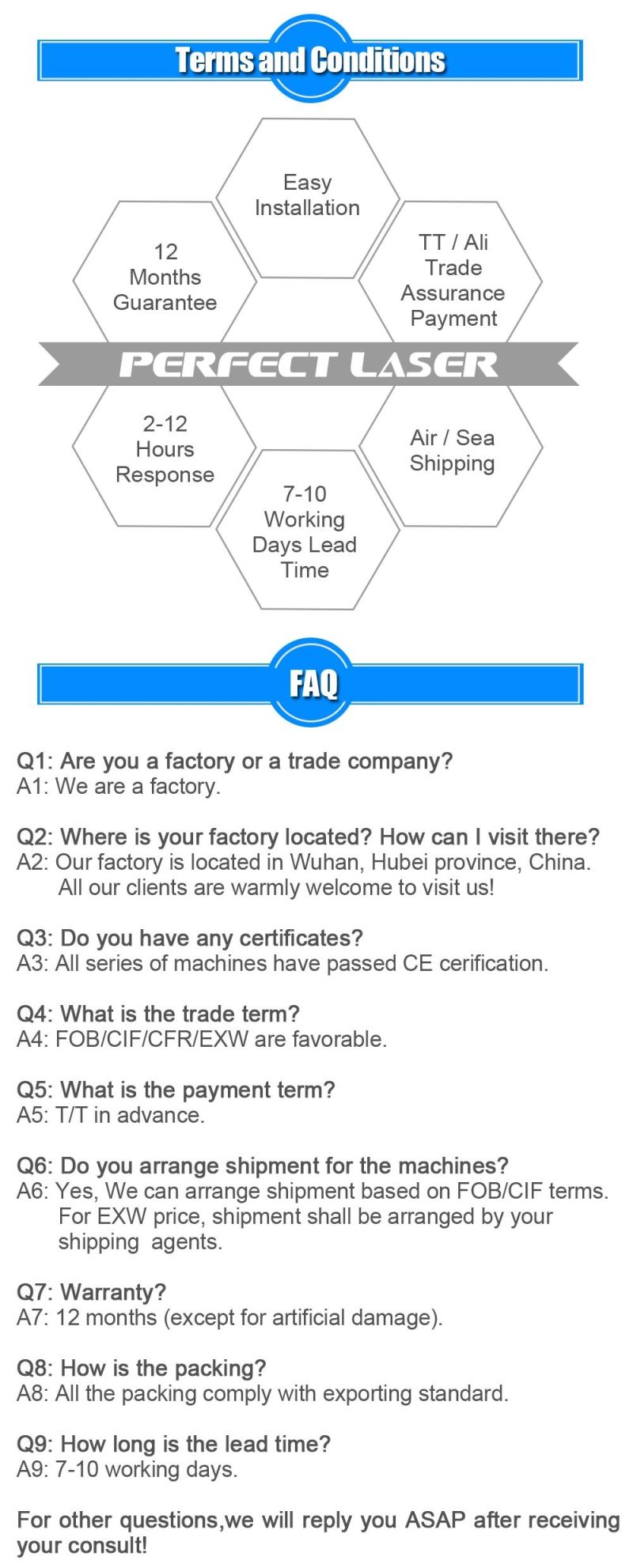

FAQ

Q1.: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q2.: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q3.: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q4.: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Our Company:
We, Perfect Laser, as a 21 years history industrial manufacture in laser equipment field, 13 year Golden Supplier in Alibaba, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.




Contact:Perfect Laser Co., Ltd. (China)Conatct Person:Crystal / sales department
Tel:0086-13659893728
Fax:0086-2786775865
