• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：860*360*760mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 860*360*760mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

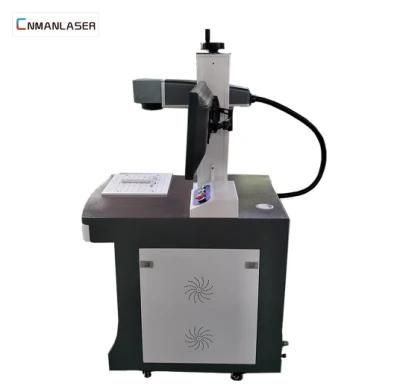

 Rings Necklace Bangles Jewelry Laser Marking Engraving Machine Price






Simple Introduction:

High speed with galvanometer.

Small volume,light weight.

Low power,consumption power is less than 500w.

Completely air cooling,low power consumption.

No influence of the severe enviroment and temperature change.If no power,battery and car cigarette lighter can be used for working.

Greatly reduce the depreciation cost,satisfying customers' stable large quantities production.

 TECHNICAL  PARAMETER :


Model	MAN-20/ MAN-30
Laser power	Fiber 20W air cooling
Working area	110*110mm
Laser Wavelength	1064nm
Response time	0.5m/s
Frequency of pulse	20-100KHz
Max marking depth	≤0.4mm
Marking speed	≤7000mm/s
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.1mm
Minimum character	0.15mm
Repeatability accuracy	±0.002mm
Resolution ratio	0.1mm
Marking content	Text,pattern,date,bar code,etc
Operation system	Microsoft Windows XP or Windows 2000
Control software	JCZ
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc
Unit power	≤1.2KW
Operation temperature	5ºC-40ºC
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/50Hz/10A

  DETAILS   IMAGES :



Laser parts with the machine :



  SAMPLE SHOW :

Mechanical Parts:               Bearings, Gears, Standard Parts, Motor, etc.

Instrument:                          Panel Board, Nameplates, Precision equipment, etc.

Hardware Tools:                  Knives, Tools, Measuring Tools, Cutting Tools, etc.

Daily Necessities:                 Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Automobile Parts:                Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

Electronic Components:      Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.

 PACKAGING &  SHIPPING :

Fiber marking machine packaging

Inside Packing

Use professional Stretch Film to cover the whole lathe , Stretch film package with foam protection in each corner.

Outside Packing

Standard export wooden cases and pylwood cases , Save space as much as possible for container loading.

Transport

We support shipping, air, land and express . You can choose the most suitable way of transport

Fiber marking machine shipping

As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.


 ABOUT US  :



Q1: How can I get the best machine for me?

You can tell us your working material, detail work by picture or vedio

Then we can recommed you the most suitable machine depends on our experience.

Q2: This is the first time I use this kind of machine, is it easy to operate?

We will send you manual and guide vedio in English, it can teach you how to operate the machine.

If you still can not learn how to use it, we can help you by "Teamviewer" online help software.

Or we can talk by phone, email or other contact ways.

Q3: If the machine has problem in my place, how could I do?

We could send free parts to you in warranty period if machines have any problem under "normal use".

Q4: This model is not suitable for me, do you have more models available?

Yes, we can supply many models  based on your materail ,working size,and other requiremets

If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!

Q5:What's the guarantee, in case the machine breaks down?

The machine has two year's guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be,

according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
