• Model NO.：DXTECH-3015
• Structure Type：Gantry Type
• Laser Classification：Free Electron Laser
• Laser Technology：Laser Control Fault Cutting
• Main Selling Point：Competitive Price
• Product Name：Full Protective Enclosed Fiber Laser Cutting Machi
• Cutting Materials：Stainless Steel Carbon Steel etc( Metal Laser Cutt
• Color：Customizable
• Driving System：Japan Yaskawa Servo Motor
• Function：Cutting Metal Materials
• Type：1530 Fiber Laser Cutting
• Transmission：Hiwin Guide Rails
• Cast Iron Bed：Gray Cast Iron
• Motor：Japan Yaskawa
• Cast Aluminum Beam：Higher Machining Accuracy
• Component：Fiber Laser, Stepper Motor, Servo Motor, Bed, Lase
• Affect Facor：The Shape of The Laser Beam, The Width of The Slit
• Cutting Shape：1500*3000mm(Option)
• Advantages：High Processing Quality, Low Procurement Cost
• Transport Package：3 Layers
• Specification：5000 kg
• Trademark：DXTECH
• Origin：Jinan, Shandong Province
• HS Code：8461500090

Basic Info.

Model NO. DXTECH-3015 Structure Type Gantry Type Laser Classification Free Electron Laser Laser Technology Laser Control Fault Cutting Main Selling Point Competitive Price Product Name Full Protective Enclosed Fiber Laser Cutting Machi Cutting Materials Stainless Steel Carbon Steel etc( Metal Laser Cutt Color Customizable Driving System Japan Yaskawa Servo Motor Function Cutting Metal Materials Type 1530 Fiber Laser Cutting Transmission Hiwin Guide Rails Cast Iron Bed Gray Cast Iron Motor Japan Yaskawa Cast Aluminum Beam Higher Machining Accuracy Component Fiber Laser, Stepper Motor, Servo Motor, Bed, Lase Affect Facor The Shape of The Laser Beam, The Width of The Slit Cutting Shape 1500*3000mm(Option) Advantages High Processing Quality, Low Procurement Cost Transport Package 3 Layers Specification 5000 kg Trademark DXTECH Origin Jinan, Shandong Province HS Code 8461500090

Product Description

Product Description
Short brief:

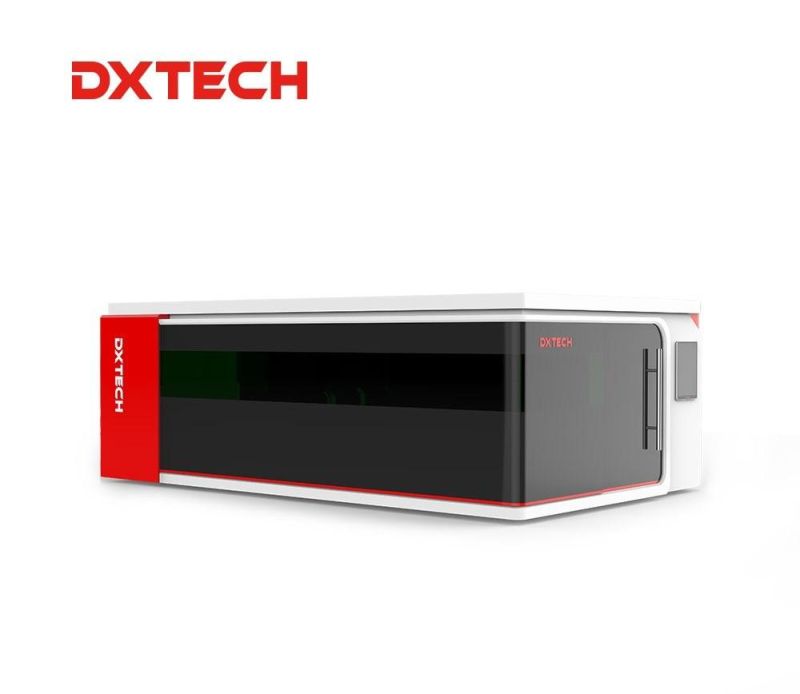

The protective fiber laser cutting machine adopts totally enclosed laser protective cover, professional numerical control cutting system, top-level imported parts and strict assembly process, ensuring the safe, stable, efficient and high-precision operation of the cutter.

Technical parameter:

Working Area 1500*3000mm(optional) Laser Output Power 1000W/2000W/3000W/4000w( optional ) X/Y-axis positioning accuracy ±0.03mm X/Y-axis repositioning accuracy ±0.02mm Max Cutting Speed 25m/min Maximum acceleration 1.5G Servo motor Japan Yaskawa / Japan Fuji Electrical components Schneider Reducer Japan SHIMPO

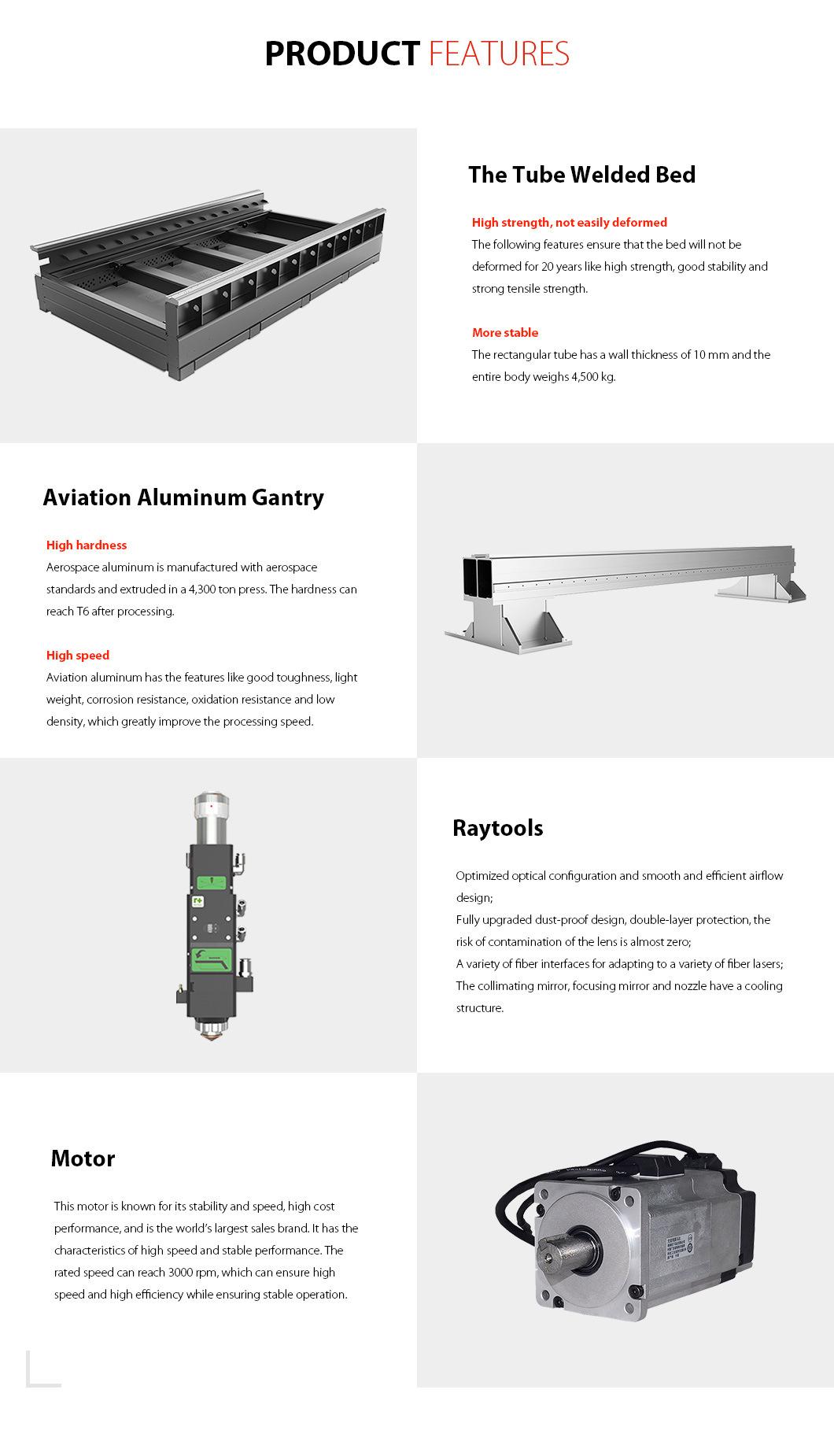

Detailed Images

The Tube Welded Bed

High strength, not easily deformed The following features ensure that the bed will not be deformed for 20 years like high strength, good stability and strong tensile strength. More stable The rectangular tube has a wall thickness of 10 mm and the entire body weighs 4,500 kg


Aviation Aluminum Gantry

--High hardness Aerospace aluminum is manufactured with aerospace standards and extruded in a 4,300 ton press. The hardness can reach T6 after processing.
--High speed Aviation aluminum has the features like good toughness, light weight, corrosion resistance, oxidation resistance and low density, which greatly improve the processing speed.


Raytools

Optimized optical configuration and smooth and efficient airflow design;
Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero;
A variety of fiber interfaces for adapting to a variety of fiber lasers;

The collimating mirror, focusing mirror and nozzle have a cooling structure.
Application

--Materials. Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.
--Various industry. The fiber laser cutting machine is widely used in automative industry, advertising industry, kitchenware industry, sheet metal industry, cabinet industry, fitness industry etc. Professional in many manufacturing and processing industries like sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal processing, kitchen processing and other industries.
Packing & Delivery
Packaging Improving:
Three layers--- -The innermost layer is EPE pearl cotton film package;
-The middle layer is wrapping up with environmental protection material ;
-And the outermost layer is winding up with PE stretch film.
They're very environmentally friendly. If you need a wooden box, we will make fumigation free wooden package outside the machine.

Our Company
Jinan DXTECH cnc machinery company is professional in design and manufacturing of fiber laser cutting and engraving machine, co2 laser cutting and engraving machine, and fiber or co2 laser marking machine from Jinan city of China. We have always been devoting to the research and manufacture of Laser CNC cutting and engraving machines. We have R&D Production Department, Quality Control Department, and Sales & Service Department. Our products are widely used in woodworking industry, model industry, electric, CAD/CAM industry model, clothing industry, package printing and marking industry, laser sealing, automative industry, advertising industry, kitchenware industry, sheet metal industry, cabinet industry, fitness industry etc.
